Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PE-53818SNLTFIXED IND 252UH 440MA 900MOHM SM Pulse Electronics |
232 | 2.73 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 252 µH | ±20% | 440 mA | - | Shielded | 900mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.570" L x 0.565" W (14.48mm x 14.35mm) | 0.360" (9.14mm) |
|

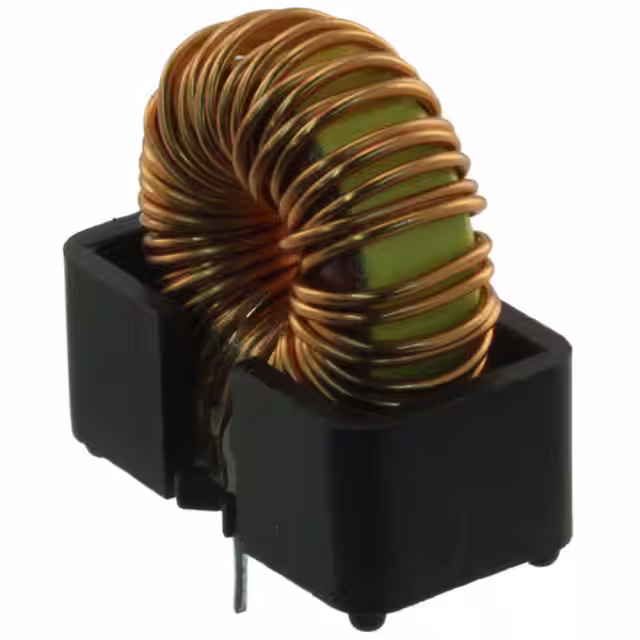

PE-54039NLFIXED IND 53UH 3A 80 MOHM TH Pulse Electronics |
415 | 4.42 |
|
Datasheet |
- | Radial, Vertical (Open) | Tray | Active | Toroidal | - | 53 µH | ±20% | 3 A | - | Shielded | 80mOhm | - | - | - | -40°C ~ 130°C | 20 kHz | - | Through Hole | - | 0.830" L x 0.450" W (21.09mm x 11.43mm) | 0.950" (24.13mm) |
|
PE-54041SNLFIXED IND 25UH 3A 40 MOHM SMD Pulse Electronics |
635 | 3.21 |
|
Datasheet |
- | Nonstandard | Bulk | Active | Toroidal | - | 25 µH | ±20% | 3 A | - | Shielded | 40mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.700" L x 0.670" W (17.78mm x 17.02mm) | 0.390" (9.91mm) |
|

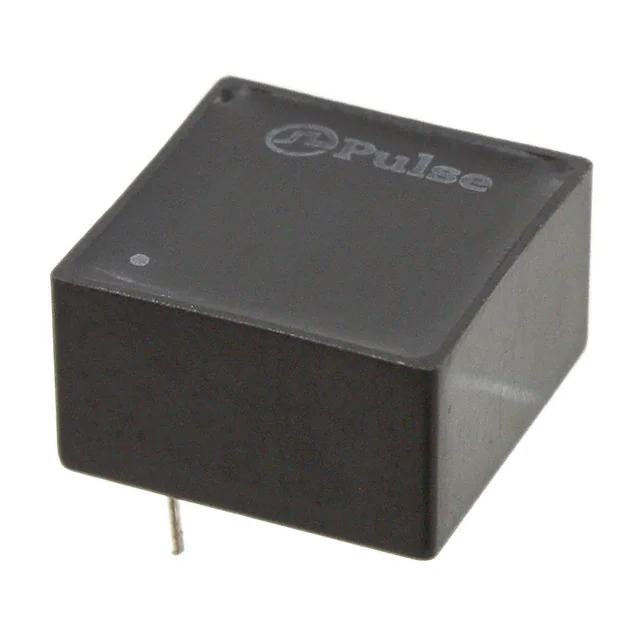

PE-53828NLFIXED IND 168UH 1.02A 400MOHM TH Pulse Electronics |
634 | 4.07 |
|
Datasheet |
- | Radial, Vertical - Corner Terminals | Tube | Active | Toroidal | - | 168 µH | ±20% | 1.02 A | - | Shielded | 400mOhm | - | - | - | -40°C ~ 130°C | - | - | Through Hole | - | 0.635" L x 0.635" W (16.13mm x 16.13mm) | 0.365" (9.27mm) |
|

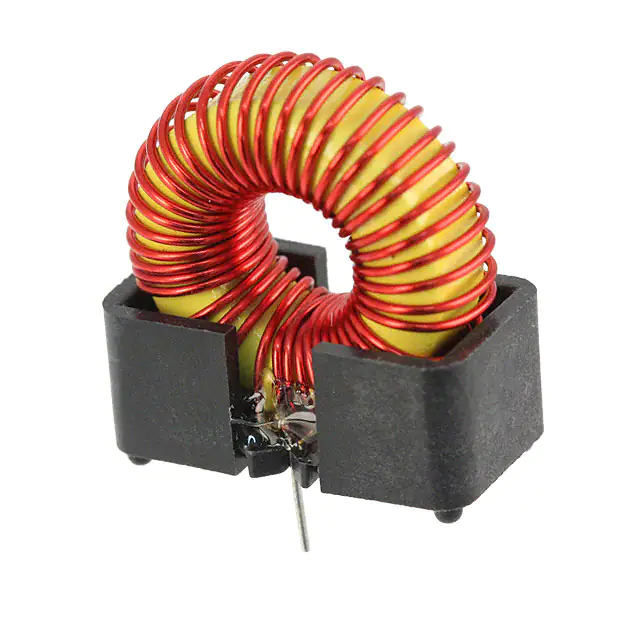

PE-92102KNLFIXED IND 100UH 2.6A 100 MOHM TH Pulse Electronics |
794 | 3.25 |
|
Datasheet |
- | Radial, Vertical (Open) | Tray | Active | Toroidal | - | 100 µH | ±20% | 2.6 A | - | Unshielded | 100mOhm Max | - | - | - | -40°C ~ 130°C | 20 kHz | - | Through Hole | - | 0.850" L x 0.450" W (21.59mm x 11.43mm) | 0.950" (24.13mm) |
|

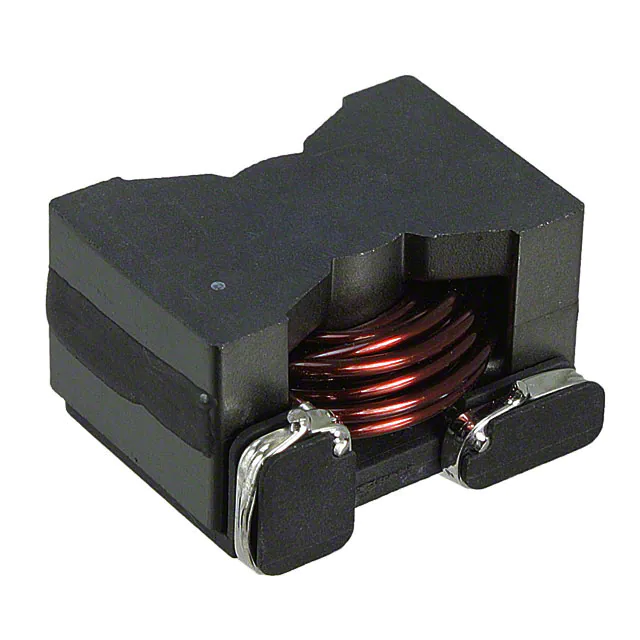

PA2050.782NLFIXED IND 7.8UH 13.3A 5.1MOHM SM Pulse Electronics |
770 | 5.23 |
|
Datasheet |
PA2050NL | Nonstandard | Tray | Active | Wirewound | - | 7.8 µH | ±10% | 13.3 A | 18A | Shielded | 5.1mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.875" L x 0.750" W (22.23mm x 19.05mm) | 0.480" (12.20mm) |
|

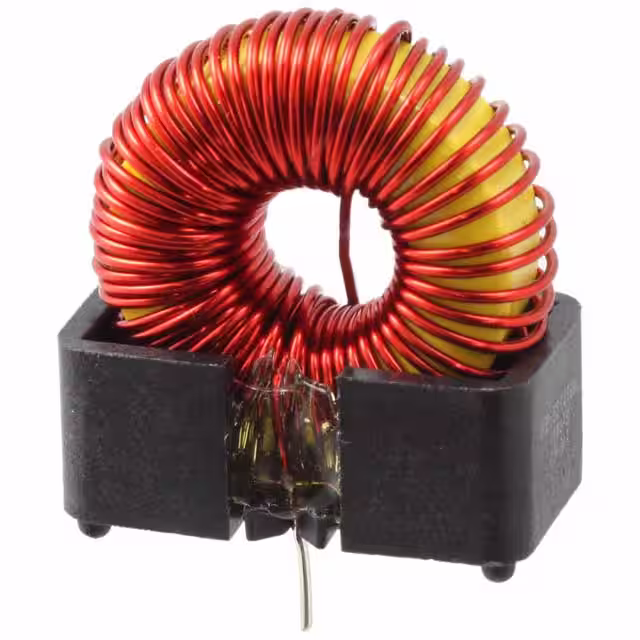

PE-53145NLFIXED IND 220UH 1.4A 140 MOHM TH Pulse Electronics |
391 | 3.25 |
|
Datasheet |
- | Radial, Vertical (Open) | Tube | Active | Toroidal | - | 220 µH | ±20% | 1.4 A | - | Unshielded | 140mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Through Hole | - | 0.830" L x 0.450" W (21.09mm x 11.43mm) | 0.950" (24.13mm) |
|

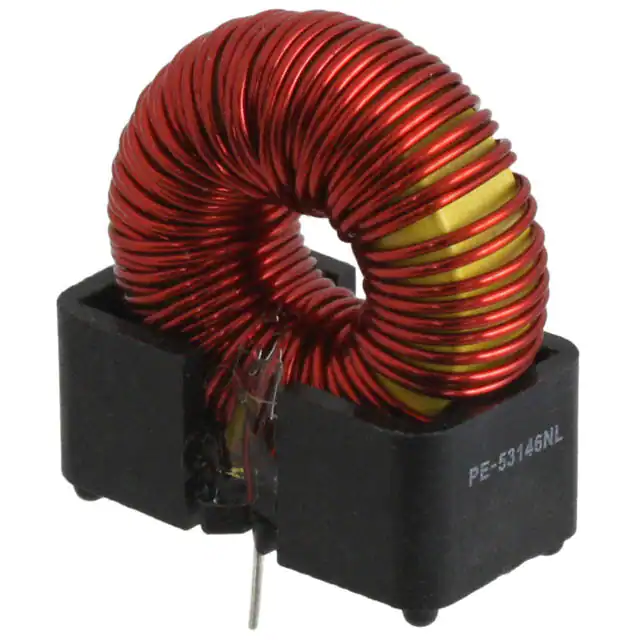

PE-53146NLFIXED IND 330UH 900MA 180MOHM TH Pulse Electronics |
210 | 3.18 |
|
Datasheet |
- | Radial, Vertical (Open) | Tube | Active | Toroidal | - | 330 µH | ±20% | 900 mA | - | Unshielded | 180mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Through Hole | - | 0.830" L x 0.450" W (21.09mm x 11.43mm) | 0.950" (24.13mm) |
|
PE-53827SNLTFIXED IND 248UH 830MA 600MOHM SM Pulse Electronics |
1,245 | 3.37 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 248 µH | ±20% | 830 mA | - | Shielded | 600mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.620" L x 0.600" W (15.75mm x 15.24mm) | 0.390" (9.91mm) |
|
PA2729.443NLFIXED IND 44UH 6.2A 21.5MOHM SMD Pulse Electronics |
868 | 3.56 |
|
Datasheet |
PA2729.XXXNL | Nonstandard | Tray | Active | Wirewound | - | 44 µH | ±15% | 6.2 A | 7.3A | Shielded | 21.5mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.875" L x 0.750" W (22.23mm x 19.05mm) | 0.480" (12.20mm) |
