Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

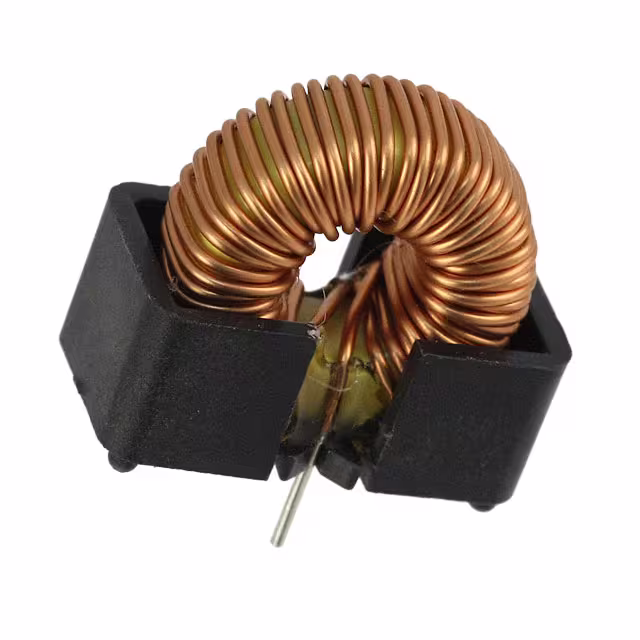

PE-54040NLFIXED IND 38UH 3A 50 MOHM TH Pulse Electronics |
1,508 | 4.09 |
|
Datasheet |
- | Radial, Vertical (Open) | Tray | Active | Toroidal | - | 38 µH | ±20% | 3 A | - | Shielded | 50mOhm | - | - | - | -40°C ~ 130°C | 20 kHz | - | Through Hole | - | 0.830" L x 0.450" W (21.09mm x 11.43mm) | 0.950" (24.13mm) |
|
PE-92104KNLFIXED IND 70UH 3A 52 MOHM TH Pulse Electronics |
555 | 3.98 |
|
Datasheet |
- | Radial, Vertical (Open) | Tray | Active | Toroidal | - | 70 µH | ±20% | 3 A | - | Unshielded | 52mOhm Max | - | - | - | -40°C ~ 130°C | 20 kHz | - | Through Hole | - | 0.850" L x 0.450" W (21.59mm x 11.43mm) | 0.950" (24.13mm) |
|
P0841SNLTFIXED IND 22.8UH 4.9A 36MOHM SMD Pulse Electronics |
2,628 | 4.23 |
|
Datasheet |
HCI-68 | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 22.8 µH | ±20% | 4.9 A | - | Shielded | 36mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.940" L x 0.940" W (23.87mm x 23.87mm) | 0.400" (10.16mm) |
|
PA4344.333NLTFIXED IND 33UH 10.7A 44 MOHM SMD Pulse Electronics |
1,025 | 4.57 |
|
Datasheet |
PA4344.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 33 µH | - | 10.7 A | 15A | Shielded | 44mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.697" L x 0.677" W (17.70mm x 17.20mm) | 0.276" (7.00mm) |
|

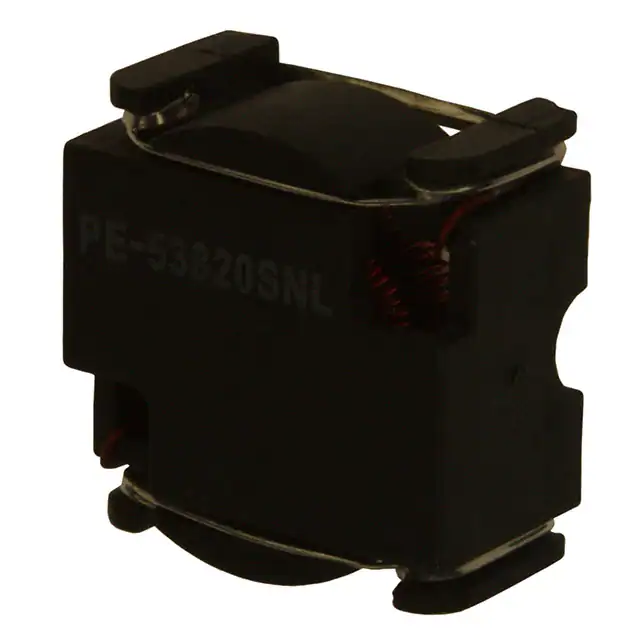

PE-53820SNLTFIXED IND 115UH 670MA 400MOHM SM Pulse Electronics |
996 | 3.95 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 115 µH | ±20% | 670 mA | - | Shielded | 400mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.570" L x 0.565" W (14.48mm x 14.35mm) | 0.360" (9.14mm) |
|
|
PA4344.682NLTFIXED IND 6.8UH 19A 9.2 MOHM SMD Pulse Electronics |
617 | 4.57 |
|
Datasheet |
PA4344.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 6.8 µH | - | 19 A | 32A | Shielded | 9.2mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.697" L x 0.677" W (17.70mm x 17.20mm) | 0.276" (7.00mm) |
|

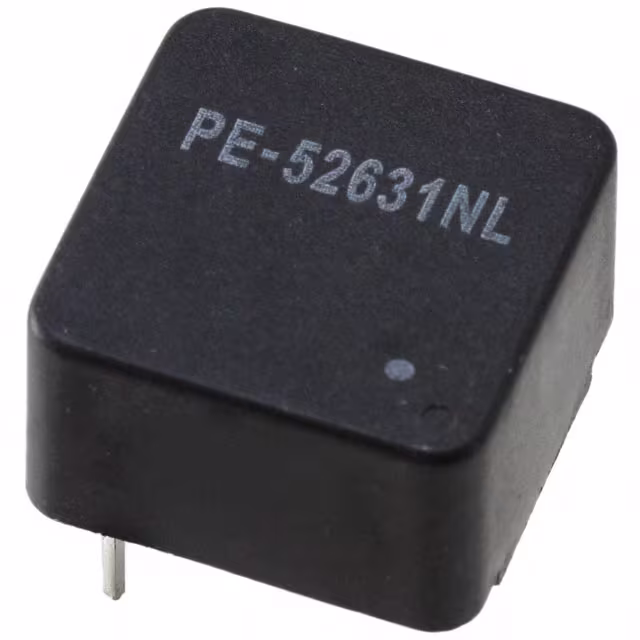

PE-52631NLFIXED IND 1MH 500MA 2.6 OHM TH Pulse Electronics |
455 | 4.58 |
|
Datasheet |
- | Radial, Horizontal - Corner Terminals | Tube | Active | Toroidal | - | 1 mH | ±20% | 500 mA | - | Unshielded | 2.6Ohm Max | - | - | - | -40°C ~ 130°C | 20 kHz | - | Through Hole | - | 0.710" L x 0.710" W (18.03mm x 18.03mm) | 0.460" (11.68mm) |
|

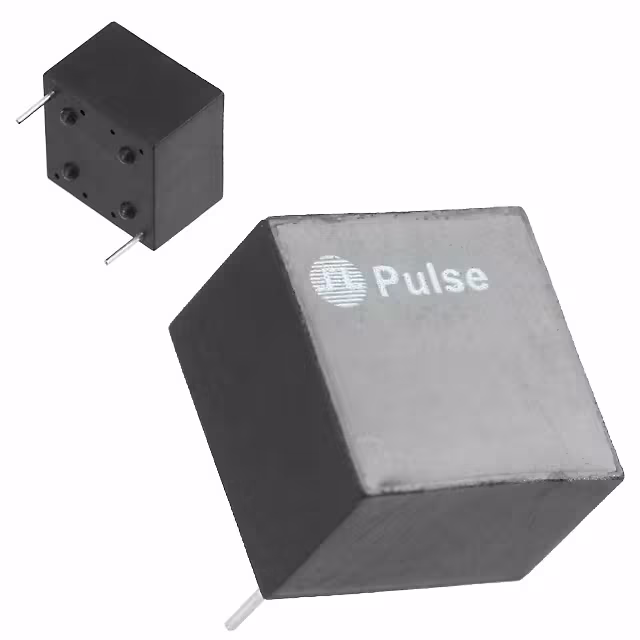

PE-53821NLFIXED IND 78UH 820MA 300 MOHM TH Pulse Electronics |
286 | 4.42 |
|
Datasheet |
- | Radial, Vertical - Corner Terminals | Tube | Active | Toroidal | - | 78 µH | ±20% | 820 mA | - | Shielded | 300mOhm | - | - | - | -40°C ~ 130°C | - | - | Through Hole | - | 0.495" L x 0.495" W (12.57mm x 12.57mm) | 0.375" (9.52mm) |
|

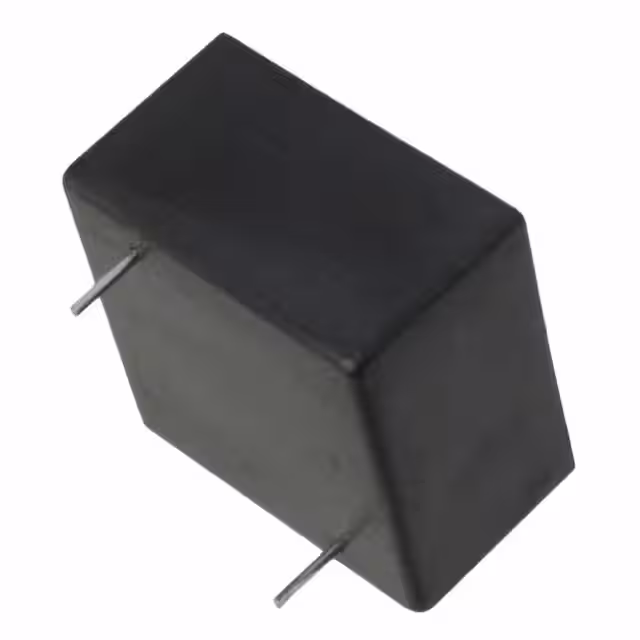

PE-53830NLFIXED IND 77UH 1.54A 200 MOHM TH Pulse Electronics |
430 | 4.49 |
|
Datasheet |
- | Radial, Vertical - Corner Terminals | Tube | Active | Toroidal | - | 77 µH | ±20% | 1.54 A | - | Shielded | 200mOhm | - | - | - | -40°C ~ 130°C | - | - | Through Hole | - | 0.635" L x 0.635" W (16.13mm x 16.13mm) | 0.365" (9.27mm) |
|
PG1083.153NLFIXED IND 15.2UH 14A 9.2MOHM SMD Pulse Electronics |
871 | 4.70 |
|
Datasheet |
PG1083NL | Nonstandard | Tray | Active | Wirewound | - | 15.2 µH | ±20% | 14 A | 18.5A | Unshielded | 9.2mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.854" L x 0.846" W (21.70mm x 21.50mm) | 0.492" (12.50mm) |
