Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PA2729.802NLFIXED IND 8.3UH 13.3A 5.1MOHM SM Pulse Electronics |
370 | 3.56 |
|
Datasheet |
PA2729.XXXNL | Nonstandard | Tray | Active | Wirewound | - | 8.3 µH | ±15% | 13.3 A | 16.8A | Shielded | 5.1mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.875" L x 0.750" W (22.23mm x 19.05mm) | 0.480" (12.20mm) |
|
|
PA2729.603NLFIXED IND 60.3UH 5.1A 31.5 MOHM Pulse Electronics |
1,012 | 3.56 |
|
Datasheet |
PA2729.XXXNL | Nonstandard | Tray | Active | Wirewound | - | 60.3 µH | ±15% | 5.1 A | 6.2A | Shielded | 31.5mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.875" L x 0.750" W (22.23mm x 19.05mm) | 0.480" (12.20mm) |
|
|
PA2729.602NLFIXED IND 6UH 14.4A 4.4 MOHM SMD Pulse Electronics |
389 | 3.56 |
|
Datasheet |
PA2729.XXXNL | Nonstandard | Tray | Active | Wirewound | - | 6 µH | ±15% | 14.4 A | 19.6A | Shielded | 4.4mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.875" L x 0.750" W (22.23mm x 19.05mm) | 0.480" (12.20mm) |
|

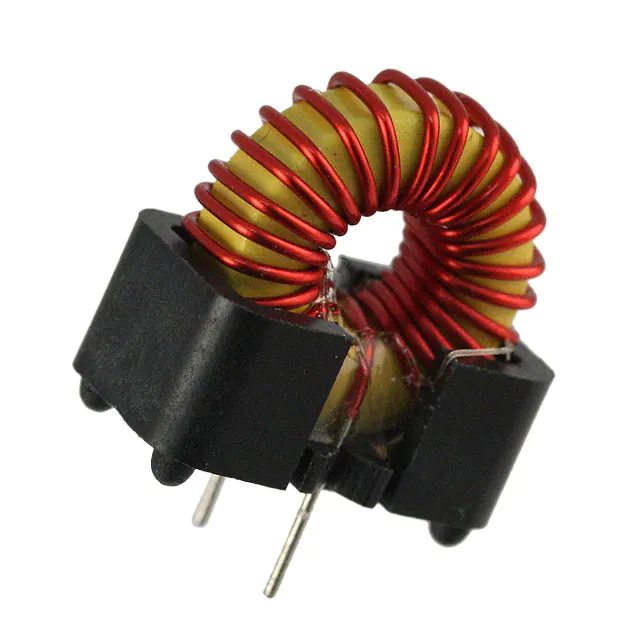

PE-92100KNLFIXED IND 25UH 2.6A 43 MOHM TH Pulse Electronics |
247 | 3.31 |
|
Datasheet |
- | Radial, Vertical (Open) | Tray | Active | Toroidal | - | 25 µH | ±20% | 2.6 A | - | Unshielded | 43mOhm Max | - | - | - | -40°C ~ 130°C | 20 kHz | - | Through Hole | - | 0.580" L x 0.340" W (14.73mm x 8.64mm) | 0.650" (16.51mm) |
|
PE-53829SNLFIXED IND 112UH 1.26A 300MOHM SM Pulse Electronics |
4,233 | 3.15 |
|
Datasheet |
- | Nonstandard | Tube | Active | Toroidal | - | 112 µH | ±20% | 1.26 A | - | Shielded | 300mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.620" L x 0.600" W (15.75mm x 15.24mm) | 0.390" (9.91mm) |
|
|
PE-53933SNLFIXED IND 24UH 2.74A 70 MOHM SMD Pulse Electronics |
940 | 3.37 |
|
Datasheet |
- | Nonstandard | Bulk | Active | Toroidal | - | 24 µH | ±20% | 2.74 A | - | Shielded | 70mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.620" L x 0.600" W (15.75mm x 15.24mm) | 0.390" (9.91mm) |
|
|
PE-53933SNLTFIXED IND 24UH 2.74A 70 MOHM SMD Pulse Electronics |
497 | 3.44 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 24 µH | ±20% | 2.74 A | - | Shielded | 70mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.620" L x 0.600" W (15.75mm x 15.24mm) | 0.390" (9.91mm) |
|
|
PE-53827SNLFIXED IND 248UH 830MA 600MOHM SM Pulse Electronics |
690 | 3.18 |
|
Datasheet |
- | Nonstandard | Bulk | Active | Toroidal | - | 248 µH | ±20% | 830 mA | - | Shielded | 600mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.620" L x 0.600" W (15.75mm x 15.24mm) | 0.390" (9.91mm) |
|
PE-54036NLFIXED IND 168UH 1.81A 180MOHM TH Pulse Electronics |
5,486 | 4.42 |
|
Datasheet |
- | Radial, Vertical (Open) | Tray | Active | Toroidal | - | 168 µH | ±20% | 1.81 A | - | Shielded | 180mOhm | - | - | - | -40°C ~ 130°C | 20 kHz | - | Through Hole | - | 0.830" L x 0.450" W (21.09mm x 11.43mm) | 0.950" (24.13mm) |
|

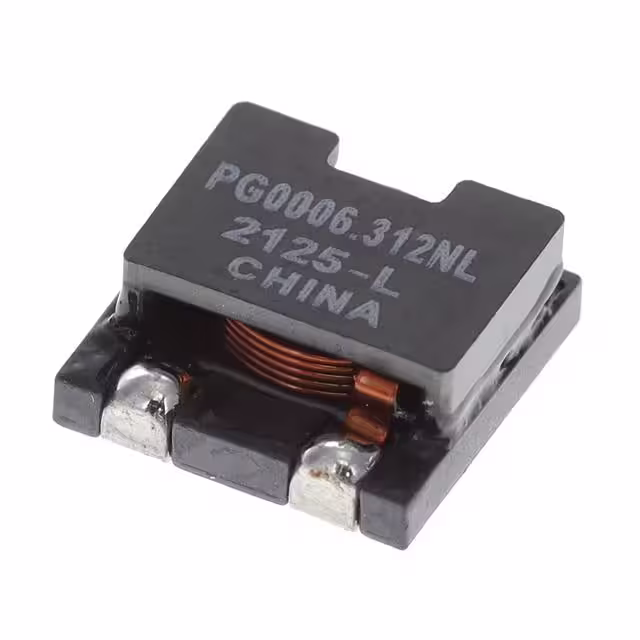

PG0006.312NLTFIXED IND 3.1UH 12A 7.5 MOHM SMD Pulse Electronics |
2,169 | 3.64 |
|
Datasheet |
PG0006NL | Nonstandard | Tape & Reel (TR) | Active | - | - | 3.1 µH | ±20% | 12 A | 12A | Unshielded | 7.5mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.528" L x 0.523" W (13.40mm x 13.28mm) | 0.236" (6.00mm) |
