Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PM4344.103NLTFIXED IND 10UH 16.5A 13MOHM SMD Pulse Electronics |
1,476 | 4.87 |
|
Datasheet |
PM4344.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 10 µH | ±20% | 16.5 A | 24A | Shielded | 13mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.697" L x 0.677" W (17.70mm x 17.20mm) | 0.276" (7.00mm) |
|
PE-54038NLFIXED IND 77UH 2.7A 90 MOHM TH Pulse Electronics |
811 | 4.77 |
|
Datasheet |
- | Radial, Vertical (Open) | Tray | Active | Toroidal | - | 77 µH | ±20% | 2.7 A | - | Shielded | 90mOhm | - | - | - | -40°C ~ 130°C | 20 kHz | - | Through Hole | - | 0.830" L x 0.450" W (21.09mm x 11.43mm) | 0.950" (24.13mm) |
|

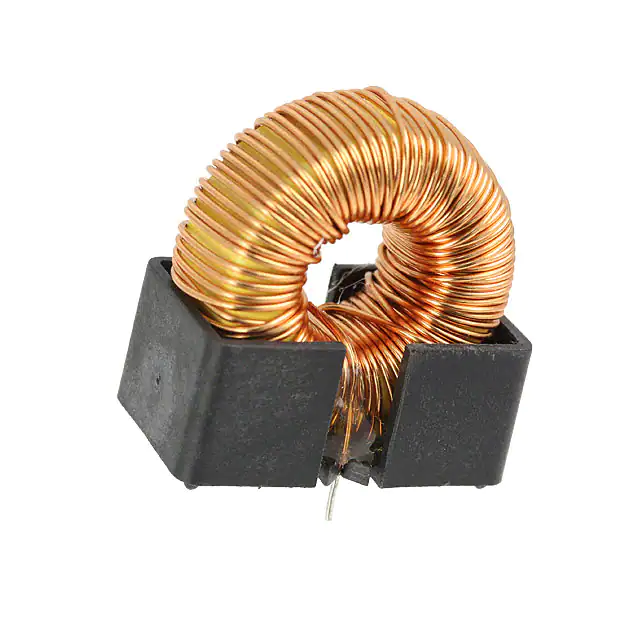

PE-53119NLFIXED IND 680UH 1.3A 200 MOHM TH Pulse Electronics |
854 | 5.69 |
|
Datasheet |
- | Radial, Vertical (Open) | Tube | Active | Toroidal | - | 680 µH | ±20% | 1.3 A | - | Unshielded | 200mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Through Hole | - | 1.300" L x 0.700" W (33.02mm x 17.78mm) | 1.400" (35.56mm) |
|
PE-54039SNLTFIXED IND 53UH 3A 80 MOHM SMD Pulse Electronics |
1,193 | 4.52 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 53 µH | ±20% | 3 A | - | Shielded | 80mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.940" L x 0.940" W (23.88mm x 23.88mm) | 0.400" (10.16mm) |
|
PG1083.152NLFIXED IND 1.5UH 40A 1.4 MOHM SMD Pulse Electronics |
1,031 | 4.70 |
|
Datasheet |
PG1083NL | Nonstandard | Tray | Active | Wirewound | - | 1.5 µH | ±20% | 40 A | 52A | Unshielded | 1.4mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.854" L x 0.846" W (21.70mm x 21.50mm) | 0.417" (10.60mm) |
|
PA4344.472ANLTFIXED IND 4.7UH 28A 4.5 MOHM SMD Pulse Electronics |
788 | 4.99 |
|
Datasheet |
PA4344.XXXANLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 4.7 µH | ±20% | 28 A | 29A | Shielded | 4.5mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.701" L x 0.665" W (17.80mm x 16.90mm) | 0.276" (7.00mm) |
|
|
PA4344.471ANLTFIXED IND 470NH 60A 0.9 MOHM SMD Pulse Electronics |
522 | 4.99 |
|
Datasheet |
PA4344.XXXANLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 470 nH | ±20% | 60 A | 110A | Shielded | 0.9mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.701" L x 0.665" W (17.80mm x 16.90mm) | 0.276" (7.00mm) |
|

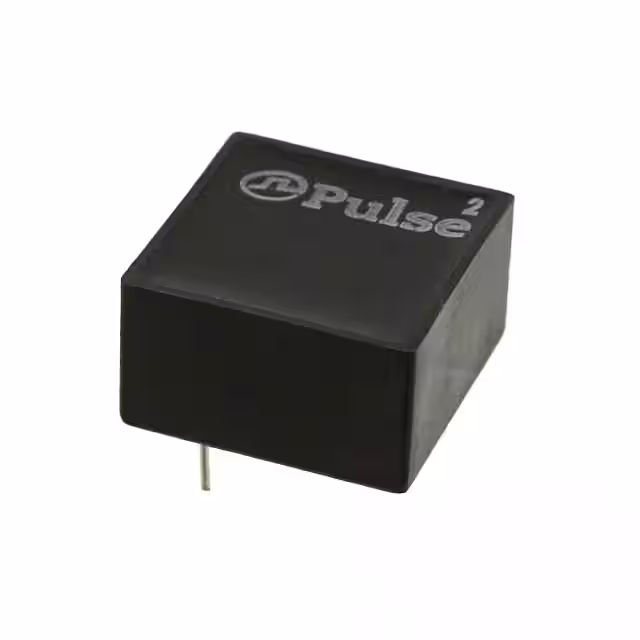

PE-53829NLFIXED IND 112UH 1.26A 300MOHM TH Pulse Electronics |
197 | 4.45 |
|
Datasheet |
- | Radial, Vertical - Corner Terminals | Tube | Active | Toroidal | - | 112 µH | ±20% | 1.26 A | - | Shielded | 300mOhm | - | - | - | -40°C ~ 130°C | - | - | Through Hole | - | 0.635" L x 0.635" W (16.13mm x 16.13mm) | 0.365" (9.27mm) |
|
PA2050.413NLFIXED IND 41UH 6A 23.1 MOHM SMD Pulse Electronics |
238 | 5.23 |
|
Datasheet |
PA2050NL | Nonstandard | Tray | Active | Wirewound | - | 41 µH | ±10% | 6 A | 7.3A | Shielded | 23.1mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.875" L x 0.750" W (22.23mm x 19.05mm) | 0.480" (12.20mm) |
|

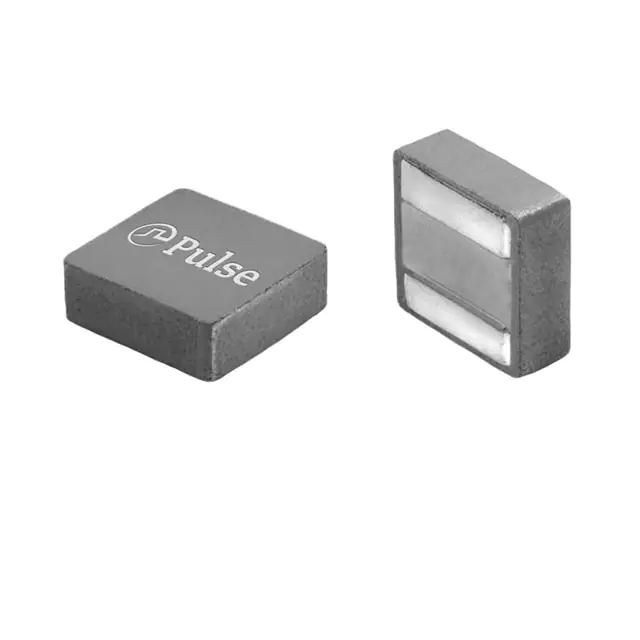

PA2247.103NLTFIXED IND 10UH 24A 8.6 MOHM SMD Pulse Electronics |
1,215 | 8.31 |
|
Datasheet |
PA2247.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | - | - | 10 µH | ±20% | 24 A | 26A | Unshielded | 8.6mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.650" L x 0.610" W (16.50mm x 15.50mm) | 0.394" (10.00mm) |
