Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PA4344.333ANLTFIXED IND 33UH 12A 37 MOHM SMD Pulse Electronics |
783 | 4.99 |
|
Datasheet |
PA4344.XXXANLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 33 µH | ±20% | 12 A | 12A | Shielded | 37mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.701" L x 0.665" W (17.80mm x 16.90mm) | 0.276" (7.00mm) |
|

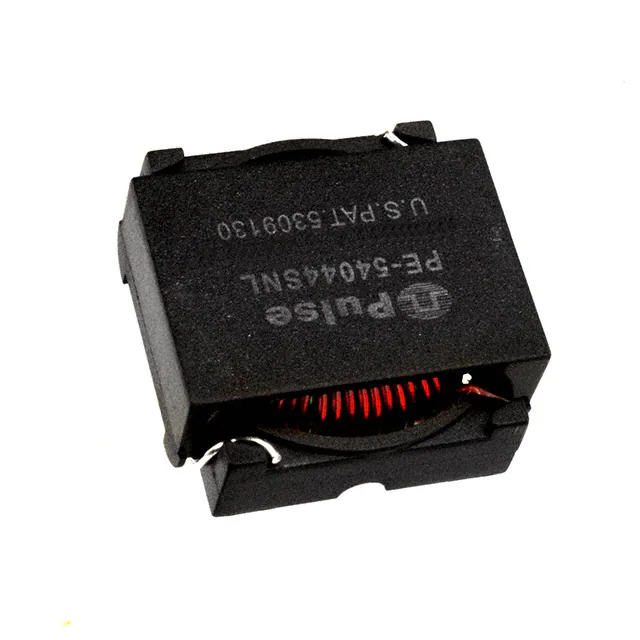

PE-54044SNLFIXED IND 77UH 3A 80 MOHM SMD Pulse Electronics |
1,103 | 5.03 |
|
Datasheet |
- | Nonstandard | Bulk | Active | Toroidal | - | 77 µH | ±20% | 3 A | - | Shielded | 80mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.940" L x 0.940" W (23.88mm x 23.88mm) | 0.400" (10.16mm) |
|

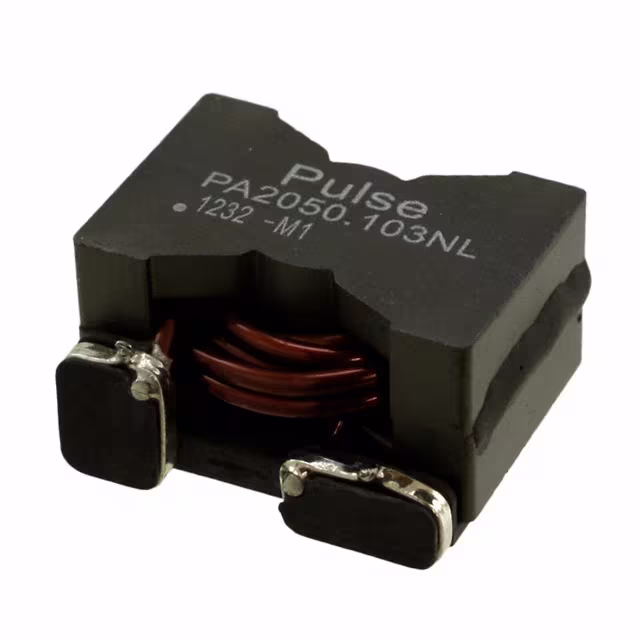

PA2050.103NLFIXED IND 10.2UH 12.5A 5.8 MOHM Pulse Electronics |
744 | 5.23 |
|
Datasheet |
PA2050NL | Nonstandard | Tray | Active | Wirewound | - | 10.2 µH | ±10% | 12.5 A | 16A | Shielded | 5.8mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.875" L x 0.750" W (22.23mm x 19.05mm) | 0.480" (12.20mm) |
|

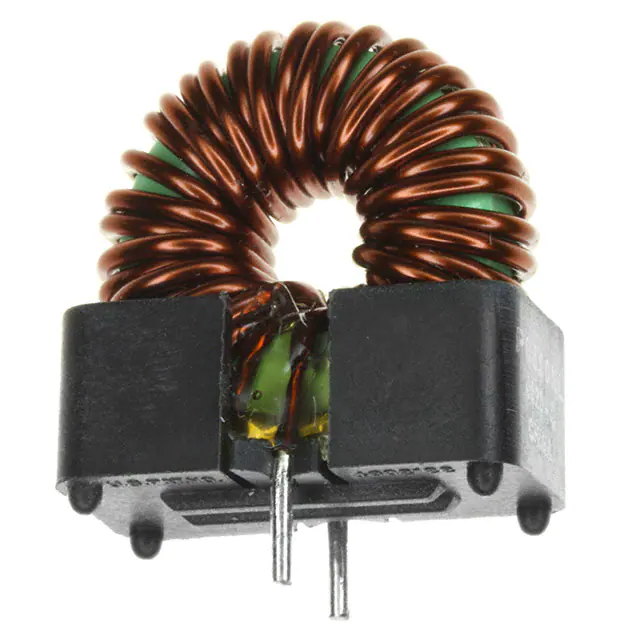

P0850NLFIXED IND 23UH 5A 26 MOHM TH Pulse Electronics |
666 | 5.12 |
|
Datasheet |
KlipMount™ | Radial, Vertical (Open) | Tray | Active | Toroidal | - | 23 µH | ±20% | 5 A | - | Shielded | 26mOhm | - | - | - | -40°C ~ 130°C | - | - | Through Hole | - | 0.830" L x 0.450" W (21.09mm x 11.43mm) | 0.950" (24.13mm) |
|
PE-53120NLFIXED IND 1MH 950MA 240 MOHM TH Pulse Electronics |
477 | 6.11 |
|
Datasheet |
- | Radial, Vertical (Open) | Tube | Active | Toroidal | - | 1 mH | ±20% | 950 mA | - | Unshielded | 240mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Through Hole | - | 1.300" L x 0.700" W (33.02mm x 17.78mm) | 1.400" (35.56mm) |
|

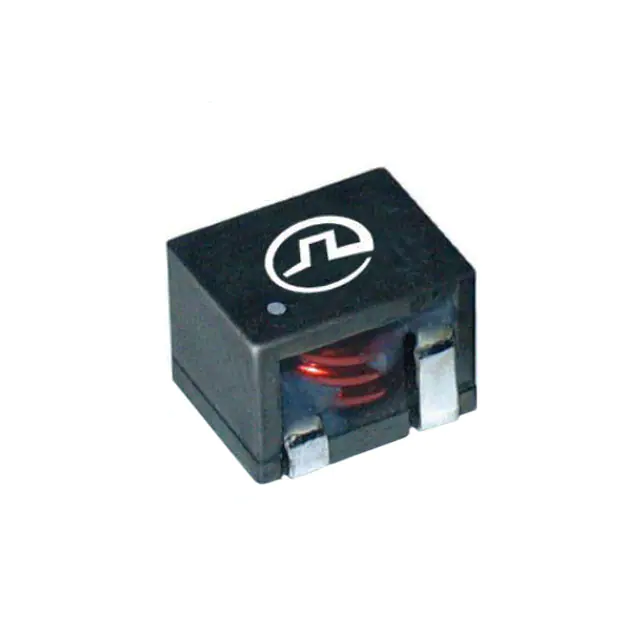

PG1096.223NLTPULSE XFMR 19.5UH Pulse Electronics |
304 | 6.40 |
|
Datasheet |
PG1096NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 19.5 µH | ±20% | 17 A | 19A | Unshielded | 5.5mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 1.024" L x 1.024" W (26.00mm x 26.00mm) | 0.583" (14.80mm) |
|
PA4349.332ANLTFIXED IND 3.3UH 49A 1.75MOHM SMD Pulse Electronics |
1,047 | 7.19 |
|
Datasheet |
PA4349.XXXANLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 3.3 µH | ±20% | 47 A | 37A | Shielded | 1.75mOhm Max | - | 15MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.925" L x 0.866" W (23.50mm x 22.00mm) | 0.512" (13.00mm) |
|
|
PA4349.222ANLTFIXED IND 2.2UH 58A 1.25MOHM SMD Pulse Electronics |
544 | 7.19 |
|
Datasheet |
PA4349.XXXANLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 2.2 µH | ±20% | 52 A | 43A | Shielded | 1.25mOhm Max | - | 19MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.925" L x 0.866" W (23.50mm x 22.00mm) | 0.512" (13.00mm) |
|
|
PA4349.152ANLTFIXED IND 1.5UH 62A 1.15MOHM SMD Pulse Electronics |
741 | 7.19 |
|
Datasheet |
PA4349.XXXANLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1.5 µH | ±20% | 57 A | 48A | Shielded | 1.15mOhm Max | - | 21MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.925" L x 0.866" W (23.50mm x 22.00mm) | 0.512" (13.00mm) |
|
|
PA4349.823ANLTFIXED IND 82UH 12A 34.2 MOHM SMD Pulse Electronics |
557 | 7.19 |
|
Datasheet |
PA4349.XXXANLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 82 µH | ±20% | 10 A | 7.7A | Shielded | 34.2mOhm Max | - | 1.5MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.925" L x 0.866" W (23.50mm x 22.00mm) | 0.512" (13.00mm) |
