RF Antennas
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

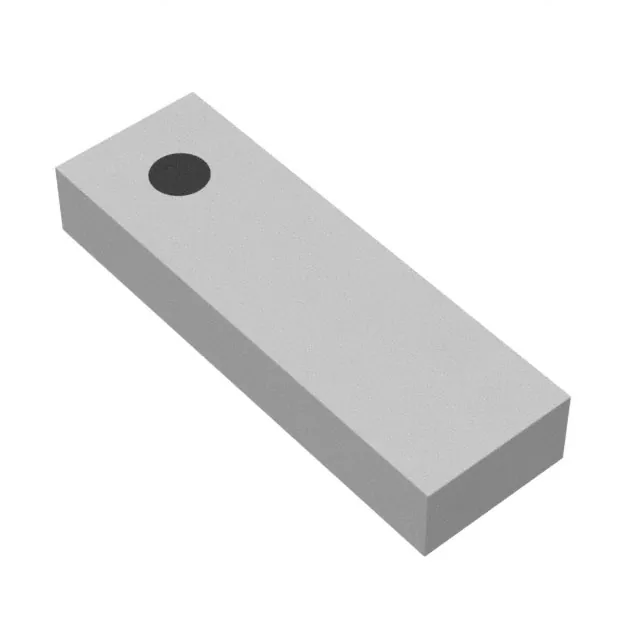

ANT1003LL15R2455ARF ANT 2.442GHZ/5.35GHZ CHIP SLD Pulse Electronics |
2,956 | 0.00 |
|
Datasheet |
1003 | Tape & Reel (TR) | Active | General ISM | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.442GHz, 5.35GHz | 2.4GHz ~ 2.484GHz, 5.15GHz ~ 5.85GHz | Chip | 2 | - | 6.5dB | 1.55dBi, 2.45dBi | 1 W | - | Solder | - | - | - | Surface Mount | 0.063" (1.60mm) | ISM |
|
W3613ANT SMD 2.4 Pulse Electronics |
3,352 | 1.54 |
|
Datasheet |
Embedded Antenna | Tape & Reel (TR) | Active | - | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | FlexPIFA | 1 | 2 | - | 4dBi | 5 W | - | Solder | - | - | - | Surface Mount | 0.126" (3.20mm) | General Purpose |
|
|
ANT3535B001TGNSSAANT 35354 GNSS PATCH TYPE01 Pulse Electronics |
3,181 | 5.24 |
|
Datasheet |
3535 | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
W3015LANTENNA EMBEDDED ISM433MHZ Pulse Electronics |
1,286 | 1.56 |
|
Datasheet |
Ceramic Antenna | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 433MHz | - | Chip | 1 | 2 | -10dB | 0dBi | 3 W | - | Solder | - | - | - | Surface Mount | 0.157" (4.00mm) | ISM |
|
4311-111-00245RF ANT 2.4GHZ CHIP SOLDER SMD Pulse Electronics |
3,881 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Chip | 1 | 2 | - | 1.2dBi | 1 W | - | Solder | - | - | - | Surface Mount | 0.051" (1.30mm) | Bluetooth, WLAN |
|
|
W1100ANTENNA DUALBAND WIFI SMA STUBBY Pulse Electronics |
2,572 | 1.71 |
|
Datasheet |
External Stubby | Box | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.425GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.95GHz | Whip, Straight | 2 | - | -1.5dB, -6dB | 1dBi, 3dBi | - | - | SMA Male | IP65 | - | - | Connector Mount | 2.000" (50.80mm) | Bluetooth, ISM, Wi-Fi, WLAN, Zigbee™ |
|

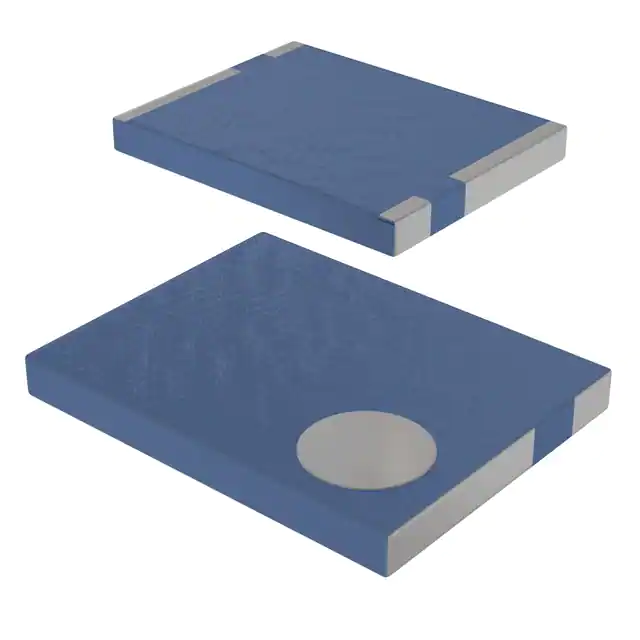

CAN4311112001881KANTENNA WCDMA LPMODE CERAMIC SMD Pulse Electronics |
3,537 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | - | UHF (1GHz ~ 2GHz) | 2GHz | 1.88GHz ~ 2.1GHz | Chip | 1 | 2 | - | 2dBi | - | - | Solder | - | - | - | Surface Mount | 0.035" (0.90mm) | - |
|
|
W7049ANTENNA INFRASTRUCT Pulse Electronics |
2,466 | 1.78 |
|
- |
* | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
W3212ANTENNA GPS 1575.42MHZ PIN MOUNT Pulse Electronics |
1,156 | 2.16 |
|
Datasheet |
Ceramic Patch | Box | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.574GHz ~ 1.586GHz | Ceramic Patch | 1 | - | -10dB | -7dBic | - | - | Pin | - | - | - | Surface Mount | 0.157" (4.00mm) | GPS |
|
|
CLA-W3796PRF ANT 1.7GHZ STAMPED MET SOLDER Pulse Electronics |
1,002 | 2.73 |
|
Datasheet |
- | Bulk | Active | Cellular | Wide Band | 1.7GHz | 698MHz ~ 2.7GHz | Stamped Metal | 1 | 3.5 | -6dB | 5.2dBi | 5 W | - | Solder | - | - | - | Snap-In | 0.118" (3.00mm) | LTE |
