RF Antennas
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
W3520B039ANTENNA DVB-H PLANAR PWB 2.4GHX Pulse Electronics |
3,056 | 0.00 |
|
- |
DVB-H Planar PWB | Tape & Reel (TR) | Obsolete | - | UHF (300MHz ~ 1GHz) | 610MHz | 470MHz ~ 750MHz | Blade | 1 | - | -3dB | -3.5dBi, -4.5dBi | - | - | MMCX | - | - | - | Connector Mount | 0.118" (3.00mm) | General Purpose |
|
|
W1047RF ANT 894MHZ WHIP TILT 6.6" Pulse Electronics |
3,970 | 0.00 |
|
Datasheet |
- | Bulk | Obsolete | - | UHF (300MHz ~ 1GHz) | 894MHz | 860MHz ~ 928MHz | Whip, Tilt | 1 | 2 | - | 1dBi | - | - | RP-SMA Male | - | - | - | Connector Mount | 7.819" (198.60mm) | - |
|
|
W1095KRPANTENNA 2.4-2.5GHZ SMA STUB Pulse Electronics |
3,795 | 2.53 |
|
- |
External Stubby | Bag | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Whip, Right Angle | 1 | 2.5 | -7dB | 1dBi | - | - | RP-SMA Male | IP65 | - | - | Connector Mount | 1.890" (48.00mm) | Bluetooth, ISM, Wi-Fi, WLAN, Zigbee™ |
|
|
W3325ANTENNA 791-960MHZ Pulse Electronics |
1,881 | 2.61 |
|
Datasheet |
Domino | Box | Active | Cellular, General ISM | UHF (300MHz ~ 1GHz) | 875.5MHz | 791MHz ~ 960MHz | Chip | 1 | - | 5dB | 1.3dBi | - | - | Solder | - | - | - | Surface Mount | 0.059" (1.50mm) | ISM, LTE |
|
|
W3312G0200ANTENNA ISM 868/915MHZ W/ COAX F Pulse Electronics |
2,767 | 2.83 |
|
- |
- | Box | Active | General ISM | UHF (300MHz ~ 1GHz) | 895.5MHz | 863MHz ~ 928MHz | PCB Trace | 1 | - | -8dB | 0.8dBi | - | Cable - 200mm | SMA Male | - | - | - | Adhesive | 2.953" (75.00mm) | ISM |
|
ANT2405F001R0169ARF ANT 169MHZ CHIP SOLDER SMD Pulse Electronics |
1,911 | 0.00 |
|
- |
2405 | Tape & Reel (TR) | Active | - | VHF (f < 300MHz) | 169MHz | 168MHz ~ 179MHz | Chip | 1 | - | -18dB | - | - | - | Solder | - | - | - | Surface Mount | 0.063" (1.60mm) | - |
|
|
W6102B0150ANTENNA INFRASTRUCT Pulse Electronics |
3,552 | 2.98 |
|
- |
* | Bag | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
W320725X25X4MMGPS/GLONASS/BEIDOU PIN Pulse Electronics |
1,206 | 3.13 |
|
Datasheet |
Ceramic Patch | Bulk | Active | Navigation | Wide Band | 1.561GHz, 1.575GHz, 1.602GHz | 1.559GHz ~ 1.563GHz,1.574GHz ~ 1.576GHz, 1.598GHz ~ 1.606GHz | Ceramic Patch | 3 | - | -4dB | 1dBi | - | - | Pin | - | - | - | Adhesive | 0.157" (4.00mm) | Beidou, Galileo, GLONASS, GNSS, GPS |
|
|
W3907BD0350ANTENNA TE DIVERSITY Pulse Electronics |
3,274 | 3.16 |
|
Datasheet |
Gemini | Box | Active | Cellular | Wide Band | 829MHz, 1.4694GHz, 1.5845GHz, 1.9475GHz, 2.5GHz, 3.5GHz | 698MHz ~ 960MHz, 1.4279GHz ~ 1.5109GHz, 1.559GHz ~ 1.61GHz, 1.695GHz ~ 2.2GHz, 2.3GHz ~ 2.7GHz, 3.4GHz ~ 3.6GHz | PCB Trace | 6 | - | -6dB, -7.5dB | 1dBi, 1.1dBi, 1.4dBi, 2.2dBi, 2dBi, 1.4dBi | 3 W | Cable - 350mm | I-PEX MHF4 | - | - | - | Surface Mount | - | 2G, 3G, 4G, LTE |
|

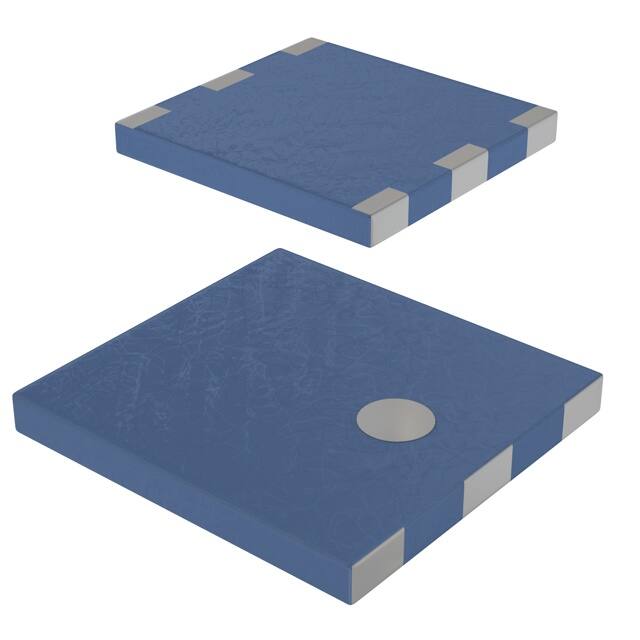

CAN4311117002521KANTENNA 802.11A/B DUAL BAND SMD Pulse Electronics |
1,835 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | - | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.2GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.25GHz | Chip | 2 | 2.5 | - | 0dBi | 1 W | - | Solder | - | - | - | Surface Mount | 0.035" (0.90mm) | - |
