RF Antennas
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

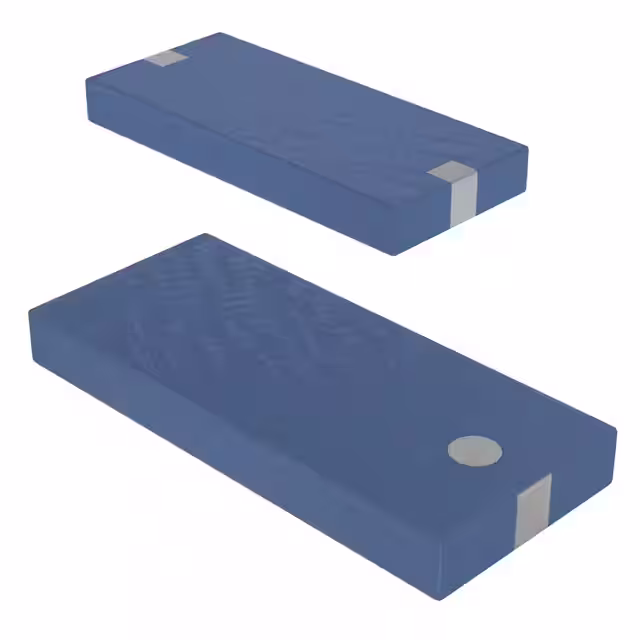

CAN4311115002451KANTENNA 802.11B LNG BLUTOOTH SMD Pulse Electronics |
4,018 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | - | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Chip | 1 | 2 | - | 0dBi | 1 W | - | Solder | - | - | - | Surface Mount | 0.035" (0.90mm) | - |
|
W3538E0300ANTENNA CABLE FEE NPB Pulse Electronics |
1,011 | 3.35 |
|
Datasheet |
- | Box | Active | Cellular | Wide Band | 892MHz, 1.94GHz, 2.045GHz | 824MHz ~ 960MHz, 1.71GHz ~ 1.99GHz, 1.92GHz ~ 2.17GHz | PCB Trace | 3 | - | -6dB | 2.8dBi, 4.5dBi, 4dBi | - | Cable - 300mm | MMCX Male | - | - | - | Adhesive | 0.028" (0.70mm) | GSM, WCDMA |
|
|
W1696/W1697ANTENNA 617-3800MHZ SMA Pulse Electronics |
1,568 | 3.56 |
|
- |
* | Bag | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

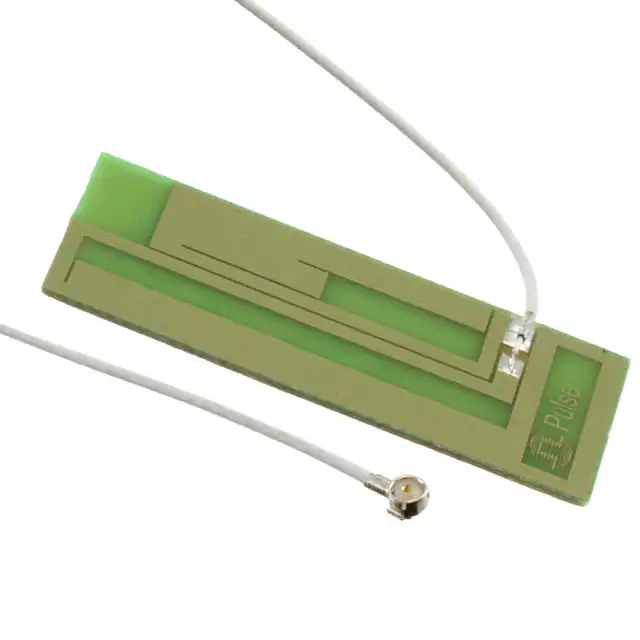

W3538M0200RF ANT 892MHZ/1.9GHZ PCB 200MM Pulse Electronics |
3,913 | 6.32 |
|
Datasheet |
- | Bulk | Obsolete | Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 892MHz, 1.9GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | PCB Trace | 2 | - | -6dB | 2.8dBi, 6.3dBi | - | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Surface Mount | 0.028" (0.70mm) | GSM, WCDMA |
|

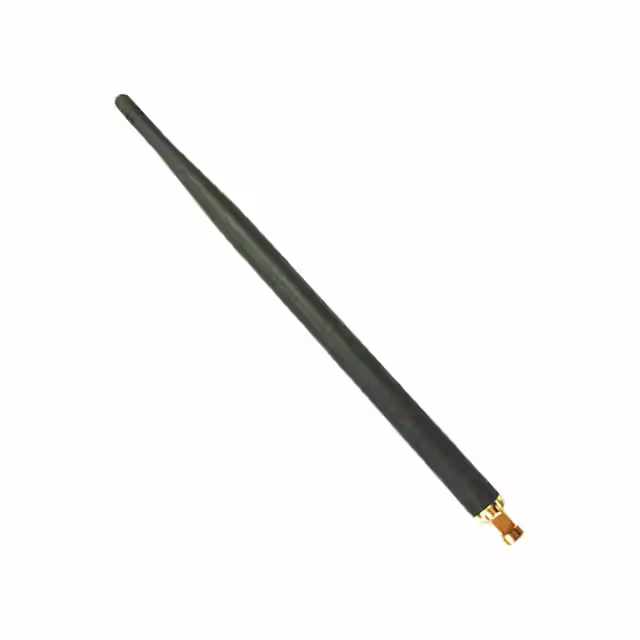

W1089ANT EXT 779-787MHZ SMA MALE Pulse Electronics |
1,521 | 4.21 |
|
Datasheet |
Stick Antenna | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 783MHz | 779MHz ~ 787MHz | Whip, Center-Fed Double | 1 | 2 | - | 1.51dBi | 1 W | - | SMA Male | IP65 | - | - | Connector Mount | 7.047" (179.00mm) | ISM |
|
W1038WANT EXT 2.4-2.5GHZ RP SMA WHITE Pulse Electronics |
3,543 | 3.94 |
|
Datasheet |
- | Bag | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Whip, Tilt | 1 | 2 | -10dB | 3.8dB | - | - | RP-SMA Male | - | - | - | Connector Mount | 7.760" (197.10mm) | Bluetooth, WLAN, Zigbee™ |
|
|
W1093ANTENNA STICK 2.4-2.5 / 5.15-5.9 Pulse Electronics |
3,616 | 4.57 |
|
Datasheet |
External Antenna | Bag | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5375GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.925GHz | Whip, Straight | 2 | - | -4dB, -10dB | 2.3dBi, 5dBi, 3dBi | 1 W | - | SMA Male | IP65 | - | - | Connector Mount | 2.992" (76.00mm) | Bluetooth, GPS, Wi-Fi, Zigbee™ |
|
|
W5021ANTENNA SMT Pulse Electronics |
3,277 | 4.69 |
|
Datasheet |
Stick Antenna | Box | Active | General ISM | UHF (300MHz ~ 1GHz) | 898MHz | 868MHz ~ 928MHz | Whip, Right Angle | 1 | 2 | -10dB | 2.2dBi | 1 W | - | RP-SMA | IP65 | - | - | Connector Mount | 7.087" (180.00mm) | ISM |
|
|
W5039RF ANT 2.45GHZ WHIP STR RP-SMA Pulse Electronics |
3,998 | 6.49 |
|
Datasheet |
- | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Whip, Straight | 1 | 2 | - | 1.3dBi | 3 W | - | RP-SMA | IP67 | - | - | Connector Mount | 3.693" (93.79mm) | Bluetooth, Wi-Fi, Zigbee™ |
|
W3554G0254ANTENNA ASSEMBLY 6GHZ 254MM SMA Pulse Electronics |
4,996 | 9.31 |
|
Datasheet |
- | Bag | Active | 802.15.4, Bluetooth, Cellular, General ISM, Navigation, WiFi | Wide Band | 829MHz, 1.5GHz, 2.2GHz, 3.55GHz, 5.45GHz | 698MHz ~ 960MHz, 1.4GHz ~ 1.6GHz, 1.71GHz ~ 2.69GHz, 3.3GHz ~ 3.8GHz, 4.9GHz ~ 6GHz | PCB Trace | 5 | - | -4dB, -3dB, -6dB, -5dB, -4dB | 1.9dBi, 2.5dBi, 3.2dBi, 3.3dBi, 3.5dBi | 5 W | Cable - 254mm | SMA Male | - | - | - | Adhesive | 0.008" (0.20mm) | 2G, 3G, 4G, 5G, Bluetooth, GNSS, ISM, Wi-Fi, Zigbee™ |
