RF Antennas
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SPDA171900ANT DIPOLE RT ANGLE TNC 1850-1 Pulse Electronics |
4,906 | 16.74 |
|
Datasheet |
- | Bag | Active | - | UHF (1GHz ~ 2GHz) | 1.92GHz | 1.85GHz ~ 1.99GHz | Whip, Straight | 1 | - | -10dB | - | - | - | TN | - | - | - | Connector Mount | 6.500" (165.10mm) | - |
|
|
SPDA171800ANT DIPOLE RT ANGLE TNC 1710-1 Pulse Electronics |
3,900 | 16.74 |
|
Datasheet |
- | Bag | Active | - | UHF (1GHz ~ 2GHz) | 1.78GHz | 1.71GHz ~ 1.85GHz | Whip, Straight | 1 | - | -10dB | - | - | - | MX | - | - | - | Connector Mount | 6.500" (165.10mm) | - |
|
|
Q52ANT CHR Q BASE-WHP UTY 52-88 M Pulse Electronics |
3,429 | 16.95 |
|
Datasheet |
- | Bag | Active | - | VHF (f < 300MHz) | 70MHz | 52MHz ~ 88MHz | Whip, Straight | 1 | - | - | 2dBi | 200 W | - | - | - | - | - | Magnetic | 55.000" (139.70cm) | General Purpose |
|
|
NMOKHF195ANT CABLE CABLE NMOHF LMR195 17' Pulse Electronics |
2,619 | 16.29 |
|
- |
* | Bag | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SPDA241900ANT DIPOLE RT ANGLE SMA 1850-1 Pulse Electronics |
3,149 | 16.41 |
|
Datasheet |
- | Bag | Active | - | UHF (1GHz ~ 2GHz) | 1.92GHz | 1.85GHz ~ 1.99GHz | Whip, Straight | 1 | - | - | - | - | - | SMA Male | - | - | - | Connector Mount | - | - |
|
|
SPDA241800ANT DIPOLE RT ANGLE SMA 1710-1 Pulse Electronics |
2,538 | 16.41 |
|
Datasheet |
- | Bag | Active | - | UHF (1GHz ~ 2GHz) | 1.795GHz | 1.71GHz ~ 1.88GHz | Whip, Straight | 1 | - | - | - | - | - | SMA Male | - | - | - | Connector Mount | - | - |
|
SPDA24832DIPOLE - CENTER FED, 824 - 894 M Pulse Electronics |
4,998 | 16.69 |
|
Datasheet |
- | Bag | Active | - | UHF (300MHz ~ 1GHz) | 859MHz | 824MHz ~ 894MHz | Whip, Straight | 1 | - | - | - | - | - | SMA | - | - | - | Connector Mount | 9.000" (228.60mm) | - |
|
|
ANT1825JB01BGNL5AANTENNA PATCH GNSS+L5 Pulse Electronics |
1,575 | 24.64 |
|
Datasheet |
1825 | Box | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.2276GHz, 1.561GHz, 1.575GHz, 1.602GHz | 1.217GHz ~ 1.237GHz, 1.559GHz ~ 1.563GHz, 1.573GHz ~ 1.577GHz, 1.598GHz ~ 1.606GHz | Ceramic Patch | 4 | 2 | -10dB | 2.58dBic, 1.8dBic, 2.5dBic, 1.86dBic | - | Cable - 100mm, LNA | I-PEX | - | - | - | Surface Mount | 0.472" (12.00mm) | Beidou, GLONASS, GNSS, GPS |
|

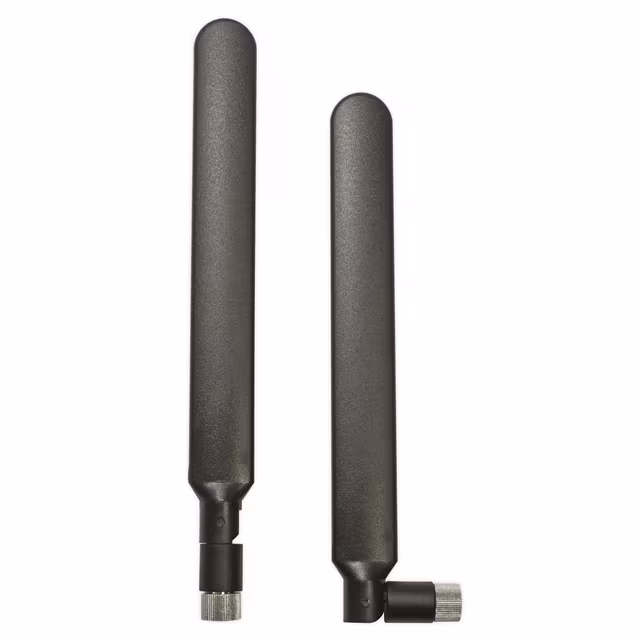

SPDA24850/1900DUAL BAND DIPOLE - CENTER FED, 8 Pulse Electronics |
4,568 | 17.01 |
|
Datasheet |
- | Bag | Active | - | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 859MHz, 1.92GHz | 824MHz ~ 894MHz, 1.85GHz ~ 1.99GHz | Blade, Tilt | 2 | 2 | - | 0dBi, 1.2dBi | 3 W | - | SMA | - | - | - | Connector Mount | 6.740" (171.20mm) | - |
|
|
SPHL10167ANT SP HELIC 1-4W 167M 1-4-32X Pulse Electronics |
2,562 | 18.64 |
|
Datasheet |
- | Bag | Active | - | VHF (f < 300MHz) | 167MHz | 160MHz ~ 174MHz | Helical | 1 | - | - | - | - | - | MX | - | - | - | Connector Mount | 8.000" (203.20mm) | - |
