Single Zener Diodes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Voltage - Zener (Nom) (Vz) | Tolerance | Power - Max | Impedance (Max) (Zzt) | Current - Reverse Leakage @ Vr | Voltage - Forward (Vf) (Max) @ If | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SMAZ33-13DIODE ZENER 33V 1W SMA |
7,333 | 0.00 |
|
Datasheet |
- | DO-214AC, SMA | Tape & Reel (TR) | Discontinued at Digi-Key | 33 V | ±5% | 1 W | 15 Ohms | 500 nA @ 25.1 V | 1.2 V @ 200 mA | -65°C ~ 150°C | - | - | Surface Mount | SMA |
|
|
SMAZ36-13DIODE ZENER 36V 1W SMA |
3,721 | 0.00 |
|
Datasheet |
- | DO-214AC, SMA | Tape & Reel (TR) | Discontinued at Digi-Key | 36 V | ±5% | 1 W | 40 Ohms | 500 nA @ 27.4 V | 1.2 V @ 200 mA | -65°C ~ 150°C | - | - | Surface Mount | SMA |
|
|
SMAZ39-13DIODE ZENER 39V 1W SMA |
2,606 | 0.00 |
|
Datasheet |
- | DO-214AC, SMA | Tape & Reel (TR) | Discontinued at Digi-Key | 39 V | ±5% | 1 W | 40 Ohms | 500 nA @ 29.6 V | 1.2 V @ 200 mA | -65°C ~ 150°C | - | - | Surface Mount | SMA |
|
|
SMAZ5V1-13DIODE ZENER 5.1V 1W SMA |
7,865 | 0.00 |
|
Datasheet |
- | DO-214AC, SMA | Tape & Reel (TR) | Discontinued at Digi-Key | 5.1 V | ±5% | 1 W | 5 Ohms | 2.5 µA @ 1 V | 1.2 V @ 200 mA | -65°C ~ 150°C | - | - | Surface Mount | SMA |
|
|
SMAZ5V6-13DIODE ZENER 5.6V 1W SMA |
5,510 | 0.00 |
|
Datasheet |
- | DO-214AC, SMA | Tape & Reel (TR) | Discontinued at Digi-Key | 5.6 V | ±5% | 1 W | 2 Ohms | 5 µA @ 2 V | 1.2 V @ 200 mA | -65°C ~ 150°C | - | - | Surface Mount | SMA |
|
|
SMAZ6V2-13DIODE ZENER 6.2V 1W SMA |
9,953 | 0.00 |
|
Datasheet |
- | DO-214AC, SMA | Tape & Reel (TR) | Discontinued at Digi-Key | 6.2 V | ±5% | 1 W | 2 Ohms | 5 µA @ 3 V | 1.2 V @ 200 mA | -65°C ~ 150°C | - | - | Surface Mount | SMA |
|
|
SMAZ6V8-13DIODE ZENER 6.8V 1W SMA |
7,239 | 0.00 |
|
Datasheet |
- | DO-214AC, SMA | Tape & Reel (TR) | Discontinued at Digi-Key | 6.8 V | ±5% | 1 W | 2 Ohms | 5 µA @ 4 V | 1.2 V @ 200 mA | -65°C ~ 150°C | - | - | Surface Mount | SMA |
|
|
SMAZ7V5-13DIODE ZENER 7.5V 1W SMA |
4,333 | 0.00 |
|
Datasheet |
- | DO-214AC, SMA | Tape & Reel (TR) | Discontinued at Digi-Key | 7.5 V | ±5% | 1 W | 2 Ohms | 5 µA @ 5 V | 1.2 V @ 200 mA | -65°C ~ 150°C | - | - | Surface Mount | SMA |
|
|
SMAZ8V2-13DIODE ZENER 8.2V 1W SMA |
5,951 | 0.00 |
|
Datasheet |
- | DO-214AC, SMA | Tape & Reel (TR) | Obsolete | 8.2 V | ±5% | 1 W | 2 Ohms | 5 µA @ 6 V | 1.2 V @ 200 mA | -65°C ~ 150°C | - | - | Surface Mount | SMA |
|
|
SMAZ9V1-13DIODE ZENER 9.1V 1W SMA |
6,757 | 0.00 |
|
Datasheet |
- | DO-214AC, SMA | Tape & Reel (TR) | Discontinued at Digi-Key | 9.1 V | ±5% | 1 W | 4 Ohms | 5 µA @ 7 V | 1.2 V @ 200 mA | -65°C ~ 150°C | - | - | Surface Mount | SMA |
|
MMBZ5231ELT1DIODE ZENER 5.1V 225MW SOT23-3 |
5,931 | 0.00 |
|
Datasheet |
- | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Obsolete | 5.1 V | ±5% | 225 mW | 17 Ohms | 5 µA @ 2 V | 900 mV @ 10 mA | -55°C ~ 150°C | - | - | Surface Mount | SOT-23-3 (TO-236) |
|
CDZT2R3.6BDIODE ZENER 3.6V 100MW VMN2 |
7,383 | 0.00 |
|
Datasheet |
CDZ | 2-SMD, Flat Leads | Tape & Reel (TR) | Not For New Designs | 3.6 V | ±3% | 100 mW | 100 Ohms | 10 µA @ 1 V | - | -55°C ~ 150°C | - | - | Surface Mount | VMN2 (SOD-923) |
|
|
CDZT2R5.1BDIODE ZENER 5.1V 100MW VMN2 |
9,124 | 0.00 |
|
Datasheet |
CDZ | 2-SMD, Flat Leads | Tape & Reel (TR) | Not For New Designs | 5.1 V | ±2% | 100 mW | 80 Ohms | 2 µA @ 1.5 V | - | -55°C ~ 150°C | - | - | Surface Mount | VMN2 (SOD-923) |
|
|
CDZT2R5.6BDIODE ZENER 5.6V 100MW VMN2 |
5,471 | 0.00 |
|
Datasheet |
CDZ | 2-SMD, Flat Leads | Tape & Reel (TR) | Not For New Designs | 5.6 V | ±2% | 100 mW | 60 Ohms | 1 µA @ 2.5 V | - | -55°C ~ 150°C | - | - | Surface Mount | VMN2 (SOD-923) |
|

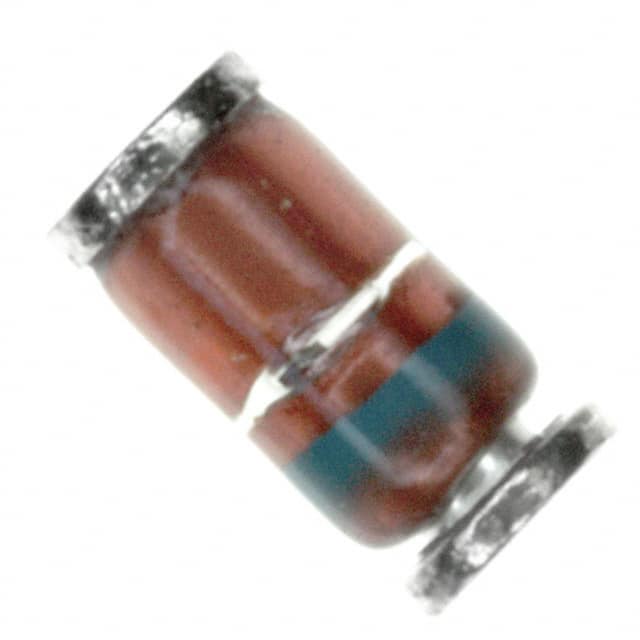

DL4733A-TPDIODE ZENER 5.1V 1W MELF |
5,985 | 0.00 |
|
Datasheet |
- | DO-213AB, MELF | Tape & Reel (TR) | Obsolete | 5.1 V | ±5% | 1 W | 7 Ohms | 10 µA @ 1 V | 1.2 V @ 200 mA | -65°C ~ 175°C | - | - | Surface Mount | MELF |
|
DL4736A-TPDIODE ZENER 6.8V 1W MELF |
3,513 | 0.00 |
|
Datasheet |
- | DO-213AB, MELF | Tape & Reel (TR) | Obsolete | 6.8 V | ±5% | 1 W | 3.5 Ohms | 10 µA @ 4 V | 1.2 V @ 200 mA | -65°C ~ 175°C | - | - | Surface Mount | MELF |
|
DL4742A-TPDIODE ZENER 12V 1W MELF |
5,611 | 0.00 |
|
Datasheet |
- | DO-213AB, MELF | Tape & Reel (TR) | Obsolete | 12 V | ±5% | 1 W | 9 Ohms | 5 µA @ 9.1 V | 1.2 V @ 200 mA | -65°C ~ 175°C | - | - | Surface Mount | MELF |
|
DL4744A-TPDIODE ZENER 15V 1W MELF |
7,514 | 0.00 |
|
Datasheet |
- | DO-213AB, MELF | Tape & Reel (TR) | Obsolete | 15 V | ±5% | 1 W | 14 Ohms | 5 µA @ 11.4 V | 1.2 V @ 200 mA | -65°C ~ 175°C | - | - | Surface Mount | MELF |
|
DL4748A-TPDIODE ZENER 22V 1W MELF |
2,737 | 0.00 |
|
Datasheet |
- | DO-213AB, MELF | Tape & Reel (TR) | Obsolete | 22 V | ±5% | 1 W | 23 Ohms | 5 µA @ 16.7 V | 1.2 V @ 200 mA | -65°C ~ 175°C | - | - | Surface Mount | MELF |
|
DL4749A-TPDIODE ZENER 24V 1W MELF |
5,146 | 0.00 |
|
Datasheet |
- | DO-213AB, MELF | Tape & Reel (TR) | Obsolete | 24 V | ±5% | 1 W | 25 Ohms | 5 µA @ 18.2 V | 1.2 V @ 200 mA | -65°C ~ 175°C | - | - | Surface Mount | MELF |
