Bipolar RF Transistors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Transistor Type | Voltage - Collector Emitter Breakdown (Max) | Frequency - Transition | Noise Figure (dB Typ @ f) | Gain | Power - Max | DC Current Gain (hFE) (Min) @ Ic, Vce | Current - Collector (Ic) (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

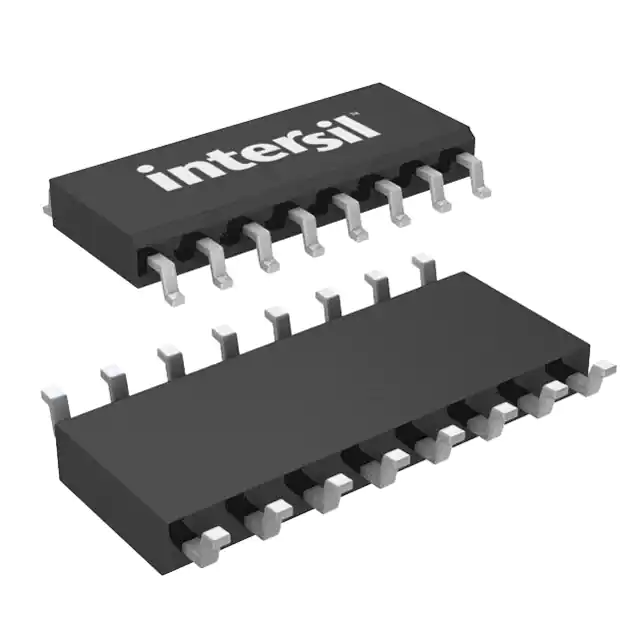

HFA3128BZRF TRANS 5 PNP 15V 5.5GHZ 16SOIC |
6,441 | 0.00 |
|
Datasheet |
- | 16-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | 5 PNP | 15V | 5.5GHz | 3.5dB @ 1GHz | - | 150mW | 20 @ 10mA, 2V | 65mA | 150°C (TJ) | - | - | Surface Mount | 16-SOIC |
|
HFA3128BZ96RF TRANS 5 PNP 15V 5.5GHZ 16SOIC |
4,868 | 0.00 |
|
Datasheet |
- | 16-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | 5 PNP | 15V | 5.5GHz | 3.5dB @ 1GHz | - | 150mW | 20 @ 10mA, 2V | 65mA | 150°C (TJ) | - | - | Surface Mount | 16-SOIC |
|
HFA3128RZ96RF TRANS 5 PNP 15V 5.5GHZ 16QFN |
3,018 | 0.00 |
|
Datasheet |
- | 16-VFQFN Exposed Pad | Tape & Reel (TR) | Obsolete | 5 PNP | 15V | 5.5GHz | 3.5dB @ 1GHz | - | 150mW | 20 @ 10mA, 2V | 65mA | 175°C (TJ) | - | - | Surface Mount | 16-QFN (3x3) |
|
AT-41500-GP4RF TRANS NPN 12V 8GHZ DIE |
6,486 | 0.00 |
|
Datasheet |
- | Die | Tray | Obsolete | NPN | 12V | 8GHz | 1.4dB ~ 3dB @ 1GHz ~ 4GHz | 8dB ~ 17dB | 500mW | 30 @ 10mA, 8V | 60mA | 200°C (TJ) | - | - | Surface Mount | Die |
|

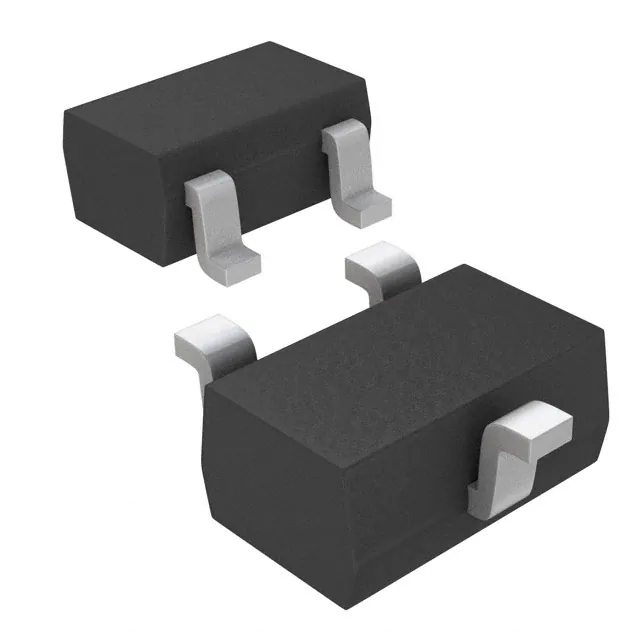

2SA1748GRLRF TRANS PNP 50V 250MHZ SMINI3 |
5,379 | 0.00 |
|
Datasheet |
- | SC-85 | Tape & Reel (TR) | Obsolete | PNP | 50V | 250MHz | - | - | 150mW | 200 @ 2mA, 10V | 50mA | 150°C (TJ) | - | - | Surface Mount | SMini3-F2 |
|
2SC3937G0LRF TRANS NPN 10V 6GHZ SMINI3-F2 |
5,435 | 0.00 |
|
- |
- | SC-85 | Tape & Reel (TR) | Obsolete | NPN | 10V | 6GHz | 1dB ~ 1.7dB @ 800MHz | 13dB | 150mW | 50 @ 20mA, 8V | 80mA | 150°C (TJ) | - | - | Surface Mount | SMini3-F2 |
|
MRF904RF TRANS NPN 15V 4GHZ TO72 |
9,037 | 0.00 |
|
Datasheet |
- | TO-206AF, TO-72-4 Metal Can | Bulk | Obsolete | NPN | 15V | 4GHz | 1.5dB @ 450MHz | 6.5dB ~ 10.5dB | 200mW | 30 @ 5mA, 5V | 30mA | 200°C (TJ) | - | - | Through Hole | TO-72 |
|
|
AT-41535GRF TRANS NPN 12V 8GHZ 35 MICRO X |
2,884 | 0.00 |
|
Datasheet |
- | 4-SMD (35 micro-X) | Bulk | Obsolete | NPN | 12V | 8GHz | 1.3dB ~ 3dB @ 1GHz ~ 4GHz | 10dB ~ 18dB | 500mW | 30 @ 10mA, 8V | 60mA | 150°C (TJ) | - | - | Surface Mount | 35 micro-X |
|

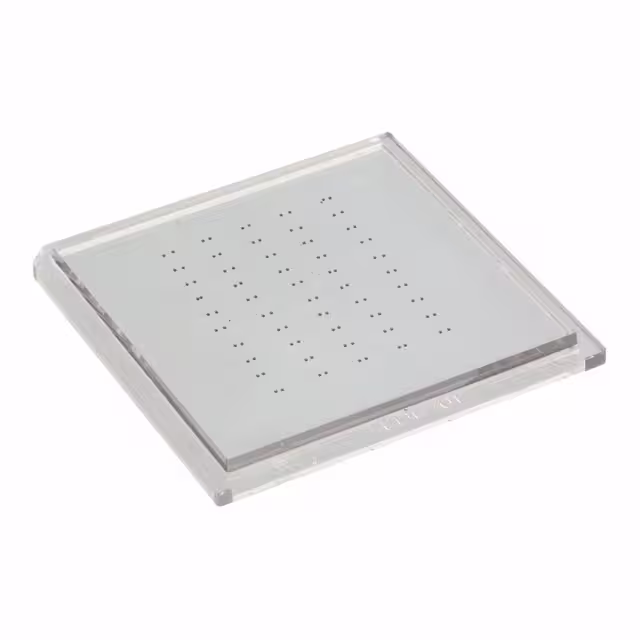

AT-42000-GP4RF TRANS NPN 12V 9GHZ CHIP |
9,309 | 0.00 |
|
Datasheet |
- | Die | Tray | Obsolete | NPN | 12V | 9GHz | 1.9dB ~ 3dB @ 2GHz ~ 4GHz | 10.5dB ~ 14dB | 600mW | 30 @ 35mA, 8V | 80mA | 200°C (TJ) | - | - | Surface Mount | Chip |
|
|
AT-64000-GP4RF TRANS NPN 20V BIPOLAR CHIP |
3,893 | 0.00 |
|
Datasheet |
- | Die | Tray | Obsolete | NPN | 20V | - | - | - | 3W | 20 @ 110mA, 8V | 200mA | 200°C (TJ) | - | - | Surface Mount | - |
|
BFR183WH6327XTSA1RF TRANS NPN 12V 8GHZ SOT323-3 |
5,538 | 0.00 |
|
Datasheet |
- | SC-70, SOT-323 | Tape & Reel (TR) | Obsolete | NPN | 12V | 8GHz | 0.9dB ~ 1.4dB @ 900MHz ~ 1.8GHz | 18.5dB | 450mW | 70 @ 15mA, 8V | 65mA | 150°C (TJ) | - | - | Surface Mount | PG-SOT323 |
|
|
BFR92WH6327XTSA1RF TRANS NPN 15V 5GHZ SOT323-3 |
6,012 | 0.00 |
|
Datasheet |
- | SC-70, SOT-323 | Tape & Reel (TR) | Obsolete | NPN | 15V | 5GHz | 1.4dB ~ 2dB @ 900MHz ~ 1.8GHz | 11.5dB ~ 17dB | 280mW | 70 @ 15mA, 8V | 45mA | - | - | - | Surface Mount | PG-SOT323 |
|
BFS17SH6327XTSA1RF TRANS 2NPN 15V 1.4GHZ SOT363 |
3,448 | 0.00 |
|
Datasheet |
- | 6-VSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Obsolete | 2 NPN (Dual) | 15V | 1.4GHz | 3dB ~ 5dB @ 800MHz | - | 280mW | 40 @ 2mA, 1V | 25mA | 150°C (TJ) | - | - | Surface Mount | PG-SOT363-PO |
|
BGR420H6327XTSA1RF TRANS NPN 13V SOT343-4 |
5,204 | 0.00 |
|
Datasheet |
- | SC-82A, SOT-343 | Tape & Reel (TR) | Obsolete | NPN | 13V | - | 1.5dB ~ 1.7dB @ 400MHz ~ 1.8GHz | - | 120mW | - | 25mA | -65°C ~ 150°C (TJ) | - | - | Surface Mount | PG-SOT343-3D |
|
NE46234-T1-AZRF TRANS NPN 12V 6GHZ SOT89 |
5,674 | 0.00 |
|
Datasheet |
- | TO-243AA | Tape & Reel (TR) | Obsolete | NPN | 12V | 6GHz | 2.3dB @ 1GHz | 8.3dB | 1.8W | 50 @ 50mA, 5V | 150mA | 150°C (TJ) | - | - | Surface Mount | SOT-89 |
|
|
NE46234-T1-SE-AZRF TRANS NPN 12V 6GHZ SOT89 |
2,760 | 0.00 |
|
Datasheet |
- | TO-243AA | Tape & Reel (TR) | Obsolete | NPN | 12V | 6GHz | 2.3dB @ 1GHz | 8.3dB | 1.8W | 125 @ 50mA, 5V | 150mA | 150°C (TJ) | - | - | Surface Mount | SOT-89 |
|
|
BFG410W,135RF TRANS NPN 4.5V 22GHZ CMPAK-4 |
2,779 | 0.00 |
|
Datasheet |
- | SC-82A, SOT-343 | Tape & Reel (TR) | Obsolete | NPN | 4.5V | 22GHz | 0.9dB ~ 1.2dB @ 900MHz ~ 2GHz | 21dB | 54mW | 50 @ 10mA, 2V | 12mA | 150°C (TJ) | - | - | Surface Mount | CMPAK-4 |
|
|
BFG425W,135RF TRANS NPN 4.5V 25GHZ CMPAK-4 |
3,615 | 0.00 |
|
Datasheet |
- | SC-82A, SOT-343 | Tape & Reel (TR) | Obsolete | NPN | 4.5V | 25GHz | 0.8dB ~ 1.2dB @ 900MHz ~ 2GHz | 20dB | 135mW | 50 @ 25mA, 2V | 30mA | 150°C (TJ) | - | - | Surface Mount | CMPAK-4 |
|
|
BFG480W,135RF TRANS NPN 4.5V 21GHZ CMPAK-4 |
7,740 | 0.00 |
|
Datasheet |
- | SC-82A, SOT-343 | Tape & Reel (TR) | Obsolete | NPN | 4.5V | 21GHz | 1.2dB ~ 1.8dB @ 900MHz ~ 2GHz | 16dB | 360mW | 40 @ 80mA, 2V | 250mA | 150°C (TJ) | - | - | Surface Mount | CMPAK-4 |
|
BFG520,235RF TRANS NPN 15V 9GHZ SOT143B |
9,855 | 0.00 |
|
Datasheet |
- | TO-253-4, TO-253AA | Tape & Reel (TR) | Obsolete | NPN | 15V | 9GHz | 1.1dB ~ 2.1dB @ 900MHz | - | 300mW | 60 @ 20mA, 6V | 70mA | 175°C (TJ) | - | - | Surface Mount | SOT-143B |
