Single Bipolar Transistors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Transistor Type | Current - Collector (Ic) (Max) | Voltage - Collector Emitter Breakdown (Max) | Vce Saturation (Max) @ Ib, Ic | Current - Collector Cutoff (Max) | DC Current Gain (hFE) (Min) @ Ic, Vce | Power - Max | Frequency - Transition | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2SD225900ATRANS NPN 20V 0.7A MT-2-A1 |
6,206 | 0.00 |
|
Datasheet |
- | 3-SIP | Tape & Box (TB) | Obsolete | NPN | 700 mA | 20 V | 400mV @ 50mA, 500mA | 10µA | 1000 @ 150mA, 10V | 1 W | 55MHz | 150°C (TJ) | - | - | Through Hole | MT-2-A1 |
|
2SD23210RATRANS NPN 20V 5A NS-B1 |
5,306 | 0.00 |
|
Datasheet |
- | 3-SIP | Tape & Box (TB) | Obsolete | NPN | 5 A | 20 V | 1V @ 100mA, 3A | 1µA | 340 @ 500mA, 2V | 400 mW | 150MHz | 150°C (TJ) | - | - | Through Hole | NS-B1 |
|
2SD2345JSLTRANS NPN 40V 0.05A SSMINI3-F1 |
5,913 | 0.00 |
|
Datasheet |
- | SC-89, SOT-490 | Tape & Reel (TR) | Obsolete | NPN | 50 mA | 40 V | 200mV @ 1mA, 10mA | 1µA | 600 @ 2mA, 10V | 125 mW | 120MHz | 125°C (TJ) | - | - | Surface Mount | SSMini3-F1 |
|
|
2SD235800ATRANS NPN 10V 1A MT-2-A1 |
3,647 | 0.00 |
|
Datasheet |
- | 3-SIP | Tape & Box (TB) | Obsolete | NPN | 1 A | 10 V | 150mV @ 20mA, 500mA | 1µA (ICBO) | 200 @ 100mA, 2V | 1 W | 120MHz | 150°C (TJ) | - | - | Through Hole | MT-2-A1 |
|
2SD2420APTRANS NPN DARL 80V 4A TO-220D-A1 |
6,497 | 0.00 |
|
Datasheet |
- | TO-220-3 Full Pack | Bulk | Obsolete | NPN - Darlington | 4 A | 80 V | 4V @ 20mA, 5A | 500µA | 4000 @ 3A, 3V | 2 W | 20MHz | 150°C (TJ) | - | - | Through Hole | TO-220D-A1 |
|

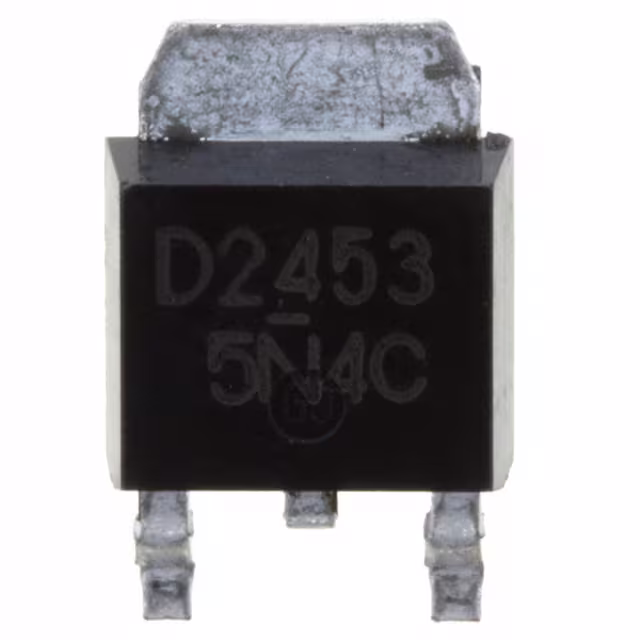

2SD245300LTRANS NPN 60V 2A U-G2 |
3,545 | 0.00 |
|
Datasheet |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | NPN | 2 A | 60 V | 1V @ 50mA, 2A | 100µA | 500 @ 500mA, 4V | 1 W | 50MHz | 150°C (TJ) | - | - | Surface Mount | U-G2 |
,TO-226_straightlead.jpg)
|
2SD250400ATRANS NPN 10V 5A TO-92-B1 |
4,233 | 0.00 |
|
Datasheet |
- | TO-226-3, TO-92-3 (TO-226AA) Formed Leads | Tape & Box (TB) | Obsolete | NPN | 5 A | 10 V | 500mV @ 100mA, 3A | 1µA | 300 @ 500mA, 2V | 750 mW | 170MHz | 150°C (TJ) | - | - | Through Hole | TO-92-B1 |
|
2SD25730QATRANS NPN 60V 3A MT-3-A1 |
8,531 | 0.00 |
|
Datasheet |
- | 3-SIP | Tape & Box (TB) | Obsolete | NPN | 3 A | 60 V | 1V @ 50mA, 2A | 100µA | 800 @ 500mA, 4V | 1.5 W | 50MHz | 150°C (TJ) | - | - | Through Hole | MT-3-A1 |
|
2N3416_D26ZTRANS NPN 50V 0.5A TO-92-3 |
3,957 | 0.00 |
|
Datasheet |
- | TO-226-3, TO-92-3 (TO-226AA) Formed Leads | Tape & Reel (TR) | Obsolete | NPN | 500 mA | 50 V | 300mV @ 3mA, 50mA | 100nA (ICBO) | 75 @ 2mA, 4.5V | 625 mW | - | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-92-3 |
|
|
2N3904_J05ZTRANS NPN 40V 0.2A TO-92-3 |
8,194 | 0.00 |
|
Datasheet |
- | TO-226-3, TO-92-3 (TO-226AA) | Bulk | Obsolete | NPN | 200 mA | 40 V | 300mV @ 5mA, 50mA | - | 100 @ 10mA, 1V | 625 mW | 300MHz | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-92-3 |
|
|
2N5088_J61ZTRANS NPN 30V 0.1A TO-92-3 |
3,096 | 0.00 |
|
Datasheet |
- | TO-226-3, TO-92-3 (TO-226AA) Formed Leads | Bulk | Obsolete | NPN | 100 mA | 30 V | 500mV @ 1mA, 10mA | 50nA (ICBO) | 300 @ 100µA, 5V | 625 mW | 50MHz | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-92-3 |
|
2N5210TFTRANS NPN 50V 0.1A TO-92-3 |
4,901 | 0.00 |
|
Datasheet |
- | TO-226-3, TO-92-3 (TO-226AA) Formed Leads | Tape & Reel (TR) | Obsolete | NPN | 100 mA | 50 V | 700mV @ 1mA, 10mA | 50nA (ICBO) | 200 @ 100µA, 5V | 625 mW | 30MHz | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-92-3 |
|
|
2N5401TATRANS PNP 150V 0.6A TO-92-3 |
5,219 | 0.00 |
|
Datasheet |
- | TO-226-3, TO-92-3 (TO-226AA) Formed Leads | Tape & Box (TB) | Obsolete | PNP | 600 mA | 150 V | 500mV @ 5mA, 50mA | 50nA (ICBO) | 60 @ 10mA, 5V | 625 mW | 400MHz | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-92-3 |
|
2N5550TFTRANS NPN 140V 0.6A TO-92-3 |
9,390 | 0.00 |
|
Datasheet |
- | TO-226-3, TO-92-3 (TO-226AA) Formed Leads | Tape & Reel (TR) | Obsolete | NPN | 600 mA | 140 V | 250mV @ 5mA, 50mA | 100nA (ICBO) | 60 @ 10mA, 5V | 625 mW | 300MHz | 150°C (TJ) | - | - | Through Hole | TO-92-3 |
|
|
2N6426_D26ZTRANS NPN DARL 40V 1.2A TO-92-3 |
5,295 | 0.00 |
|
Datasheet |
- | TO-226-3, TO-92-3 (TO-226AA) Formed Leads | Tape & Reel (TR) | Obsolete | NPN - Darlington | 1.2 A | 40 V | 1.5V @ 500µA, 500mA | 1µA | 20000 @ 500mA, 5V | 625 mW | - | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-92-3 |
|
|
BC32716BUTRANS PNP 45V 0.8A TO-92-3 |
4,304 | 0.00 |
|
Datasheet |
- | TO-226-3, TO-92-3 (TO-226AA) | Bulk | Obsolete | PNP | 800 mA | 45 V | 700mV @ 50mA, 500mA | 100nA | 100 @ 100mA, 1V | 625 mW | 100MHz | 150°C (TJ) | - | - | Through Hole | TO-92-3 |
|
|
BC32725TFRTRANS PNP 45V 0.8A TO-92-3 |
3,638 | 0.00 |
|
- |
- | TO-226-3, TO-92-3 (TO-226AA) Formed Leads | Tape & Reel (TR) | Obsolete | PNP | 800 mA | 45 V | 700mV @ 50mA, 500mA | 100nA | 160 @ 100mA, 1V | 625 mW | 100MHz | 150°C (TJ) | - | - | Through Hole | TO-92-3 |
|
|
BC32816TATRANS PNP 25V 0.8A TO-92-3 |
3,277 | 0.00 |
|
- |
- | TO-226-3, TO-92-3 (TO-226AA) Formed Leads | Tape & Box (TB) | Obsolete | PNP | 800 mA | 25 V | 700mV @ 50mA, 500mA | 100nA | 100 @ 100mA, 1V | 625 mW | 100MHz | 150°C (TJ) | - | - | Through Hole | TO-92-3 |
|
|
BC32825TATRANS PNP 25V 0.8A TO-92-3 |
3,471 | 0.00 |
|
- |
- | TO-226-3, TO-92-3 (TO-226AA) Formed Leads | Tape & Box (TB) | Obsolete | PNP | 800 mA | 25 V | 700mV @ 50mA, 500mA | 100nA | 160 @ 100mA, 1V | 625 mW | 100MHz | 150°C (TJ) | - | - | Through Hole | TO-92-3 |
|
|
BC546BBUTRANS NPN 65V 0.1A TO-92-3 |
5,524 | 0.00 |
|
Datasheet |
- | TO-226-3, TO-92-3 (TO-226AA) | Bulk | Obsolete | NPN | 100 mA | 65 V | 600mV @ 5mA, 100mA | 15nA (ICBO) | 200 @ 2mA, 5V | 500 mW | 300MHz | 150°C (TJ) | - | - | Through Hole | TO-92-3 |
