FET, MOSFET Arrays
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Configuration | FET Feature | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Input Capacitance (Ciss) (Max) @ Vds | Power - Max | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SLA5201MOSFET 3N/3P-CH 600V 7A 15ZIP |
98 | 0.00 |
|
Datasheet |
- | 15-SIP Exposed Tab, Formed Leads | Tube | Active | MOSFET (Metal Oxide) | 3 N and 3 P-Channel (3-Phase Bridge) | - | 600V | 7A | - | - | - | - | - | - | - | - | Through Hole | 15-ZIP |
|
SPF0004MOSFET 2N-CH 275V 6A 20HSOP |
45 | 0.00 |
|
Datasheet |
- | 20-PowerSOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Not For New Designs | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | - | 275V | 6A (Ta) | 260mOhm @ 6A, 10V | 2.6V @ 1mA | - | 960pF @ 10V | 2.5W (Tc) | 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | 20-HSOP |
|
DF23MR12W1M1B11BPSA1MOSFET 2N-CH 1200V AG-EASY1BM-2 |
12 | 0.00 |
|
Datasheet |
CoolSiC™+ | Module | Tray | Obsolete | Silicon Carbide (SiC) | 2 N-Channel (Dual) | - | 1200V (1.2kV) | 25A (Tj) | 45mOhm @ 25A, 15V (Typ) | 5.55V @ 10mA | 62nC @ 15V | 1840pF @ 800V | - | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | AG-EASY1BM-2 |
|
F423MR12W1M1PB11BPSA1MOSFET 4N-CH 1200V 50A AG-EASY1B |
3 | 0.00 |
|
Datasheet |
EasyPACK™ | Module | Tray | Obsolete | MOSFET (Metal Oxide) | 4 N-Channel | - | 1200V (1.2kV) | 50A | 22.5mOhm @ 50A, 15V | 5.5V @ 20mA | 124nC @ 15V | 3.68nF @ 800V | - | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | AG-EASY1B-2 |
|
MSCM20XM16F4GMOSFET 200V 77A SP4 |
6 | 0.00 |
|
Datasheet |
- | Module | Tube | Active | - | - | - | 200V | 77A (Tc) | - | - | - | - | - | - | - | - | Chassis Mount | SP4 |
|
|
MSCSM120TLM31C3AGMOSFET 4N-CH 1200V 89A SP3F |
4 | 0.00 |
|
- |
- | Module | Bulk | Active | Silicon Carbide (SiC) | 4 N-Channel (Three Level Inverter) | - | 1200V (1.2kV) | 89A (Tc) | 31mOhm @ 40A, 20V | 2.8V @ 1mA | 232nC @ 20V | 3020pF @ 1000V | 395W (Tc) | -40°C ~ 175°C (TJ) | - | - | Chassis Mount | SP3F |
|
F411MR12W2M1B76BOMA1MOSFET 4N-CH 1200V AG-EASY1B |
8,563 | 0.00 |
|
- |
EasyPACK™ CoolSiC™ | Module | Bulk | Obsolete | Silicon Carbide (SiC) | 4 N-Channel (Full Bridge) | - | 1200V (1.2kV) | 100A (Tj) | 11.3mOhm @ 100A, 15V | 5.55V @ 40mA | 248nC @ 15V | 7360pF @ 800V | - | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | AG-EASY1B-2 |
|
APTMC120AM25CT3AGMOSFET 2N-CH 1200V 113A SP3 |
7 | 0.00 |
|
Datasheet |
- | SP3 | Bulk | Active | Silicon Carbide (SiC) | 2 N-Channel (Half Bridge) | - | 1200V (1.2kV) | 113A (Tc) | 25mOhm @ 80A, 20V | 2.2V @ 4mA (Typ) | 197nC @ 20V | 3800pF @ 1000V | 500W | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | SP3 |
|
|
MSCSM120TLM16C3AGMOSFET 4N-CH 1200V 173A SP3F |
2 | 0.00 |
|
- |
- | Module | Bulk | Active | Silicon Carbide (SiC) | 4 N-Channel (Three Level Inverter) | - | 1200V (1.2kV) | 173A (Tc) | 16mOhm @ 80A, 20V | 2.8V @ 2mA | 464nC @ 20V | 6040pF @ 1000V | 745W (Tc) | -40°C ~ 175°C (TJ) | - | - | Chassis Mount | SP3F |
|
|
MSCSM120DDUM16CTBL3NGMOSFET 4N-CH 1200V 150A |
6 | 0.00 |
|
- |
- | Module | Bulk | Active | Silicon Carbide (SiC) | 4 N-Channel, Common Source | - | 1200V (1.2kV) | 150A | 16mOhm @ 80A, 20V | 2.8V @ 2mA | 464nC @ 20V | 6040pF @ 1000V | 560W | -55°C ~ 175°C (TJ) | - | - | Chassis Mount | - |
|
FF2MR12KM1HOSA1MOSFET 2N-CH 1200V 500A AG-62MM |
13 | 0.00 |
|
Datasheet |
CoolSiC™ | Module | Tray | Obsolete | Silicon Carbide (SiC) | 2 N-Channel (Half Bridge) | - | 1200V (1.2kV) | 500A (Tc) | 2.13mOhm @ 500A, 15V | 5.15V @ 224mA | 1340nC @ 15V | 39700pF @ 800V | - | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | AG-62MM |
|

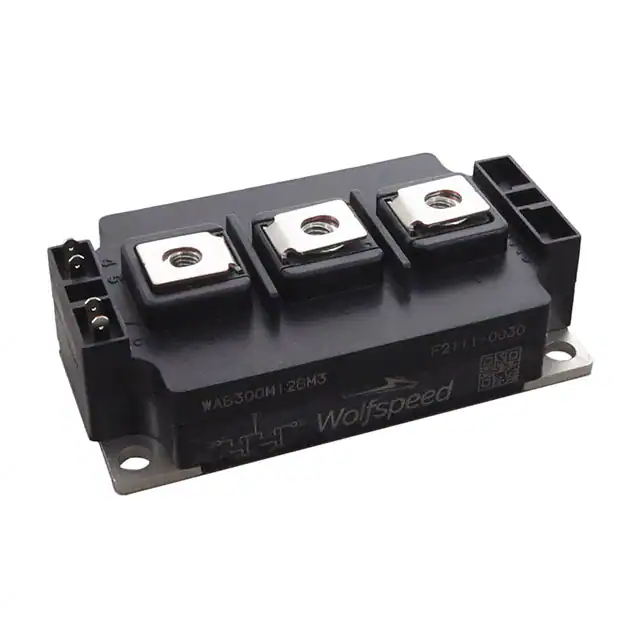

WAB300M12BM3MOSFET 2N-CH 1200V 382A MODULE |
8,403 | 0.00 |
|
Datasheet |
- | Module | Bulk | Last Time Buy | Silicon Carbide (SiC) | 2 N-Channel (Half Bridge) | - | 1200V (1.2kV) | 382A (Tc) | 5.2mOhm @ 300A, 15V | 3.6V @ 92mA | 908nC @ 15V | 24500pF @ 1000V | - | -40°C ~ 175°C (TJ) | - | - | Chassis Mount | Module |
|
|
MSCSM70AM025CD3AGSIC 700V 538A D3 |
4 | 0.00 |
|
Datasheet |
- | Module | Box | Active | Silicon Carbide (SiC) | - | - | 700V | 538A (Tc) | - | - | - | - | - | - | - | - | Chassis Mount | D3 |
|
|
MSQ30C01DMOSFET 30V 5.3A 8SOIC |
930 | 0.00 |
|
Datasheet |
Trench | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | - | - | - | 30V | 5.3A (Ta), 7A (Ta) | 28mOhm @ 7A, 10V, 52mOhm @ 5.3A, 10V | 2.5V @ 250µA | - | - | - | -55°C ~ 150°C (Tc) | - | - | Surface Mount | 8-SOIC |
|
QH8JC5TCRMOSFET 2P-CH 60V 3.5A TSMT8 |
6,325 | 0.00 |
|
Datasheet |
- | 8-SMD, Flat Leads | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 P-Channel (Dual) | - | 60V | 3.5A (Ta) | 91mOhm @ 3.5A, 10V | 2.5V @ 1mA | 17.3nC @ 10V | 850pF @ 30V | 1.1W (Ta) | 150°C (TJ) | - | - | Surface Mount | TSMT8 |
|
SI7212DN-T1-GE3MOSFET 2N-CH 30V 4.9A PPAK 1212 |
4 | 0.00 |
|
Datasheet |
- | PowerPAK® 1212-8 Dual | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | Logic Level Gate | 30V | 4.9A | 36mOhm @ 6.8A, 10V | 1.6V @ 250µA | 11nC @ 4.5V | - | 1.3W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PowerPAK® 1212-8 Dual |
|
DMGD7N45SSD-13MOSFET 2N-CH 450V 0.5A 8SO |
7 | 0.00 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | - | 450V | 500mA (Ta) | 4Ohm @ 400mA, 10V | 4.5V @ 1mA | 6.9nC @ 10V | 256pF @ 25V | 1.64W | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | 8-SO |
|
|
ZXMC6A09DN8TAMOSFET N/P-CH 60V 3.9A/3.7A 8SO |
7 | 0.00 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | N and P-Channel | Logic Level Gate | 60V | 3.9A, 3.7A | 45mOhm @ 8.2A, 10V | 1V @ 250µA (Min) | 24.2nC @ 10V | 1407pF @ 40V, 1580pF @ 40V | 1.8W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SO |
|
ALD1116SALMOSFET 2N-CH 10.6V 8SOIC |
4,416 | 0.00 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) Matched Pair | - | 10.6V | - | 500Ohm @ 5V | 1V @ 1µA | - | 3pF @ 5V | 500mW | 0°C ~ 70°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
|
M1F45M12W2-1LAMOSFET 4N-CH 1200V ACEPACK DMT |
9,108 | 0.00 |
|
Datasheet |
ECOPACK® | 32-PowerDIP Module (1.264", 32.10mm) | Tube | Active | Silicon Carbide (SiC) | 4 N-Channel | - | 1200V (1.2kV) | 30A (Tc) | 64mOhm @ 20A, 18V | 5V @ 1mA | 100nC @ 18V | 2086pF @ 800V | - | -40°C ~ 175°C (TJ) | - | - | Through Hole | ACEPACK DMT-32 |
