Bipolar Transistor Arrays, Pre-Biased
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Transistor Type | Current - Collector (Ic) (Max) | Voltage - Collector Emitter Breakdown (Max) | Resistor - Base (R1) | Resistor - Emitter Base (R2) | DC Current Gain (hFE) (Min) @ Ic, Vce | Vce Saturation (Max) @ Ib, Ic | Current - Collector Cutoff (Max) | Frequency - Transition | Power - Max | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

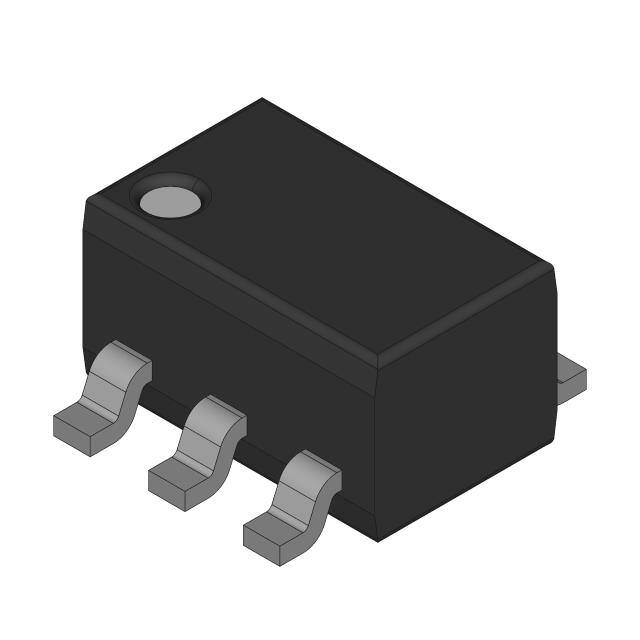

PUMF12,115NEXPERIA PUMF12 - SMALL SIGNAL B |
125,840 | 0.00 |
|
Datasheet |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
PQMD12ZNOW NEXPERIA PQMD - SMALL SIGNAL |
939,730 | 0.00 |
|
Datasheet |
- | 6-XFDFN Exposed Pad | Bulk | Active | 1 NPN, 1 PNP - Pre-Biased (Dual) | 100mA | 50V | 47kOhms | 47kOhms | 80 @ 5mA, 5V | 150mV @ 500µA, 10mA | 100nA (ICBO) | 230MHz, 180MHz | 350mW | - | - | Surface Mount | DFN1010B-6 |
|
PEMH30,115NEXPERIA PEMH30 - SMALL SIGNAL B |
80,000 | 0.00 |
|
Datasheet |
- | SOT-563, SOT-666 | Bulk | Active | 2 NPN - Pre-Biased (Dual) | 100mA | 50V | 2.2kOhms | - | 30 @ 20mA, 5V | 150mV @ 500µA, 10mA | 1µA | - | 300mW | - | - | Surface Mount | SOT-666 |
|
PEMB15,115NOW NEXPERIA PEMB15 - SMALL SIGN |
62,428 | 0.00 |
|
Datasheet |
- | SOT-563, SOT-666 | Bulk | Active | 2 PNP - Pre-Biased (Dual) | 100mA | 50V | 4.7kOhms | 4.7kOhms | 30 @ 10mA, 5V | 150mV @ 500µA, 10mA | 1µA | - | 300mW | - | - | Surface Mount | SOT-666 |
|
|
PEMH7,115NEXPERIA PEMH7 - SMALL SIGNAL BI |
48,000 | 0.00 |
|
Datasheet |
- | SOT-563, SOT-666 | Bulk | Active | 2 NPN - Pre-Biased (Dual) | 100mA | 50V | 4.7kOhms | - | 200 @ 1mA, 5V | 100mV @ 250µA, 5mA | 1µA | - | 300mW | - | - | Surface Mount | SOT-666 |
|
|
PEMB1,115NOW NEXPERIA PEMB1 - SMALL SIGNA |
34,840 | 0.00 |
|
Datasheet |
- | SOT-563, SOT-666 | Bulk | Active | 2 PNP - Pre-Biased (Dual) | 100mA | 50V | 22kOhms | 22kOhms | 60 @ 5mA, 5V | 150mV @ 500µA, 10mA | 1µA | - | 300mW | - | - | Surface Mount | SOT-666 |
|
|
PEMB4,115NOW NEXPERIA PEMB4 - SMALL SIGNA |
28,821 | 0.00 |
|
Datasheet |
- | SOT-563, SOT-666 | Bulk | Active | 2 PNP - Pre-Biased (Dual) | 100mA | 50V | 10kOhms | - | 200 @ 1mA, 5V | 150mV @ 500µA, 10mA | 1µA | - | 300mW | - | - | Surface Mount | SOT-666 |
|
|
PEMH17,115NOW NEXPERIA PEMH17 - SMALL SIGN |
24,000 | 0.00 |
|
Datasheet |
- | SOT-563, SOT-666 | Bulk | Active | 2 NPN - Pre-Biased (Dual) | 100mA | 50V | 47kOhms | 22kOhms | 60 @ 5mA, 5V | 150mV @ 500µA, 10mA | 1µA | - | 300mW | - | - | Surface Mount | SOT-666 |
|
SMUN5116DW1T1GDUAL PNP BIPOLAR DIGITAL TRANSIS |
12,000 | 0.00 |
|
Datasheet |
- | 6-TSSOP, SC-88, SOT-363 | Bulk | Active | 2 PNP - Pre-Biased (Dual) | 100mA | 50V | 4.7kOhms | - | 160 @ 5mA, 10V | 250mV @ 1mA, 10mA | 500nA | - | 187mW | Automotive | AEC-Q101 | Surface Mount | SC-88/SC70-6/SOT-363 |
|
|
PEMD19,115NEXPERIA PEMD19 - SMALL SIGNAL B |
12,000 | 0.00 |
|
Datasheet |
- | SOT-563, SOT-666 | Bulk | Active | 1 NPN, 1 PNP - Pre-Biased (Dual) | 100mA | 50V | 22kOhms | - | 100 @ 1mA, 5V | 150mV @ 500µA, 10mA | 1µA | - | 300mW | - | - | Surface Mount | SOT-666 |
|
|
PEMB18,115NEXPERIA PEMB18 - SMALL SIGNAL B |
12,000 | 0.00 |
|
Datasheet |
- | SOT-563, SOT-666 | Bulk | Active | 2 PNP - Pre-Biased (Dual) | 100mA | 50V | 4.7kOhms | 10kOhms | 50 @ 10mA, 5V | 150mV @ 500µA, 10mA | 1µA | - | 300mW | - | - | Surface Mount | SOT-666 |
|
|
PEMB16,115NEXPERIA PEMB16 - SMALL SIGNAL B |
12,000 | 0.00 |
|
Datasheet |
- | SOT-563, SOT-666 | Bulk | Active | 2 PNP - Pre-Biased (Dual) | 100mA | 50V | 22kOhms | 47kOhms | 80 @ 5mA, 5V | 150mV @ 500µA, 10mA | 1µA | - | 300mW | - | - | Surface Mount | SOT-666 |
|
|
PQMD2147PQMD2 - NPN/PNP RESISTOR-EQUIPPE |
10,000 | 0.00 |
|
Datasheet |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
PQMD10147PQMD10 - NPN/PNP RESISTOR-EQUIPP |
10,000 | 0.00 |
|
Datasheet |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
PQMH9ZDigital BJT 2 NPN - Pre-Biased ( |
10,000 | 0.00 |
|
Datasheet |
- | 6-XFDFN Exposed Pad | Bulk | Active | 2 NPN - Pre-Biased | 100mA | 50V | 10kOhms | 47kOhms | 100 @ 5mA, 5V | 100mV @ 250µA, 5mA | 1µA | 230MHz | 230mW | Automotive | AEC-Q101 | Surface Mount | DFN1010B-6 |
|
|
PEMD12,115NEXPERIA PEMD12 - SMALL SIGNAL B |
3,230,530 | 0.00 |
|
Datasheet |
- | SOT-563, SOT-666 | Bulk | Active | 1 NPN, 1 PNP - Pre-Biased (Dual) | 100mA | 50V | 47kOhms | 47kOhms | 80 @ 5mA, 5V | 150mV @ 500µA, 10mA | 1µA | - | 300mW | - | - | Surface Mount | SOT-666 |
|
|
PEMB3,115NEXPERIA PEMB3 - SMALL SIGNAL BI |
399,000 | 0.00 |
|
Datasheet |
- | SOT-563, SOT-666 | Bulk | Active | 2 PNP - Pre-Biased (Dual) | 100mA | 50V | 4.7kOhms | - | 200 @ 1mA, 5V | 100mV @ 250µA, 5mA | 1µA | - | 300mW | - | - | Surface Mount | SOT-666 |
|
EMF23XV6T5GSMALL SIGNAL BIPOLAR TRANSISTOR, |
88,000 | 0.00 |
|
Datasheet |
- | SOT-563, SOT-666 | Bulk | Active | 1 NPN - Pre-Biased, 1 PNP | 100mA | 50V, 60V | 10kOhms | 10kOhms | 35 @ 5mA, 10V / 120 @ 1mA, 6V | 250mV @ 300µA, 10mA / 500mV @ 5mA, 50mA | 500nA, 500pA (ICBO) | 140MHz | 357mW | - | - | Surface Mount | SOT-563 |
|
|
NSBA144EDXV6T1GNSBA144EDXV6 - DUAL PNP BIAS RES |
36,000 | 0.00 |
|
Datasheet |
- | SOT-563, SOT-666 | Bulk | Active | 2 PNP - Pre-Biased (Dual) | 100mA | 50V | 47kOhms | 47kOhms | 80 @ 5mA, 10V | 250mV @ 300µA, 10mA | 500nA | - | 500mW | - | - | Surface Mount | SOT-563 |
|
PBLS1501Y,115NEXPERIA PBLS1501V - 15 V PNP BI |
155,430 | 0.00 |
|
Datasheet |
- | 6-TSSOP, SC-88, SOT-363 | Bulk | Active | 1 NPN Pre-Biased, 1 PNP | 100mA, 500mA | 50V, 15V | 2.2kOhms | 2.2kOhms | 30 @ 20mA, 5V / 150 @ 100mA, 2V | 150mV @ 500µA, 10mA / 250mV @ 50mA, 500mA | 1µA, 100nA | 280MHz | 300mW | - | - | Surface Mount | 6-TSSOP |
