FETs, MOSFETs
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IRLR8503TRRPBFMOSFET N-CH 30V 44A DPAK |
4,276 | 0.00 |
|
Datasheet |
HEXFET® | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 44A (Tc) | 4.5V, 10V | 16mOhm @ 15A, 10V | 3V @ 250µA | 20 nC @ 5 V | ±20V | 1650 pF @ 25 V | - | 62W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-252AA (DPAK) |
|
IRLZ44NSTRRPBFMOSFET N-CH 55V 47A D2PAK |
3,369 | 0.00 |
|
Datasheet |
HEXFET® | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 55 V | 47A (Tc) | 4V, 10V | 22mOhm @ 25A, 10V | 2V @ 250µA | 48 nC @ 5 V | ±16V | 1700 pF @ 25 V | - | 3.8W (Ta), 110W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | D2PAK |
|
SI4435DYPBFMOSFET P-CH 30V 8A 8SO |
2,018 | 0.00 |
|
Datasheet |
HEXFET® | 8-SOIC (0.154", 3.90mm Width) | Tube | Discontinued at Digi-Key | P-Channel | MOSFET (Metal Oxide) | 30 V | 8A (Tc) | 4.5V, 10V | 20mOhm @ 8A, 10V | 1V @ 250µA | 60 nC @ 10 V | ±20V | 2320 pF @ 15 V | - | 2.5W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SO |
|
2SK2963(TE12L,F)MOSFET N-CH 100V 1A PW-MINI |
5,983 | 0.00 |
|
Datasheet |
- | TO-243AA | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 1A (Ta) | 4V, 10V | 700mOhm @ 500mA, 10V | 2V @ 1mA | 6.3 nC @ 10 V | ±20V | 140 pF @ 10 V | - | 500mW (Ta) | 150°C (TJ) | - | - | Surface Mount | PW-MINI |
.JPG)
|

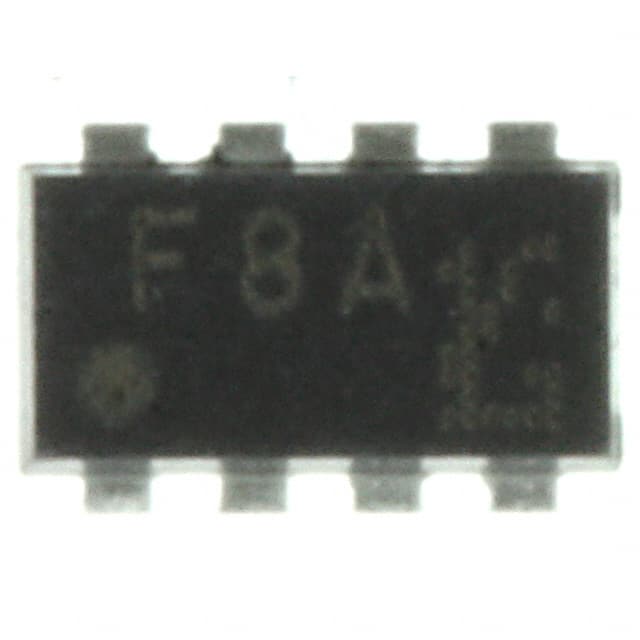

TPCF8B01(TE85L,F,MMOSFET P-CH 20V 2.7A VS-8 |
5,864 | 0.00 |
|
Datasheet |
U-MOSIII | 8-SMD, Flat Leads | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 20 V | 2.7A (Ta) | 1.8V, 4.5V | 110mOhm @ 1.4A, 4.5V | 1.2V @ 200µA | 6 nC @ 5 V | ±8V | 470 pF @ 10 V | Schottky Diode (Isolated) | 330mW (Ta) | 150°C (TJ) | - | - | Surface Mount | VS-8 (2.9x1.5) |
|
PH1955L,115MOSFET N-CH 55V 40A LFPAK56 |
9,368 | 0.00 |
|
- |
TrenchMOS™ | SC-100, SOT-669 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 55 V | 40A (Tc) | 4.5V, 10V | 17.3mOhm @ 25A, 10V | 2V @ 1mA | 18 nC @ 5 V | ±15V | 1992 pF @ 25 V | - | 75W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | LFPAK56, Power-SO8 |
|
PH20100S,115MOSFET N-CH 100V 34.3A LFPAK56 |
3,251 | 0.00 |
|
Datasheet |
TrenchMOS™ | SC-100, SOT-669 | Tape & Reel (TR) | Discontinued at Digi-Key | N-Channel | MOSFET (Metal Oxide) | 100 V | 34.3A (Tc) | 10V | 23mOhm @ 10A, 10V | 4V @ 1mA | 39 nC @ 10 V | ±20V | 2264 pF @ 25 V | - | 62.5W (Tc) | - | - | - | Surface Mount | LFPAK56, Power-SO8 |
|
|
PH4840S,115MOSFET N-CH 40V 94.5A LFPAK56 |
2,152 | 0.00 |
|
Datasheet |
TrenchMOS™ | SC-100, SOT-669 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 40 V | 94.5A (Tc) | 7V, 10V | 4.1mOhm @ 25A, 10V | 3V @ 1mA | 67 nC @ 10 V | ±20V | 3660 pF @ 10 V | - | 62.5W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | LFPAK56, Power-SO8 |
|
|
PH6325L,115MOSFET N-CH 25V 78.7A LFPAK56 |
7,005 | 0.00 |
|
Datasheet |
TrenchMOS™ | SC-100, SOT-669 | Tape & Reel (TR) | Last Time Buy | N-Channel | MOSFET (Metal Oxide) | 25 V | 78.7A (Tc) | 4.5V, 10V | 6.3mOhm @ 25A, 10V | 2V @ 1mA | 13.3 nC @ 4.5 V | ±20V | 1871 pF @ 12 V | - | 62.5W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | LFPAK56, Power-SO8 |
|
PHB38N02LT,118MOSFET N-CH 20V 44.7A D2PAK |
2,572 | 0.00 |
|
Datasheet |
TrenchMOS™ | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 20 V | 44.7A (Tc) | 2.5V, 5V | 16mOhm @ 25A, 5V | 1.5V @ 250µA | 15.1 nC @ 5 V | 12V | 800 pF @ 20 V | - | 57.6W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | D2PAK |
|
2N7000RLRAGMOSFET N-CH 60V 200MA TO92-3 |
5,844 | 0.00 |
|
- |
- | TO-226-3, TO-92-3 Long Body, Formed Leads | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 200mA (Ta) | 4.5V, 10V | 5Ohm @ 500mA, 10V | 3V @ 1mA | - | ±20V | 60 pF @ 25 V | - | 350mW (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-92 (TO-226) |
|
|
BS170RLRAGMOSFET N-CH 60V 500MA TO92-3 |
3,503 | 0.00 |
|
- |
- | TO-226-3, TO-92-3 Long Body, Formed Leads | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 500mA (Ta) | 10V | 5Ohm @ 200mA, 10V | 3V @ 1mA | - | ±20V | 60 pF @ 10 V | - | 350mW (Ta) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-92 (TO-226) |
,TO-226_straightlead.jpg)
|
BS107AGMOSFET N-CH 200V 250MA TO92-3 |
5,986 | 0.00 |
|
Datasheet |
- | TO-226-3, TO-92-3 Long Body | Bulk | Obsolete | N-Channel | MOSFET (Metal Oxide) | 200 V | 250mA (Ta) | 10V | 6.4Ohm @ 250mA, 10V | 3V @ 1mA | - | ±20V | 60 pF @ 25 V | - | 350mW (Ta) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-92 (TO-226) |
|
MTP12P10GMOSFET P-CH 100V 12A TO220AB |
9,421 | 0.00 |
|
Datasheet |
- | TO-220-3 | Tube | Obsolete | P-Channel | MOSFET (Metal Oxide) | 100 V | 12A (Tc) | 10V | 300mOhm @ 6A, 10V | 4.5V @ 1mA | 50 nC @ 10 V | ±20V | 920 pF @ 25 V | - | 75W (Tc) | -65°C ~ 150°C (TJ) | - | - | Through Hole | TO-220 |
|
|
MTP23P06VGMOSFET P-CH 60V 23A TO220AB |
3,146 | 0.00 |
|
Datasheet |
- | TO-220-3 | Tube | Obsolete | P-Channel | MOSFET (Metal Oxide) | 60 V | 23A (Tc) | 10V | 120mOhm @ 11.5A, 10V | 4V @ 250µA | 50 nC @ 10 V | ±15V | 1620 pF @ 25 V | - | 90W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220 |
|
MTW32N20EGMOSFET N-CH 200V 32A TO247 |
9,468 | 0.00 |
|
Datasheet |
- | TO-247-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 200 V | 32A (Tc) | 10V | 75mOhm @ 16A, 10V | 4V @ 250µA | 120 nC @ 10 V | ±20V | 5000 pF @ 25 V | - | 180W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247 |
|
|
NTB125N02RT4GMOSFET N-CH 24V 95A/120.5A D2PAK |
3,903 | 0.00 |
|
Datasheet |
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 24 V | 95A (Ta), 120.5A (Tc) | 4.5V, 10V | 4.6mOhm @ 20A, 10V | 2V @ 250µA | 28 nC @ 4.5 V | ±20V | 3440 pF @ 20 V | - | 1.98W (Ta), 113.6W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | D2PAK |
|
|
NTB85N03T4GMOSFET N-CH 28V 85A D2PAK |
5,112 | 0.00 |
|
Datasheet |
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 28 V | 85A (Tc) | 4.5V, 10V | 6.8mOhm @ 40A, 10V | 3V @ 250µA | 29 nC @ 4.5 V | ±20V | 2150 pF @ 24 V | - | 80W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | D2PAK |
|
|
NTD40N03RT4GMOSFET N-CH 25V 7.8A/32A DPAK |
3,851 | 0.00 |
|
Datasheet |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 25 V | 7.8A (Ta), 32A (Tc) | 4.5V, 10V | 16.5mOhm @ 10A, 10V | 2V @ 250µA | 5.78 nC @ 4.5 V | ±20V | 584 pF @ 20 V | - | 1.5W (Ta), 50W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | DPAK |
|
|
NTD80N02T4GMOSFET N-CH 24V 80A DPAK |
9,918 | 0.00 |
|
Datasheet |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 24 V | 80A (Tc) | 4.5V, 10V | 5.8mOhm @ 80A, 10V | 3V @ 250µA | 42 nC @ 4.5 V | ±20V | 2600 pF @ 20 V | - | 75W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DPAK |
