Home > Products  > Discrete Semiconductor Products > Transistors > FETs, MOSFETs > FETs, MOSFETs

FETs, MOSFETs

Photo Mfr. Part # Availability Price Quantity Datasheet Series Package/Case Packaging Product Status FET Type Technology Drain to Source Voltage (Vdss) Current - Continuous Drain (Id) @ 25°C Drive Voltage (Max Rds On, Min Rds On) Rds On (Max) @ Id, Vgs Vgs(th) (Max) @ Id Gate Charge (Qg) (Max) @ Vgs Vgs (Max) Input Capacitance (Ciss) (Max) @ Vds FET Feature Power Dissipation (Max) Operating Temperature Grade Qualification Mounting Type Supplier Device Package
UPA2736GR-E1-AT

UPA2736GR-E1-AT

MOSFET P-CH 30V 14A 8SOP

Renesas Electronics Corporation

 4,396 0.00
RFQ
UPA2736GR-E1-AT

Datasheet

 		- 8-PowerSOIC (0.173", 4.40mm Width) Tape & Reel (TR) Obsolete P-Channel MOSFET (Metal Oxide) 30 V 14A (Ta) 4.5V, 10V 7mOhm @ 14A, 10V - 80 nC @ 10 V ±20V 3400 pF @ 10 V - 1.1W (Ta) 150°C (TJ) - - Surface Mount 8-SOP
UPA2737GR-E1-AT

UPA2737GR-E1-AT

MOSFET P-CH 30V 11A 8SOP

Renesas Electronics Corporation

 9,694 0.00
RFQ
UPA2737GR-E1-AT

Datasheet

 		- 8-SOIC (0.173", 4.40mm Width) Tape & Reel (TR) Obsolete P-Channel MOSFET (Metal Oxide) 30 V 11A (Ta) 4.5V, 10V 13mOhm @ 11A, 10V - 45 nC @ 10 V ±20V 1750 pF @ 10 V - 1.1W (Ta) 150°C (TJ) - - Surface Mount 8-SOP
UPA2738GR-E1-AT

UPA2738GR-E1-AT

MOSFET P-CH 30V 10A 8SOP

Renesas Electronics Corporation

 9,283 0.00
RFQ
UPA2738GR-E1-AT

Datasheet

 		- 8-PowerSOIC (0.173", 4.40mm Width) Tape & Reel (TR) Obsolete P-Channel MOSFET (Metal Oxide) 30 V 10A (Ta) 4.5V, 10V 15mOhm @ 10A, 10V - 37 nC @ 10 V ±20V 1450 pF @ 10 V - 1.1W (Ta) 150°C (TJ) - - Surface Mount 8-SOP
UPA2812T1L-E2-AT

UPA2812T1L-E2-AT

MOSFET P-CH 30V 30A 8HWSON

Renesas Electronics Corporation

 7,333 0.00
RFQ
UPA2812T1L-E2-AT

Datasheet

 		- 8-PowerVDFN Tape & Reel (TR) Obsolete P-Channel MOSFET (Metal Oxide) 30 V 30A (Tc) 4.5V, 10V 4.8mOhm @ 30A, 10V - 100 nC @ 10 V ±20V 3740 pF @ 10 V - 1.5W (Ta) 150°C (TJ) - - Surface Mount 8-HWSON (3.3x3.3)
UPA2813T1L-E2-AT

UPA2813T1L-E2-AT

MOSFET P-CH 30V 27A 8HWSON

Renesas Electronics Corporation

 6,815 0.00
RFQ
UPA2813T1L-E2-AT

Datasheet

 		- 8-PowerVDFN Tape & Reel (TR) Obsolete P-Channel MOSFET (Metal Oxide) 30 V 27A (Tc) 4.5V, 10V 6.2mOhm @ 27A, 10V - 80 nC @ 10 V ±20V 3130 pF @ 10 V - 1.5W (Ta) 150°C (TJ) - - Surface Mount 8-HWSON (3.3x3.3)
UPA2821T1L-E1-AT

UPA2821T1L-E1-AT

MOSFET N-CH 30V 26A 8HWSON

Renesas Electronics Corporation

 2,075 0.00
RFQ
UPA2821T1L-E1-AT

Datasheet

 		- 8-PowerWDFN Tape & Reel (TR) Obsolete N-Channel MOSFET (Metal Oxide) 30 V 26A (Tc) 4.5V, 10V 3.8mOhm @ 26A, 10V - 51 nC @ 10 V ±20V 2490 pF @ 10 V - 1.5W (Ta) 150°C (TJ) - - Surface Mount 8-HWSON (3.3x3.3)
UPA2822T1L-E1-AT

UPA2822T1L-E1-AT

MOSFET N-CH 30V 34A 8HWSON

Renesas Electronics Corporation

 3,934 0.00
RFQ
UPA2822T1L-E1-AT

Datasheet

 		- 8-PowerWDFN Tape & Reel (TR) Obsolete N-Channel MOSFET (Metal Oxide) 30 V 34A (Tc) 4.5V, 10V 2.6mOhm @ 34A, 10V - 83 nC @ 10 V ±20V 4660 pF @ 10 V - 1.5W (Ta) 150°C (TJ) - - Surface Mount 8-HWSON (3.3x3.3)
DMG4N65CTI

DMG4N65CTI

MOSFET N-CH 650V 4A ITO220AB

Diodes Incorporated

 3,443 0.00
RFQ
DMG4N65CTI

Datasheet

 		- TO-220-3 Full Pack, Isolated Tab Tube Obsolete N-Channel MOSFET (Metal Oxide) 650 V 4A (Tc) 10V 3Ohm @ 2A, 10V 5V @ 250µA 13.5 nC @ 10 V ±30V 900 pF @ 25 V - 8.35W (Ta) -55°C ~ 150°C (TJ) - - Through Hole ITO-220AB
SIA439EDJ-T1-GE3

SIA439EDJ-T1-GE3

MOSFET P-CH 20V 28A PPAK SC70-6

Vishay Siliconix

 3,415 0.00
RFQ
SIA439EDJ-T1-GE3

Datasheet

 		TrenchFET® PowerPAK® SC-70-6 Tape & Reel (TR) Obsolete P-Channel MOSFET (Metal Oxide) 20 V 28A (Tc) 1.8V, 4.5V 16.5mOhm @ 5A, 4.5V 1V @ 250µA 69 nC @ 8 V ±8V 2410 pF @ 10 V - 3.5W (Ta), 19W (Tc) -50°C ~ 150°C (TJ) - - Surface Mount PowerPAK® SC-70-6

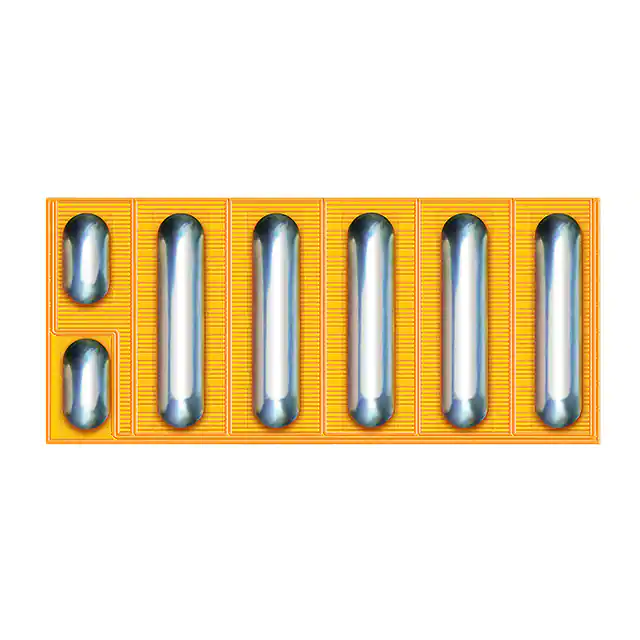

EPC2018

EPC2018

GANFET N-CH 150V 12A DIE

EPC

 4,747 0.00
RFQ
EPC2018

Datasheet

 		eGaN® Die Tape & Reel (TR) Discontinued at Digi-Key N-Channel GaNFET (Gallium Nitride) 150 V 12A (Ta) 5V 25mOhm @ 6A, 5V 2.5V @ 3mA 7.5 nC @ 5 V +6V, -5V 540 pF @ 100 V - - -40°C ~ 125°C (TJ) - - Surface Mount Die
AUIRFS8408-7TRR

AUIRFS8408-7TRR

MOSFET N-CH 40V 240A D2PAK

Infineon Technologies

 3,489 0.00
RFQ
AUIRFS8408-7TRR

Datasheet

 		HEXFET® TO-263-7, D2PAK (6 Leads + Tab), TO-263CB Tape & Reel (TR) Obsolete N-Channel MOSFET (Metal Oxide) 40 V 240A (Tc) 10V 1mOhm @ 100A, 10V 3.9V @ 250µA 315 nC @ 10 V ±20V 10250 pF @ 25 V - 294W (Tc) -55°C ~ 175°C (TJ) - - Surface Mount PG-TO263-7-900
AUIRFS8405TRL

AUIRFS8405TRL

MOSFET N-CH 40V 120A D2PAK

Infineon Technologies

 9,205 0.00
RFQ
AUIRFS8405TRL

Datasheet

 		HEXFET® TO-263-3, D2PAK (2 Leads + Tab), TO-263AB Tape & Reel (TR) Obsolete N-Channel MOSFET (Metal Oxide) 40 V 120A (Tc) 10V 2.3mOhm @ 100A, 10V 3.9V @ 100µA 161 nC @ 10 V ±20V 5193 pF @ 25 V - 163W (Tc) -55°C ~ 175°C (TJ) - - Surface Mount PG-TO263-3
AUIRFSL8405

AUIRFSL8405

MOSFET N-CH 40V 120A TO262

Infineon Technologies

 9,560 0.00
RFQ
AUIRFSL8405

Datasheet

 		HEXFET® TO-262-3 Long Leads, I2PAK, TO-262AA Tube Obsolete N-Channel MOSFET (Metal Oxide) 40 V 120A (Tc) 10V 2.3mOhm @ 100A, 10V 3.9V @ 100µA 161 nC @ 10 V ±20V 5193 pF @ 25 V - 163W (Tc) -55°C ~ 175°C (TJ) - - Through Hole TO-262
AUIRFU8403

AUIRFU8403

MOSFET N-CH 40V 100A IPAK

Infineon Technologies

 2,184 0.00
RFQ
AUIRFU8403

Datasheet

 		HEXFET® TO-251-3 Short Leads, IPAK, TO-251AA Tube Obsolete N-Channel MOSFET (Metal Oxide) 40 V 100A (Tc) 10V 3.1mOhm @ 76A, 10V 3.9V @ 100µA 99 nC @ 10 V ±20V 3171 pF @ 25 V - 99W (Tc) -55°C ~ 175°C (TJ) - - Through Hole IPAK
AUIRFSL8403

AUIRFSL8403

MOSFET N-CH 40V 123A TO262

Infineon Technologies

 4,648 0.00
RFQ
AUIRFSL8403

Datasheet

 		HEXFET® TO-262-3 Long Leads, I2PAK, TO-262AA Tube Obsolete N-Channel MOSFET (Metal Oxide) 40 V 123A (Tc) 10V 3.3mOhm @ 70A, 10V 3.9V @ 100µA 93 nC @ 10 V ±20V 3183 pF @ 25 V - 99W (Tc) -55°C ~ 175°C (TJ) - - Through Hole TO-262
AUIRFS8405

AUIRFS8405

MOSFET N-CH 40V 120A D2PAK

Infineon Technologies

 8,521 0.00
RFQ
AUIRFS8405

Datasheet

 		HEXFET® TO-263-3, D2PAK (2 Leads + Tab), TO-263AB Tube Obsolete N-Channel MOSFET (Metal Oxide) 40 V 120A (Tc) 10V 2.3mOhm @ 100A, 10V 3.9V @ 100µA 161 nC @ 10 V ±20V 5193 pF @ 25 V - 163W (Tc) -55°C ~ 175°C (TJ) - - Surface Mount PG-TO263-3
AUIRFS8407

AUIRFS8407

MOSFET N-CH 40V 195A D2PAK

Infineon Technologies

 2,661 0.00
RFQ
AUIRFS8407

Datasheet

 		HEXFET® TO-263-3, D2PAK (2 Leads + Tab), TO-263AB Tube Obsolete N-Channel MOSFET (Metal Oxide) 40 V 195A (Tc) 10V 1.8mOhm @ 100A, 10V 4V @ 150µA 225 nC @ 10 V ±20V 7330 pF @ 25 V - 230W (Tc) -55°C ~ 175°C (TJ) - - Surface Mount PG-TO263-3
AUIRFS8408

AUIRFS8408

MOSFET N-CH 40V 195A D2PAK

Infineon Technologies

 9,745 0.00
RFQ
AUIRFS8408

Datasheet

 		HEXFET® TO-263-3, D2PAK (2 Leads + Tab), TO-263AB Tube Obsolete N-Channel MOSFET (Metal Oxide) 40 V 195A (Tc) 10V 1.6mOhm @ 100A, 10V 3.9V @ 250µA 324 nC @ 10 V ±20V 10820 pF @ 25 V - 294W (Tc) -55°C ~ 175°C (TJ) - - Surface Mount D2PAK
AUIRFS8408-7P

AUIRFS8408-7P

MOSFET N-CH 40V 240A D2PAK

Infineon Technologies

 6,741 0.00
RFQ
AUIRFS8408-7P

Datasheet

 		HEXFET® TO-263-7, D2PAK (6 Leads + Tab), TO-263CB Tube Obsolete N-Channel MOSFET (Metal Oxide) 40 V 240A (Tc) 10V 1mOhm @ 100A, 10V 3.9V @ 250µA 315 nC @ 10 V ±20V 10250 pF @ 25 V - 294W (Tc) -55°C ~ 175°C (TJ) - - Surface Mount PG-TO263-7-900
AUIRFS8409

AUIRFS8409

MOSFET N-CH 40V 195A D2PAK

Infineon Technologies

 2,470 0.00
RFQ
AUIRFS8409

Datasheet

 		HEXFET® TO-263-3, D2PAK (2 Leads + Tab), TO-263AB Tube Obsolete N-Channel MOSFET (Metal Oxide) 40 V 195A (Tc) 10V 1.2mOhm @ 100A, 10V 3.9V @ 250µA 450 nC @ 10 V ±20V 14240 pF @ 25 V - 375W (Tc) -55°C ~ 175°C (TJ) - - Surface Mount PG-TO263-3
Total 72644 Record«Prev1... 16581659166016611662166316641665...3633Next»
