FETs, MOSFETs
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IPP80N06S407AKSA2MOSFET N-CH 60V 80A TO220-3 Infineon Technologies |
3,690 | 0.00 |
|
Datasheet |
OptiMOS™ | TO-220-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 80A (Tc) | 10V | 7.4mOhm @ 80A, 10V | 4V @ 40µA | 56 nC @ 10 V | ±20V | 4500 pF @ 25 V | - | 79W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Through Hole | PG-TO220-3-1 |
|

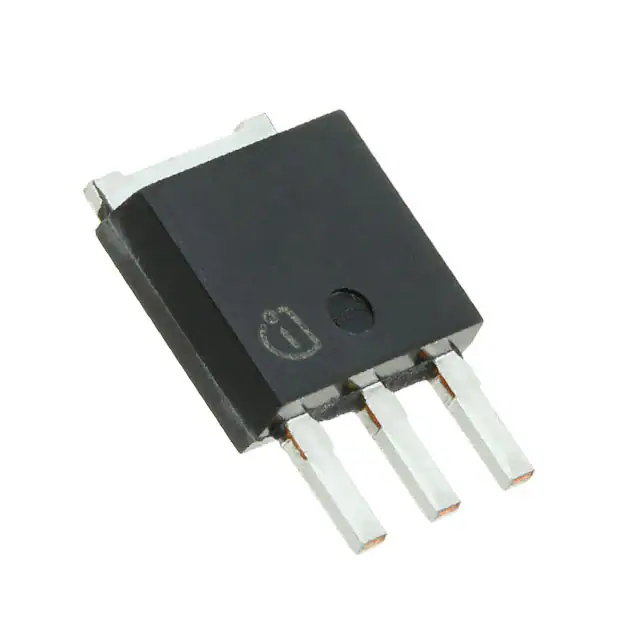

IPS70R950CEAKMA1MOSFET N-CH 700V 7.4A TO251 Infineon Technologies |
5,290 | 0.00 |
|
Datasheet |
CoolMOS™ | TO-251-3 Stub Leads, IPAK | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 700 V | 7.4A (Tc) | 10V | 950mOhm @ 1.5A, 10V | 3.5V @ 150µA | 15.3 nC @ 10 V | ±20V | 328 pF @ 100 V | - | 68W (Tc) | -40°C ~ 150°C (TJ) | - | - | Through Hole | PG-TO251-3-11 |
|
|
IPS70R2K0CEAKMA1MOSFET N-CH 700V 4A TO251-3 Infineon Technologies |
9,654 | 0.00 |
|
Datasheet |
CoolMOS™ | TO-251-3 Stub Leads, IPAK | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 700 V | 4A (Tc) | 10V | 2Ohm @ 1A, 10V | 3.5V @ 70µA | 7.8 nC @ 10 V | ±20V | 163 pF @ 100 V | - | 42W (Tc) | -40°C ~ 150°C (TJ) | - | - | Through Hole | PG-TO251-3-11 |
|
AUIRF1324STRL7PMOSFET N-CH 24V 340A D2PAK Infineon Technologies |
3,265 | 0.00 |
|
Datasheet |
HEXFET® | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 24 V | 340A (Tc) | 10V | 1.65mOhm @ 195A, 10V | 4V @ 250µA | 240 nC @ 10 V | ±20V | 7590 pF @ 24 V | - | 300W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | PG-TO263-3 |
|
AUIRLS8409-7TRLMOSFET N-CH 40V 240A D2PAK Infineon Technologies |
9,364 | 0.00 |
|
Datasheet |
HEXFET® | TO-263-7, D2PAK (6 Leads + Tab) | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 40 V | 240A (Tc) | 4.5V, 10V | 0.75mOhm @ 100A, 10V | 2.4V @ 250µA | 266 nC @ 4.5 V | ±16V | 16488 pF @ 25 V | - | 375W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | PG-TO263-7 |
|
IRFH7182TRPBFMOSFET N-CH 100V 23A/157A 8PQFN Infineon Technologies |
3,024 | 0.00 |
|
Datasheet |
FASTIRFET™, HEXFET® | 8-PowerTDFN | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 23A (Ta), 157A (Tc) | 10V | 3.9mOhm @ 50A, 10V | 3.6V @ 250µA | 74 nC @ 10 V | ±20V | 3120 pF @ 50 V | - | 4W (Ta), 195W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-PQFN (5x6) |
|
AUIRFP4310ZMOSFET N-CH 100V 128A TO247AC Infineon Technologies |
9,029 | 0.00 |
|
Datasheet |
HEXFET® | TO-247-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 128A (Tc) | 10V | 6mOhm @ 77A, 10V | 4V @ 150µA | 188 nC @ 10 V | ±20V | 7120 pF @ 50 V | - | 278W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Through Hole | PG-TO247-3 |
|
AUIRFS4127MOSFET N-CH 200V 72A D2PAK Infineon Technologies |
2,072 | 0.00 |
|
Datasheet |
HEXFET® | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 200 V | 72A (Tc) | 10V | 22mOhm @ 44A, 10V | 5V @ 250µA | 150 nC @ 10 V | ±20V | 5380 pF @ 50 V | - | 375W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | PG-TO263-3 |
|
|
AUIRFSA8409-7PMOSFET N-CH 40V 523A D2PAK Infineon Technologies |
5,276 | 0.00 |
|
Datasheet |
HEXFET® | TO-263-7, D2PAK (6 Leads + Tab) | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 40 V | 523A (Tc) | 10V | 0.69mOhm @ 100A, 10V | 3.9V @ 250µA | 460 nC @ 10 V | ±20V | 13975 pF @ 25 V | - | 375W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | PG-TO263-7 |
|
|
AUIRLS8409-7PMOSFET N-CH 40V 240A D2PAK Infineon Technologies |
2,164 | 0.00 |
|
Datasheet |
HEXFET® | TO-263-7, D2PAK (6 Leads + Tab) | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 40 V | 240A (Tc) | 4.5V, 10V | 0.75mOhm @ 100A, 10V | 2.4V @ 250µA | 266 nC @ 4.5 V | ±16V | 16488 pF @ 25 V | - | 375W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | PG-TO263-7 |
