FETs, MOSFETs
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IMZA65R007M2HXKSA1SILICON CARBIDE MOSFET |
8,463 | 0.00 |
|
Datasheet |
CoolSiC™ | TO-247-4 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 210A (Tc) | 15V, 20V | 6.1mOhm @ 146.3A, 20V | 5.6V @ 29.7mA | 179 nC @ 18 V | +23V, -7V | 6359 pF @ 400 V | - | 625W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | PG-TO247-4-U02 |
|
IXTK22N100LMOSFET N-CH 1000V 22A TO264 |
5,628 | 0.00 |
|
Datasheet |
Linear | TO-264-3, TO-264AA | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 1000 V | 22A (Tc) | 20V | 600mOhm @ 11A, 20V | 5V @ 250µA | 270 nC @ 15 V | ±30V | 7050 pF @ 25 V | - | 700W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-264 (IXTK) |
|
IXFN60N80PMOSFET N-CH 800V 53A SOT-227B |
8,754 | 0.00 |
|
Datasheet |
HiPerFET™, Polar | SOT-227-4, miniBLOC | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 800 V | 53A (Tc) | 10V | 140mOhm @ 30A, 10V | 5V @ 8mA | 250 nC @ 10 V | ±30V | 18000 pF @ 25 V | - | 1040W (Tc) | -55°C ~ 150°C (TJ) | - | - | Chassis Mount | SOT-227B |
|
|
IXFN400N15X3MOSFET N-CH 150V 400A SOT227B |
8,885 | 0.00 |
|
Datasheet |
HiPerFET™, Ultra X3 | SOT-227-4, miniBLOC | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 150 V | 400A (Tc) | 10V | 2.5mOhm @ 200A, 10V | 4.5V @ 8mA | 365 nC @ 10 V | ±20V | 23700 pF @ 25 V | - | 695W (Tc) | -55°C ~ 150°C (TJ) | - | - | Chassis Mount | SOT-227B |
|
|
IXTN400N15X4MOSFET N-CH 150V 400A SOT227B |
8,162 | 0.00 |
|
Datasheet |
Ultra X4 | SOT-227-4, miniBLOC | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 150 V | 400A (Tc) | 10V | 2.7mOhm @ 100A, 10V | 4.5V @ 1mA | 430 nC @ 10 V | ±20V | 14500 pF @ 25 V | - | 1070W (Tc) | -55°C ~ 175°C (TJ) | - | - | Chassis Mount | SOT-227B |
|
|
IXTN210P10TMOSFET P-CH 100V 210A SOT227B |
4,155 | 0.00 |
|
Datasheet |
TrenchP™ | SOT-227-4, miniBLOC | Tube | Active | P-Channel | MOSFET (Metal Oxide) | 100 V | 210A (Tc) | 10V | 7.5mOhm @ 105A, 10V | 4.5V @ 250µA | 740 nC @ 10 V | ±15V | 69500 pF @ 25 V | - | 830W (Tc) | -55°C ~ 150°C (TJ) | - | - | Chassis Mount | SOT-227B |
|
|
E4M0013120K13M, 1200V, SIC FET TO-247, AUTO |
2,291 | 0.00 |
|
Datasheet |
E | TO-247-4 | Tube | Active | N-Channel | SiCFET (Silicon Carbide) | 1200 V | 153A (Tc) | 15V | 17mOhm @ 84.29A, 15V | 3.8V @ 23.18mA | 293 nC @ 15 V | +19V, -8V | 7407 pF @ 1000 V | - | 517W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Through Hole | TO-247-4L |
|
|
EPC7020GCGAN FET HEMT 200V 80A COTS 5UB |
4,991 | 0.00 |
|
Datasheet |
eGaN® | 5-SMD, No Lead | Bulk | Active | N-Channel | GaNFET (Gallium Nitride) | 200 V | 80A (Tc) | 5V | 14.5mOhm @ 30A, 5V | 2.5V @ 7mA | - | +6V, -4V | 1313 pF @ 100 V | - | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 5-SMD |
|
G2R50MT33K3300V 50M TO-247-4 SIC MOSFET |
8,080 | 0.00 |
|
Datasheet |
G2R™ | TO-247-4 | Tube | Active | N-Channel | SiCFET (Silicon Carbide) | 3300 V | 63A (Tc) | 20V | 50mOhm @ 40A, 20V | 3.5V @ 10mA (Typ) | 340 nC @ 20 V | +25V, -10V | 7301 pF @ 1000 V | - | 536W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-247-4 |
|
|
EPC7020GSHGAN FET HEMT 200V 80A 5UB |
7,429 | 0.00 |
|
Datasheet |
eGaN® | 5-SMD, No Lead | Bulk | Active | N-Channel | GaNFET (Gallium Nitride) | 200 V | 80A (Tc) | 5V | 14.5mOhm @ 30A, 5V | 2.5V @ 7mA | 13.5 nC @ 100 V | +6V, -4V | 1313 pF @ 100 V | - | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 5-SMD |
|
BSS84Q-7-FBSS FAMILY SOT23 T&R 3K |
30 | 0.00 |
|
Datasheet |
- | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 50 V | 130mA (Ta) | 5V | 10Ohm @ 100mA, 5V | 2V @ 1mA | 0.59 nC @ 10 V | ±20V | 45 pF @ 25 V | - | 300mW (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-23-3 |
|
|
PJA3401A_R1_00001SOT-23, MOSFET |
31 | 0.00 |
|
Datasheet |
- | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 30 V | 3.6A (Ta) | 2.5V, 10V | 54mOhm @ 3.6A, 10V | 1.3V @ 250µA | 19 nC @ 10 V | ±12V | 994 pF @ 15 V | - | 1.25W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-23 |
|
PMG85XP,115MOSFET P-CH 20V 2A 6TSSOP |
70 | 0.00 |
|
Datasheet |
- | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 2A (Tj) | 2.5V, 4.5V | 115mOhm @ 2A, 4.5V | 1.15V @ 250µA | 7.2 nC @ 4.5 V | ±12V | 560 pF @ 10 V | - | 375mW (Ta), 2.4W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 6-TSSOP |
|
SSM3K335R,LFMOSFET N CH 30V 6A SOT-23F |
2,904 | 0.00 |
|
Datasheet |
U-MOSVII-H | SOT-23-3 Flat Leads | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 6A (Ta) | 4.5V, 10V | 38mOhm @ 4A, 10V | 2.5V @ 100µA | 2.7 nC @ 4.5 V | ±20V | 340 pF @ 15 V | - | 1W (Ta) | 150°C (TJ) | - | - | Surface Mount | SOT-23F |
|
PMN280ENEAXMOSFET N-CH 100V 1.2A 6TSOP |
6,233 | 0.00 |
|
Datasheet |
- | SC-74, SOT-457 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 1.2A (Ta) | 4.5V, 10V | 385mOhm @ 1.2A, 10V | 2.7V @ 250µA | 6.8 nC @ 10 V | ±20V | 190 pF @ 50 V | - | 667mW (Ta), 7.5W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | 6-TSOP |
|
|
DMG2307LQ-7MOSFET BVDSS: 25V~30V SOT23 T&R |
71 | 0.00 |
|
Datasheet |
- | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 30 V | 2.5A (Ta) | 4.5V, 10V | 90mOhm @ 2.5A, 10V | 3V @ 250µA | 8.2 nC @ 10 V | ±20V | 371.3 pF @ 15 V | - | 760mW (Ta) | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOT-23-3 |
|
|
PJA3402-AU_R1_000A1SOT-23, MOSFET |
4,454 | 0.00 |
|
Datasheet |
- | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 4.4A (Ta) | 1.8V, 10V | 48mOhm @ 4.4A, 10V | 1.2V @ 250µA | 11.3 nC @ 10 V | ±12V | 447 pF @ 15 V | - | 1.2W (Ta) | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOT-23 |
|
|
DMN1053UCP4-7MOSFET N-CH 12V 2.7A X3DSN0808-4 |
9,572 | 0.00 |
|
Datasheet |
- | 4-XFBGA, CSPBGA | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 12 V | 2.7A (Ta) | 1.2V, 4.5V | 42mOhm @ 1A, 4.5V | 700mV @ 250µA | 15 nC @ 4.5 V | ±8V | 908 pF @ 6 V | - | 1.34W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | X3-DSN0808-4 |
|

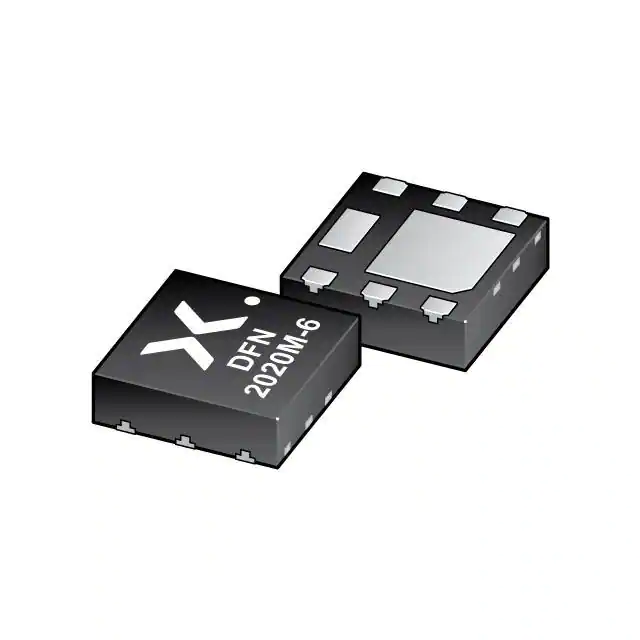

PMPB17EPXP-CHANNEL TRENCH MOSFET |
8,499 | 0.00 |
|
Datasheet |
- | 6-UDFN Exposed Pad | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 30 V | 7.7A (Ta) | 4.5V, 10V | 21mOhm @ 5.8A, 10V | 2.5V @ 250µA | 47 nC @ 10 V | ±20V | 1570 pF @ 15 V | - | 1.9W (Ta), 13W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DFN2020M-6 |
|
PMPB07R3ENXPMPB07R3EN/SOT1220-2/DFN2020M- |
20 | 0.00 |
|
- |
- | 6-UDFN Exposed Pad | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 12A (Ta) | 4.5V, 10V | 8.6mOhm @ 12A, 10V | 2.2V @ 250µA | 19 nC @ 10 V | ±20V | 914 pF @ 15 V | - | 1.9W (Ta), 12.5W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DFN2020M-6 |
