FETs, MOSFETs
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NDS9435AMOSFET P-CH 30V 5.3A 8SOIC |
9,027 | 0.00 |
|
Datasheet |
PowerTrench® | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 30 V | 5.3A (Ta) | 4.5V, 10V | 50mOhm @ 5.3A, 10V | 3V @ 250µA | 14 nC @ 10 V | ±25V | 528 pF @ 15 V | - | 2.5W (Ta) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
IRLR8103VTRPBFMOSFET N-CH 30V 91A DPAK |
5,126 | 0.00 |
|
Datasheet |
HEXFET® | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 91A (Tc) | 4.5V, 10V | 9mOhm @ 15A, 10V | 3V @ 250µA | 27 nC @ 5 V | ±20V | 2672 pF @ 16 V | - | 115W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-252AA (DPAK) |
|
IRLZ24NSTRLPBFMOSFET N-CH 55V 18A D2PAK |
4,550 | 0.00 |
|
Datasheet |
HEXFET® | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 55 V | 18A (Tc) | 4V, 10V | 60mOhm @ 11A, 10V | 2V @ 250µA | 15 nC @ 5 V | ±16V | 480 pF @ 25 V | - | 3.8W (Ta), 45W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | D2PAK |
|
HUFA76419D3STMOSFET N-CH 60V 20A TO252AA |
5,371 | 0.00 |
|
Datasheet |
UltraFET™ | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 20A (Tc) | 4.5V, 10V | 37mOhm @ 20A, 10V | 3V @ 250µA | 27.5 nC @ 10 V | ±16V | 900 pF @ 25 V | - | 75W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | TO-252AA |
|
|
IRLR8259TRPBFMOSFET N-CH 25V 57A DPAK |
3,207 | 0.00 |
|
Datasheet |
HEXFET® | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 25 V | 57A (Tc) | 4.5V, 10V | 8.7mOhm @ 21A, 10V | 2.35V @ 25µA | 10 nC @ 4.5 V | ±20V | 900 pF @ 13 V | - | 48W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | TO-252AA (DPAK) |
|
RSD050N06TLMOSFET N-CH 60V 5A CPT3 |
5,921 | 0.00 |
|
Datasheet |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Last Time Buy | N-Channel | MOSFET (Metal Oxide) | 60 V | 5A (Ta) | 4V, 10V | 109mOhm @ 5A, 10V | 3V @ 1mA | 8 nC @ 10 V | ±20V | 290 pF @ 10 V | - | 15W (Tc) | 150°C (TJ) | - | - | Surface Mount | CPT3 |
|
FQD12P10TM-F085MOSFET P-CH 100V 9.4A TO252 |
9,985 | 0.00 |
|
Datasheet |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 100 V | 9.4A (Tc) | 10V | 290mOhm @ 4.7A, 10V | 4V @ 250µA | 27 nC @ 10 V | ±30V | 800 pF @ 25 V | - | 2.5W (Ta), 50W (Tc) | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | TO-252AA |
|
|
STD110N02RT4GMOSFET N-CH 24V 32A DPAK |
6,162 | 0.00 |
|
Datasheet |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 24 V | 32A (Ta) | 4.5V, 10V | 4.6mOhm @ 20A, 10V | 2V @ 250µA | 28 nC @ 4.5 V | ±20V | 3440 pF @ 20 V | - | 1.5W (Ta), 110W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | DPAK |
;;2.jpg)
|
STD80N6F6MOSFET N-CH 60V 80A DPAK |
6,854 | 0.00 |
|
Datasheet |
DeepGATE™, STripFET™ VI | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 80A (Tc) | 10V | 6.5mOhm @ 40A, 10V | 4.5V @ 250µA | 122 nC @ 10 V | ±20V | 7480 pF @ 25 V | - | 120W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DPAK |
.JPG)
|
TSM070NA04LCR RLGMOSFET N-CH 40V 91A 8PDFN |
5,787 | 0.00 |
|
- |
- | 8-PowerLDFN | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 40 V | 91A (Tc) | 4.5V, 10V | 7mOhm @ 14A, 10V | 2.5V @ 250µA | 23.5 nC @ 10 V | ±20V | 1469 pF @ 20 V | - | 113W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-PDFN (5.2x5.75) |
|
PSMP025-40YEXPSMP025-40YE/SOT669/LFPAK |
6,373 | 0.00 |
|
Datasheet |
- | - | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 40 V | 39.4A | 10V | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
PSMP020-30YEXPSMP020-30YE/SOT669/LFPAK |
4,505 | 0.00 |
|
Datasheet |
- | - | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 30 V | 41.1A | 10V | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
PSMP057-60YEXPSMP057-60YE/SOT669/LFPAK |
9,406 | 0.00 |
|
Datasheet |
- | - | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 60 V | 22.7A | 10V | - | - | - | - | - | - | - | - | - | - | - | - |
|
IPI057N08N3 GMOSFET N-CH 80V 80A TO262-3 |
7,516 | 0.00 |
|
Datasheet |
OptiMOS™ | TO-262-3 Long Leads, I2PAK, TO-262AA | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 80 V | 80A (Tc) | 6V, 10V | 5.7mOhm @ 80A, 10V | 3.5V @ 90µA | 69 nC @ 10 V | ±20V | 4750 pF @ 40 V | - | 150W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | PG-TO262-3 |
|

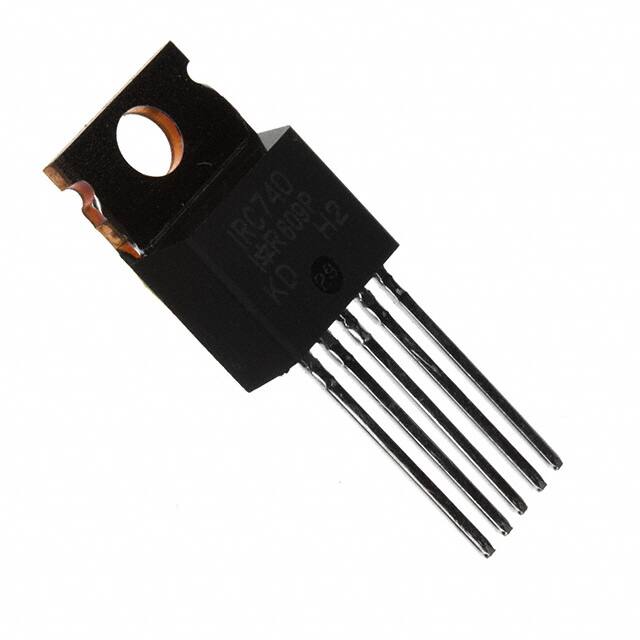

IRC740PBFMOSFET N-CH 400V 10A TO220-5 |
7,362 | 0.00 |
|
Datasheet |
HEXFET® | TO-220-5 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 400 V | 10A (Tc) | 10V | 550mOhm @ 6A, 10V | 4V @ 250µA | 66 nC @ 10 V | ±20V | 1200 pF @ 25 V | Current Sensing | 125W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220-5 |
|
IRL3714ZLMOSFET N-CH 20V 36A TO262 |
4,262 | 0.00 |
|
Datasheet |
HEXFET® | TO-262-3 Long Leads, I2PAK, TO-262AA | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 20 V | 36A (Tc) | 4.5V, 10V | 16mOhm @ 15A, 10V | 2.55V @ 250µA | 7.2 nC @ 4.5 V | ±20V | 550 pF @ 10 V | - | 35W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-262 |
|
FDPF44N25TRDTUMOSFET N-CH 250V 44A TO220F |
5,225 | 0.00 |
|
Datasheet |
UniFET™ | TO-220-3 Full Pack, Formed Leads | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 250 V | 44A (Tc) | 10V | 69mOhm @ 22A, 10V | 5V @ 250µA | 61 nC @ 10 V | ±30V | 2870 pF @ 25 V | - | 38W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220F (LG-Formed) |
|
FQPF46N15MOSFET N-CH 150V 25.6A TO220F |
3,339 | 0.00 |
|
Datasheet |
QFET® | TO-220-3 Full Pack | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 150 V | 25.6A (Tc) | 10V | 42mOhm @ 12.8A, 10V | 4V @ 250µA | 110 nC @ 10 V | ±25V | 3250 pF @ 25 V | - | 66W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220F-3 |
|
SPP80N06S2L-06MOSFET N-CH 55V 80A TO220-3 |
7,020 | 0.00 |
|
Datasheet |
OptiMOS™ | TO-220-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 55 V | 80A (Tc) | 4.5V, 10V | 6.3mOhm @ 69A, 10V | 2V @ 180µA | 150 nC @ 10 V | ±20V | 5050 pF @ 25 V | - | 250W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | PG-TO220-3-1 |
|
IRF6668TR1MOSFET N-CH 80V 55A DIRECTFET MZ |
7,084 | 0.00 |
|
Datasheet |
HEXFET® | DirectFET™ Isometric MZ | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 80 V | 55A (Tc) | 10V | 15mOhm @ 12A, 10V | 4.9V @ 100µA | 31 nC @ 10 V | ±20V | 1320 pF @ 25 V | - | 2.8W (Ta), 89W (Tc) | -40°C ~ 150°C (TJ) | - | - | Surface Mount | DIRECTFET™ MZ |
