FETs, MOSFETs
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BSD314SPEH6327XTSA1MOSFET P-CH 30V 1.5A SOT363-6 Infineon Technologies |
6,084 | 0.00 |
|
Datasheet |
OptiMOS™ | 6-VSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 30 V | 1.5A (Ta) | 4.5V, 10V | 140mOhm @ 1.5A, 10V | 2V @ 6.3µA | 2.9 nC @ 10 V | ±20V | 294 pF @ 15 V | - | 500mW (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PG-SOT363-6 |
|
|
BSD816SNH6327XTSA1MOSFET N-CH 20V 1.4A SOT363-6 Infineon Technologies |
2,522 | 0.00 |
|
Datasheet |
OptiMOS™ | 6-VSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 20 V | 1.4A (Ta) | 1.8V, 2.5V | 160mOhm @ 1.4A, 2.5V | 950mV @ 3.7µA | 0.6 nC @ 2.5 V | ±8V | 180 pF @ 10 V | - | 500mW (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PG-SOT363-6 |
|

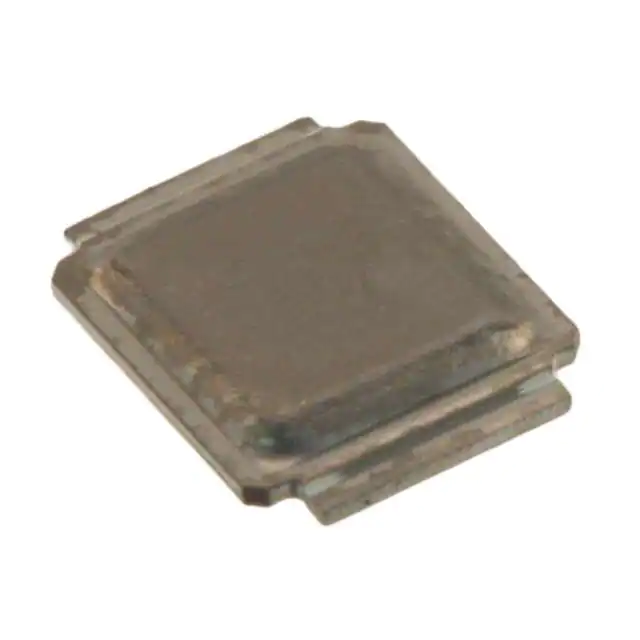

BSF035NE2LQXUMA1MOSFET N-CH 25V 22A/69A 2WDSON Infineon Technologies |
8,357 | 0.00 |
|
Datasheet |
OptiMOS™ | 3-WDSON | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 25 V | 22A (Ta), 69A (Tc) | 4.5V, 10V | 3.5mOhm @ 30A, 10V | 2V @ 250µA | 25 nC @ 10 V | ±20V | 1862 pF @ 12 V | - | 2.2W (Ta), 28W (Tc) | -40°C ~ 150°C (TJ) | - | - | Surface Mount | MG-WDSON-2, CanPAK M™ |
|
BSL372SNH6327XTSA1MOSFET N-CH 100V 2A TSOP-6 Infineon Technologies |
8,220 | 0.00 |
|
Datasheet |
OptiMOS™ | SOT-23-6 Thin, TSOT-23-6 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 2A (Ta) | 4.5V, 10V | 220mOhm @ 2A, 10V | 1.8V @ 218µA | 14.3 nC @ 10 V | ±20V | 329 pF @ 25 V | - | 2W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PG-TSOP6-6 |
|
|
BSL373SNH6327XTSA1MOSFET N-CH 100V 2A TSOP-6 Infineon Technologies |
6,028 | 0.00 |
|
Datasheet |
OptiMOS™ | SOT-23-6 Thin, TSOT-23-6 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 2A (Ta) | 10V | 230mOhm @ 2A, 10V | 4V @ 218µA | 9.3 nC @ 10 V | ±20V | 265 pF @ 25 V | - | 2W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PG-TSOP6-6 |
|
|
BSL802SNH6327XTSA1MOSFET N-CH 20V 7.5A TSOP-6 Infineon Technologies |
3,482 | 0.00 |
|
Datasheet |
OptiMOS™ | SOT-23-6 Thin, TSOT-23-6 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 20 V | 7.5A (Ta) | 1.8V, 2.5V | 22mOhm @ 7.5A, 2.5V | 750mV @ 30µA | 4.7 nC @ 2.5 V | ±8V | 1347 pF @ 10 V | - | 2W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PG-TSOP6-6 |
|

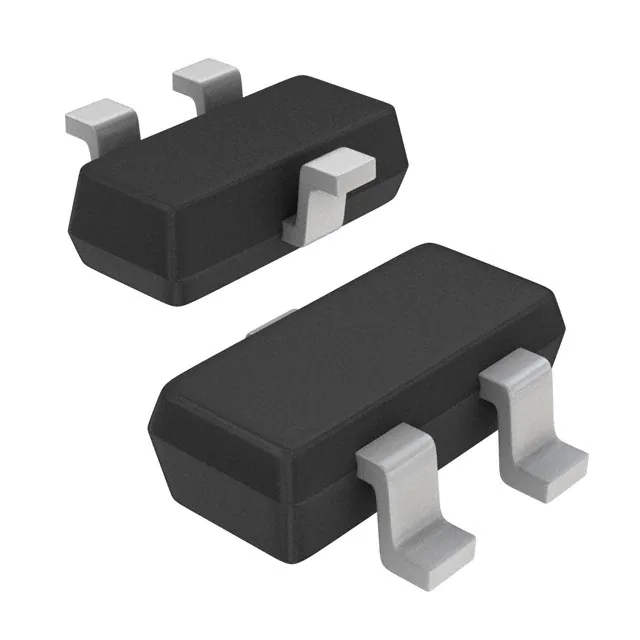

BSR606NH6327XTSA1MOSFET N-CH 60V 2.3A SC59 Infineon Technologies |
5,328 | 0.00 |
|
Datasheet |
OptiMOS™ | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 2.3A (Ta) | 4.5V, 10V | 60mOhm @ 2.3A, 10V | 2.3V @ 15µA | 5.6 nC @ 5 V | ±20V | 657 pF @ 25 V | - | 500mW (Ta) | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | PG-SC59-3 |
|
BSS119NH6433XTMA1MOSFET N-CH 100V 190MA SOT23-3 Infineon Technologies |
6,195 | 0.00 |
|
Datasheet |
OptiMOS™ | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Discontinued at Digi-Key | N-Channel | MOSFET (Metal Oxide) | 100 V | 190mA (Ta) | 4.5V, 10V | 6Ohm @ 190mA, 10V | 2.3V @ 13µA | 0.6 nC @ 10 V | ±20V | 20.9 pF @ 25 V | - | 500mW (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PG-SOT23-3 |
|
BSS192PH6327XTSA1MOSFET P-CH 250V 190MA SOT89 Infineon Technologies |
4,991 | 0.00 |
|
Datasheet |
SIPMOS™ | TO-243AA | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 250 V | 190mA (Ta) | 2.8V, 10V | 12Ohm @ 190mA, 10V | 2V @ 130µA | 6.1 nC @ 10 V | ±20V | 104 pF @ 25 V | - | 1W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PG-SOT89 |
|
|
BSS225H6327XTSA1MOSFET N-CH 600V 90MA SOT89 Infineon Technologies |
4,372 | 0.00 |
|
Datasheet |
SIPMOS™ | TO-243AA | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 90mA (Ta) | 4.5V, 10V | 45Ohm @ 90mA, 10V | 2.3V @ 94µA | 5.8 nC @ 10 V | ±20V | 131 pF @ 25 V | - | 1W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PG-SOT89 |
