FETs, MOSFETs
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SPP04N50C3XKSA1LOW POWER_LEGACY Infineon Technologies |
8,903 | 0.00 |
|
Datasheet |
CoolMOS™ | TO-220-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 560 V | 4.5A (Tc) | 10V | 950mOhm @ 2.8A, 10V | 3.9V @ 200µA | 22 nC @ 10 V | ±20V | 470 pF @ 25 V | - | 50W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | PG-TO220-3-1 |
|
|
SPP07N60S5HKSA1LOW POWER_LEGACY Infineon Technologies |
8,882 | 0.00 |
|
Datasheet |
CoolMOS™ | TO-220-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 7.3A (Tc) | 10V | 600mOhm @ 4.6A, 10V | 5.5V @ 350µA | 35 nC @ 10 V | ±20V | 970 pF @ 25 V | - | 83W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | PG-TO220-3-1 |
|
|
SPP07N60S5XKSA1LOW POWER_LEGACY Infineon Technologies |
5,457 | 0.00 |
|
Datasheet |
CoolMOS™ | TO-220-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 7.3A (Tc) | 10V | 600mOhm @ 4.6A, 10V | 5.5V @ 350µA | 35 nC @ 10 V | ±20V | 970 pF @ 25 V | - | 83W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | PG-TO220-3-1 |
|
|
SPP07N65C3XKSA1LOW POWER_LEGACY Infineon Technologies |
6,641 | 0.00 |
|
Datasheet |
CoolMOS™ | TO-220-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 650 V | 7.3A (Tc) | 10V | 600mOhm @ 4.6A, 10V | 3.9V @ 350µA | 27 nC @ 10 V | ±20V | 790 pF @ 25 V | - | 83W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | PG-TO220-3-1 |
|
|
SPP11N60S5XKSA1LOW POWER_LEGACY Infineon Technologies |
6,833 | 0.00 |
|
Datasheet |
CoolMOS™ | TO-220-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 11A (Tc) | 10V | 380mOhm @ 7A, 10V | 5.5V @ 500µA | 54 nC @ 10 V | ±20V | 1460 pF @ 25 V | - | 125W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | PG-TO220-3-1 |
|

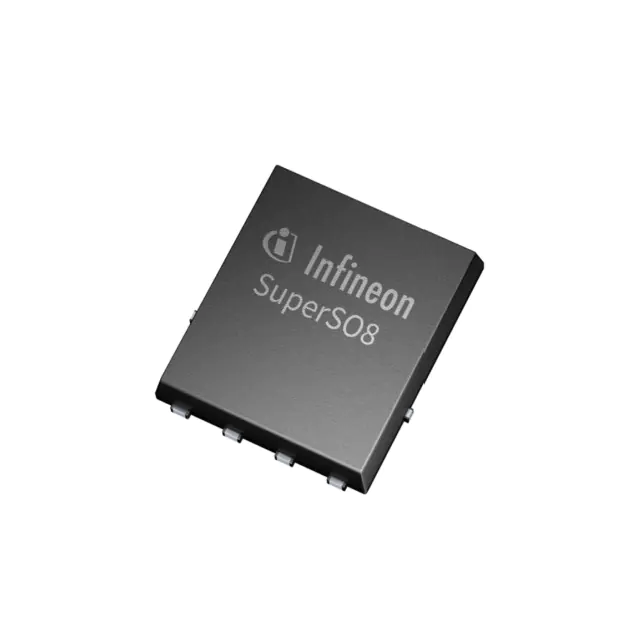

BSC020N03LSGATMA2LV POWER MOS Infineon Technologies |
4,242 | 0.00 |
|
Datasheet |
* | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
IPB50N12S3L15ATMA1MOSFET N-CHANNEL_100+ Infineon Technologies |
6,711 | 0.00 |
|
Datasheet |
OptiMOS™ | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 120 V | 50A (Tc) | 4.5V, 10V | 15.7mOhm @ 50A, 10V | 2.4V @ 60µA | 57 nC @ 10 V | ±20V | 4180 pF @ 25 V | - | 100W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | PG-TO263-3-2 |
|
|
IPB70N12S3L12ATMA1MOSFET N-CHANNEL_100+ Infineon Technologies |
2,832 | 0.00 |
|
Datasheet |
OptiMOS™ T | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 120 V | 70A (Tc) | 4.5V, 10V | 12.1mOhm @ 70A, 10V | 2.4V @ 83µA | 77 nC @ 10 V | ±20V | 5550 pF @ 25 V | - | 125W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | PG-TO263-3-2 |
|

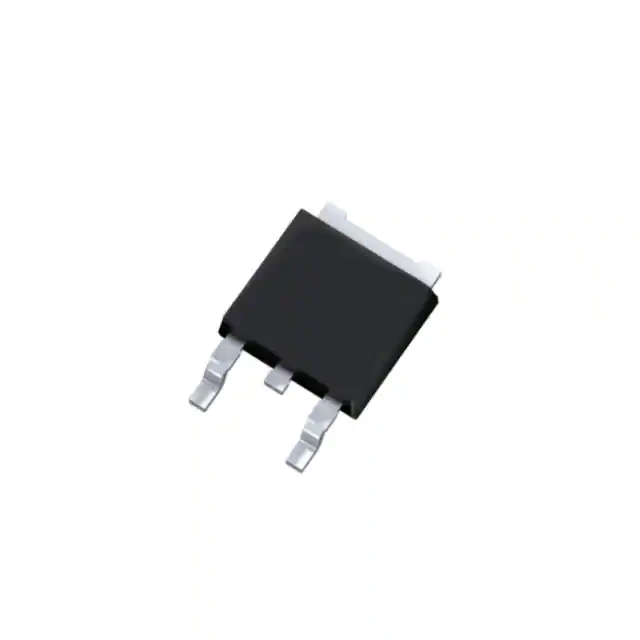

IPD70N12S3L12ATMA1MOSFET N-CHANNEL_100+ Infineon Technologies |
8,025 | 0.00 |
|
Datasheet |
OptiMOS™ | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 120 V | 70A (Tc) | 4.5V, 10V | 11.5mOhm @ 70A, 10V | 2.4V @ 83µA | 77 nC @ 10 V | ±20V | 5550 pF @ 25 V | - | 125W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | PG-TO252-3-11 |
|
|
IPC302N15N3X7SA1MV POWER MOS Infineon Technologies |
5,629 | 0.00 |
|
Datasheet |
OptiMOS™ 3 | Die | Bulk | Active | N-Channel | MOSFET (Metal Oxide) | 150 V | - | 10V | 100mOhm @ 2A, 10V | 4V @ 270µA | - | - | - | - | - | - | - | - | Surface Mount | Die |
