FETs, MOSFETs
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IRFH7107TRPBFMOSFET N-CH 75V 14A/75A 8PQFN |
7,599 | 0.00 |
|
Datasheet |
HEXFET® | 8-PowerTDFN | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 75 V | 14A (Ta), 75A (Tc) | 10V | 8.5mOhm @ 45A, 10V | 4V @ 100µA | 72 nC @ 10 V | ±20V | 3110 pF @ 25 V | - | 3.6W (Ta), 104W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-PQFN (5x6) |
|
NTMFS4833NST1GMOSFET N-CH 30V 16A/156A SO-8FL |
5,899 | 0.00 |
|
Datasheet |
SENSEFET® | 8-PowerTDFN | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 16A (Ta), 156A (Tc) | 4.5V, 10V | 2.2mOhm @ 30A, 10V | 2.5V @ 250µA | 86 nC @ 11.5 V | ±20V | 5250 pF @ 12 V | - | 900mW (Ta), 86.2W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SO-8FL |
|
|
NTMFS4833NST3GMOSFET N-CH 30V 16A/156A SO-8FL |
4,699 | 0.00 |
|
Datasheet |
SENSEFET® | 8-PowerTDFN | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 16A (Ta), 156A (Tc) | 4.5V, 10V | 2.2mOhm @ 30A, 10V | 2.5V @ 250µA | 86 nC @ 11.5 V | ±20V | 5250 pF @ 12 V | - | 900mW (Ta), 86.2W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SO-8FL |
|
|
NTMFS4854NST1GMOSFET N-CH 25V 15.2A/149A SO8FL |
3,799 | 0.00 |
|
Datasheet |
SENSEFET® | 8-PowerTDFN | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 25 V | 15.2A (Ta), 149A (Tc) | 3.2V, 10V | 2.5mOhm @ 15A, 10V | 2.5V @ 250µA | 85 nC @ 11.5 V | ±16V | 4830 pF @ 12 V | - | 900mW (Ta), 86.2W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SO-8FL |
|
NTP5860NLGMOSFET N-CH 60V 220A TO220AB |
9,087 | 0.00 |
|
Datasheet |
- | TO-220-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 220A (Tc) | 10V | 3mOhm @ 75A, 10V | 4V @ 250µA | 180 nC @ 10 V | ±20V | 10760 pF @ 25 V | - | 283W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220 |
|

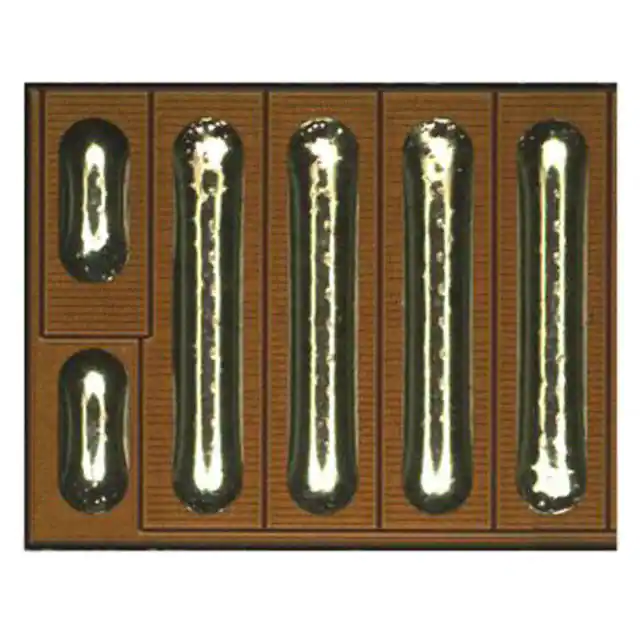

EPC2016GANFET N-CH 100V 11A DIE |
2,747 | 0.00 |
|
Datasheet |
eGaN® | Die | Tape & Reel (TR) | Discontinued at Digi-Key | N-Channel | GaNFET (Gallium Nitride) | 100 V | 11A (Ta) | 5V | 16mOhm @ 11A, 5V | 2.5V @ 3mA | 5.2 nC @ 5 V | +6V, -5V | 520 pF @ 50 V | - | - | -40°C ~ 125°C (TJ) | - | - | Surface Mount | Die |
|
2N7002-GMOSFET N-CH 60V 0.25A SOT23-3 |
8,475 | 0.00 |
|
Datasheet |
- | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 250mA (Ta) | 4.5V, 10V | 3Ohm @ 250mA, 10V | 2.5V @ 250µA | 1 nC @ 10 V | - | 25 pF @ 25 V | - | 350mW (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-23-3 |
|
SI8439DB-T1-E1MOSFET P-CH 8V 4MICROFOOT |
8,133 | 0.00 |
|
Datasheet |
TrenchFET® | 4-UFBGA | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 8 V | 5.9A (Ta) | 1.2V, 4.5V | 25mOhm @ 1.5A, 4.5V | 800mV @ 250µA | 50 nC @ 4.5 V | ±5V | - | - | 1.1W (Ta), 2.7W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 4-Microfoot |
|
BUK6246-75C,118MOSFET N-CH 75V 22A DPAK |
5,241 | 0.00 |
|
Datasheet |
TrenchMOS™ | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 75 V | 22A (Tc) | 4.5V, 10V | 46mOhm @ 10A, 10V | 2.8V @ 1mA | 21.4 nC @ 10 V | ±16V | 1280 pF @ 25 V | - | 60W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DPAK |
|
|
BUK626R2-40C,118MOSFET N-CH 40V 90A DPAK |
7,807 | 0.00 |
|
Datasheet |
TrenchMOS™ | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 40 V | 90A (Tc) | 10V | 6.2mOhm @ 15A, 10V | 2.8V @ 1mA | 67 nC @ 10 V | ±16V | 3720 pF @ 25 V | - | 128W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DPAK |
|
BUK653R3-30C,127MOSFET N-CH 30V 100A TO220AB |
5,311 | 0.00 |
|
Datasheet |
TrenchMOS™ | TO-220-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 100A (Tc) | 4.5V, 10V | 3.3mOhm @ 25A, 10V | 2.8V @ 1mA | 114 nC @ 10 V | ±16V | 6960 pF @ 25 V | - | 204W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220AB |
|
PMN35EN,125MOSFET N-CH 30V 5.1A 6TSOP |
9,135 | 0.00 |
|
Datasheet |
- | SC-74, SOT-457 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 5.1A (Ta) | 4.5V, 10V | 31mOhm @ 5.1A, 10V | 2.5V @ 250µA | 9.3 nC @ 10 V | ±20V | 334 pF @ 15 V | - | 500mW (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 6-TSOP |
|
PMV62XN,215MOSFET N-CH SOT-23 |
3,742 | 0.00 |
|
- |
* | - | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
PMV65UN,215MOSFET N-CH 20V 2.2A TO236AB |
5,308 | 0.00 |
|
Datasheet |
- | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 20 V | 2.2A (Ta) | 1.8V, 4.5V | 76mOhm @ 2A, 4.5V | 1V @ 250µA | 3.9 nC @ 4.5 V | ±8V | 183 pF @ 10 V | - | 310mW (Ta), 2.17W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-23 (TO-236AB) |
|
R5009FNXMOSFET N-CH 500V 9A TO220FM |
5,311 | 0.00 |
|
Datasheet |
- | TO-220-3 Full Pack | Bulk | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 9A (Tc) | 10V | 840mOhm @ 4.5A, 10V | 4V @ 1mA | 18 nC @ 10 V | ±30V | 630 pF @ 25 V | - | 50W (Tc) | 150°C (TJ) | - | - | Through Hole | TO-220FM |
|
|
R6012FNXMOSFET N-CH 600V 12A TO220FM |
8,634 | 0.00 |
|
Datasheet |
- | TO-220-3 Full Pack | Bulk | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 12A (Tc) | 10V | 510mOhm @ 6A, 10V | 5V @ 1mA | 35 nC @ 10 V | ±30V | 1300 pF @ 25 V | - | 50W (Tc) | 150°C (TJ) | - | - | Through Hole | TO-220FM |
|
IRFSL4510PBFMOSFET N-CH 100V 61A TO262 |
9,236 | 0.00 |
|
Datasheet |
HEXFET® | TO-262-3 Long Leads, I2PAK, TO-262AA | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 61A (Tc) | 10V | 13.9mOhm @ 37A, 10V | 4V @ 100µA | 87 nC @ 10 V | ±20V | 3180 pF @ 50 V | - | 140W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-262 |
|
IRFR4510PBFMOSFET N CH 100V 56A DPAK |
2,280 | 0.00 |
|
Datasheet |
HEXFET® | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tube | Discontinued at Digi-Key | N-Channel | MOSFET (Metal Oxide) | 100 V | 56A (Tc) | 10V | 13.9mOhm @ 38A, 10V | 4V @ 100µA | 81 nC @ 10 V | ±20V | 3031 pF @ 50 V | - | 143W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | TO-252AA (DPAK) |
|
IRFS4510PBFMOSFET N-CH 100V 61A D2PAK |
5,692 | 0.00 |
|
Datasheet |
HEXFET® | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Discontinued at Digi-Key | N-Channel | MOSFET (Metal Oxide) | 100 V | 61A (Tc) | 10V | 13.9mOhm @ 37A, 10V | 4V @ 100µA | 87 nC @ 10 V | ±20V | 3180 pF @ 50 V | - | 140W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | PG-TO263-3 |
|
|
IRFI4510GPBFMOSFET N CH 100V 35A TO220 |
3,619 | 0.00 |
|
Datasheet |
HEXFET® | TO-220-3 Full Pack | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 35A (Tc) | 10V | 13.5mOhm @ 21A, 10V | 4V @ 100µA | 81 nC @ 10 V | ±20V | 2998 pF @ 50 V | - | 42W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220AB Full-Pak |
