FET, MOSFET Arrays
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Configuration | FET Feature | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Input Capacitance (Ciss) (Max) @ Vds | Power - Max | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

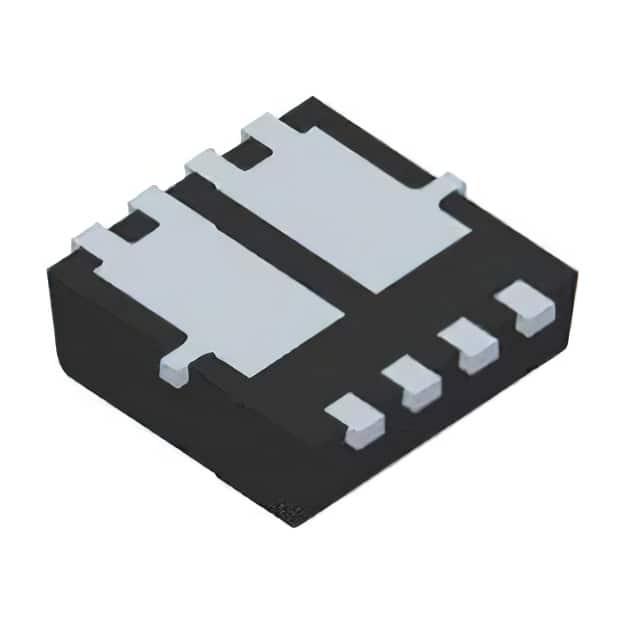

PJQ4602_R1_00001MOSFET N/P-CH 30V 6.4A 8DFN |
9,927 | 0.00 |
|
Datasheet |
- | 8-PowerWDFN | Tape & Reel (TR) | Not For New Designs | MOSFET (Metal Oxide) | N and P-Channel Complementary | - | 30V | 6.4A (Ta), 18.5A (Tc), 6.4A (Ta), 18A (Tc) | 28mOhm @ 6A, 10V, 31mOhm @ 4A, 10V | 2.1V @ 250µA, 2.5V @ 250µA | 7.8nC @ 10V | 343pF @ 15V, 870pF @ 15V | 2W (Ta), 17.8W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DFN3030B-8 |
|
DMT4015LDV-7MOSFET 2N-CH 40V 7.8A PWRDI3333 |
9,238 | 0.00 |
|
Datasheet |
- | 8-PowerVDFN | Tape & Reel (TR) | Active | - | 2 N-Channel (Dual) | - | 40V | 7.8A (Ta), 21.2A (Tc) | 20mOhm @ 8A, 10V | 2.5V @ 250µA | 15.7nC @ 10V | 808pF @ 30V | 1.1W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PowerDI3333-8 (Type UXC) |
|
|
SI8902AEDB-T2-E1MOSFET 2N-CH 24V 11A 6MICROFOOT |
6,411 | 0.00 |
|
Datasheet |
TrenchFET® | 6-UFBGA | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | - | 24V | 11A | 28mOhm @ 1A, 4.5V | 900mV @ 250µA | - | - | 5.7W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 6-Micro Foot™ (1.5x1) |
|
|
DMN15M5UCA6-7MOSFET 2N-CH 12V X4-DSN2117-6 |
2,341 | 0.00 |
|
Datasheet |
- | 6-XFBGA, WLCSP | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) Common Drain | - | 12V | 16.5A (Ta) | 5.1mOhm @ 4A, 4.5V | 1.3V @ 840µA | 36.6nC @ 4V | 59pF @ 10V | 1.2W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | X4-DSN2117-6 |
|
|
DMN3032LFDBWQ-7MOSFET 2N-CH 30V 5.5A 6UDFN |
6,471 | 0.00 |
|
Datasheet |
- | 6-UDFN Exposed Pad | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | - | 30V | 5.5A (Ta) | 30mOhm @ 5.8A, 10V | 2V @ 250µA | 10.6nC @ 10V | 500pF @ 15V | 820mW | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | U-DFN2020-6 (SWP) Type B |
|
|
AOCA32301MOSFET 2N-CH 30V 9A 4DFN |
7,334 | 0.00 |
|
Datasheet |
- | 4-SMD, No Lead | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) Common Drain | - | 30V | 9A (Ta) | 18mOhm @ 4A, 10V | 1.9V @ 250µA | 24.5nC @ 10V | - | 1.9W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 4-AlphaDFN (1.9x1.3) |
|
AO8818MOSFET 2N-CH 30V 8TSSOP |
7,256 | 0.00 |
|
Datasheet |
- | 8-TSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | 2 N-Channel (Dual) Common Drain | Logic Level Gate | 30V | - | 18mOhm @ 7A, 10V | 1.5V @ 250µA | 14nC @ 4.5V | 1060pF @ 15V | 1.5W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-TSSOP |
|
|
DMN16M8UCA6-7MOSFET 2N-CH 12V X3-DSN2718-6 |
4,279 | 0.00 |
|
Datasheet |
- | 6-SMD, No Lead | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) Common Drain | - | 12V | 15.5A (Ta) | 5.6mOhm @ 3A, 4.5V | 1.3V @ 1mA | 45.4nC @ 6V | 2333pF @ 6V | 1.1W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | X3-DSN2718-6 |
|
|
DMTH4014LDVWQ-7MOSFET 2N-CH 40V 10.2A PWRDI3333 |
5,626 | 0.00 |
|
Datasheet |
- | 8-PowerVDFN | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | - | 40V | 10.2A (Ta), 27.5A (Tc) | 15mOhm @ 20A, 10V | 3V @ 250µA | 11.2nC @ 10V | 750pF @ 20V | 1.16W (Ta) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | PowerDI3333-8 (Type UXD) |
|
AO4946MOSFET 2N-CH 30V 8SOIC |
5,296 | 0.00 |
|
Datasheet |
SRFET™ | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | Logic Level Gate | 30V | - | 16mOhm @ 8.6A, 10V | 2.4V @ 250µA | 31nC @ 10V | 1885pF @ 15V | 2W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
|
MCQD09N06Y-TPMOSFET 2N-CH 60V 9A 8SOP |
7,602 | 0.00 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel | - | 60V | 9A (Ta) | 20mOhm @ 9A, 10V | 2.5V @ 250µA | 16.5nC @ 10V | 873pF @ 30V | 1.7W (Tj) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOP |
|
|
PJQ4606_R1_00001MOSFET N/P-CH 30V 7.6A 8DFN |
4,122 | 0.00 |
|
Datasheet |
- | 8-PowerWDFN | Tape & Reel (TR) | Not For New Designs | MOSFET (Metal Oxide) | N and P-Channel Complementary | - | 30V | 7.6A (Ta), 23A (Tc), 6.7A (Ta), 20A (Tc) | 19mOhm @ 8A, 10V, 30mOhm @ 4A, 10V | 2.5V @ 250µA | 4.8nC @ 4.5V, 7.8nC @ 4.5V | 429pF @ 25V, 846pF @ 15V | 2W (Ta), 18W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DFN3030B-8 |
|
AOD661MOSFET 2N-CH 30V 12A TO252-4L |
3,806 | 0.00 |
|
Datasheet |
- | TO-252-5, DPAK (4 Leads + Tab), TO-252AD | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | - | 30V | 12A (Tc) | 16.5mOhm @ 12A, 10V, 22.5mOhm @ 9.7A, 10V | 2.5V @ 250µA | 10nC @ 4.5V, 15nC @ 4.5V | 760pF @ 15V | 15.6W, 31W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-252-4L |
|
DMC6070LND-13MOSFET N/P-CH 60V 3.1A PWRDI3333 |
4,662 | 0.00 |
|
Datasheet |
- | 8-PowerVDFN | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | N and P-Channel | - | 60V | 3.1A, 2.4A | 85mOhm @ 1.5A, 10V | 3V @ 250µA | 11.5nC @ 10V | 731pF @ 20V | 1.4W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PowerDI3333-8 (Type UXB) |
|
|
DMT6015LPDW-13MOSFET 2N-CH 60V 9.4A PWRDI50 |
9,893 | 0.00 |
|
Datasheet |
- | 8-PowerTDFN | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | - | 60V | 9.4A (Ta), 17.1A (Tc) | 18mOhm @ 10A, 10V | 2.5V @ 250µA | 15.7nC @ 10V | 808pF @ 30V | 2.4W (Ta), 7.9W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PowerDI5060-8 (Type UXD) |
|
|
DMTH6015LDVW-13MOSFET 2N-CH 60V 9.2A PWRDI3333 |
9,481 | 0.00 |
|
Datasheet |
- | 8-PowerVDFN | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | - | 60V | 9.2A (Ta), 24.5A (Tc) | 20.5mOhm @ 10A, 10V | 2.5V @ 250µA | 14.3nC @ 10V | 825pF @ 30V | 1.46W (Ta) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | PowerDI3333-8 (Type UXD) |
|
TPC8211(TE12L,Q,M)MOSFET 2N-CH 30V 5.5A 8SOP |
7,727 | 0.00 |
|
Datasheet |
- | 8-SOIC (0.173", 4.40mm Width) | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | Logic Level Gate | 30V | 5.5A | 36mOhm @ 3A, 10V | 2.5V @ 1mA | 25nC @ 10V | 1250pF @ 10V | 450mW | 150°C (TJ) | - | - | Surface Mount | 8-SOP (5.5x6.0) |
|
DMN3013LDG-13MOSFET 2N-CH 30V 9.5A PWRDI3333 |
8,191 | 0.00 |
|
Datasheet |
- | 8-PowerLDFN | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | - | 30V | 9.5A (Ta), 15A (Tc) | 14.3mOhm @ 4A, 8V | 1.2V @ 250µA | 5.7nC @ 4.5V | 600pF @ 15V | 2.16W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PowerDI3333-8 (Type D) |
|
|
DMN3013LFG-13MOSFET 2N-CH 30V 9.5A PWRDI3333 |
7,774 | 0.00 |
|
Datasheet |
- | 8-PowerLDFN | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | - | 30V | 9.5A (Ta), 15A (Tc) | 14.3mOhm @ 4A, 8V | 1.2V @ 250µA | 5.7nC @ 4.5V | 600pF @ 15V | 2.16W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PowerDI3333-8 (Type D) |
|
HUFA76404DK8TMOSFET 2N-CH 62V 3.6A 8SOIC |
4,300 | 0.00 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | Logic Level Gate | 62V | 3.6A | 110mOhm @ 3.6A, 10V | 3V @ 250µA | 4.9nC @ 5V | 250pF @ 25V | 2.5W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
