FET, MOSFET Arrays
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Configuration | FET Feature | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Input Capacitance (Ciss) (Max) @ Vds | Power - Max | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DMN2016UFX-7MOSFET 2N-CH 24V 9.9A 4VDFN |
4,426 | 0.00 |
|
Datasheet |
- | 4-VFDFN Exposed Pad | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | - | 24V | 9.9A (Ta) | 15mOhm @ 6.5A, 4.5V | 1.5V @ 250µA | 14nC @ 4.5V | 950pF @ 10V | 1.07W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | V-DFN2050-4 |
|
DMTH4014LDVW-7MOSFET 2N-CH 40V 10.2A PWRDI3333 |
6,988 | 0.00 |
|
Datasheet |
- | 8-PowerVDFN | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | - | 40V | 10.2A (Ta), 27.5A (Tc) | 15mOhm @ 20A, 10V | 3V @ 250µA | 11.2nC @ 10V | 750pF @ 20V | 1.16W (Ta) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | PowerDI3333-8 (Type UXD) |
|
AON3816MOSFET 2N-CH 20V 8DFN |
3,661 | 0.00 |
|
Datasheet |
- | 8-SMD, Flat Leads | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) Common Drain | Logic Level Gate | 20V | - | 22mOhm @ 4A, 4.5V | 1.1V @ 250µA | 13nC @ 4.5V | 1100pF @ 10V | 2.5W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-DFN (3x3) |
|
|
DMT3022UEV-7MOSFET 2N-CH 30V 17A PWRDI3333 |
3,342 | 0.00 |
|
Datasheet |
- | 8-PowerVDFN | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | - | 30V | 17A (Tc) | 22mOhm @ 11A, 10V | 1.8V @ 250µA | 13.9nC @ 10V | 903pF @ 15V | 900mW (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PowerDI3333-8 (Type UXD) |
|
|
DMT3006LPB-13MOSFET 2N-CH 11A POWERDI5060-8 |
3,726 | 0.00 |
|
Datasheet |
- | 8-PowerTDFN | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | - | - | 11A (Ta), 35A (Tc), 14A (Ta), 50A (Tc) | 11.1mOhm @ 11.5A, 10V, 6mOhm @ 20A, 10V | 3V @ 250µA | - | - | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PowerDI5060-8 (Type S) |
|
|
G100C04D52MOSFET 40V 40A/24A 8DFN |
6,606 | 0.00 |
|
Datasheet |
- | 8-PowerTDFN | Active | MOSFET (Metal Oxide) | - | - | 40V | 40A (Tc), 24A (Tc) | 9mOhm @ 30A, 10V, 16mOhm @ 10A, 10V | 2.5V @ 250µA | 29nC @ 10V, 45nC @ 10V | 2213pF @ 20V, 2451pF @ 20V | 65W (Tc), 50W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-DFN (4.9x5.75) | |
|
DMC1028UFDB-13MOSFET N/P-CH 12V/20V 6A 6UDFN |
3,851 | 0.00 |
|
Datasheet |
- | 6-UDFN Exposed Pad | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | N and P-Channel | - | 12V, 20V | 6A, 3.4A | 25mOhm @ 5.2A, 4.5V | 1V @ 250µA | 18.5nC @ 8V | 787pF @ 6V | 1.36W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | U-DFN2020-6 (Type B) |
|
|
DMC1029UFDB-13MOSFET N/P-CH 12V 5.6A 6UDFN |
5,439 | 0.00 |
|
Datasheet |
- | 6-UDFN Exposed Pad | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | N and P-Channel | - | 12V | 5.6A, 3.8A | 29mOhm @ 5A, 4.5V | 1V @ 250µA | 19.6nC @ 8V | 914pF @ 6V | 1.4W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | U-DFN2020-6 (Type B) |
|
AON5802AMOSFET 2N-CH 30V 7.2A 6DFN |
5,641 | 0.00 |
|
Datasheet |
- | 6-WFDFN Exposed Pad | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | 2 N-Channel (Dual) Common Drain | Logic Level Gate | 30V | 7.2A | 20mOhm @ 7.2A, 4.5V | 1.5V @ 250µA | 10.7nC @ 4.5V | 1115pF @ 15V | 1.7W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 6-DFN-EP (2x5) |
|
|
DMN2011UCA6-7MOSFET 2N-CH 22V 9A X4-DSN1818-6 |
9,890 | 0.00 |
|
- |
- | 6-SMD, No Lead | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel | - | 22V | 9A (Ta) | 6.5mOhm @ 5A, 4.5V | 1.3V @ 1mA | 20nC @ 4.5V | 1580pF @ 12V | 800mW | -55°C ~ 150°C (TJ) | - | - | Surface Mount | X4-DSN1818-6 |
|
|
DMP2101UCP9-7MOSFET 2P-CH 20V 2.5A 9DSN1515 |
6,526 | 0.00 |
|
Datasheet |
- | 9-XFBGA, DSBGA | Bulk | Active | MOSFET (Metal Oxide) | 2 P-Channel (Dual) | - | 20V | 2.5A (Ta) | 100mOhm @ 1A, 4.5V | 900mV @ 250µA | 3.2nC @ 4.5V | 392pF @ 10V | 970mW (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | X2-DSN1515-9 (Type B) |
|
FDS8333CMOSFET N/P-CH 30V 4.1A 8SOIC |
8,962 | 0.00 |
|
Datasheet |
PowerTrench® | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | N and P-Channel | Logic Level Gate | 30V | 4.1A, 3.4A | 80mOhm @ 4.1A, 10V | 3V @ 250µA | 6.6nC @ 4.5V | 282pF @ 10V | 900mW | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
-,80-3,1x3,1;-;-8-Top.jpg)
|
CMS25NN03V8-HFMOSFET 2N-CH 30V 25A 8PDFN |
7,231 | 0.00 |
|
Datasheet |
- | 8-PowerWDFN | Tape & Reel (TR) | Obsolete | - | 2 N-Channel (Dual) | - | 30V | 25A | 20mOhm @ 10A, 10V | 2.5V @ 250µA | 7.2nC @ 4.5V | 572pF @ 15V | 1.7W (Ta), 20.8W (Tc) | -55°C ~ 150°C | - | - | Surface Mount | 8-PDFN (SPR-PAK ) (3.3x3.3) |
|
|
DMC10H172SSD-13MOSFET N/P-CH 100V 2A 8SO |
7,270 | 0.00 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Bulk | Active | MOSFET (Metal Oxide) | N and P-Channel | - | 100V | 2A (Ta), 1.7A (Ta) | 160mOhm @ 1.6A, 10V, 250mOhm @ 1A, 10V | 3V @ 250µA | 19.6nC @ 10V, 18nC @ 10V | 1145pF @ 50V, 1030pF @ 50V | 1.1W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SO |
|

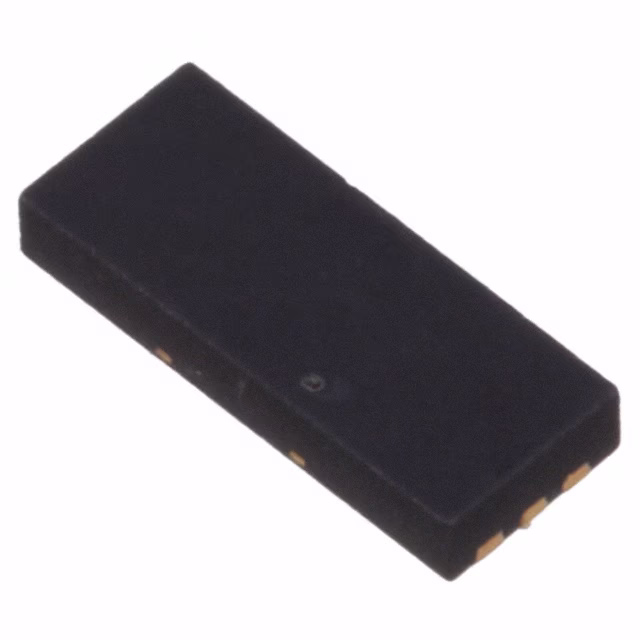

DMN2013UFX-7MOSFET 2N-CH 20V 10A 6DFN |
4,659 | 0.00 |
|
Datasheet |
- | 6-VFDFN Exposed Pad | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) Common Drain | - | 20V | 10A (Ta) | 11.5mOhm @ 8.5A, 4.5V | 1.1V @ 250µA | 57.4nC @ 8V | 2607pF @ 10V | 2.14W | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | W-DFN5020-6 |
|
PJQ5850_R2_00001MOSFET 2N-CH 40V 5A 8DFN |
7,483 | 0.00 |
|
Datasheet |
- | 8-PowerTDFN | Tape & Reel (TR) | Not For New Designs | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | - | 40V | 5A (Ta), 14A (Tc) | 33mOhm @ 8A, 10V | 2.5V @ 250µA | 4.4nC @ 4.5V | 425pF @ 25V | 1.7W (Ta), 12W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DFN5060B-8 |
|
AOP609MOSFET N/P-CH 60V 8PDIP |
5,441 | 0.00 |
|
Datasheet |
- | 8-DIP (0.300", 7.62mm) | Tube | Obsolete | MOSFET (Metal Oxide) | N and P-Channel | Logic Level Gate | 60V | - | 60mOhm @ 4.7A, 10V | 3V @ 250µA | 7nC @ 10V | 570pF @ 30V | 2.5W | -55°C ~ 150°C (TJ) | - | - | Through Hole | 8-PDIP |
|
|
MCACD30N04HE3-TPMOSFET 2N-CH 40V 30A 8PDFN |
2,754 | 0.00 |
|
Datasheet |
- | 8-PowerLDFN | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel | - | 40V | 30A (Tc) | 15mOhm @ 20A, 10V | 2.5V @ 250µA | 23nC @ 10V | 1030pF @ 25V | 35W (Tj) | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | PDFN5060-8D |
|
|
AOP607MOSFET N/P-CH 60V 8PDIP |
3,449 | 0.00 |
|
Datasheet |
- | 8-DIP (0.300", 7.62mm) | Tube | Obsolete | MOSFET (Metal Oxide) | N and P-Channel | Logic Level Gate | 60V | - | 56mOhm @ 4.7A, 10V | 3V @ 250µA | 10.5nC @ 10V | 540pF @ 30V | 2.5W | -55°C ~ 150°C (TJ) | - | - | Through Hole | 8-PDIP |
|
|
AON5816MOSFET 2N-CH 20V 12A 6DFN |
6,985 | 0.00 |
|
Datasheet |
- | 6-WFDFN Exposed Pad | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) Common Drain | - | 20V | 12A (Ta) | 6.5mOhm @ 12A, 4.5V | 1.3V @ 250µA | 35nC @ 4.5V | 2170pF @ 10V | 1.7W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 6-DFN-EP (2x5) |
