FETs, MOSFETs
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IPP50R399CPXKSA1MOSFET N-CH 500V 9A TO220-3 Infineon Technologies |
9,975 | 0.00 |
|
Datasheet |
CoolMOS™ | TO-220-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 500 V | 9A (Ta) | 10V | 399mOhm @ 4.9A, 10V | 3.5V @ 330µA | 4 nC @ 10 V | ±20V | 890 pF @ 100 V | - | 83W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | PG-TO220-3 |
|
IRFS7530-7PPBFMOSFET N CH 60V 240A D2PAK Infineon Technologies |
8,120 | 0.00 |
|
Datasheet |
HEXFET®, StrongIRFET™ | TO-263-7, D2PAK (6 Leads + Tab) | Tube | Discontinued at Digi-Key | N-Channel | MOSFET (Metal Oxide) | 60 V | 240A (Tc) | 6V, 10V | 1.4mOhm @ 100A, 10V | 3.7V @ 250µA | 354 nC @ 10 V | ±20V | 12960 pF @ 25 V | - | 375W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | D2PAK (7-Lead) |
|
IRFS7530PBFMOSFET N-CH 60V 195A D2PAK Infineon Technologies |
2,496 | 0.00 |
|
Datasheet |
HEXFET®, StrongIRFET™ | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Discontinued at Digi-Key | N-Channel | MOSFET (Metal Oxide) | 60 V | 195A (Tc) | 6V, 10V | 2mOhm @ 100A, 10V | 3.7V @ 250µA | 411 nC @ 10 V | ±20V | 13703 pF @ 25 V | - | 375W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | D2PAK |
.jpg)
|

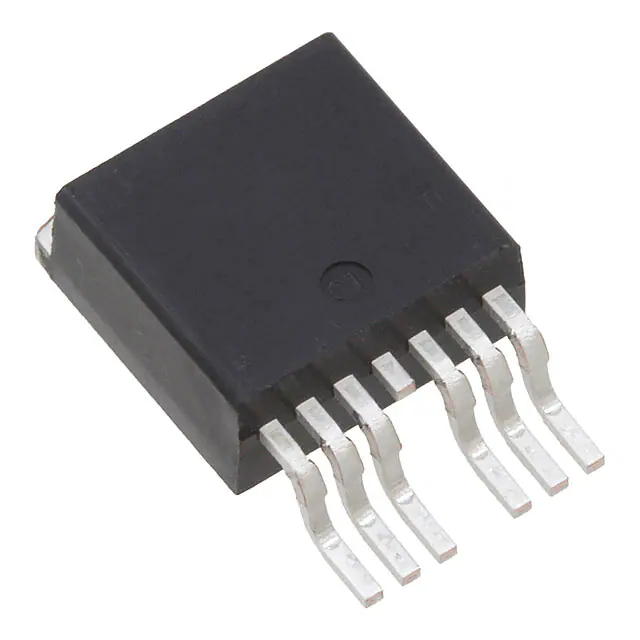

IRFS7534-7PPBFMOSFET N CH 60V 240A D2PAK Infineon Technologies |
2,122 | 0.00 |
|
Datasheet |
HEXFET®, StrongIRFET™ | TO-263-7, D2PAK (6 Leads + Tab) | Tube | Discontinued at Digi-Key | N-Channel | MOSFET (Metal Oxide) | 60 V | 240A (Tc) | 6V, 10V | 1.95mOhm @ 100A, 10V | 3.7V @ 250µA | 300 nC @ 10 V | ±20V | 9990 pF @ 25 V | - | 290W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | D2PAK (7-Lead) |
|
|
IRFS7534PBFMOSFET N CH 60V 195A D2PAK Infineon Technologies |
9,123 | 0.00 |
|
Datasheet |
HEXFET®, StrongIRFET™ | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Discontinued at Digi-Key | N-Channel | MOSFET (Metal Oxide) | 60 V | 195A (Tc) | 6V, 10V | 2.4mOhm @ 100A, 10V | 3.7V @ 250µA | 279 nC @ 10 V | ±20V | 10034 pF @ 25 V | - | 294W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | D2PAK |
|
IRFS7537PBFMOSFET N CH 60V 173A D2PAK Infineon Technologies |
5,248 | 0.00 |
|
Datasheet |
HEXFET®, StrongIRFET™ | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Discontinued at Digi-Key | N-Channel | MOSFET (Metal Oxide) | 60 V | 173A (Tc) | 6V, 10V | 3.3mOhm @ 100A, 10V | 3.7V @ 150µA | 210 nC @ 10 V | ±20V | 7020 pF @ 25 V | - | 230W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | D2PAK |
|
IRFS7540PBFMOSFET N CH 60V 110A D2PAK Infineon Technologies |
4,870 | 0.00 |
|
Datasheet |
HEXFET®, StrongIRFET™ | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Discontinued at Digi-Key | N-Channel | MOSFET (Metal Oxide) | 60 V | 110A (Tc) | 6V, 10V | 5.1mOhm @ 65A, 10V | 3.7V @ 100µA | 130 nC @ 10 V | ±20V | 4555 pF @ 25 V | - | 160W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | D2PAK |
|
IRFB7746PBFMOSFET N-CH 75V 59A TO220AB Infineon Technologies |
7,425 | 0.00 |
|
Datasheet |
StrongIRFET™ | TO-220-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 75 V | 59A (Tc) | 6V, 10V | 10.6mOhm @ 35A, 10V | 3.7V @ 100µA | 83 nC @ 10 V | ±20V | 3049 pF @ 25 V | - | 99W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220AB |
|
|
IRFB7787PBFMOSFET N-CH 75V 76A TO220AB Infineon Technologies |
6,943 | 0.00 |
|
Datasheet |
HEXFET®, StrongIRFET™ | TO-220-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 75 V | 76A (Tc) | 6V, 10V | 8.4mOhm @ 46A, 10V | 3.7V @ 100µA | 109 nC @ 10 V | ±20V | 4020 pF @ 25 V | - | 125W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220AB |
|
|
IRFSL7430PBFMOSFET N-CH 40V 195A D2PAK Infineon Technologies |
2,442 | 0.00 |
|
Datasheet |
HEXFET®, StrongIRFET™ | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 40 V | 195A (Tc) | 6V, 10V | 1.2mOhm @ 100A, 10V | 3.9V @ 250µA | 460 nC @ 10 V | ±20V | 14240 pF @ 25 V | - | 375W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | D2PAK |
