FETs, MOSFETs
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IRFSL7434PBFMOSFET N-CH 40V 195A TO262 Infineon Technologies |
5,380 | 0.00 |
|
Datasheet |
HEXFET®, StrongIRFET™ | TO-262-3 Long Leads, I2PAK, TO-262AA | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 40 V | 195A (Tc) | 6V, 10V | 1.6mOhm @ 100A, 10V | 3.9V @ 250µA | 324 nC @ 10 V | ±20V | 10820 pF @ 25 V | - | 294W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-262 |
|
|
IRFSL7530PBFMOSFET N-CH 60V 195A TO262 Infineon Technologies |
9,575 | 0.00 |
|
Datasheet |
HEXFET®, StrongIRFET™ | TO-262-3 Long Leads, I2PAK, TO-262AA | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 195A (Tc) | 6V, 10V | 2mOhm @ 100A, 10V | 3.7V @ 250µA | 411 nC @ 10 V | ±20V | 13703 pF @ 25 V | - | 375W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | TO-262 |
|
|
IRFSL7534PBFMOSFET N-CH 60V 195A TO262 Infineon Technologies |
5,735 | 0.00 |
|
Datasheet |
HEXFET®, StrongIRFET™ | TO-262-3 Long Leads, I2PAK, TO-262AA | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 195A (Tc) | 6V, 10V | 2.4mOhm @ 100A, 10V | 3.7V @ 250µA | 279 nC @ 10 V | ±20V | 10034 pF @ 25 V | - | 294W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | TO-262 |
|
|
IRFSL7787PBFMOSFET N-CH 75V 76A TO262 Infineon Technologies |
5,949 | 0.00 |
|
Datasheet |
HEXFET®, StrongIRFET™ | TO-262-3 Long Leads, I2PAK, TO-262AA | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 75 V | 76A (Tc) | 6V, 10V | 8.4mOhm @ 46A, 10V | 3.7V @ 100µA | 109 nC @ 10 V | ±20V | 4020 pF @ 25 V | - | 125W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-262 |
|
IRLS3813TRLPBFMOSFET N-CH 30V 160A D2PAK Infineon Technologies |
2,542 | 0.00 |
|
Datasheet |
HEXFET® | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 160A (Tc) | 10V | 1.95mOhm @ 148A, 10V | 2.35V @ 150µA | 83 nC @ 4.5 V | ±20V | 8020 pF @ 25 V | - | 195W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-263AB (D2PAK) |
|
AUIRFN8403TRMOSFET N-CH 40V 95A 8PQFN Infineon Technologies |
6,946 | 0.00 |
|
Datasheet |
HEXFET® | 8-PowerTDFN | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 40 V | 95A (Tc) | 10V | 3.3mOhm @ 50A, 10V | 3.9V @ 100µA | 98 nC @ 10 V | ±20V | 3174 pF @ 25 V | - | 4.3W (Ta), 94W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | 8-PQFN (5x6) |
|
IRFR7540PBFMOSFET N-CH 60V 90A DPAK Infineon Technologies |
8,007 | 0.00 |
|
Datasheet |
StrongIRFET™ | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tube | Discontinued at Digi-Key | N-Channel | MOSFET (Metal Oxide) | 60 V | 90A (Tc) | 6V, 10V | 4.8mOhm @ 66A, 10V | 3.7V @ 100µA | 130 nC @ 10 V | ±20V | 4360 pF @ 25 V | - | 140W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | TO-252AA (DPAK) |
|
IRFR7546PBFMOSFET N-CH 60V 56A DPAK Infineon Technologies |
3,269 | 0.00 |
|
Datasheet |
StrongIRFET™ | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tube | Discontinued at Digi-Key | N-Channel | MOSFET (Metal Oxide) | 60 V | 56A (Tc) | 6V, 10V | 7.9mOhm @ 43A, 10V | 3.7V @ 100µA | 87 nC @ 10 V | ±20V | 3020 pF @ 25 V | - | 99W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | DPAK |
|

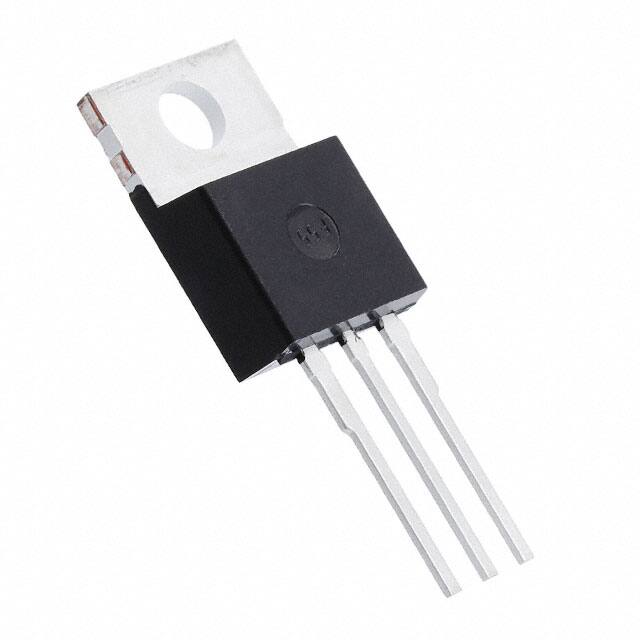

SPP16N50C3XKSA1MOSFET N-CH 560V 16A TO220-3 Infineon Technologies |
3,802 | 0.00 |
|
Datasheet |
CoolMOS™ | TO-220-3 Full Pack | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 560 V | 16A (Tc) | 10V | 280mOhm @ 10A, 10V | 3.9V @ 675µA | 66 nC @ 10 V | ±20V | 1600 pF @ 25 V | - | 160W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | PG-TO220-3-111 |
|
|
IRFS7430PBFMOSFET N-CH 40V 195A D2PAK Infineon Technologies |
6,045 | 0.00 |
|
Datasheet |
HEXFET®, StrongIRFET™ | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Discontinued at Digi-Key | N-Channel | MOSFET (Metal Oxide) | 40 V | 195A (Tc) | 6V, 10V | 1.2mOhm @ 100A, 10V | 3.9V @ 250µA | 460 nC @ 10 V | ±20V | 14240 pF @ 25 V | - | 375W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | D2PAK |
