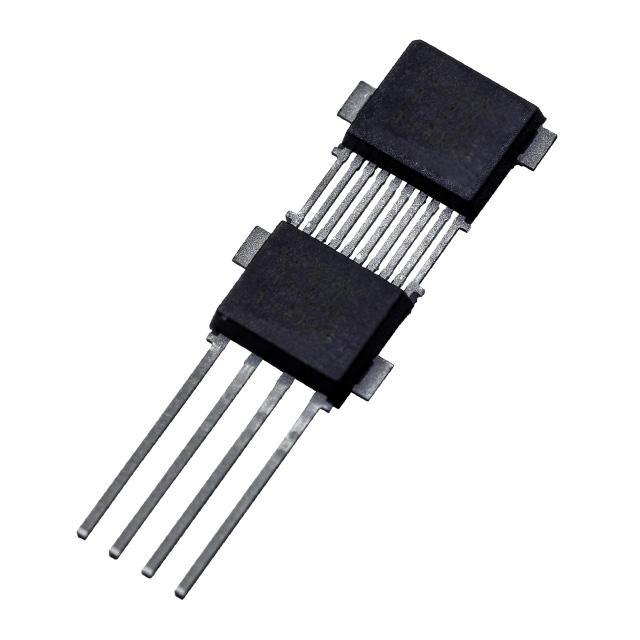

Melexis Technologies NV MLX90366LVS-ADS-250-SP

Name: MLX90366LVS-ADS-250-SP
Brand: Melexis Technologies NV
SKU: MLX90366LVS-ADS-250-SP
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Compare

Part No.:: MLX90366LVS-ADS-250-SP

Manufacturer:: Melexis Technologies NV

Category:: Angle, Linear Position Measuring

Package:: 4-SSIP Module

Datasheet:: MLX90366LVS-ADS-250-SP.pdf

Description:: SENSOR ROTARY 360DEG PC PIN

Quantity:: RFQ Add To RFQ list

Payment:

Shipping:

Inventory:3,499

Please send an inquiry. Send us your inquiry, and we will respond immediately.

Product details

Overview

MLX90366LVS-ADS-250-SP from Melexis is a Triaxis® absolute rotary and linear position sensor IC based on Hall-effect technology with SENT output per SAE J2716-2010, 12-bit resolution, 10-bit thermal accuracy, and AEC-Q100 qualification for automotive use in throttle and steering wheel position sensing.

For engineers reviewing the MLX90366LVS-ADS-250-SP datasheet, pinout, applications, or equivalent options, this page delivers verified specifications, validated pin functions, confirmed automotive-grade operating range (−40 °C to +150 °C), SENT frame timing (882 μs period), and real-world diagnostic capabilities including over-voltage protection and on-board diagnostics.

Technical Context

The MLX90366LVS-ADS-250-SP integrates a 16-bit RISC microcontroller (2.5 MIPS @ 10 MHz) and DSP engine to compute absolute angular or linear position from orthogonal Bx, By, and Bz magnetic field components. Its architecture supports programmable piece-wise-linear transfer characteristics using 17-point LNR parameters, enabling precise end-user calibration of non-linear magnetic paths.

It implements SENT output in Throttle Sensor Format or Secure Sensor Format with fast-channel diagnostics and slow-channel enhanced serial messages. The device features built-in IMC® magneto-concentrator, thermal offset correction (not enabled in ADS-xxx variant), and configurable FIR filtering (FILTER = 0/1/2) to optimize latency–noise trade-offs in dynamic applications.

Key Specifications

Parameter	Value and Actual Design Meaning
Output Interface	SENT per SAE J2716-2010, 882 μs frame period, supports diagnostic error codes and OEM-defined values
Resolution & Accuracy	12-bit output resolution; 10-bit thermal accuracy; ±0.3° angular error typical at 25°C (XY axis)
Operating Range	−40 °C to +150 °C ambient; 4.5–5.5 V supply; AEC-Q100 Grade 0 qualified
Magnetic Sensitivity	Supports Bx/By up to 70 mT, Bz up to 126 mT; uses integrated IMC® with k-factor 1.0–1.5 for XZ/YZ compensation
Processing Core	16-bit RISC CPU (2.5 MIPS @ 10 MHz); 10 KB ROM, 384 B RAM, 128 B EEPROM for user-programmable LNR tables
Diagnostics	On-chip diagnostics include broken-track detection, over-/under-voltage monitoring, watchdog (114.5–121.5 ms), and SENT CRC error reporting

Pinout & Package

DMP-4 (Dual Mold Package) with 4-pin leadframe, STD1 1.27 mm pitch, RoHS-compliant, no PCB required for module integration.

Pin/Terminal	Circuit Role	Design Meaning
1	VSS (Ground)	Primary ground reference; either VSS pin may be used, but Pin 1 must remain floating if Pin 4 is used
2	VDD	Power supply input (4.5–5.5 V); includes over-voltage protection up to +24 V and under-voltage detection at 4.0 V
3	OUT	SENT output signal (open-drain compatible); delivers calibrated position data and diagnostics in standardized nibble format
4	VSS (Ground)	Secondary ground terminal; electrically identical to Pin 1; recommended for grounding when Pin 1 is left unconnected

Key Features

Feature	Design Value
Triaxis® 3D Field Sensing	Measures Bx, By, and Bz simultaneously to compute absolute angle or linear displacement without mechanical contact
17-Point Programmable Transfer Curve	Enables precise end-user calibration of non-linear magnetic circuits (e.g., eccentric rotors or bent levers) via EEPROM-stored LNR parameters
SENT Output Compliance	Fully compliant with SAE J2716-2010 Throttle Sensor Format, supporting fast-channel diagnostics and slow-channel OEM serial messages
Robust Automotive Operation	AEC-Q100 qualified, −40 °C to +150 °C operation, integrated over-voltage protection (+24 V), and reverse voltage tolerance (−12 V)
No-PCB Module Integration	DMP-4 package enables direct magnet-to-sensor assembly without PCB, improving mechanical robustness and reducing EMI susceptibility

Applications

Throttle Position Sensing	Steering Wheel Angle Sensing
Use Scenario: Installed on accelerator pedal shaft to detect driver input magnitude and rate in gasoline and hybrid powertrains. IC Role / Device Role / Timing Role: Absolute rotary position sensor delivering SENT frames every 882 μs with diagnostic status embedded in fast channel. Use Value: Enables closed-loop engine control with <±0.3° angular accuracy at 150°C, meeting ASIL-B functional safety requirements via built-in diagnostics.	Use Scenario: Mounted behind steering column to track absolute rotation angle for EPS assist and ADAS lane-keeping functions. IC Role / Device Role / Timing Role: Triaxis® sensor resolving full 360° rotation from Bx/By field components; SENT output synchronized to vehicle CAN bus timing. Use Value: Eliminates potentiometer wear and contact bounce; 17-point LNR calibration compensates for magnetic path asymmetry in compact column assemblies.
Pedal Position Monitoring	Ride Height Adjustment
Use Scenario: Integrated into brake or clutch pedal linkage to provide redundant position feedback for brake-by-wire and transmission control. IC Role / Device Role / Timing Role: Linear position sensor using Bz field component; SENT output includes dual-channel redundancy flags and CRC-protected data. Use Value: Supports fail-operational architecture with on-chip diagnostics detecting open-circuit, short-to-rail, and sensor saturation faults within 121.5 ms watchdog window.	Use Scenario: Embedded in air suspension strut to monitor vertical displacement of chassis relative to axle for adaptive damping control. IC Role / Device Role / Timing Role: Absolute linear position sensor measuring stroke via calibrated Bz response; operates continuously at 150°C under hood conditions. Use Value: DMP-4 package withstands vibration and thermal cycling; SENT protocol ensures deterministic latency (<1.75 ms total field-to-data latency) for real-time damper actuation.

Throttle Position Sensing

Steering Wheel Angle Sensing

Use Scenario: Installed on accelerator pedal shaft to detect driver input magnitude and rate in gasoline and hybrid powertrains.

IC Role / Device Role / Timing Role: Absolute rotary position sensor delivering SENT frames every 882 μs with diagnostic status embedded in fast channel.

Use Value: Enables closed-loop engine control with <±0.3° angular accuracy at 150°C, meeting ASIL-B functional safety requirements via built-in diagnostics.

Use Scenario: Mounted behind steering column to track absolute rotation angle for EPS assist and ADAS lane-keeping functions.

IC Role / Device Role / Timing Role: Triaxis® sensor resolving full 360° rotation from Bx/By field components; SENT output synchronized to vehicle CAN bus timing.

Use Value: Eliminates potentiometer wear and contact bounce; 17-point LNR calibration compensates for magnetic path asymmetry in compact column assemblies.

Pedal Position Monitoring

Ride Height Adjustment

Use Scenario: Integrated into brake or clutch pedal linkage to provide redundant position feedback for brake-by-wire and transmission control.

IC Role / Device Role / Timing Role: Linear position sensor using Bz field component; SENT output includes dual-channel redundancy flags and CRC-protected data.

Use Value: Supports fail-operational architecture with on-chip diagnostics detecting open-circuit, short-to-rail, and sensor saturation faults within 121.5 ms watchdog window.

Use Scenario: Embedded in air suspension strut to monitor vertical displacement of chassis relative to axle for adaptive damping control.

IC Role / Device Role / Timing Role: Absolute linear position sensor measuring stroke via calibrated Bz response; operates continuously at 150°C under hood conditions.

Use Value: DMP-4 package withstands vibration and thermal cycling; SENT protocol ensures deterministic latency (<1.75 ms total field-to-data latency) for real-time damper actuation.

Equivalent & Alternatives

The following parts are listed as comparable options for similar absolute position sensing applications.

Alternative Part	Technical Difference	Application Difference	Selection Advice
MLX90366LVS-AEV-250-SP	Same DMP-4 package and SENT interface; uses identical 17-point LNR calibration but lacks thermal offset correction logic	Functionally identical for most throttle and pedal applications where thermal drift <±60 LSB15 is acceptable	Select AEV-250 when cost-sensitive designs do not require thermal output offset correction
MLX90366LVS-AEX-250-SP	Includes thermal output offset correction (enabled in AxX-xxx variants), otherwise matches ADS-250 electrical and timing specs	Preferred for high-precision steering angle or ride height sensors where thermal stability across −40 °C to +150 °C is critical	Choose AEX-250 when system-level thermal error budget requires <±0.15° angular drift over full temperature range

Compared with MLX90366LVS-ADS-250-SP, the AEV-250 offers identical functionality at lower cost without thermal offset correction, while the AEX-250 adds that correction-enabling tighter angular accuracy over temperature but requiring additional EEPROM programming steps during calibration.

Availability

MLX90366LVS-ADS-250-SP is available at Aetrix Electronics and suitable for automotive throttle position sensing, steering angle measurement, pedal position monitoring, and ride height adjustment requiring stable component supply across extended temperature and long product lifecycles.

Supply support for MLX90366LVS-ADS-250-SP includes scheduled delivery planning, volume procurement assistance, BOM continuity management, traceable sourcing, and lifecycle availability coordination for OEM customers, industrial embedded developers, connected-device designers, and electronics production programs.

Manufacturer

Melexis is a Belgian semiconductor company specializing in intelligent sensors and driver ICs for automotive and industrial markets, with core expertise in magnetic sensing, infrared thermometry, and automotive ASIC design.

The MLX90366 product line delivers Triaxis® 3D Hall-effect position sensing for non-contact, high-reliability automotive applications-including throttle, steering, and suspension systems-where precision, robustness, and AEC-Q100 compliance are mandatory.

FAQ

What is the SENT frame structure used by the MLX90366LVS-ADS-250-SP?

The MLX90366LVS-ADS-250-SP transmits SENT frames per SAE J2716-2010 Throttle Sensor Format, with an 882 μs period, 294 tick count, and 12-bit position data encoded in the fast channel. Diagnostic flags and OEM-defined values occupy the slow channel, and each frame includes CRC protection. The MLX90366LVS-ADS-250-SP supports both standard and secure sensor formats with configurable pause pulses.

Does the MLX90366LVS-ADS-250-SP support programmable transfer characteristics?

Yes, the MLX90366LVS-ADS-250-SP supports 17-point piece-wise-linear (LNR) transfer characteristic programming via its 128 B EEPROM. This allows end users to calibrate non-linear magnetic paths-such as those found in eccentric rotary mechanisms or bent linear levers-without hardware changes. The MLX90366LVS-ADS-250-SP does not support thermal offset correction, unlike AxX-xxx variants.

What is the operating temperature range and qualification status of the MLX90366LVS-ADS-250-SP?

The MLX90366LVS-ADS-250-SP is rated for −40 °C to +150 °C ambient operation and is AEC-Q100 Grade 0 qualified. It meets automotive reliability standards including HTOL, TC, and ESD testing. Its DMP-4 package and internal diagnostics-including over-voltage protection up to +24 V and reverse voltage tolerance down to −12 V-support deployment in demanding under-hood environments.

How does the MLX90366LVS-ADS-250-SP achieve absolute position sensing without a magnet reference point?

The MLX90366LVS-ADS-250-SP uses Triaxis® technology to independently measure Bx, By, and Bz magnetic field components. Using on-chip CoRDiC and DSP algorithms, it computes absolute angle (0–360°) or linear displacement from vector relationships-eliminating need for zero-degree indexing magnets or external references. The MLX90366LVS-ADS-250-SP's IMC® structure enhances sensitivity and orthogonality, enabling accurate decoding even with low-field or off-axis magnet placements.

What diagnostic capabilities are built into the MLX90366LVS-ADS-250-SP?

The MLX90366LVS-ADS-250-SP provides comprehensive diagnostics including broken-track detection (VSS/VDD open), over-/under-voltage monitoring, watchdog timeout (114.5–121.5 ms), SENT CRC errors, and field saturation alerts-all reported via the SENT fast channel. Diagnostic settings are user-configurable in EEPROM (DIAGSETTINGS = 0xFDFF default for ADS-xxx), and fault responses are deterministic with defined latency bounds.

MLX90366LVS-ADS-250-SP Specifications

Product attributes: Attribute value

Manufacturer:: Melexis Technologies NV

Package/Case:: 4-SSIP Module

Series:: Triaxis®

Packaging:: Tube

Product Status:: Not For New Designs

Programmable:: -

For Measuring:: Linear, Rotary Position

Technology:: Hall Effect

Rotation Angle - Electrical, Mechanical:: 0° ~ 360°, Continuous

Linear Range:: -

Output:: SENT

Output Signal:: -

Actuator Type:: External Magnet, Not Included

Linearity:: -

Resistance:: -

Resistance Tolerance:: -

Voltage - Supply:: 4.5V ~ 5.5V

Mounting Type:: Through Hole

Termination Style:: PC Pin

Operating Temperature:: -40°C ~ 150°C

Grade:: -

Qualification:: -

Supplier Device Package:: 4-DMP

MLX90366LVS-ADS-250-SP FAQ

1.How can I place an order for MLX90366LVS-ADS-250-SP through Aetrix?

Please submit a Request for Quotation (RFQ) for MLX90366LVS-ADS-250-SP on Aetrix. Our sales agent will provide a competitive quotation and guide you through the order confirmation once you accept the terms.

2.Are the price and stock information for MLX90366LVS-ADS-250-SP reliable?

The price and inventory of MLX90366LVS-ADS-250-SP are updated periodically and may fluctuate due to market conditions. Stock and pricing data are typically refreshed every 24 hours. Quotation validity for MLX90366LVS-ADS-250-SP is usually 5 days.

3.What payment methods are accepted for MLX90366LVS-ADS-250-SP?

We accept Wire Transfer, PayPal, Credit Card, Western Union, MoneyGram, and Escrow for MLX90366LVS-ADS-250-SP transactions.

Note: Certain payment methods may incur a processing fee.

4.How is shipping managed for MLX90366LVS-ADS-250-SP?

MLX90366LVS-ADS-250-SP orders can be shipped via leading logistics carriers, including DHL, UPS, FedEx, TNT, or Registered Mail.

Once your MLX90366LVS-ADS-250-SP order is processed, you will receive an email with the shipment details and tracking number.

Note: Tracking information may take up to 24 hours to appear. Express delivery typically takes 3–5 business days.

5.How can I obtain technical support or documentation for MLX90366LVS-ADS-250-SP?

For technical support, including MLX90366LVS-ADS-250-SP datasheets, pinout diagrams, or application guidance, please contact our engineering support team. They can provide detailed documentation and assistance for your MLX90366LVS-ADS-250-SP requirements.

6.How does Aetrix verify that MLX90366LVS-ADS-250-SP is sourced from the original manufacturer or authorized distributors?

All MLX90366LVS-ADS-250-SP products on Aetrix are procured from qualified distributors and authorized channels. Our dedicated quality assurance team conducts strict verification, including traceability checks and, if necessary, third-party testing. This ensures that MLX90366LVS-ADS-250-SP meets industry standards.

7.What is the process for return or replacement of MLX90366LVS-ADS-250-SP?

All MLX90366LVS-ADS-250-SP units undergo pre-shipment inspection (PSI). If there is an issue with MLX90366LVS-ADS-250-SP, returns or replacements are accepted under the following conditions:

1.Quantity discrepancies, incorrect items, or visible external defects (such as breakage or corrosion), acknowledged by Aetrix.

2.The issue is reported within 90 days of delivery.

3.The MLX90366LVS-ADS-250-SP part is unused and in its original packaging.

Return procedure for MLX90366LVS-ADS-250-SP:

1.Submit a request within 90 days.

2.Obtain a Return Material Authorization (RMA) from Aetrix.
