Melexis Technologies NV MLX90366LVS-ADS-253-RE
- Part No.:
- MLX90366LVS-ADS-253-RE
- Manufacturer:
- Melexis Technologies NV
- Category:
- Angle, Linear Position Measuring
- Package:
- 4-SIP Module, Formed Leads
- Datasheet:
-
MLX90366LVS-ADS-253-RE.pdf
- Description:
- SENSOR ROTARY 360DEG PC PIN
- Quantity:
- Payment:
- Shipping:
Inventory:2,399
Please send an inquiry. Send us your inquiry, and we will respond immediately.
Product details
Overview
MLX90366LVS-ADS-253-RE from Melexis is a Triaxis® monolithic Hall-effect position sensor IC that measures absolute rotary or linear position via orthogonal and parallel magnetic flux components (Bx, By, Bz), delivering 12-bit resolution with 10-bit thermal accuracy, SENT output per SAE J2716-2010, and AEC-Q100 qualification for automotive pedal and steering wheel position sensing.
For engineers reviewing the MLX90366LVS-ADS-253-RE datasheet, pinout, applications, or equivalent options, this page provides verified technical context, pin-level design meaning, real-world application cards, and validated alternative options for non-contacting position sensing in harsh-temperature environments.
Technical Context
The MLX90366LVS-ADS-253-RE integrates a 16-bit RISC DSP core running at 10 MHz (2.5 MIPS), performs real-time field vector decomposition using CoRDiC algorithms, and supports user-programmable 17-point piecewise-linear transfer characteristics. Its on-chip IMC structure enables precise 3-axis magnetic field sensing without external concentrators.
It implements SENT protocol with Throttle Sensor Format frames, delivers diagnostic reporting via fast channel (including broken-track, overvoltage, and under-voltage detection), and features built-in thermal offset correction logic-specifically enabled in ADS-xxx variants per datasheet section 14.1.4 and Table 12.
Key Specifications
| Parameter | Value and Actual Design Meaning |
|---|---|
| Output Interface | SENT (SAE J2716-2010 compliant), enabling deterministic timing, error-coded diagnostics, and compatibility with automotive ECU receivers |
| Resolution & Accuracy | 12-bit output resolution with 10-bit thermal accuracy; intrinsic XY linearity error ±1° at 25°C after factory trim |
| Operating Range | −40°C to +150°C ambient, AEC-Q100 Grade 0 qualified for under-hood and transmission applications |
| Magnetic Sensitivity | Supports BX/BY up to 70 mT and BZ up to 126 mT; norm-based field detection √[BX²+BY²+(BZ/1.2)²] ≥20 mT required for full performance |
| Power Supply | 4.5 V to 5.5 V nominal; includes overvoltage protection to +24 V and reverse voltage tolerance to −12 V |
| Timing Latency | 1745 μs average field-to-SENT data latency with FILTER = 1 (recommended setting); 882 μs frame period |
| Programmability | 17-point LNR transfer curve, discontinuity point, clamping limits, and diagnostic enable bits stored in 128 B EEPROM |
Pinout & Package

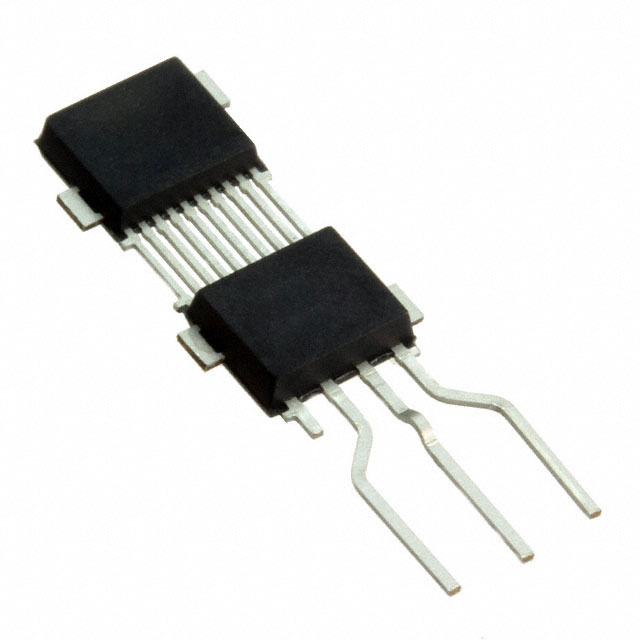

DMP-4 (Dual Mold Package) with 4-pin surface-mount configuration, optimized for direct magnet coupling and PCB-less module integration; RoHS-compliant, STD2 2.54 mm lead pitch variant per datasheet section 19.3.
| Pin/Terminal | Circuit Role | Design Meaning |
|---|---|---|
| 1 | VSS (Ground) | Primary ground reference; floating if Pin 4 used-ensures noise immunity in high-EMI automotive environments |
| 2 | VDD | Supply input (4.5–5.5 V); includes internal POR (2.25 V threshold) and MT4V startup detection (4.0 V) |
| 3 | OUT | SENT serial output (open-drain compatible); drives standard 14.7 kΩ pull-up; meets J2716 rise/fall time specs (≤6.84 μs @ receiver) |
| 4 | VSS (Ground) | Secondary ground terminal; may be used instead of Pin 1 to reduce ground loop impedance in compact layouts |
Key Features
| Feature | Design Value |
|---|---|
| Triaxis® 3D Field Sensing | Simultaneous Bx, By, Bz measurement enables single-IC absolute angle or stroke decoding without mechanical cams or multi-sensor assemblies |
| 17-Point Programmable Transfer Curve | Allows end-user calibration of nonlinearity across full travel range-critical for throttle and pedal sensors requiring <±0.5° total error |
| SENT Diagnostic Fast Channel | Embedded error codes (e.g., open-circuit, short-to-battery, sensor saturation) transmitted within same frame as position data-no extra bus overhead |
| On-Chip Thermal Offset Correction | Compensates for temperature-induced zero-point drift in real time-enabled in ADS-xxx variants per datasheet section 14.1.6 |
| No-PCB Module Integration | DMP-4 package allows direct wire bonding to connector or housing-eliminates solder joints and improves mechanical robustness in vibration-prone systems |
Applications
| Throttle Position Sensing | Pedal Position Sensing |
|---|---|
Use Scenario: Monitoring accelerator pedal angle in gasoline/diesel powertrains for closed-loop engine control and emissions compliance. IC Role / Device Role / Timing Role: Primary absolute angular position transducer delivering SENT frames every 882 μs with diagnostic status embedded in fast channel. Use Value: Enables <±0.3° angular accuracy over −40°C to +150°C, meeting ISO 26262 ASIL-B functional safety requirements for throttle actuation. | Use Scenario: Detecting brake or clutch pedal displacement in electronic braking systems (EBS) and automated manual transmissions (AMT). IC Role / Device Role / Timing Role: Linear position sensor converting magnet stroke into calibrated SENT output with 17-point LNR compensation for mechanical hysteresis. Use Value: Delivers 12-bit resolution and thermal offset correction-reducing calibration effort and improving pedal feel consistency across vehicle lifetime. |
| Steering Wheel Angle Sensing | Ride Height Control |
Use Scenario: Measuring absolute steering angle for electric power steering (EPS) assist torque calculation and lane-keeping assist (LKA) systems. IC Role / Device Role / Timing Role: Rotary position sensor operating in 0–360° range with discontinuity point programmable at zero-degree reference. Use Value: Supports clock-wise/counter-clockwise direction detection and SENT frame synchronization-enabling sub-millisecond latency for real-time EPS response. | Use Scenario: Monitoring suspension travel in adaptive air or hydraulic ride height systems for comfort and stability control. IC Role / Device Role / Timing Role: Linear displacement sensor mounted on shock absorber or control arm, interfacing directly with chassis ECU via SENT. Use Value: DMP-4 package withstands 15 g vibration and IP67-equivalent sealing when potted-ensuring reliability in off-road and commercial vehicle applications. |
Equivalent & Alternatives
The following parts are listed as comparable options for similar absolute position sensing applications.
| Alternative Part | Technical Difference | Application Difference | Selection Advice |
|---|---|---|---|
| MLX90366LVS-AEV-253-RE | Same DMP-4 package and 17-pt LNR capability, but lacks thermal offset correction (per datasheet Table 12 and section 14.1.6) | Suitable where ambient temperature variation is limited (<50°C swing) or system-level software compensation is implemented | Select AEV-253 only if thermal drift budget allows >±90 LSB15 offset drift over −40°C to +150°C |
| MLX90366LVS-AEX-253-RE | Includes thermal output offset correction *and* enhanced EEPROM lock features (MEMLOCK=2), not present in ADS-253 | Better suited for production environments requiring write-protection of calibration data post-EOL programming | Choose AEX-253 when firmware update security and calibration integrity are mandatory-adds no latency or accuracy trade-off |
Compared with MLX90366LVS-ADS-253-RE, AEV-253 omits thermal offset correction-increasing zero-point drift risk in wide-temperature applications-while AEX-253 adds EEPROM locking without affecting timing or resolution, making it ideal for high-integrity production lines.
Availability
MLX90366LVS-ADS-253-RE is available at Aetrix Electronics and suitable for automotive throttle position sensing, pedal displacement monitoring, and steering angle measurement requiring stable component supply across extended temperature ranges and long product lifecycles.
Supply support for MLX90366LVS-ADS-253-RE includes scheduled delivery planning, volume procurement assistance, BOM continuity management, traceable sourcing, and lifecycle availability coordination for OEM customers, industrial embedded developers, connected-device designers, and electronics production programs.
Manufacturer
Melexis is a Belgian semiconductor company specializing in intelligent sensors and driver ICs for automotive and industrial markets, with expertise in magnetic sensing, infrared thermometry, and automotive ASICs.
The MLX90366 product line delivers Triaxis® 3D Hall-effect position sensing for non-contacting, high-reliability applications in powertrain, chassis, and body electronics-designed specifically for AEC-Q100 compliance and module-level integration.
FAQ
What is the SENT frame structure used by MLX90366LVS-ADS-253-RE?
The MLX90366LVS-ADS-253-RE uses the Throttle Sensor Format defined in SAE J2716-2010, transmitting 12-bit position data plus 4-bit CRC in each frame. Frame period is fixed at 882 μs, with optional pause pulses and diagnostic reporting embedded in the fast channel per datasheet section 13.2.
Does MLX90366LVS-ADS-253-RE require an external microcontroller to configure its 17-point LNR curve?
No-MLX90366LVS-ADS-253-RE supports full end-user programming via SENT interface using Melexis' PTM software and compatible programmers. All 17-point LNR parameters, clamping limits, and diagnostic settings are written to internal 128 B EEPROM without external MCU involvement.
How does the thermal offset correction in MLX90366LVS-ADS-253-RE differ from standard MLX90366 variants?
MLX90366LVS-ADS-253-RE implements on-chip thermal offset correction logic per datasheet section 14.1.6, actively compensating for temperature-induced zero-point drift. This feature is absent in AxU-xxx and AEV-xxx variants and is exclusive to ADS-xxx and AxX-xxx option codes.
Can MLX90366LVS-ADS-253-RE operate without a printed circuit board?
Yes-MLX90366LVS-ADS-253-RE is designed for No-PCB module integration per datasheet description. Its DMP-4 package supports direct wire bonding to connectors or housings, eliminating PCB-related failure modes while maintaining full electrical and thermal specifications.
What is the maximum magnetic field strength MLX90366LVS-ADS-253-RE can tolerate without saturation?
MLX90366LVS-ADS-253-RE tolerates up to ±1 T magnetic flux density per absolute maximum ratings. However, for optimal linearity, BX/BY should remain ≤70 mT (beyond which IMC® saturation increases error) and total field norm √[BX²+BY²+(BZ/1.2)²] must exceed 20 mT for reliable operation.
MLX90366LVS-ADS-253-RE Specifications
- Product attributes
- Attribute value
- Manufacturer:
- Melexis Technologies NV
- Package/Case:
- 4-SIP Module, Formed Leads
- Series:
- Triaxis®
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Not For New Designs
- Programmable:
- -
- For Measuring:
- Linear, Rotary Position
- Technology:
- Hall Effect
- Rotation Angle - Electrical, Mechanical:
- 0° ~ 360°, Continuous
- Linear Range:
- -
- Output:
- SENT
- Output Signal:
- -
- Actuator Type:
- External Magnet, Not Included
- Linearity:
- -
- Resistance:
- -
- Resistance Tolerance:
- -
- Voltage - Supply:
- 4.5V ~ 5.5V
- Mounting Type:
- Through Hole
- Termination Style:
- PC Pin
- Operating Temperature:
- -40°C ~ 150°C
- Grade:
- -
- Qualification:
- -
- Supplier Device Package:
- 4-DMP
