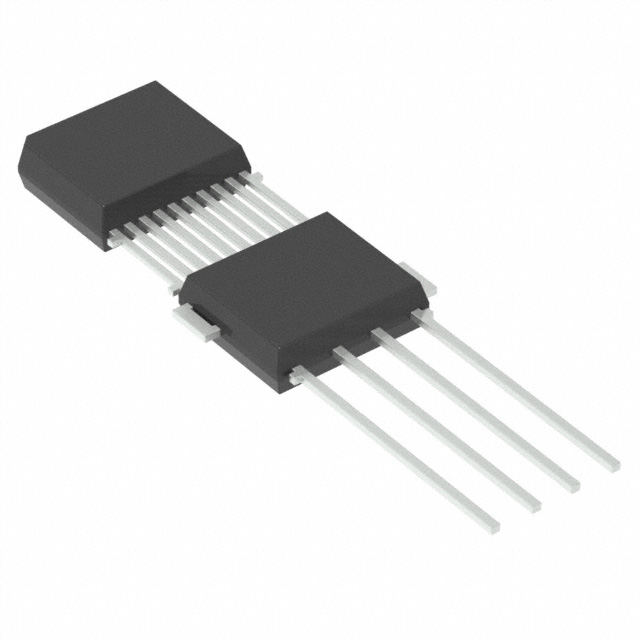

Melexis Technologies NV MLX90372GVS-ACE-100-SP
- Part No.:
- MLX90372GVS-ACE-100-SP
- Manufacturer:
- Melexis Technologies NV
- Category:
- Angle, Linear Position Measuring
- Package:
- 4-SIP Module
- Datasheet:
-
MLX90372GVS-ACE-100-SP.pdf
- Description:
- SENSOR ROTARY 360DEG PC PIN
- Quantity:
- Payment:
- Shipping:
Inventory:4,028
Please send an inquiry. Send us your inquiry, and we will respond immediately.
Product details
Overview
MLX90372GVS-ACE-100-SP from Melexis is a monolithic Triaxis® Hall-based magnetic position processor IC for absolute rotary position sensing in stray-field-immune configurations. It delivers SENT output compliant with SAE J2716 APR2016, operates from -40°C to +160°C, draws 9.0–12.6 mA supply current, and uses a PCB-less DMP-4 package with Pinout-A. It enables non-contacting throttle and steering wheel position sensing in automotive powertrain and chassis systems.
For engineers reviewing the MLX90372GVS-ACE-100-SP datasheet, pinout, applications, or equivalent options, key selection criteria include its angular stray-field immunity (-100 option code), SENT 3µs timing mode, DMP-4 STD1 1.27 trim & form configuration, and AEC-Q100 qualification for automotive use.
Technical Context
The MLX90372GVS-ACE-100-SP implements a Triaxis® Hall front end sensitive to Bx, By, and Bz magnetic field components, enabling robust absolute angle decoding without mechanical wear. Its on-chip DSP performs real-time signal conditioning, including programmable piecewise linear (PWL) transfer characteristics with up to 32 points and configurable filtering.
It supports SENT output with Secure Sensor format encoding (48-bit ID optional), error codes, and user-defined values; PWM output is selectable via programming. The device integrates dual watchdogs (IWD/AWD), undervoltage/overvoltage detection, and PTC protection - all aligned with ISO 26262 ASIL-C safety requirements as a Safety Element out of Context.
Key Specifications
| Parameter | Value and Actual Design Meaning |
|---|---|
| Operating Temp | -40°C to +160°C - qualified for under-hood automotive environments including engine control and transmission modules. |
| Supply Voltage | 4.5 V to 5.5 V (regulated mode) - compatible with standard 5 V automotive ECUs; includes overvoltage lockout at 7.7 V. |
| Supply Current | 9.0–12.6 mA - optimized for low-power rotary sensing in battery-constrained or thermally constrained applications. |
| Output Protocol | SENT (SAE J2716 APR2016) - provides high-resolution, noise-immune serial communication with embedded diagnostics and CRC. |
| Magnetic Mode | Rotary Stray-field Immune (-100 code) - rejects orthogonal interference fields up to ±1 T, enabling reliable operation near motors or solenoids. |
| Accuracy | ±0.3° typical angular error - specified for full 360° range in stray-field immune mode, supporting precision throttle and pedal control. |
| Package | DMP-4 (Pinout-A) - PCB-less dual-mold package with 4 terminals (VSS/VDD/OUT/VSS), reducing system cost and footprint. |
Pinout & Package
DMP-4 package (PCB-less dual mold) with Pinout-A: compact 4-terminal surface-mount configuration designed for direct integration into molded housings or sensor assemblies. No PCB required; terminals are formed for solder or press-fit mounting.
| Pin/Terminal | Circuit Role | Design Meaning |
|---|---|---|
| 1 | VSS | Analog/digital ground reference; must be connected to system ground for stable bias and EMC performance. |
| 2 | VDD | Main supply input (4.5–5.5 V); internal regulator generates 3.3 V analog rail (VDEC). |
| 3 | OUT | SENT/PWM output driver; push-pull capable; supports open-drain configuration with external pull-up. |
| 4 | VSS | Second ground terminal - improves thermal dissipation and reduces ground loop impedance in high-noise environments. |
Key Features
| Feature | Design Value |
|---|---|
| Triaxis® Hall Sensing | Simultaneous measurement of Bx, By, Bz enables true 3D magnetic field decoding - eliminates need for external concentrators or complex magnet geometries. |
| Stray-Field Immunity | Validated against ±1 T orthogonal interference - allows placement near high-current actuators without shielding or recalibration. |
| Programmable PWL Transfer | Up to 32-point piecewise linear calibration - supports custom mechanical linkage compensation and non-linear actuator response. |
| SENT Secure Sensor Format | Embedded CRC, status flags, and 48-bit ID - enables traceability, fault isolation, and secure ECU-level diagnostics in ASIL-B/C systems. |
| AEC-Q100 Grade 0 | Qualified per AEC-Q100 Rev G - validated for automotive life cycles including temperature cycling, humidity, and mechanical shock. |
Applications
| Throttle Position Sensing | Pedal Position Sensing |
|---|---|
Use Scenario: Monitoring accelerator pedal angle in gasoline/diesel powertrains for precise air-fuel ratio and torque control. IC Role / Device Role / Timing Role: Absolute rotary position processor delivering SENT frames every 960 µs (two-angle synchronous mode) with <20 ms watchdog timeout. Use Value: ±0.3° accuracy and stray-field immunity ensure consistent throttle mapping despite proximity to starter motor EMI. | Use Scenario: Detecting brake or accelerator pedal displacement in electronic braking and drive-by-wire systems. IC Role / Device Role / Timing Role: Linear-to-rotary position transducer using integrated IMC; outputs SENT with diagnostic status flags per frame. Use Value: DMP-4 package enables direct integration into pedal assembly housing - no PCB, no connectors, reduced BOM cost. |
| Steering Wheel Angle Sensing | Ride Height Control |
Use Scenario: Measuring absolute steering angle for EPS assist, lane-keeping, and stability control algorithms. IC Role / Device Role / Timing Role: High-reliability rotary sensor with dual watchdogs and ASIL-C safety mechanisms; SENT output synchronized to vehicle CAN bus timing. Use Value: ISO 26262 ASIL-C compliance as SEooC allows reuse across multiple safety-critical domains without requalification. | Use Scenario: Monitoring suspension travel in adaptive damping or air ride leveling systems. IC Role / Device Role / Timing Role: Absolute linear position sensor using off-axis magnet configuration; SENT output includes temperature-compensated raw angle data. Use Value: Programmable transfer characteristic compensates for nonlinear spring rate and lever geometry - improves height control resolution by >3× vs fixed-gain sensors. |
Equivalent & Alternatives
The following parts are listed as comparable options for similar magnetic position sensing applications.
| Alternative Part | Technical Difference | Application Difference | Selection Advice |
|---|---|---|---|
| MLX90371GVS-ABF-100-SP | Legacy Triaxis® device; single-die architecture; no ASIL-C support; SENT only (no PWM option); lower accuracy (±0.5°) | Limited to non-safety-critical linear/rotary sensing; lacks diagnostic coverage for ASIL-B systems | Select only for cost-sensitive legacy designs where functional safety certification is not required. |
| AMS AS5055A-BQFT | 360° contactless angle sensor; SPI/I²C interface; no SENT output; ±0.15° typical accuracy; requires external MCU for diagnostics | Requires host processor for protocol translation and safety monitoring; unsuitable for direct ECU connection in SENT-only architectures | Prefer when SPI interface and highest angular resolution are prioritized over automotive serial bus compatibility and integrated safety features. |
Compared with MLX90371GVS-ABF-100-SP and AMS AS5055A-BQFT, the MLX90372GVS-ACE-100-SP uniquely combines SENT compliance, ASIL-C readiness, stray-field immunity, and DMP-4 integration - making it the only drop-in solution for new AEC-Q100-compliant throttle and pedal modules requiring zero-PCB design.
Availability
MLX90372GVS-ACE-100-SP is available at Aetrix Electronics and suitable for automotive powertrain control, chassis position feedback, and industrial motion sensing requiring stable component supply across extended temperature ranges and long production lifecycles.
Supply support for MLX90372GVS-ACE-100-SP includes scheduled delivery planning, volume procurement assistance, BOM continuity management, traceable sourcing, and lifecycle availability coordination for OEM customers, industrial embedded developers, connected-device designers, and electronics production programs.
Manufacturer
Melexis is a Belgian semiconductor company specializing in intelligent sensor solutions for automotive and industrial markets, with core expertise in magnetic sensing, infrared thermometry, and automotive ASICs.
The MLX90372 belongs to Melexis' Triaxis® position processor product line, engineered specifically for high-accuracy, stray-field-immune absolute angle measurement in harsh automotive environments - targeting throttle, pedal, steering, and suspension applications.
FAQ
What is the operating temperature range of the MLX90372GVS-ACE-100-SP?
The MLX90372GVS-ACE-100-SP is rated for continuous operation from -40°C to +160°C, meeting AEC-Q100 Grade 0 requirements. This range covers under-hood automotive locations such as throttle bodies, transmission shifters, and suspension control arms where ambient temperatures exceed 125°C.
Does the MLX90372GVS-ACE-100-SP support both SENT and PWM output modes?
Yes, the MLX90372GVS-ACE-100-SP supports both SENT (SAE J2716 APR2016) and PWM output protocols, but only one can be active at a time. SENT is factory-default; PWM mode is enabled via end-user programming using Melexis' PTM software and compatible programming hardware.
What does the "-100" in MLX90372GVS-ACE-100-SP signify?
The "-100" suffix denotes the Rotary Stray-field Immune – Low Field Variant configuration. It specifies optimized magnetic sensitivity and internal compensation for applications requiring immunity to orthogonal stray fields up to ±1 T, such as throttle position sensing near starter motors or alternators.
Is the DMP-4 package of the MLX90372GVS-ACE-100-SP lead-free and RoHS-compliant?
Yes, the DMP-4 package used in the MLX90372GVS-ACE-100-SP is RoHS-compliant and lead-free, as confirmed in the official Melexis datasheet revision 8 (March 2019). It meets JEDEC J-STD-020 moisture sensitivity level MSL3 and supports standard reflow profiles.
Can the MLX90372GVS-ACE-100-SP be programmed in-system after soldering?
Yes, the MLX90372GVS-ACE-100-SP supports in-system programming via its Input pin (Pin 4 in DMP-4 Pinout-B) or through dedicated test pins in SOIC-8/TSSOP-16 packages. Programming requires Melexis PTM software, a compatible programmer (e.g., EVK-PTM), and correct voltage sequencing per section 12 of the datasheet.
MLX90372GVS-ACE-100-SP Specifications
- Product attributes
- Attribute value
- Manufacturer:
- Melexis Technologies NV
- Package/Case:
- 4-SIP Module
- Series:
- Triaxis®
- Packaging:
- Tube
- Product Status:
- Active
- Programmable:
- -
- For Measuring:
- Linear, Rotary Position
- Technology:
- Hall Effect
- Rotation Angle - Electrical, Mechanical:
- 0° ~ 360°, Continuous
- Linear Range:
- -
- Output:
- PWM, SENT
- Output Signal:
- Programmable
- Actuator Type:
- External Magnet, Not Included
- Linearity:
- ±1°
- Resistance:
- -
- Resistance Tolerance:
- -
- Voltage - Supply:
- 4.5V ~ 5.5V
- Mounting Type:
- Through Hole
- Termination Style:
- PC Pin
- Operating Temperature:
- -40°C ~ 160°C
- Grade:
- -
- Qualification:
- -
- Supplier Device Package:
- 4-DMP
MLX90372GVS-ACE-100-SP FAQ
1.How can I place an order for MLX90372GVS-ACE-100-SP through Aetrix?
Please submit a Request for Quotation (RFQ) for MLX90372GVS-ACE-100-SP on Aetrix. Our sales agent will provide a competitive quotation and guide you through the order confirmation once you accept the terms.
2.Are the price and stock information for MLX90372GVS-ACE-100-SP reliable?
The price and inventory of MLX90372GVS-ACE-100-SP are updated periodically and may fluctuate due to market conditions. Stock and pricing data are typically refreshed every 24 hours. Quotation validity for MLX90372GVS-ACE-100-SP is usually 5 days.
3.What payment methods are accepted for MLX90372GVS-ACE-100-SP?
We accept Wire Transfer, PayPal, Credit Card, Western Union, MoneyGram, and Escrow for MLX90372GVS-ACE-100-SP transactions.
Note: Certain payment methods may incur a processing fee.
4.How is shipping managed for MLX90372GVS-ACE-100-SP?
MLX90372GVS-ACE-100-SP orders can be shipped via leading logistics carriers, including DHL, UPS, FedEx, TNT, or Registered Mail.
Once your MLX90372GVS-ACE-100-SP order is processed, you will receive an email with the shipment details and tracking number.
Note: Tracking information may take up to 24 hours to appear. Express delivery typically takes 3–5 business days.
5.How can I obtain technical support or documentation for MLX90372GVS-ACE-100-SP?
For technical support, including MLX90372GVS-ACE-100-SP datasheets, pinout diagrams, or application guidance, please contact our engineering support team. They can provide detailed documentation and assistance for your MLX90372GVS-ACE-100-SP requirements.
6.How does Aetrix verify that MLX90372GVS-ACE-100-SP is sourced from the original manufacturer or authorized distributors?
All MLX90372GVS-ACE-100-SP products on Aetrix are procured from qualified distributors and authorized channels. Our dedicated quality assurance team conducts strict verification, including traceability checks and, if necessary, third-party testing. This ensures that MLX90372GVS-ACE-100-SP meets industry standards.
7.What is the process for return or replacement of MLX90372GVS-ACE-100-SP?
All MLX90372GVS-ACE-100-SP units undergo pre-shipment inspection (PSI). If there is an issue with MLX90372GVS-ACE-100-SP, returns or replacements are accepted under the following conditions:
1.Quantity discrepancies, incorrect items, or visible external defects (such as breakage or corrosion), acknowledged by Aetrix.
2.The issue is reported within 90 days of delivery.
3.The MLX90372GVS-ACE-100-SP part is unused and in its original packaging.
Return procedure for MLX90372GVS-ACE-100-SP:
1.Submit a request within 90 days.
2.Obtain a Return Material Authorization (RMA) from Aetrix.
