FETs, MOSFETs
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PJD60R620E_L2_00001600V N-CHANNEL SUPER JUNCTION MO |
4,692 | 0.00 |
|
Datasheet |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Not For New Designs | N-Channel | MOSFET (Metal Oxide) | 600 V | 1.2A (Ta), 7A (Tc) | 10V | 620mOhm @ 2.4A, 10V | 4V @ 250µA | 21 nC @ 10 V | ±20V | 457 pF @ 25 V | - | 2W (Ta), 78W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-252AA |
|
AOSP62530N |
3,990 | 0.00 |
|
Datasheet |
AlphaSGT™ | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 150 V | 5A (Ta) | 4.5V, 10V | 63mOhm @ 5A, 10V | 2.7V @ 250µA | 20 nC @ 10 V | ±20V | 675 pF @ 75 V | - | 3.1W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
SPD30N06S2-15MOSFET N-CH 55V 30A TO252-3 |
3,875 | 0.00 |
|
Datasheet |
OptiMOS™ | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 55 V | 30A (Tc) | 10V | 14.7mOhm @ 30A, 10V | 4V @ 80µA | 52 nC @ 10 V | ±20V | 2070 pF @ 25 V | - | 136W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | PG-TO252-3-11 |
|
ZDS020N60TBMOSFET N-CH 600V 630MA 8SOP |
5,408 | 0.00 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 630mA (Tc) | 10V | 5Ohm @ 500mA, 10V | 4V @ 1mA | 20 nC @ 10 V | ±30V | 310 pF @ 10 V | - | 2W (Tc) | 150°C (TJ) | - | - | Surface Mount | 8-SOP |
|
|
RDD020N50TLMOSFET N-CH 500V 2A CPT3 |
5,413 | 0.00 |
|
- |
* | - | Tape & Reel (TR) | Last Time Buy | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
BSS123-7MOSFET N-CH 100V 170MA SOT23-3 |
8,842 | 0.00 |
|
Datasheet |
- | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Discontinued at Digi-Key | N-Channel | MOSFET (Metal Oxide) | 100 V | 170mA (Ta) | 10V | 6Ohm @ 170mA, 10V | 2V @ 1mA | - | ±20V | 60 pF @ 25 V | - | 300mW (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-23-3 |
|
BSS123W-7MOSFET N-CH 100V 170MA SOT323 |
9,974 | 0.00 |
|
Datasheet |
- | SC-70, SOT-323 | Tape & Reel (TR) | Discontinued at Digi-Key | N-Channel | MOSFET (Metal Oxide) | 100 V | 170mA (Ta) | 4.5V, 10V | 6Ohm @ 170mA, 10V | 2V @ 1mA | - | ±20V | 60 pF @ 25 V | - | 200mW (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-323 |
|
FDG315NMOSFET N-CH 30V 2A SC88 |
5,341 | 0.00 |
|
Datasheet |
PowerTrench® | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 2A (Ta) | 4.5V, 10V | 120mOhm @ 2A, 10V | 3V @ 250µA | 4 nC @ 5 V | ±20V | 220 pF @ 15 V | - | 750mW (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SC-88 (SC-70-6) |
|
SI1012R-T1-E3MOSFET N-CH 20V 500MA SC75A |
2,786 | 0.00 |
|
Datasheet |
TrenchFET® | SC-75, SOT-416 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 20 V | 500mA (Ta) | 1.8V, 4.5V | 700mOhm @ 600mA, 4.5V | 900mV @ 250µA | 0.75 nC @ 4.5 V | ±6V | - | - | 150mW (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SC-75A |
|
SI1012X-T1-E3MOSFET N-CH 20V 500MA SC89-3 |
3,906 | 0.00 |
|
Datasheet |
TrenchFET® | SC-89, SOT-490 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 20 V | 500mA (Ta) | 1.8V, 4.5V | 700mOhm @ 600mA, 4.5V | 900mV @ 250µA | 0.75 nC @ 4.5 V | ±6V | - | - | 250mW (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SC-89-3 |
|
|
SI1013R-T1-E3MOSFET P-CH 20V 350MA SC75A |
9,174 | 0.00 |
|
Datasheet |
TrenchFET® | SC-75, SOT-416 | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 20 V | 350mA (Ta) | 1.8V, 4.5V | 1.2Ohm @ 350mA, 4.5V | 450mV @ 250µA (Min) | 1.5 nC @ 4.5 V | ±6V | - | - | 150mW (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SC-75A |
|

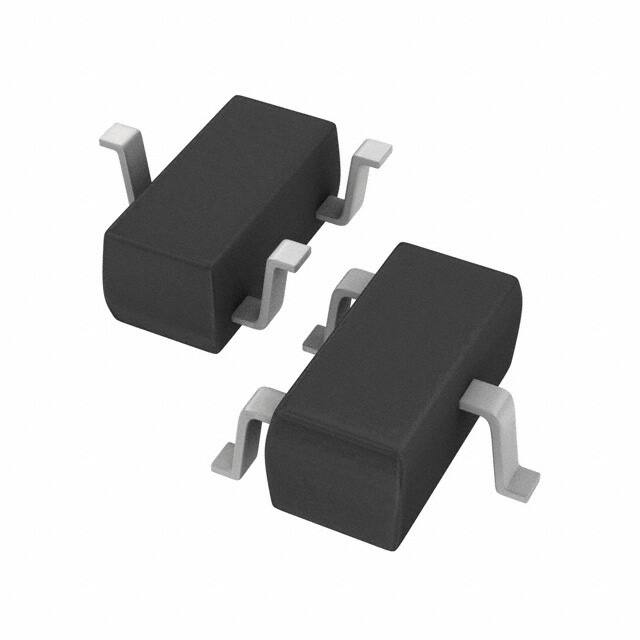

SI1032X-T1-E3MOSFET N-CH 20V 200MA SC89-3 |
8,151 | 0.00 |
|
Datasheet |
TrenchFET® | SC-89, SOT-490 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 20 V | 200mA (Ta) | 1.5V, 4.5V | 5Ohm @ 200mA, 4.5V | 1.2V @ 250µA | 0.75 nC @ 4.5 V | ±6V | - | - | 300mW (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SC-89-3 |
|
SI3451DV-T1-E3MOSFET P-CH 20V 2.8A 6TSOP |
3,236 | 0.00 |
|
- |
TrenchFET® | SOT-23-6 Thin, TSOT-23-6 | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 20 V | 2.8A (Tc) | 2.5V, 4.5V | 115mOhm @ 2.6A, 4.5V | 1.5V @ 250µA | 5.1 nC @ 5 V | ±12V | 250 pF @ 10 V | - | 1.25W (Ta), 2.1W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 6-TSOP |
;;2.jpg)
|
STD27N3LH5MOSFET N-CH 30V 27A DPAK |
5,725 | 0.00 |
|
Datasheet |
STripFET™ V | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 27A (Tc) | 4.5V, 10V | 19mOhm @ 13.5A, 10V | 1V @ 250µA | 4.6 nC @ 5 V | ±22V | 475 pF @ 25 V | - | 30W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | DPAK |
|
|
IRLML6401GTRPBFMOSFET P-CH 12V 4.3A SOT-23-3 |
8,916 | 0.00 |
|
Datasheet |
HEXFET® | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 12 V | 4.3A (Ta) | 1.8V, 4.5V | 50mOhm @ 4.3A, 4.5V | 950mV @ 250µA | 15 nC @ 5 V | ±8V | 830 pF @ 10 V | - | 1.3W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | Micro3™/SOT-23 |
|
IRLML6402GTRPBFMOSFET P-CH 20V 3.7A SOT23 |
9,409 | 0.00 |
|
Datasheet |
HEXFET® | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 20 V | 3.7A (Ta) | 2.5V, 4.5V | 65mOhm @ 3.7A, 4.5V | 1.2V @ 250µA | 12 nC @ 5 V | ±12V | 633 pF @ 10 V | - | 1.3W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | Micro3™/SOT-23 |
|
SIS436DN-T1-GE3MOSFET N-CH 25V 16A PPAK 1212-8 |
2,294 | 0.00 |
|
Datasheet |
TrenchFET® | PowerPAK® 1212-8 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 25 V | 16A (Tc) | 4.5V, 10V | 10.5mOhm @ 10A, 10V | 2.3V @ 250µA | 22 nC @ 10 V | ±20V | 855 pF @ 10 V | - | 3.5W (Ta), 27.7W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PowerPAK® 1212-8 |
|
DMS3016SSSA-13MOSFET N-CH 30V 9.8A 8SO |
5,245 | 0.00 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 9.8A (Ta) | 4.5V, 10V | 13mOhm @ 9.8A, 10V | 2.3V @ 250µA | 43 nC @ 10 V | ±12V | 1849 pF @ 15 V | Schottky Diode (Body) | 1.54W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SO |
|
AOH3254MOSFET N-CH 150V 5A SOT223-4 |
9,346 | 0.00 |
|
Datasheet |
- | TO-261-4, TO-261AA | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 150 V | 5A (Ta) | 4.5V, 10V | 63mOhm @ 5A, 10V | 2.7V @ 250µA | 20 nC @ 10 V | ±20V | 675 pF @ 75 V | - | 4.1W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-223-4 |
|
PMPB12R5EPXPMPB12R5EP - 30 V, P-CHANNEL TRE |
4,992 | 0.00 |
|
Datasheet |
TrenchMOS™ | 6-UDFN Exposed Pad | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 30 V | 8.8A (Ta) | 4.5V, 10V | 15mOhm @ 8.8A, 10V | 2V @ 250µA | 44 nC @ 10 V | ±20V | 1392 pF @ 15 V | - | 1.9W (Ta), 12.5W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DFN2020M-6 |
