FETs, MOSFETs
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FCP13N60NMOSFET N-CH 600V 13A TO220-3 |
3,923 | 0.00 |
|
Datasheet |
SupreMOS™ | TO-220-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 13A (Tc) | 10V | 258mOhm @ 6.5A, 10V | 4V @ 250µA | 39.5 nC @ 10 V | ±30V | 1765 pF @ 100 V | - | 116W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220-3 |
|
FS50KM-2#E52DISCRETE / POWER MOSFET |
733 | 0.00 |
|
Datasheet |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
FS50KM-06-AX#E51DISCRETE / POWER MOSFET |
522 | 0.00 |
|
Datasheet |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
GSGP0R703MOSFET, N-CH, SINGLE, 282.00A, 3 |
4,990 | 0.00 |
|
Datasheet |
- | 8-PowerTDFN | Cut Tape (CT) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 282A (Tc) | 10V | 0.7mOhm @ 30A, 10V | 2.3V @ 250µA | 122 nC @ 10 V | ±20V | 9045 pF @ 15 V | - | 139W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-PPAK (5.1x5.86) |
|
FDMS2506SDCMOSFET N-CH 25V 39A/49A DLCOOL56 |
3,205 | 0.00 |
|
Datasheet |
Dual Cool™, PowerTrench®, SyncFET™ | 8-PowerTDFN | Bulk | Obsolete | N-Channel | MOSFET (Metal Oxide) | 25 V | 39A (Ta), 49A (Tc) | 4.5V, 10V | 1.45mOhm @ 30A, 10V | 3V @ 1mA | 93 nC @ 10 V | ±20V | 5945 pF @ 13 V | - | 3.3W (Ta), 89W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-PQFN (5x6) |
|

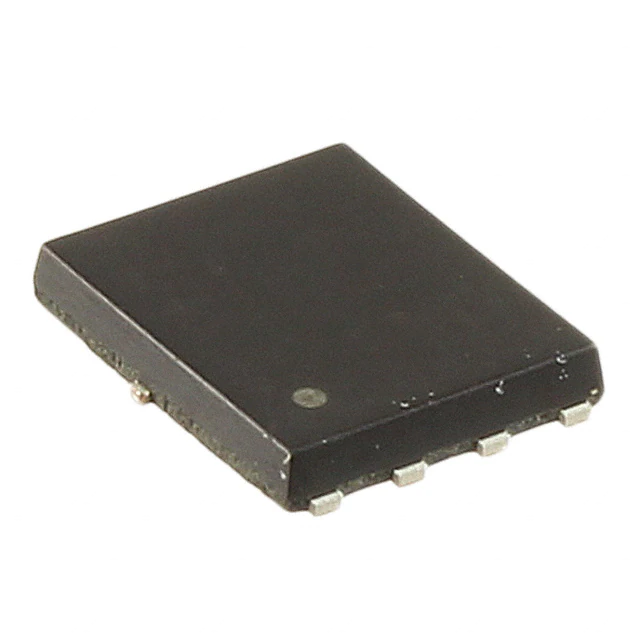

SK8603140LMOSFET N-CH 30V 25A 8HSO |
2,930 | 0.00 |
|
Datasheet |
- | 8-PowerSMD, Flat Leads | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 25A (Ta), 103A (Tc) | 4.5V, 10V | 2.2mOhm @ 23A, 10V | 3V @ 5.85mA | 37 nC @ 4.5 V | ±20V | 6860 pF @ 10 V | - | 2.5W (Ta), 40W (Tc) | 150°C (TJ) | - | - | Surface Mount | HSO8-F4-B |
|
|
IRFAUIRF540ZAUTOMOTIVE HEXFET N-CHANNEL POWE |
1,994 | 0.00 |
|
Datasheet |
HEXFET® | TO-220-3 | Bulk | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 36A (Tc) | 10V | 26.5mOhm @ 22A, 10V | 4V @ 250µA | 63 nC @ 10 V | ±20V | 1770 pF @ 25 V | - | 92W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Through Hole | PG-TO220-3-904 |
|
RJK03C0DPA-00#J53MOSFET N-CH 30V 70A 8WPAK |
372,000 | 0.00 |
|
Datasheet |
- | 8-PowerWDFN | Bulk | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 70A (Ta) | - | 2mOhm @ 35A, 10V | 2.5V @ 1mA | 66 nC @ 4.5 V | - | 11000 pF @ 10 V | - | 65W (Tc) | - | - | - | Surface Mount | 8-WPAK |
|
|
IPP100N04S2L03AKSA2MOSFET N-CH 40V 100A TO220-3 |
9,264 | 0.00 |
|
Datasheet |
OptiMOS™ | TO-220-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 40 V | 100A (Tc) | 4.5V, 10V | 3.3mOhm @ 80A, 10V | 2V @ 250µA | 230 nC @ 10 V | ±20V | 6000 pF @ 25 V | - | 300W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | PG-TO220-3-1 |
|

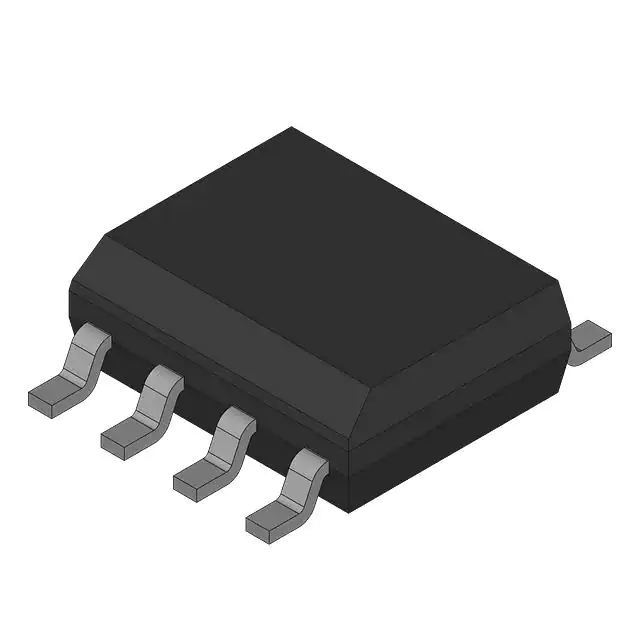

HAT2172N-EL-EMOSFET N-CH 40V 30A 8LFPAK |
27,200 | 0.00 |
|
Datasheet |
- | 8-PowerSOIC (0.154", 3.90mm Width) | Bulk | Obsolete | N-Channel | MOSFET (Metal Oxide) | 40 V | 30A (Ta) | - | 7.8mOhm @ 15A, 10V | - | 32 nC @ 10 V | - | 2420 pF @ 10 V | - | 20W (Tc) | 150°C (TJ) | - | - | Surface Mount | 8-LFPAK-iV |
|
|
FS30KMJ-3#B00N-CHANNEL , 150V, 30A |
24,136 | 0.00 |
|
- |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
2SK3221-AZN-CHANNEL POWER MOSFET |
17,154 | 0.00 |
|
Datasheet |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
FS30KMJ-06F#B00N-CHANNEL POWER MOSFET |
15,624 | 0.00 |
|
- |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
FS30KM-3#B00N-CHANNEL , 150V, 30A |
15,128 | 0.00 |
|
- |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
2SK1286-AZN-CHANNEL POWER MOSFET |
14,033 | 0.00 |
|
Datasheet |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
UPA2715GR-E1-ATP-CHANNEL POWER MOSFET |
8,937 | 0.00 |
|
Datasheet |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
HUF76443P3MOSFET N-CH 60V 75A TO220-3 |
6,550 | 0.00 |
|
Datasheet |
UltraFET™ | TO-220-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 75A (Tc) | 4.5V, 10V | 8mOhm @ 75A, 10V | 3V @ 250µA | 129 nC @ 10 V | ±16V | 4115 pF @ 25 V | - | 260W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220-3 |
|
|
2SK3322(1)-ZK-E2-AZN-CHANNEL POWER MOSFET |
6,400 | 0.00 |
|
Datasheet |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
UPA2746UT1A-E2-AYN-CHANNEL POWER MOSFET |
6,000 | 0.00 |
|
Datasheet |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
TP2435N8-GMOSFET P-CH 350V 231MA TO243AA |
3,903 | 0.00 |
|
Datasheet |
- | TO-243AA | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 350 V | 231mA (Tj) | 3V, 10V | 15Ohm @ 500mA, 10V | 2.4V @ 1mA | - | ±20V | 200 pF @ 25 V | - | 1.6W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-243AA (SOT-89) |
