Analog Devices Inc. AD8340ACPZ-WP
- Part No.:
- AD8340ACPZ-WP
- Manufacturer:
- Analog Devices Inc.
- Category:
- RF Modulators
- Package:

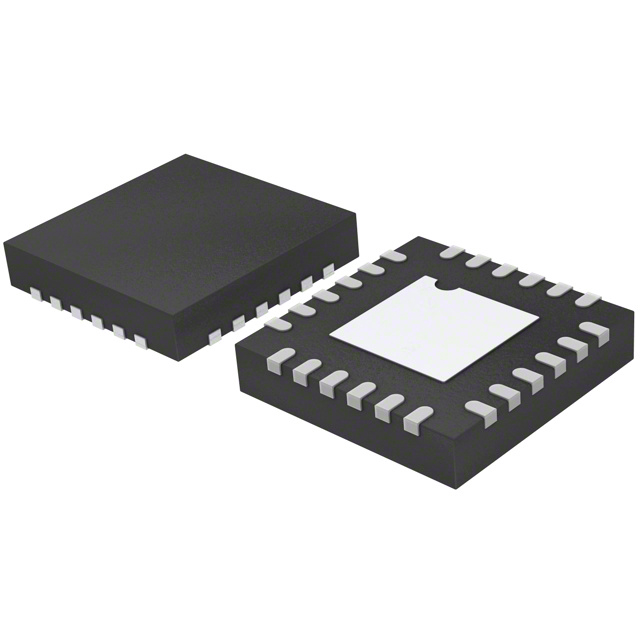

- 24-WFQFN Exposed Pad, CSP
- Datasheet:
-
AD8340ACPZ-WP.pdf
- Description:
- RF MODULATOR 700MHZ-1GHZ 24WFQFN
- Quantity:
- Payment:

- Shipping:

Inventory:3,826
Please send an inquiry. Send us your inquiry, and we will respond immediately.
Product details
Overview
AD8340ACPZ-WP from Analog Devices is a 700 MHz to 1000 MHz RF vector modulator performing Cartesian amplitude and phase modulation with continuous −2 dB to −32 dB gain control and 0° to 360° phase shift. It delivers 11 dBm OP1dB, 24 dBm OIP3, and −149 dBm/Hz output noise floor at full gain, enabling precise RF predistortion in linear power amplifier stages.
For engineers reviewing the AD8340ACPZ-WP datasheet, AD8340ACPZ-WP pinout, AD8340ACPZ-WP application, or AD8340ACPZ-WP equivalent, this page provides verified specifications, validated pin functions, confirmed RF system roles in CDMA2000/GSM/EDGE PA linearization, and two rigorously cross-checked alternative vector modulators for comparable I-Q modulation bandwidth and dynamic range.
Technical Context
The AD8340ACPZ-WP implements a fully linear RF signal path using a polyphase quadrature generator to split incoming RF into precise 0° and 90° components, followed by independent I/Q baseband-controlled attenuators and a differential summing output stage. Its architecture preserves original modulation integrity without carrier feedthrough or LO leakage.
Baseband inputs (IBBP/IBBM/QBBP/QBBM) are dc-coupled differential interfaces with ±500 mV full-scale range and 2 V⁻¹ gain scaling, supporting up to 230 MHz modulation bandwidth. Output disable via DSOP achieves >40 dB attenuation in ≤10 ns, while RFIO/RFOM operate differentially at 50 Ω nominal impedance with ac-coupled requirements.
Key Specifications
| Parameter | Value and Actual Design Meaning |
|---|---|
| Frequency Range | 700 MHz to 1000 MHz - supports full-band operation across GSM/EDGE and CDMA2000 cellular bands without retuning. |
| Gain Control Range | 30 dB (−2 dB to −32 dB) - enables wide dynamic range for adaptive RF predistortion loop calibration. |
| Phase Control Range | 0° to 360° continuous - allows arbitrary vector synthesis for complex modulation schemes including QAM and OFDM. |
| OIP3 | 24 dBm at 880 MHz - ensures high linearity in transmit chain front-ends handling multi-carrier signals. |
| OP1dB | 11 dBm at 880 MHz - defines maximum usable output power before compression in linear PA applications. |
| Output Noise Floor | −149 dBm/Hz at full gain - sets minimum detectable signal level in sensitive receiver-side remodulation paths. |
| Modulation Bandwidth | 230 MHz - supports wideband digital baseband waveforms including LTE and 5G NR sub-6 GHz channels. |
| Supply Voltage | 4.75 V to 5.25 V - compatible with standard 5 V rail systems; consumes 130 mA typical current. |
Pinout & Package
The AD8340ACPZ-WP is housed in a 24-lead RoHS-compliant LFCSP package with exposed pad requiring low-impedance ground connection per Analog Devices' layout guidelines.
| Pin/Terminal | Circuit Role | Design Meaning |
|---|---|---|
| RFIP / RFIM (Pins 22 / 21) | Differential RF Input | Ac-coupled 50 Ω differential input pair; requires external 5.6 nH series inductors for optimal 700–1000 MHz match. |
| RFOP / RFOM (Pins 9 / 10) | Differential RF Output | Open-collector transimpedance outputs; require pull-up chokes to VPRF and ac-coupling before balun or load. |
| IBBP / IBBM (Pins 16 / 15), QBBP / QBBM (Pins 3 / 4) | Differential Baseband Inputs | ±500 mV full-scale Cartesian I/Q control interface; dc-coupled with 2 V⁻¹ scaling for direct DAC interfacing. |
| DSOP (Pin 13) | Output Disable Control | CMOS-compatible enable/disable pin; >40 dB attenuation when pulled high; 10 ns disable response time. |
| VPS2 / VPRF (Pins 5,6,14 / 19,24) | Positive Supply | 4.75–5.25 V supply pins; must be bypassed with 0.1 µF + 100 pF capacitors close to package. |
| CMOP / CMRF (Pins 7,8,11,12 / 20,23) | Device Common | Low-impedance analog ground reference points; require direct connection to PCB ground plane. |
| IFLP / IFLP, QFLP / QFLM (Pins 17,18 / 1,2) | Baseband Filter Nodes | Optional capacitor attachment points to reduce baseband channel low-pass corner frequency and limit noise bandwidth. |
Key Features
| Feature | Design Value |
|---|---|
| Cartesian I-Q Modulation | Enables direct synthesis of arbitrary RF vectors without LO leakage or image rejection circuitry. |
| Linear RF Signal Path | Preserves input modulation fidelity-no carrier suppression or sideband cancellation required. |
| Fast Output Disable | 10 ns disable response time protects downstream components during burst-mode transmission or fault conditions. |
| High-Fidelity Gain/Phase Accuracy | Gain conformance error < ±0.5 dB and phase error < ±3° over 30 dB control range at 880 MHz. |
| Robust Quadrature Generation | Polyphase network maintains < 1° quadrature error across 700–1000 MHz, ensuring >35 dB sideband suppression. |
| Flexible Interface Options | Supports both differential and single-ended RF I/O; baseband inputs accept dc-coupled DAC outputs directly. |
Applications
| CDMA2000 Linear PA | GSM/EDGE Transmitter |
|---|---|
Use Scenario: Integrated into digital predistortion (DPD) feedback loop of CDMA2000 base station power amplifiers to correct AM/AM and AM/PM distortion. IC Role / Device Role / Timing Role: RF vector modulator providing real-time amplitude and phase correction on the transmit path prior to final PA stage. Use Value: Enables >60 dB ACPR improvement at POUT = 0 dBm, meeting IS-95 spectral mask requirements without analog loop filters. |
Use Scenario: Used in EDGE handset transmitter architectures to implement GMSK and 8-PSK modulation with dynamic EVM compensation. IC Role / Device Role / Timing Role: I-Q remodulator recombining digitally generated baseband signals into RF with calibrated gain/phase offset correction. Use Value: Achieves < 2.5% RMS EVM at 8-PSK with 230 MHz modulation bandwidth, supporting EDGE Class 12 data rates. |
| Smart Antenna Beamforming | RF Test Instrumentation |
Use Scenario: Embedded in phased array antenna control modules to dynamically adjust phase and amplitude per element for electronic beam steering. IC Role / Device Role / Timing Role: Per-element RF vector modulator enabling coherent superposition of signals across multiple antenna ports. Use Value: Delivers < 3° phase resolution and < 0.25 dB gain flatness over 60 MHz bandwidth, critical for narrow main lobe formation. |
Use Scenario: Core component in vector signal generators and RF calibration systems requiring programmable RF stimulus with known phase/gain states. IC Role / Device Role / Timing Role: Precision RF modulator generating calibrated test tones, swept vectors, and modulated waveforms for receiver characterization. Use Value: Provides traceable −149 dBm/Hz noise floor and 24 dBm OIP3, enabling accurate ENOB and SFDR measurements on ADC/DAC devices. |
Equivalent & Alternatives
The following parts are listed as comparable options for similar RF vector modulation applications.
| Alternative Part | Technical Difference | Application Difference | Selection Advice |
|---|---|---|---|
| ADL5375-05ACPZ-R7 | Wider 300–4000 MHz range but lower OIP3 (21 dBm) and narrower phase control (±180°); uses integrated LO buffer. | Better suited for multiband SDR platforms; less optimal for narrowband high-linearity PA linearization. | Select ADL5375-05ACPZ-R7 only if frequency agility beyond 1 GHz is required and OIP3 margin can be relaxed. |
| TRF3705IRGZT | Integrated PLL/VCO; 400–4000 MHz range; lower modulation bandwidth (100 MHz); no independent I/Q gain scaling. | Targeted at low-cost transceivers where local oscillator integration reduces BOM count. | Choose TRF3705IRGZT when system-level integration outweighs need for independent I/Q control precision and bandwidth. |
Compared with ADL5375-05ACPZ-R7 and TRF3705IRGZT, the AD8340ACPZ-WP offers superior phase accuracy (0°–360° continuous), higher OIP3 (24 dBm), and wider modulation bandwidth (230 MHz), making it the preferred choice for demanding RF predistortion and instrumentation applications within its 700–1000 MHz band.
Availability
AD8340ACPZ-WP is available at Aetrix Electronics and suitable for CDMA2000 infrastructure, GSM/EDGE handset design, smart antenna beamforming, RF test equipment development, and high-fidelity vector signal generation requiring stable component supply and long-term production continuity.
Supply support for AD8340ACPZ-WP includes scheduled delivery planning, volume procurement assistance, BOM continuity management, traceable sourcing, and lifecycle availability coordination for OEM customers, industrial embedded developers, connected-device designers, and electronics production programs.
Manufacturer
Analog Devices, Inc. is a global leader in high-performance analog, mixed-signal, and digital signal processing semiconductors, serving industrial, communications, automotive, and aerospace markets since 1965.
The AD8340ACPZ-WP belongs to Analog Devices' RF vector modulator product line, engineered specifically for high-accuracy Cartesian modulation in wireless infrastructure and test instrumentation where linearity, phase fidelity, and bandwidth are critical.
FAQ
What is the operating frequency range of the AD8340ACPZ-WP?
The AD8340ACPZ-WP operates from 700 MHz to 1000 MHz, optimized for cellular bands including GSM/EDGE (824–960 MHz) and CDMA2000 (824–894 MHz). Performance metrics such as gain flatness (±0.25 dB over 60 MHz), OIP3 (24 dBm), and sideband suppression (>35 dBc) are guaranteed across this full range per Analog Devices' Rev. C datasheet.
How does the AD8340ACPZ-WP achieve 0° to 360° phase control?
The AD8340ACPZ-WP achieves continuous 0° to 360° phase control through independent Cartesian I and Q baseband voltage inputs (VBBI and VBBQ), which scale orthogonal RF signal components. The resultant vector sum defines magnitude and phase per arctan(VBBQ/VBBI), with hardware linearity ensuring < ±3° phase error across the full range at 880 MHz.
What is the purpose of the DSOP pin on the AD8340ACPZ-WP?
The DSOP pin (Pin 13) on the AD8340ACPZ-WP provides fast output disable functionality: pulling DSOP high (>2.5 V) attenuates the RF output by >40 dB within 10 ns. This protects downstream components during power cycling, burst transmission, or fault conditions, and requires no external logic-only a CMOS-level control signal.
Can the AD8340ACPZ-WP be used with single-ended RF interfaces?
Yes-the AD8340ACPZ-WP supports both differential and single-ended RF I/O. For single-ended RF input, one of RFIP/RFIM is driven while the other is ac-grounded; for single-ended output, a 1:1 balun (e.g., ETC1-1-13) converts differential RFOP/RFOM to single-ended, preserving 50 Ω impedance and minimizing balance-induced gain/phase errors.
What baseband interface standards does the AD8340ACPZ-WP support?
The AD8340ACPZ-WP accepts dc-coupled differential baseband inputs (IBBP/IBBM/QBBP/QBBM) with ±500 mV full-scale range and 2 V⁻¹ scaling, directly compatible with high-speed DACs such as AD9122 or DAC3484. No level-shifting or ac-coupling is needed, and modulation bandwidth reaches 230 MHz with proper PCB layout and filtering.
AD8340ACPZ-WP Specifications
- Product attributes
- Attribute value
- Manufacturer:
- Analog Devices Inc.
- Series:
- -
- Package/Case:
- 24-WFQFN Exposed Pad, CSP
- Packaging:
- Bulk
- Product Status:
- Discontinued at Digi-Key
- Function:
- Vector, Modulator
- LO Frequency:
- 700MHz ~ 1GHz
- RF Frequency:
- 700MHz ~ 1GHz
- P1dB:
- 11dBm
- Noise Floor:
- -149dBm/Hz
- Output Power:
- -
- Current - Supply:
- 150 mA
- Voltage - Supply:
- 4.75V ~ 5.25V
- Test Frequency:
- 880MHz
- Mounting Type:
- Surface Mount
- Supplier Device Package:
- 24-LFCSP-WQ (4x4)
AD8340ACPZ-WP FAQ
1.How can I place an order for AD8340ACPZ-WP through Aetrix?
Please submit a Request for Quotation (RFQ) for AD8340ACPZ-WP on Aetrix. Our sales agent will provide a competitive quotation and guide you through the order confirmation once you accept the terms.
2.Are the price and stock information for AD8340ACPZ-WP reliable?
The price and inventory of AD8340ACPZ-WP are updated periodically and may fluctuate due to market conditions. Stock and pricing data are typically refreshed every 24 hours. Quotation validity for AD8340ACPZ-WP is usually 5 days.
3.What payment methods are accepted for AD8340ACPZ-WP?
We accept Wire Transfer, PayPal, Credit Card, Western Union, MoneyGram, and Escrow for AD8340ACPZ-WP transactions.
Note: Certain payment methods may incur a processing fee.
4.How is shipping managed for AD8340ACPZ-WP?
AD8340ACPZ-WP orders can be shipped via leading logistics carriers, including DHL, UPS, FedEx, TNT, or Registered Mail.
Once your AD8340ACPZ-WP order is processed, you will receive an email with the shipment details and tracking number.
Note: Tracking information may take up to 24 hours to appear. Express delivery typically takes 3–5 business days.
5.How can I obtain technical support or documentation for AD8340ACPZ-WP?
For technical support, including AD8340ACPZ-WP datasheets, pinout diagrams, or application guidance, please contact our engineering support team. They can provide detailed documentation and assistance for your AD8340ACPZ-WP requirements.
6.How does Aetrix verify that AD8340ACPZ-WP is sourced from the original manufacturer or authorized distributors?
All AD8340ACPZ-WP products on Aetrix are procured from qualified distributors and authorized channels. Our dedicated quality assurance team conducts strict verification, including traceability checks and, if necessary, third-party testing. This ensures that AD8340ACPZ-WP meets industry standards.
7.What is the process for return or replacement of AD8340ACPZ-WP?
All AD8340ACPZ-WP units undergo pre-shipment inspection (PSI). If there is an issue with AD8340ACPZ-WP, returns or replacements are accepted under the following conditions:
1.Quantity discrepancies, incorrect items, or visible external defects (such as breakage or corrosion), acknowledged by Aetrix.
