NXP Semiconductors MMRF2010GNR1

Overview

MMRF2010GNR1 from NXP Semiconductors is a 2-stage RF LDMOS integrated power amplifier optimized for IFF transponder and secondary radar applications in the 1030–1090 MHz band. It delivers 250 W peak RF output power with 34.1 dB power gain and 61.0% second-stage drain efficiency at 1030 MHz under 128 μs, 10% duty cycle pulse conditions, operating at 52 Vdc with thermal sensing and quiescent current compensation.

For engineers reviewing the MMRF2010GNR1 datasheet, MMRF2010GNR1 pinout, MMRF2010GNR1 application, or MMRF2010GNR1 equivalent, this page provides verified wideband RF performance data, ruggedness validation (>20:1 load VSWR tolerance), thermal management specifications, and design-ready reference circuit implementation details for pulse radar systems.

Technical Context

The MMRF2010GNR1 integrates two LDMOS stages on a single die with on-chip input and interstage matching to 50 Ω, enabling single-ended operation without external input matching networks. Its gate bias architecture supports independent stage control via VGS1 and VGS2 terminals, with integrated thermal sense and quiescent current temperature compensation enabling stable operation across –55°C to +150°C case temperature.

Designed for high-peak-power pulse operation, it features ESD protection (HBM Class 2, MM Class A), low thermal resistance (0.15 °C/W junction-to-case for Stage 2), and validated ruggedness against severe load mismatches - surviving >20:1 VSWR at all phase angles with 3 dB overdrive at 52 Vdc without degradation.

Key Specifications

Pinout & Package

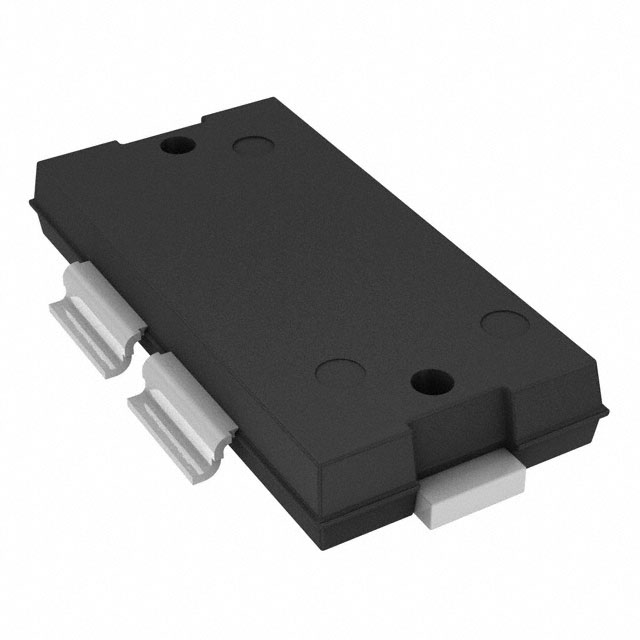

MMRF2010GNR1 uses the TO-270WBG-14 gull-wing plastic package with exposed backside source terminal. The 14-pin layout supports RF input (RFin), RF output (RFout/VDS2), dual gate bias (VGS1, VGS2), dual drain supplies (VDS1, VDD2), thermal sense, RFout sense, and multiple no-connect (N.C.) pins for mechanical stability and grounding flexibility.

Key Features

Applications

Equivalent & Alternatives

The following parts are listed as comparable options for similar RF power amplifier applications.

Compared with MMRF2010NR1 and MMRF2014GNR1, MMRF2010GNR1 provides the best combination of 250 W peak output, 61.9% efficiency, and 0.15 °C/W thermal resistance in an SMT-compatible gull-wing package - making it the preferred choice for new IFF and secondary radar designs targeting production scalability and thermal reliability.

Availability

MMRF2010GNR1 is available at Aetrix Electronics and suitable for IFF transponder systems, secondary radar ground stations, military identification friend/foe (IFF) equipment, and pulse radar test instrumentation requiring stable component supply and long-term obsolescence management.

Supply support for MMRF2010GNR1 includes scheduled delivery planning, volume procurement assistance, BOM continuity management, traceable sourcing, and lifecycle availability coordination for OEM customers, industrial embedded developers, connected-device designers, and electronics production programs.

Manufacturer

NXP Semiconductors is a global semiconductor leader specializing in secure connectivity solutions for automotive, industrial, and communications markets, with deep expertise in RF power technologies.

The MMRF2010GNR1 belongs to NXP's RF LDMOS Integrated Power Amplifier product line, engineered specifically for high-reliability, wideband pulse radar applications in defense, air traffic control, and avionics systems.

FAQ

What is the maximum operating junction temperature for MMRF2010GNR1?

The MMRF2010GNR1 has a specified operating junction temperature range of –55°C to +225°C. This wide range supports extreme environmental deployments such as high-altitude radar systems and cold-soak military operations. Thermal design must ensure that actual junction temperature remains within these limits under worst-case pulse duty cycles and ambient conditions, using the documented 0.15 °C/W junction-to-case thermal resistance for Stage 2.

Does MMRF2010GNR1 require external input matching networks?

No, MMRF2010GNR1 does not require external input matching networks. It features on-chip input matching to 50 Ω across the 1030–1090 MHz band, as confirmed in the reference circuit documentation and functional test data. This internal matching simplifies PCB layout and improves repeatability in production, eliminating sensitivity to trace parasitics in the RFin path.

How is thermal sensing implemented in MMRF2010GNR1?

MMRF2010GNR1 implements thermal sensing via Pin 5 (Thermal Sense), which provides an analog voltage proportional to case temperature. This signal interfaces directly with external thermal tracking circuits described in NXP Application Notes AN1977 and AN1987, enabling closed-loop quiescent current compensation to maintain IDQ1 = 80 mA and IDQ2 = 150 mA across temperature extremes without manual recalibration.

What is the load mismatch tolerance of MMRF2010GNR1?

The MMRF2010GNR1 demonstrates >20:1 VSWR tolerance at 1090 MHz under 2 ms, 20% duty cycle pulse conditions with 3 dB overdrive at 52 Vdc, with no device degradation observed. This ruggedness rating is validated per NXP's production test fixture methodology and allows direct antenna connection without isolators or circulators in most IFF and secondary radar configurations.

Can MMRF2010GNR1 operate at 50 Vdc instead of 52 Vdc?

Yes, MMRF2010GNR1 is fully characterized and qualified for operation at 50 Vdc, as shown in the Narrowband Performance table (Table 10) and Load Mismatch test data. At 50 Vdc, it delivers 250 W peak output with 32.1 dB gain and 61.4% second-stage efficiency at 1090 MHz - making it compatible with standard 50 V radar power supplies while retaining full specification compliance.
