NXP Semiconductors NTP53321G0JTTZ

Overview

NTP53321G0JTTZ from NXP Semiconductors is an NFC Forum Type 5 Tag-compliant I2C bridge IC with integrated AES mutual authentication, transparent I2C master channel, and energy harvesting capability. It operates at 13.56 MHz, provides 2048 bytes of user EEPROM and 256 bytes of SRAM, and enables zero-power sensor readout in batteryless systems-used in smart sensor commissioning, firmware download, and secure pairing.

For engineers reviewing the NTP53321G0JTTZ datasheet, NTP53321G0JTTZ pinout, NTP53321G0JTTZ application, or NTP53321G0JTTZ equivalent, this page delivers verified technical context, memory partitioning details, I2C master/slave interface behavior, energy harvesting output specs, and real-world use cases for NFC-enabled industrial and consumer devices.

Technical Context

The NTP53321G0JTTZ implements a dual-interface architecture: ISO/IEC 15693-compliant RF front-end for long-range (up to 60 cm) industrial reader communication and a configurable I2C interface supporting both slave (100/400 kHz) and transparent master modes. Its digital control unit arbitrates between NFC and I2C access to shared memory resources including 2048-byte EEPROM and 256-byte SRAM.

Security is enforced via three-tiered protection: 32-/64-bit password access, NFC Privacy mode, and optional 128-bit AES mutual authentication-exclusive to the NTP5332 variant. The device supports ECC-based reprogrammable originality signature verification and hard power-down (HPD) for ultra-low standby current (<0.25 µA).

Key Specifications

Pinout & Package

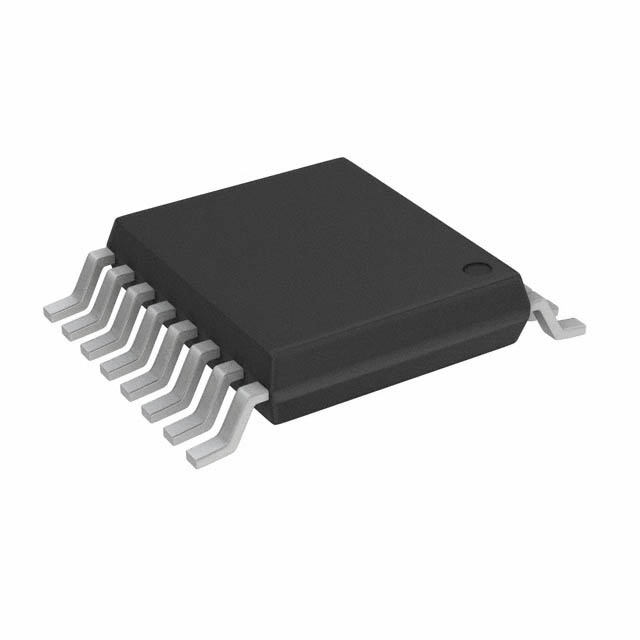

TSSOP16 package (SOT403-1), 5 mm × 4.4 mm × 1.1 mm body, 0.65 mm pitch, 16-lead plastic thin shrink small outline package.

Key Features

Applications

Equivalent & Alternatives

The following parts are listed as comparable options for similar NFC I2C bridge applications.

Compared with NTP53321G0JTTZ, the XQFN16 variant offers identical functionality in a smaller footprint but demands advanced assembly, while the SO8 version sacrifices VOUT and HPD-making it incompatible with energy-harvesting or secure lockdown use cases.

Availability

NTP53321G0JTTZ is available at Aetrix Electronics and suitable for smart sensor commissioning, secure NFC pairing, and energy-harvesting industrial monitoring requiring stable component supply across multi-year production cycles.

Supply support for NTP53321G0JTTZ includes scheduled delivery planning, volume procurement assistance, BOM continuity management, traceable sourcing, and lifecycle availability coordination for OEM customers, industrial embedded developers, connected-device designers, and electronics production programs.

Manufacturer

NXP Semiconductors is a global semiconductor leader specializing in secure connectivity solutions for automotive, industrial, and IoT applications, with over 30 years of NFC innovation.

The NTAG 5 family-including NTP53321G0JTTZ-is designed specifically for NFC-enabled sensor systems requiring batteryless operation, secure cloud onboarding, and robust interoperability with ISO/IEC 15693 readers and NFC smartphones.

FAQ

What is the primary function of the NTP53321G0JTTZ in a system?

The NTP53321G0JTTZ serves as an NFC Forum-compliant I2C bridge IC that enables contactless communication between NFC devices (e.g., smartphones) and I2C peripherals such as sensors or memory. It supports transparent I2C master mode for zero-power sensor readout, AES mutual authentication for secure data exchange, and energy harvesting to power external components-making NTP53321G0JTTZ ideal for batteryless, field-programmable sensor nodes.

Does the NTP53321G0JTTZ support both I2C master and slave modes?

Yes, the NTP53321G0JTTZ supports configurable I2C operation: standard slave mode at 100 kHz or 400 kHz, and transparent master mode for direct sensor interrogation without a host MCU. This dual capability is confirmed in the official datasheet Section 2 and block diagram (Figure 2), where the "TRANSPARENT I2C MASTER CHANNEL" is explicitly labeled for NTP5332 variants like NTP53321G0JTTZ.

What memory resources does the NTP53321G0JTTZ provide, and how are they allocated?

The NTP53321G0JTTZ provides 2048 bytes of user EEPROM, 256 bytes of volatile SRAM, and dedicated configuration memory. EEPROM is organized in 4-byte blocks and supports three independently protected areas; SRAM enables fast pass-through data transfer (e.g., PHDC); configuration memory stores AES keys, passwords, and device settings. All memory mapping is documented in Sections 8.1.2–8.1.3 of the datasheet.

Can the NTP53321G0JTTZ operate without an external power supply?

Yes, the NTP53321G0JTTZ can operate entirely from energy harvested from the NFC reader's RF field. It supports energy harvesting with a configurable VOUT delivering up to 30 mW, enabling it to power external sensors or logic. In this mode, the device draws no current from VCC-confirmed by the "Energy harvesting" section (p.2) and VOUT pin description (Table 4, p.10) in the datasheet.

Is AES mutual authentication supported on the NTP53321G0JTTZ?

Yes, AES mutual authentication is a defining feature of the NTP5332 variant, and NTP53321G0JTTZ explicitly includes 128-bit AES authentication per ISO/IEC 15693. This capability is absent in the NTP5312 series and is validated in Section 2 ("Features and benefits") and Table 11 ("Configuration Memory organization"), which states "AES mode is only available for NTP5332."
