Infineon Technologies TD160N16SOFHPSA1

Overview

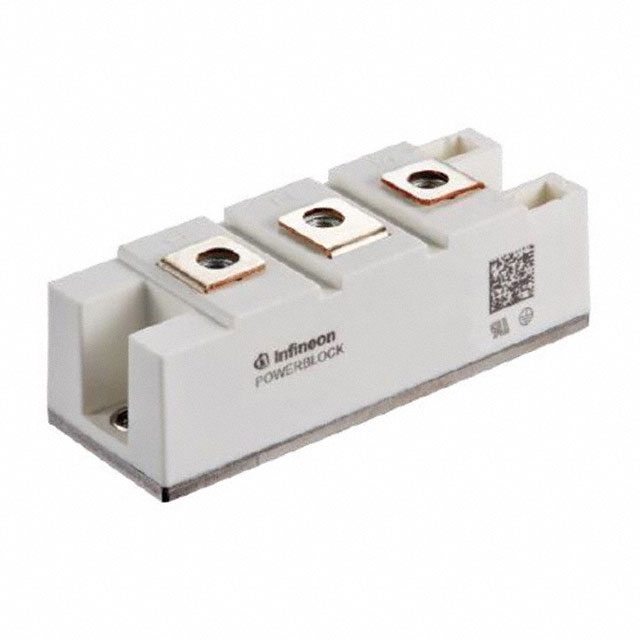

TD160N16SOFHPSA1 from Infineon Technologies is a phase-control thyristor module with dual anti-parallel thyristor configuration in an industrial-standard insulated package, rated for 1600 V repetitive peak off-state voltage (VDRM/VRRM), 160 A average on-state current at TC = 85 °C (ITAVM), and 5200 A non-repetitive surge current (ITSM). It serves as a high-power AC line commutated switching element in soft starters and static power controllers.

For engineers reviewing the TD160N16SOFHPSA1 datasheet, TD160N16SOFHPSA1 pinout, TD160N16SOFHPSA1 application, or TD160N16SOFHPSA1 equivalent, key selection criteria include junction-to-case thermal resistance (0.145 K/W), gate trigger current (≤145 mA), critical dv/dt rating (1000 V/µs), and electrically insulated baseplate for safe mounting on heatsinks without additional isolation.

Technical Context

This dual-thyristor module implements line-commutated AC power control using two inverse-parallel silicon-controlled rectifiers (SCRs) in a single package. It supports full-wave phase-angle control with gate-triggered turn-on and natural commutation at current zero-crossing.

Designed for forced-air or liquid-cooled industrial drives, it delivers 275 A RMS on-state current (ITRMSM) and withstands 1700 V non-repetitive reverse surge (VRSM). Its 0.99 mΩ slope resistance (rT) and 1.1 V threshold voltage (VT0) define conduction loss behavior under high-current DC or low-conduction-angle AC operation.

Key Specifications

Pinout & Package

TD160N16SOFHPSA1 uses an industrial-standard isolated baseplate module package with solder-bond die attachment and Al₂O₃ ceramic insulation. The module contains two thyristor arms sharing a common electrically insulated copper baseplate.

Key Features

Applications

Equivalent & Alternatives

The following parts are listed as comparable options for similar phase-control thyristor module applications.

Compared with TT160N16SOF and TD160N16KOF, TD160N16SOFHPSA1 provides integrated Class 1 basic insulation, eliminating external isolation hardware and reducing assembly steps-critical for high-volume industrial drive inverters where reliability and thermal interface repeatability are prioritized.

Availability

TD160N16SOFHPSA1 is available at Aetrix Electronics and suitable for soft starter systems, UPS rectifiers, static power controllers, and battery charger rectifiers requiring stable component supply across multi-year production cycles.

Supply support for TD160N16SOFHPSA1 includes scheduled delivery planning, volume procurement assistance, BOM continuity management, traceable sourcing, and lifecycle availability coordination for OEM customers, industrial embedded developers, connected-device designers, and electronics production programs.
