Infineon Technologies TLE4959CHAMA1

Overview

TLE4959CHAMA1 from Infineon is a Hall-based differential transmission speed sensor IC with integrated 220 nF and 1.8 nF on-package decoupling capacitors, adaptive hysteresis (typ. 25% of ΔBpp), direction detection up to 1.8 kHz, and operation from 4.0–16 V supply. It delivers PWM-encoded speed and rotation direction signals for automotive transmission control units using ferromagnetic or magnetic encoder wheels.

For engineers reviewing the TLE4959CHAMA1 datasheet, TLE4959CHAMA1 pinout, TLE4959CHAMA1 application, or TLE4959CHAMA1 equivalent, key selection criteria include its differential Hall architecture for vibration suppression, self-calibrating offset compensation, large airgap tolerance, AEC-Q100 qualification, and integrated EMC-enhancing capacitance in PG-SSO-3-52 package.

Technical Context

The TLE4959CHAMA1 implements a three-Hall-element differential sensing topology with real-time digital offset cancellation and adaptive hysteresis derived from peak-to-peak magnetic signal amplitude (ΔBpp). Its digital core executes min/max detection, direction sampling near zero-crossing of the speed bridge, and vibration suppression by rejecting parasitic signals below the hysteresis threshold.

It operates in two modes: uncalibrated startup (triggered by DNCmin = 1.5 mT) and calibrated mode (triggered by adaptive hysteresis ≥ ΔBlimit), with power-on pulse signaling absence of direction data. The output uses open-drain PWM protocol with mandatory 1.2 kΩ pull-up for 5 V systems and supports 0–10 kHz magnetic input frequency.

Key Specifications

Pinout & Package

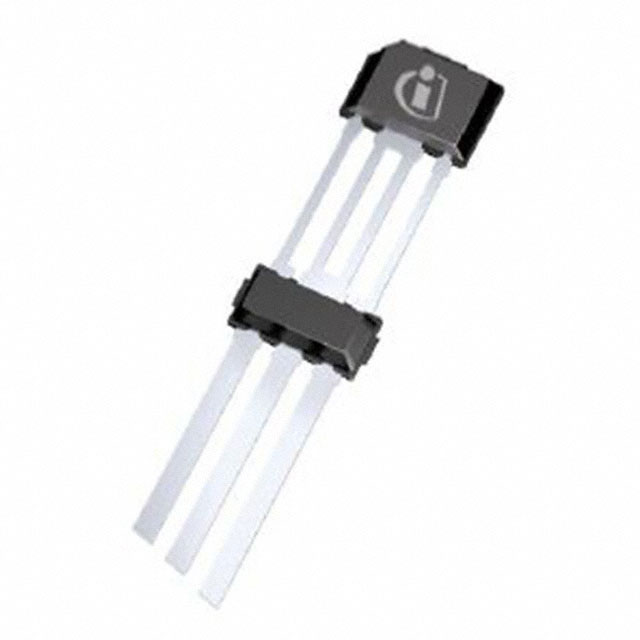

Package: PG-SSO-3-52 - surface-mount, 3-pin, RoHS-compliant, green automotive package with integrated lead-frame capacitors.

Key Features

Applications

Equivalent & Alternatives

The following parts are listed as comparable options for similar differential Hall speed sensing applications.

Compared with MLX90242KDC and TLE4961-3U, the TLE4959CHAMA1 uniquely combines integrated EMC capacitance, adaptive hysteresis, and direction-aware PWM output in a single AEC-Q100 Grade 0 package-enabling higher functional safety compliance and reduced system-level filtering complexity.

Availability

TLE4959CHAMA1 is available at Aetrix Electronics and suitable for automatic transmission control, electric powertrain motor monitoring, CVT ratio feedback, and hybrid clutch engagement verification requiring stable component supply across extended temperature and vibration profiles.

Supply support for TLE4959CHAMA1 includes scheduled delivery planning, volume procurement assistance, BOM continuity management, traceable sourcing, and lifecycle availability coordination for OEM customers, industrial embedded developers, connected-device designers, and electronics production programs.

Manufacturer

Infineon Technologies AG is a German semiconductor manufacturer specializing in power management, automotive microcontrollers, and sensor solutions, with global R&D and manufacturing infrastructure.

The TLE4959CHAMA1 belongs to Infineon's TLE49xx differential Hall sensor product line, engineered specifically for high-reliability rotational speed and direction sensing in automotive powertrain systems under extreme thermal and mechanical stress.

FAQ

What is the function of the two integrated capacitors in the TLE4959CHAMA1 package?

The TLE4959CHAMA1 integrates a 220 nF capacitor between VDD and GND (CVDD) and a 1.8 nF capacitor between output Q and GND (CQ), both rated X8R/50 V. These reduce high-frequency noise coupling, improve EMC immunity per ISO 11452, and eliminate the need for external decoupling components-lowering PCB area and assembly cost while enhancing signal integrity in noisy transmission environments.

How does the adaptive hysteresis mechanism improve reliability in vibrating environments?

Adaptive hysteresis scales with the peak-to-peak amplitude (ΔBpp) of the magnetic input signal, typically set to 25% of ΔBpp. This ensures switching thresholds remain proportional to signal strength, suppressing false triggers caused by mechanical vibration or airgap modulation while preserving sensitivity across wide airgaps (up to ±1.5 mm). Minimum hysteresis (ΔBlimit) prevents collapse at low signal amplitudes.

Can the TLE4959CHAMA1 operate without an external pull-up resistor on the Q pin?

No. The Q pin is an open-drain output and requires an external pull-up resistor to establish valid logic-high voltage levels. For 5 V systems, Infineon specifies 1.2 kΩ (±10%) as optimal; omitting it results in undefined output states and failure to generate compliant PWM pulses. In 12 V applications, a 100 Ω series resistor on VDD is also recommended for supply-line protection.

What distinguishes the power-on pulse from regular direction pulses?

The first output pulse after power-up (tpower_on ≈ 0.9 ms) is intentionally elongated to indicate absence of valid direction information. Subsequent pulses encode direction: forward rotation (pin 1 → pin 3) yields tfwd pulse width; backward rotation (pin 3 → pin 1) yields tbwd width. This allows the TCU to distinguish initialization state from operational direction data without additional handshake signals.
