Infineon Technologies TLE5309DE5201XUMA1
- Part No.:
- TLE5309DE5201XUMA1
- Manufacturer:
- Infineon Technologies
- Category:
- Angle, Linear Position Measuring
- Package:
- 16-TSSOP (0.154", 3.90mm Width)
- Datasheet:
-
TLE5309DE5201XUMA1.pdf
- Description:
- POSITION&CURRENT SENSORS
- Quantity:
- Payment:
- Shipping:
Inventory:1,921
Please send an inquiry. Send us your inquiry, and we will respond immediately.
Product details
Overview
TLE5309DE5201XUMA1 from Infineon Technologies is a dual-die, diverse-redundant analog angle sensor integrating one GMR sensor (top die) and one AMR sensor (bottom die) in a single PG-TDSO-16 package. It delivers independent 360° sine/cosine outputs from the GMR channel and 180° (doubled-angle) sine/cosine outputs from the AMR channel, with separate 5.0 V (GMR) and 3.3 V (AMR) supplies, -40°C to 125°C operation, and AEC-Q100 Grade 1 qualification for automotive safety-critical systems.
For engineers reviewing the TLE5309DE5201XUMA1 datasheet, TLE5309DE5201XUMA1 pinout, TLE5309DE5201XUMA1 application, or TLE5309DE5201XUMA1 equivalent, key selection considerations include dual-supply rail configuration (5 V/3.3 V), differential analog output compatibility, magnetic field immunity, fast power-on time (<10 µs), and functional redundancy for ASIL-B/C system compliance.
Technical Context
The device implements vertical-integrated MR sensing: four Wheatstone bridges per sensor-orthogonal for GMR (enabling full 360° unambiguous measurement) and 45°-offset for AMR (delivering 180° range with doubled-angle internal computation). Each bridge's resistance change responds directly to magnetic field vector orientation, not strength, ensuring airgap insensitivity.
GMR and AMR dies are flip-chip mounted on opposite sides of the same lead frame, aligning sensitive areas in the package plane to minimize magnetic field vector deviation between channels. Signal conditioning includes DC-offset correction, temperature-compensated amplification, and dedicated diagnostic outputs (GMR_VDIAG, AMR_VDIAG) proportional to bridge voltage.
Key Specifications
| Parameter | Value and Actual Design Meaning |
|---|---|
| Angle Range (GMR) | 0–360° continuous, unambiguous output via orthogonal sine/cosine bridges - enables absolute rotor position without index pulse. |
| Angle Range (AMR) | 0–180° (internal 0–360° doubled-angle measurement, halved in post-processing) - provides high-precision interpolation within half-cycle. |
| Supply Configuration | Independent GMR_VDD = 5.0 V ±10%, AMR_VDD = 3.3 V ±10% - allows optimized noise performance and dynamic range per sensor type. |
| Output Type | Differential analog sine/cosine pairs (GMR_SIN_P/N, GMR_COS_P/N, AMR_SIN_P/N, AMR_COS_P/N) - supports ratiometric ADC interfacing with shared supply as reference. |
| Operating Temperature | -40°C to +125°C ambient - qualified per AEC-Q100 Grade 1, enabling use in EPS, BLDC actuators, and transmission control units. |
| Power-On Time | <10 µs - enables ultra-low average power via rapid power cycling in turn-counting or wake-up applications. |
| Diagnostic Outputs | GMR_VDIAG and AMR_VDIAG - bridge-voltage-derived analog signals for real-time temperature monitoring and fault detection. |
Pinout & Package

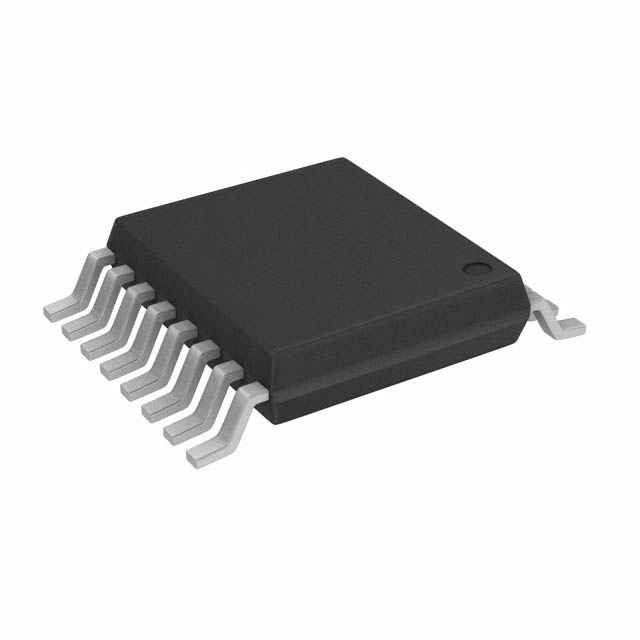

Package: PG-TDSO-16 (Plastic Thin Dual Small Outline, 16-pin, 7.5 mm × 5.5 mm body, 1.0 mm height, 0.65 mm pitch).
| Pin/Terminal | Circuit Role | Design Meaning |
|---|---|---|
| 1 | GMR_VDIAG | Analog diagnostic output proportional to GMR bridge voltage - used for temperature tracking and open-circuit detection. |
| 2 | GMR_VDD | 5.0 V supply input for GMR sensor die - decoupling required near pin for EMI suppression and transient stability. |
| 3 | GMR_SIN_N | Negative differential sine output from GMR bridge - paired with GMR_SIN_P for noise-immune signal acquisition. |
| 4 | GMR_SIN_P | Positive differential sine output from GMR bridge - forms full-scale differential pair with GMR_SIN_N. |
| 5 | AMR_SIN_P | Positive differential sine output from AMR bridge - referenced to AMR_VDD (3.3 V) and used with AMR_SIN_N for precision interpolation. |
| 6 | AMR_SIN_N | Negative differential sine output from AMR bridge - completes differential pair for AMR sine channel. |
| 7 | AMR_VDD | 3.3 V supply input for AMR sensor die - isolated from GMR supply to prevent cross-talk and optimize SNR. |
| 8 | AMR_VDIAG | Analog diagnostic output proportional to AMR bridge voltage - enables independent thermal monitoring of bottom die. |
| 9,10 | AMR_GND | Dedicated ground return for AMR die - separated from GMR ground to avoid shared-impedance coupling and maintain channel independence. |
| 11 | AMR_COS_N | Negative differential cosine output from AMR bridge - used with AMR_COS_P for 180° angle reconstruction. |
| 12 | AMR_COS_P | Positive differential cosine output from AMR bridge - completes cosine differential pair for AMR channel. |
| 13 | GMR_COS_P | Positive differential cosine output from GMR bridge - forms full 360° cosine pair with GMR_COS_N. |
| 14 | GMR_COS_N | Negative differential cosine output from GMR bridge - enables robust 360° angle calculation with arctan2(Vx,Vy). |
| 15,16 | GMR_GND | Dedicated ground return for GMR die - physically and electrically isolated from AMR ground to preserve redundancy integrity. |
Key Features
| Feature | Design Value |
|---|---|
| Dual-die flipped configuration | Co-planar sensitive areas of GMR (top) and AMR (bottom) dies minimize magnetic field vector misalignment - critical for cross-channel consistency in safety validation. |
| Separate supply domains | Independent 5.0 V (GMR) and 3.3 V (AMR) rails enable optimal biasing, noise floor management, and ADC reference matching per sensor type. |
| Full-bridge Wheatstone topology | Doubles MR signal amplitude and cancels common-mode temperature drift - improves effective resolution and long-term stability. |
| Pre-amplified differential outputs | Sine/cosine outputs scaled to utilize full ADC input range when referenced to respective supply - eliminates external gain stages in most designs. |
| AEC-Q100 Grade 1 qualification | Validated for automotive under-hood environments including thermal cycling, humidity, and mechanical shock - supports ASIL-B/C system integration. |
Applications
| Electric Power Steering (EPS) | Brushless DC Motor Commutation |
|---|---|
|
Use Scenario: Real-time rotor angle feedback for field-oriented control (FOC) in column-assist or rack-assist EPS motors. IC Role / Device Role / Timing Role: Primary angle sensor providing synchronized 360° GMR output and redundant 180° AMR output for fault-tolerant torque estimation. Use Value: Sub-1° total angle error at 125°C enables precise current vector alignment, reducing torque ripple and acoustic noise in steering actuation. |
Use Scenario: High-speed commutation timing for 3-phase BLDC motors in HVAC blowers, cooling fans, and active suspension actuators. IC Role / Device Role / Timing Role: Dual-channel analog resolver replacement delivering low-latency sine/cosine outputs for microcontroller-based arctan2 angle computation. Use Value: <10 µs power-on time and <1 µs propagation delay allow dynamic power cycling - cutting standby power by >90% in intermittent-duty applications. |
| Transmission Position Sensing | Turn Counting for Rotary Actuators |
|
Use Scenario: Gear selector position detection in automatic and dual-clutch transmissions requiring fail-operational behavior. IC Role / Device Role / Timing Role: Diverse-redundant angle transducer with independent GMR/AMR signal chains meeting ISO 26262 ASIL-C decomposition requirements. Use Value: Separate supply/ground domains and diagnostic outputs (VDIAG) enable run-time comparison and plausibility checking - eliminating single-point failures. |
Use Scenario: Absolute multi-turn position tracking in electromechanical parking brakes and throttle-by-wire systems. IC Role / Device Role / Timing Role: Low-power angle sensor operating in burst mode, powered only during position sampling events. Use Value: Ultra-low quiescent current (<100 µA in sleep) combined with fast wake-up enables >10-year battery life in maintenance-free modules. |
Equivalent & Alternatives
The following parts are listed as comparable options for similar dual-output analog angle sensing applications.
| Alternative Part | Technical Difference | Application Difference | Selection Advice |
|---|---|---|---|
| TLE5309DE1211XUMA1 | Both GMR and AMR supplied at 3.3 V; includes Temperature Compensation Offset (TCO) calibration. | Better suited for cost-sensitive, non-safety-critical applications where unified supply simplifies PCB layout. | Select when system-level supply is limited to 3.3 V and TCO-enhanced accuracy over temperature is prioritized over supply flexibility. |
| TLE5309DE2211XUMA1 | Both GMR and AMR supplied at 5.0 V; includes Temperature Compensation Offset (TCO) calibration. | Optimized for legacy 5 V architectures with higher noise margin but reduced AMR SNR vs. 3.3 V operation. | Choose when existing 5 V infrastructure dominates and TCO-driven accuracy is required across full temperature range. |
Compared with TLE5309DE5201XUMA1, the E1211 variant trades supply flexibility for lower BOM count and enhanced TCO accuracy, while the E2211 variant maintains 5 V compatibility across both dies but sacrifices AMR signal-to-noise ratio versus the mixed-rail E5201 configuration.
Availability
TLE5309DE5201XUMA1 is available at Aetrix Electronics and suitable for electric power steering (EPS), brushless DC motor commutation, transmission position sensing, and rotary actuator turn counting requiring stable component supply, automotive-grade traceability, and long-term lifecycle support.
Supply support for TLE5309DE5201XUMA1 includes scheduled delivery planning, volume procurement assistance, BOM continuity management, traceable sourcing, and lifecycle availability coordination for OEM customers, industrial embedded developers, connected-device designers, and electronics production programs.
Manufacturer
Infineon Technologies is a German semiconductor manufacturer specializing in power management, automotive ICs, and sensor solutions, with global R&D and manufacturing facilities.
The TLE5309D belongs to Infineon's TLE family of magnetic angle sensors, designed specifically for functional-safety-critical automotive applications including EPS, transmission control, and brake-by-wire systems.
FAQ
What is the purpose of separate GMR_VDD and AMR_VDD pins?
The separate supply pins enable independent biasing of the GMR (5.0 V) and AMR (3.3 V) sensor dies to optimize signal-to-noise ratio, dynamic range, and power efficiency per technology. GMR benefits from higher supply for improved sensitivity and linearity, while AMR achieves better resolution and lower thermal drift at 3.3 V - a configuration validated in Infineon's AEC-Q100 test reports.
How does the flipped dual-die architecture improve functional safety?
Mounting the GMR die on top and AMR die on bottom of the same lead frame - with aligned sensitive areas - minimizes magnetic field vector deviation between channels. This physical co-location ensures highly correlated yet technologically diverse measurements, satisfying ISO 26262 requirements for plausibility checking and fault detection in ASIL-B/C systems.
Can TLE5309DE5201XUMA1 be used with a single 5 V supply?
No - the AMR die requires a regulated 3.3 V supply (AMR_VDD), and applying 5 V will exceed its absolute maximum rating and cause permanent damage. A dedicated 3.3 V LDO or DC-DC converter must supply pin 7 (AMR_VDD), while pin 2 (GMR_VDD) accepts 5.0 V ±10%. The datasheet explicitly prohibits shared supply routing.
What is the role of GMR_VDIAG and AMR_VDIAG pins?
GMR_VDIAG (pin 1) and AMR_VDIAG (pin 8) output analog voltages proportional to their respective MR bridge supply currents, serving as real-time diagnostics for open-circuit, short-circuit, and thermal derating conditions. These signals are internally temperature-compensated and calibrated - enabling hardware-level fault detection without MCU intervention.
TLE5309DE5201XUMA1 Specifications
- Product attributes
- Attribute value
- Manufacturer:
- Infineon Technologies
- Package/Case:
- 16-TSSOP (0.154", 3.90mm Width)
- Series:
- -
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Active
- Programmable:
- -
- For Measuring:
- Angle
- Technology:
- Magnetoresistive
- Rotation Angle - Electrical, Mechanical:
- 0° ~ 360°, Continuous
- Linear Range:
- -
- Output:
- Analog Voltage
- Output Signal:
- Cosine, Sine
- Actuator Type:
- External Magnet, Not Included
- Linearity:
- -
- Resistance:
- -
- Resistance Tolerance:
- -
- Voltage - Supply:
- 3V ~ 3.6V, 4.5V ~ 5.5V
- Mounting Type:
- Surface Mount
- Termination Style:
- Gull Wing
- Operating Temperature:
- -40°C ~ 125°C (TA)
- Grade:
- Automotive
- Qualification:
- AEC-Q100
- Supplier Device Package:
- PG-TDSO-16
