Toshiba Semiconductor and Storage TLP3403R(TP,F
- Part No.:
- TLP3403R(TP,F
- Manufacturer:
- Toshiba Semiconductor and Storage
- Category:
- Solid State Relays (SSR)
- Package:
- 4-SMD (0.108", 2.75mm)
- Datasheet:
-
TLP3403R(TP,F.pdf
- Description:
- SSR RELAY SPST-NO 1A 0-20V
- Quantity:
- Payment:
- Shipping:
Inventory:5,023
Please send an inquiry. Send us your inquiry, and we will respond immediately.
Product details
Overview
TLP3403R(TP,F from Toshiba Electronic Devices & Storage Corporation is a surface-mount photorelay with integrated input resistor, optical coupling between infrared LED and photo-MOSFET, 20 V off-state voltage rating, 1 A max on-state current, and 0.22 Ω max on-resistance - used for battery control, instrument switching, and high-speed IC tester signal routing.
For engineers reviewing the TLP3403R(TP,F datasheet, TLP3403R(TP,F pinout, TLP3403R(TP,F application, or TLP3403R(TP,F equivalent, key selection criteria include isolation voltage (500 Vrms), low output capacitance (0.5 pF typ.), VSONR4 package footprint, and 0.17 ms turn-on time under 10 V supply.
Technical Context
The TLP3403R(TP,F implements optically isolated MOSFET switching using gallium arsenide LED and silicon photo-MOSFET die in a single VSONR4 package. It operates as a normally-open (1-Form-A) solid-state relay with internal input resistor eliminating external bias components.
Its electrical interface separates low-voltage logic-side input (max 6 V forward voltage) from load-side output (20 V off-state, 1 A continuous), with galvanic isolation rated at 500 Vrms and total input-to-output capacitance of 1 pF typical - enabling noise-immune signal switching in precision test equipment.
Key Specifications
| Parameter | Value and Actual Design Meaning |
|---|---|
| Isolation Voltage | 500 Vrms min - enables safe separation between control and power domains in battery monitoring systems |
| ON-State Resistance | 0.18 Ω typ., 0.22 Ω max - ensures <220 mW conduction loss at 1 A, critical for thermal management in compact testers |
| OFF-State Voltage | 20 V min - supports switching of logic-level signals and low-voltage analog rails without breakdown |
| Output Capacitance | 0.5 pF typ. - minimizes signal distortion and crosstalk in high-speed memory tester channel routing |
| Turn-On Time | 0.17 ms typ. - meets timing requirements for sub-millisecond test pattern sequencing |
| Package Dimensions | VSONR4: 2.8 × 1.5 × 1.3 mm - fits dense PCB layouts in portable measuring instruments |
| Input Forward Voltage | 1.8 V typ. at 100 mA - compatible with 3.3 V logic without level-shifting circuitry |

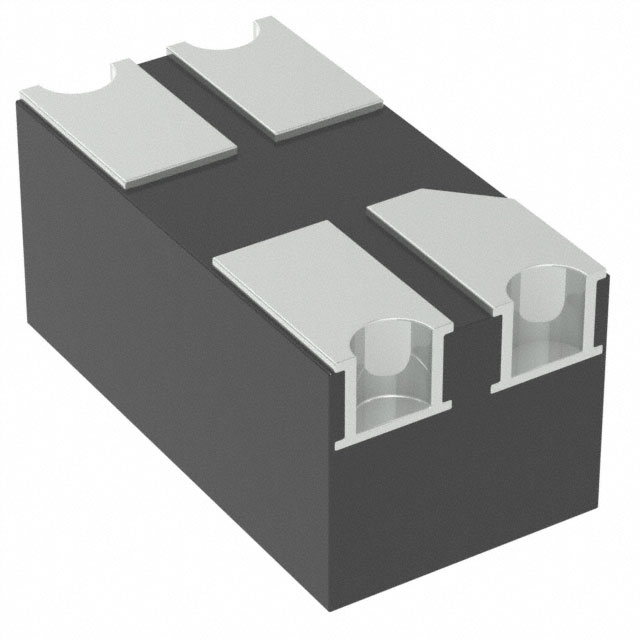

Pinout & Package
VSONR4 (Toshiba package code 11-3D1), 4-pin non-leaded surface-mount package with pins 1–2 shorted internally as anode/cathode pair and pins 3–4 shorted as drain terminals - optimized for minimal board area and automated assembly.
| Pin/Terminal | Circuit Role | Design Meaning |
|---|---|---|
| 1 | Anode | LED anode input; must be driven with current-limited 3–6 V source via internal 10 kΩ resistor |
| 2 | Cathode | LED cathode return; tied internally to Pin 1 for two-terminal LED configuration |
| 3 | Drain | Photo-MOSFET drain; connected internally to Pin 4 to form single-switch output terminal |
| 4 | Drain | Redundant drain connection; provides mechanical robustness and lower contact resistance in SMT mounting |
Key Features
| Feature | Design Value |
|---|---|
| Built-in input resistor | Eliminates external bias resistor, reducing BOM count and PCB area by ~1.5 mm² per channel |
| Low output capacitance | 0.5 pF typical - preserves signal integrity up to 100 MHz in logic IC tester probe paths |
| Low off-state current | 1 nA max at 20 V - prevents leakage-induced drift in high-impedance battery voltage sensing nodes |
| VSONR4 footprint | 2.8 × 1.5 mm outline - enables >4× channel density vs. SOIC-4 in automated test equipment backplanes |
| Galvanic isolation | 500 Vrms withstand - allows safe interfacing between isolated MCU domains and shared analog measurement rails |
Applications
| Battery Control and Monitoring | Measuring Instruments |
|---|---|
Use Scenario: Isolated switching of cell voltage sampling lines in multi-cell Li-ion battery packs to prevent ground loop errors during simultaneous monitoring. IC Role / Device Role / Timing Role: Solid-state relay providing galvanically isolated path control between battery stack and ADC front-end. Use Value: 500 Vrms isolation and 1 nA off-state current ensure ±0.1% voltage measurement accuracy across 16-cell stacks. | Use Scenario: Channel multiplexing in handheld digital multimeters where microcontroller I/O must switch between voltage, current, and resistance measurement paths. IC Role / Device Role / Timing Role: Normally-open photorelay acting as low-capacitance analog switch for signal routing. Use Value: 0.5 pF output capacitance and 0.17 ms turn-on enable stable 4½-digit readings without settling delay. |
| High-Speed Logic IC Testers | High-Speed Memory Testers |
Use Scenario: Signal path enable/disable in parallel test heads performing functional verification of FPGA I/O banks at 100+ MHz. IC Role / Device Role / Timing Role: High-speed optically isolated switch controlling DUT signal injection and response capture timing windows. Use Value: Sub-millisecond switching and 20 V off-state rating support TTL/CMOS/LVDS level compatibility without level shifters. | Use Scenario: Isolated address/data line gating in DDR4/DDR5 memory validation systems where test patterns require precise edge-aligned enable pulses. IC Role / Device Role / Timing Role: Photo-MOSFET relay synchronizing memory controller access to target DIMM slots under independent power domains. Use Value: 0.22 Ω on-resistance and 1 A rating allow full-swing switching of 1.2 V DDR5 data buses without voltage droop. |
Equivalent & Alternatives
The following parts are listed as comparable options for similar photorelay applications.
| Alternative Part | Technical Difference | Application Difference | Selection Advice |
|---|---|---|---|
| TLP3406S(TP,F | Higher off-state voltage (60 V), higher on-resistance (0.35 Ω max), same VSONR4 package | Better suited for industrial PLC I/O modules requiring 48 VDC isolation; less optimal for low-voltage high-speed testers | Select when off-state voltage margin >40 V is required and 0.17 ms turn-on time remains acceptable |
| PS8201-AX | SOIC-4 package (5.1 × 3.9 mm), 100 V off-state, 0.4 Ω on-resistance, 0.3 ms turn-on | Compatible with legacy through-hole or larger SMT footprints; slower switching limits use in >50 MHz test patterns | Choose for cost-sensitive industrial instrumentation where board space is not constrained and speed <200 kHz suffices |
Compared with TLP3406S(TP,F and PS8201-AX, the TLP3403R(TP,F delivers the lowest on-resistance and fastest switching in the smallest footprint - making it optimal for space-constrained, high-speed automated test equipment where 20 V isolation suffices.
Availability
TLP3403R(TP,F is available at Aetrix Electronics and suitable for battery management systems, portable test instrumentation, high-speed logic IC testers, and high-speed memory testers requiring stable component supply and RoHS-compliant sourcing.
Supply support for TLP3403R(TP,F includes scheduled delivery planning, volume procurement assistance, BOM continuity management, traceable sourcing, and lifecycle availability coordination for OEM customers, industrial embedded developers, connected-device designers, and electronics production programs.
Manufacturer
Toshiba Electronic Devices & Storage Corporation designs and manufactures discrete semiconductors, power devices, and optoelectronics for industrial, automotive, and consumer applications.
The TLP3403R(TP,F belongs to Toshiba's photorelay product line engineered specifically for high-density, high-speed signal switching in automated test equipment and precision measurement instruments.
FAQ
What is the maximum continuous ON-state current rating for the TLP3403R(TP,F?
The TLP3403R(TP,F has a maximum continuous ON-state current rating of 1 A at Ta ≤ 25 °C, derating linearly to 0 A at 110 °C ambient. This rating applies with both drain pins (3 and 4) connected in parallel as specified in the internal circuit diagram. The TLP3403R(TP,F achieves this with 0.22 Ω max on-resistance, limiting power dissipation to 220 mW at full load - verified per Toshiba's Absolute Maximum Ratings table.
Does the TLP3403R(TP,F require an external current-limiting resistor on the input side?
No, the TLP3403R(TP,F integrates a built-in input resistor, eliminating the need for an external series resistor. This design reduces PCB area and component count while ensuring proper LED biasing across its recommended 3–6 V input voltage range. The TLP3403R(TP,F's internal resistor enables direct connection to 3.3 V or 5 V logic outputs without additional passive components - confirmed in Toshiba's General section and Electrical Characteristics tables.
What is the isolation voltage specification for the TLP3403R(TP,F, and how is it tested?
The TLP3403R(TP,F provides 500 Vrms minimum isolation voltage between input and output sides, tested per IEC 60747-5-5 with AC 60 s duration at ≤60 % relative humidity. This rating ensures safe operation in battery monitoring and instrumentation applications where control and measurement circuits operate at different ground potentials. The TLP3403R(TP,F maintains this isolation performance across its full operating temperature range of −40 to +110 °C.
Can the TLP3403R(TP,F be used in high-frequency signal switching applications?
Yes, the TLP3403R(TP,F supports high-frequency signal routing due to its 0.5 pF typical output capacitance and 0.17 ms typical turn-on time. These parameters enable clean switching of digital signals up to 100 MHz in logic IC testers and memory validation systems. The TLP3403R(TP,F's low capacitance minimizes signal rise-time degradation and crosstalk - validated in Toshiba's Coupled Electrical Characteristics and Switching Characteristics sections.
What package type does the TLP3403R(TP,F use, and what are its dimensions?
The TLP3403R(TP,F uses the VSONR4 surface-mount package (Toshiba code 11-3D1), measuring 2.8 mm × 1.5 mm × 1.3 mm with a typical weight of 0.01 g. Its 4-pin non-leaded construction features pins 1–2 shorted as the LED anode/cathode pair and pins 3–4 shorted as the MOSFET drain terminals - enabling ultra-compact placement in space-constrained test equipment PCBs. The TLP3403R(TP,F's land pattern is documented in Toshiba's Package Dimensions drawing.
TLP3403R(TP,F Specifications
- Product attributes
- Attribute value
- Manufacturer:
- Toshiba Semiconductor and Storage
- Series:
- TLP3403R
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Active
- Mounting Type:
- Surface Mount
- Circuit:
- SPST-NO (1 Form A)
- Output Type:
- AC, DC
- Voltage - Input:
- 1.8VDC
- Voltage - Load:
- 0 V ~ 20 V
- Load Current:
- 1 A
- On-State Resistance (Max):
- 220 mOhms
- Termination Style:
- SMD (SMT) Tab
- Operating Temperature:
- -40°C ~ 110°C
- Supplier Device Package:
- 4-VSONR (1.45x2.75)
- Approval Agency:
- -
- Grade:
- -
- Qualification:
- -
TLP3403R(TP,F FAQ
1.How can I place an order for TLP3403R(TP,F through Aetrix?
Please submit a Request for Quotation (RFQ) for TLP3403R(TP,F on Aetrix. Our sales agent will provide a competitive quotation and guide you through the order confirmation once you accept the terms.
2.Are the price and stock information for TLP3403R(TP,F reliable?
The price and inventory of TLP3403R(TP,F are updated periodically and may fluctuate due to market conditions. Stock and pricing data are typically refreshed every 24 hours. Quotation validity for TLP3403R(TP,F is usually 5 days.
3.What payment methods are accepted for TLP3403R(TP,F?
We accept Wire Transfer, PayPal, Credit Card, Western Union, MoneyGram, and Escrow for TLP3403R(TP,F transactions.
Note: Certain payment methods may incur a processing fee.
4.How is shipping managed for TLP3403R(TP,F?
TLP3403R(TP,F orders can be shipped via leading logistics carriers, including DHL, UPS, FedEx, TNT, or Registered Mail.
Once your TLP3403R(TP,F order is processed, you will receive an email with the shipment details and tracking number.
Note: Tracking information may take up to 24 hours to appear. Express delivery typically takes 3–5 business days.
5.How can I obtain technical support or documentation for TLP3403R(TP,F?
For technical support, including TLP3403R(TP,F datasheets, pinout diagrams, or application guidance, please contact our engineering support team. They can provide detailed documentation and assistance for your TLP3403R(TP,F requirements.
6.How does Aetrix verify that TLP3403R(TP,F is sourced from the original manufacturer or authorized distributors?
All TLP3403R(TP,F products on Aetrix are procured from qualified distributors and authorized channels. Our dedicated quality assurance team conducts strict verification, including traceability checks and, if necessary, third-party testing. This ensures that TLP3403R(TP,F meets industry standards.
7.What is the process for return or replacement of TLP3403R(TP,F?
All TLP3403R(TP,F units undergo pre-shipment inspection (PSI). If there is an issue with TLP3403R(TP,F, returns or replacements are accepted under the following conditions:
1.Quantity discrepancies, incorrect items, or visible external defects (such as breakage or corrosion), acknowledged by Aetrix.
2.The issue is reported within 90 days of delivery.
3.The TLP3403R(TP,F part is unused and in its original packaging.
Return procedure for TLP3403R(TP,F:
1.Submit a request within 90 days.
2.Obtain a Return Material Authorization (RMA) from Aetrix.
