Toshiba Semiconductor and Storage TLP3475S(TP,E
- Part No.:
- TLP3475S(TP,E
- Manufacturer:
- Toshiba Semiconductor and Storage
- Category:
- Solid State Relays (SSR)
- Package:
- 4-SMD (0.079", 2.00mm)
- Datasheet:
-
TLP3475S(TP,E.pdf
- Description:
- SSR RELAY SPST-NO 400MA 0-60V
- Quantity:
- Payment:
- Shipping:
Inventory:1,769
Please send an inquiry. Send us your inquiry, and we will respond immediately.
Product details
Overview
TLP3475S(TP,E from Toshiba Electronic Devices & Storage Corporation is a normally-open photorelay IC comprising an infrared LED optically coupled to a photo MOSFET in S-VSON4T package. It delivers 0.4 A max on-state current, 1.5 Ω max on-resistance, and 12 pF typ output capacitance - enabling high-frequency signal switching in ATE probe cards and logic IC testers.
For engineers reviewing the TLP3475S(TP,E datasheet, TLP3475S(TP,E pinout, TLP3475S(TP,E application, or TLP3475S(TP,E equivalent, key selection criteria include its 60 V off-state voltage rating, 3 mA max trigger LED current, low CR product, and suitability for high-speed memory test instrumentation requiring minimal insertion loss and rapid edge fidelity.
Technical Context
The TLP3475S(TP,E implements optical isolation via GaAs LED–photo MOSFET coupling with internal photodiode array driving dual-channel MOSFETs configured as a single-pole, single-throw (1-Form-A) switch. Its design targets sub-500 ns switching (0.12 ms typ tON, 0.06 ms typ tOFF) under 20 V supply and 5 mA LED drive.
It operates as a two-terminal device: pins 1 and 2 are internally shorted (LED anode/cathode), and pins 3 and 4 are shorted (MOSFET drain terminals). This configuration eliminates source/drain asymmetry and supports bidirectional AC/DC load switching up to 60 V with 500 Vrms isolation.
Key Specifications
| Parameter | Value and Actual Design Meaning |
|---|---|
| Package | S-VSON4T (1.45 mm × 2.0 mm, 1.4 mm max height) |
| Isolation Voltage | 500 Vrms min - enables safe separation between control and high-voltage test circuitry |
| ON-State Resistance | 1.5 Ω max - minimizes I²R heating and voltage drop at 0.4 A load current |
| Output Capacitance | 12 pF typ / 20 pF max - preserves signal integrity for >100 MHz test waveforms |
| Trigger LED Current | 3 mA max - ensures reliable turn-on with low-power microcontroller GPIO drive |
| OFF-State Leakage | 1 µA max at 60 V - prevents false triggering in high-impedance measurement paths |
| Switching Speed | 0.12 ms typ tON / 0.06 ms typ tOFF - supports >1 kHz test pattern rates in ATE systems |
Pinout & Package

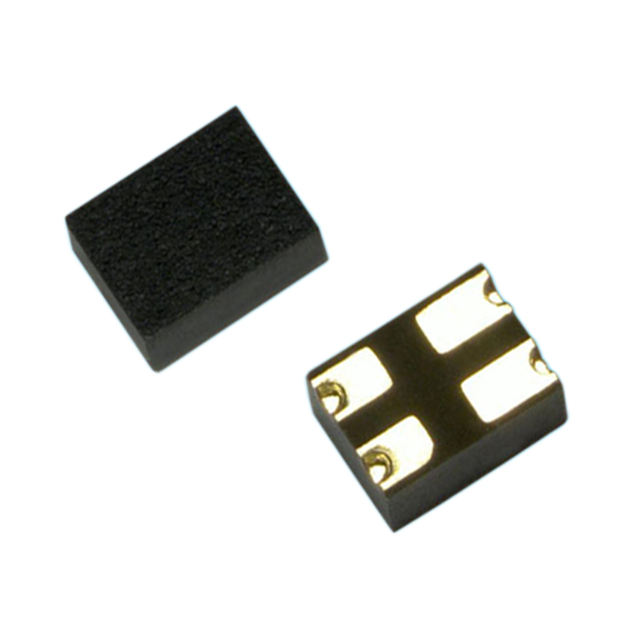

S-VSON4T surface-mount package with 1.4 mm max profile, optimized for space-constrained probe card PCB layouts and reflow-compatible assembly. Pin 1 = LED anode, Pin 2 = LED cathode, Pins 3 & 4 = common drain (internally shorted).
| Pin/Terminal | Circuit Role | Design Meaning |
|---|---|---|
| 1 | LED Anode | Positive input for infrared LED; requires series resistor to limit IF ≤ 3 mA |
| 2 | LED Cathode | Return path for LED current; tied to system ground or current-sink driver |
| 3 & 4 | MOSFET Drain (common) | Bidirectional load terminal; connects to DUT signal path without polarity constraint |
Key Features
| Feature | Design Value |
|---|---|
| Low CR Product | Enables high-frequency signal routing with <0.3 dB insertion loss at 100 MHz |
| Halogen-Free Resin Package | Meets JEDEC J-STD-709B halogen content limits (Br/Cl ≤ 0.09 wt%, aggregate ≤ 0.15 wt%) |
| Normally Open Configuration | Guarantees open-circuit default state - critical for safety-critical test fixture interlocks |
| Low On-Resistance Drift | RON variation <±15% over −40°C to +110°C - maintains consistent test signal amplitude |
| ESD-Sensitive Handling | Class H2 (≥2 kV HBM); requires antistatic workstations and ionized air during probe card assembly |
Applications
| ATE Probe Card Switching | High-Speed Logic IC Tester |
|---|---|
Use Scenario: Routing test signals between ASIC tester channels and DUT pads on wafer-level probe cards. IC Role / Device Role / Timing Role: Signal-path solid-state relay replacing mechanical relays to eliminate bounce, wear, and contact resistance drift. Use Value: 12 pF output capacitance and 0.12 ms turn-on time preserve rise/fall fidelity of 100+ MHz digital test vectors without waveform distortion. | Use Scenario: Selecting between multiple logic families (LVDS, TTL, CMOS) during automated functional testing. IC Role / Device Role / Timing Role: High-isolation, low-capacitance multiplexer front-end switch for test head interface boards. Use Value: 500 Vrms isolation and 1 µA max off-state leakage prevent crosstalk between adjacent test channels operating at different voltage domains. |
| Memory Test Instrumentation | Measuring Instrument Signal Gating |
Use Scenario: Enabling/disabling high-speed DDR5 memory channel access during parametric yield analysis. IC Role / Device Role / Timing Role: Low-Ron, fast-switching gate controlling memory bus segments during margin testing. Use Value: 1.5 Ω max RON ensures <75 mV voltage drop at 50 mA per line, maintaining signal integrity across 32-bit parallel buses. | Use Scenario: Isolating precision analog inputs (e.g., oscilloscope front ends) during calibration or standby modes. IC Role / Device Role / Timing Role: Optically isolated analog switch providing galvanic break before ADC input stages. Use Value: 0.01 g mass and 1.4 mm height allow placement directly adjacent to SMA connectors without mechanical interference or parasitic inductance. |
Equivalent & Alternatives
The following parts are listed as comparable options for similar photorelay applications.
| Alternative Part | Technical Difference | Application Difference | Selection Advice |
|---|---|---|---|
| TLP3476S(TP,E | Same S-VSON4T package; 0.2 A max ION, 3.5 Ω max RON, 8 pF typ COFF | Lower current rating suits lower-power logic probing but insufficient for memory bus switching | Select when test loads draw ≤200 mA and ultra-low capacitance (<8 pF) is prioritized over current capacity |
| PS8501-AX | SO-4 package; 0.3 A max ION; 2.5 Ω max RON; 15 pF typ COFF; 3750 Vrms isolation | Larger footprint and higher isolation suit industrial PLC I/O modules, not space-constrained probe cards | Choose only if board area allows SO-4 and 3750 Vrms isolation is required for mains-referenced test fixtures |
Compared with TLP3475S(TP,E, the TLP3476S(TP,E trades 50% lower on-current for 33% lower output capacitance, while PS8501-AX sacrifices miniaturization and speed for industrial-grade isolation - making TLP3475S(TP,E optimal for high-density, high-speed ATE signal routing where size, speed, and 0.4 A capability are jointly critical.
Availability
TLP3475S(TP,E is available at Aetrix Electronics and suitable for automatic test equipment (ATE), high-speed logic IC testers, and memory test instrumentation requiring stable component supply across multi-year production cycles.
Supply support for TLP3475S(TP,E includes scheduled delivery planning, volume procurement assistance, BOM continuity management, traceable sourcing, and lifecycle availability coordination for OEM customers, industrial embedded developers, connected-device designers, and electronics production programs.
Manufacturer
Toshiba Electronic Devices & Storage Corporation designs and manufactures discrete semiconductors, power devices, and optoelectronics for industrial, automotive, and computing applications.
The TLP3475S(TP,E belongs to Toshiba's photorelay product line engineered specifically for high-frequency, high-reliability signal switching in automated test equipment and semiconductor characterization systems.
FAQ
What is the maximum continuous on-state current rating for the TLP3475S(TP,E?
The TLP3475S(TP,E has a maximum continuous on-state current rating of 0.4 A at Ta ≤ 25°C, derating linearly to 0 mA at 125°C ambient. This rating applies to both pins 3 and 4, which are internally shorted as a common drain terminal. The 0.4 A capability enables direct switching of memory bus lines and logic tester channels without external current amplification.
Does the TLP3475S(TP,E support bidirectional signal routing?
Yes, the TLP3475S(TP,E supports bidirectional signal routing because its output structure consists of two shorted drain terminals (pins 3 and 4) connected to a symmetrical photo MOSFET channel. With no source/drain designation, it passes AC or DC signals equally in either direction - a key requirement for differential test signal paths in high-speed logic IC testers.
What is the recommended LED drive condition to ensure reliable turn-on of the TLP3475S(TP,E?
The TLP3475S(TP,E requires a maximum trigger LED current of 3 mA to guarantee turn-on across temperature and lifetime. A typical design uses a 5 mA drive (within absolute max rating) with a series resistor calculated from VF = 1.24 V (typ) at IF = 10 mA. For 3.3 V MCU GPIO, a 680 Ω resistor delivers ~4.3 mA - ensuring robust activation while staying within thermal limits.
How does the S-VSON4T package of the TLP3475S(TP,E impact PCB layout in high-frequency probe cards?
The S-VSON4T package of the TLP3475S(TP,E measures 1.45 mm × 2.0 mm with 1.4 mm max height, enabling dense placement directly adjacent to BGA or LGA test pads. Its low-inductance, short-pin construction minimizes parasitic loop area - critical for preserving signal integrity above 100 MHz. The absence of leads eliminates bond wire inductance found in SO-4 alternatives.
Is the TLP3475S(TP,E compliant with halogen-free and RoHS requirements?
Yes, the TLP3475S(TP,E is halogen-free per Toshiba's definition (Br/Cl ≤ 0.09 wt%, aggregate ≤ 0.15 wt% in encapsulant) and RoHS-compliant (EU Directive 2011/65/EU), indicated by the "E" suffix in the part number. Full compliance documentation, including material declarations and test reports, is available from Toshiba upon request for TLP3475S(TP,E qualification in regulated industries.
TLP3475S(TP,E Specifications
- Product attributes
- Attribute value
- Manufacturer:
- Toshiba Semiconductor and Storage
- Series:
- TLP3475S
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Active
- Mounting Type:
- Surface Mount
- Circuit:
- SPST-NO (1 Form A)
- Output Type:
- AC, DC
- Voltage - Input:
- 1.24VDC
- Voltage - Load:
- 0 V ~ 60 V
- Load Current:
- 400 mA
- On-State Resistance (Max):
- 1.5 Ohms
- Termination Style:
- SMD (SMT) Tab
- Operating Temperature:
- -40°C ~ 110°C
- Supplier Device Package:
- 4-S-VSON
- Approval Agency:
- -
- Grade:
- -
- Qualification:
- -
