Home > Products > Discrete Semiconductor Products > Transistors > Bipolar (BJT) > Single Bipolar Transistors

Toshiba Semiconductor and Storage TTC008(Q)

Name: TTC008(Q)
Brand: Toshiba Semiconductor and Storage
SKU: TTC008(Q)
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Compare

Part No.:: TTC008(Q)

Manufacturer:: Toshiba Semiconductor and Storage

Category:: Single Bipolar Transistors

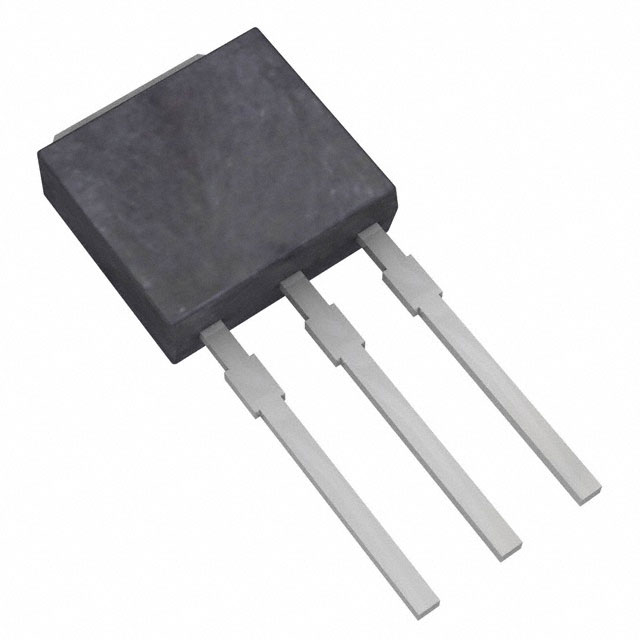

Package:: TO-251-3 Short Leads, IPAK, TO-251AA

Datasheet:: TTC008(Q).pdf

Description:: TRANS NPN 285V 1.5A PW-MOLD2

Quantity:: RFQ Add To RFQ list

Payment:

Shipping:

Inventory:149

Please send an inquiry. Send us your inquiry, and we will respond immediately.

Product details

Overview

TTC008(Q) from Toshiba is a silicon NPN bipolar transistor designed for high-voltage switching applications, featuring V_CEO = 285 V, V_CES = 600 V, h_FE = 100–200 at I_C = 0.3 A, and typ. fall time t_f = 0.1 µs. It is used in high-speed DC-DC converters and switching voltage regulators where robust voltage handling and fast turn-off are critical.

For engineers reviewing the TTC008(Q) datasheet, TTC008(Q) pinout, TTC008(Q) application, or TTC008(Q) equivalent, key selection criteria include its 600 V collector-base breakdown rating, 1.1 W power dissipation in New PW-Mold2 package, and suitability for industrial power conversion circuits requiring reliable high-voltage switching.

Technical Context

The TTC008(Q) employs triple-diffused silicon construction to achieve high V_CES (600 V) and stable h_FE across operating current range. Its static gain is specified at two test points: h_FE(1) ≥ 80 at V_CE = 5 V, I_C = 1 mA and h_FE(2) ≥ 100 at V_CE = 5 V, I_C = 0.3 A.

Dynamic performance is characterized by fast switching: typ. rise time t_r = 0.05 µs and fall time t_f = 0.1 µs under defined test conditions. The device's safe operating area (SOA) is guaranteed up to T_j = 150 °C with pulsed I_C = 3 A capability.

Key Specifications

Parameter	Value and Actual Design Meaning
V_CEO	285 V - Maximum continuous collector-emitter voltage before breakdown under open-base condition
V_CES	600 V - Collector-emitter voltage with base shorted to emitter, enabling higher blocking in clamped-switching topologies
h_FE	100–200 - DC current gain at I_C = 0.3 A ensures predictable base drive requirements in linear and switching modes
t_f	0.1 µs (typ.) - Fast fall time supports operation above 1 MHz in hard-switched SMPS designs
P_C	1.1 W - Power dissipation limit at T_a = 25 °C defines thermal design margin for PCB layout and heatsinking
T_j max	150 °C - Maximum junction temperature sets derating curve for reliability in sustained high-power operation

Pinout & Package

Package: New PW-Mold2 (TOSHIBA designation: 2-7J2S), surface-mount, 3-pin, 0.36 g typical weight.

Pin/Terminal	Circuit Role	Design Meaning
1	Base	Control terminal for forward-biased injection; requires current-limited drive to ensure h_FE-based saturation
2	Collector	Main high-voltage current path; connected to primary-side switching node in flyback or forward converters
3	Emitter	Reference terminal for base drive and load return; tied to ground or low-side switch node in common-emitter configuration

Key Features

Feature	Design Value
High V_CES rating	600 V enables use in 400 V DC bus systems with margin for voltage spikes and ringing
Controlled h_FE spread	100–200 range allows consistent base resistor selection across production lots without recalibration
Fast fall time	0.1 µs typ. reduces switching losses during turn-off, improving efficiency in high-frequency converters
Triple-diffused structure	Provides superior ruggedness against secondary breakdown compared to planar NPN transistors

Applications

High-Speed High-Voltage Switching	Switching Voltage Regulators
Use Scenario: Controlling 300–400 V DC bus in industrial motor drives and solid-state relays. IC Role / Device Role / Timing Role: Main switching element in single-ended topologies, driven by isolated gate driver with current-limited base drive. Use Value: 600 V V_CES withstands transient overvoltages during IGBT/MOSFET replacement in legacy designs.	Use Scenario: Primary-side switch in offline AC-DC flyback converters delivering 10–50 W. IC Role / Device Role / Timing Role: High-voltage NPN switch synchronized to PWM controller via optocoupler feedback loop. Use Value: 0.1 µs t_f minimizes dead-time loss and improves regulation at 100–500 kHz switching frequencies.
High-Speed DC-DC Converters	Industrial Power Supplies
Use Scenario: Step-down converter in telecom rectifier modules converting -48 V input to 3.3/5/12 V outputs. IC Role / Device Role / Timing Role: Low-side switch in synchronous buck or quasi-resonant topology with snubberless operation. Use Value: 1.1 W P_C and 150 °C T_j allow compact heatsink-free design at 25 °C ambient with 75% duty cycle.	Use Scenario: Auxiliary power supply for PLC I/O modules requiring 12 V/100 mA isolated output. IC Role / Device Role / Timing Role: Linear regulator pass transistor or switching element in discrete buck-derived architecture. Use Value: Guaranteed SOA up to 3 A pulse current supports inrush limiting and short-circuit foldback protection.

High-Speed High-Voltage Switching

Switching Voltage Regulators

Use Scenario: Controlling 300–400 V DC bus in industrial motor drives and solid-state relays.

IC Role / Device Role / Timing Role: Main switching element in single-ended topologies, driven by isolated gate driver with current-limited base drive.

Use Value: 600 V V_CES withstands transient overvoltages during IGBT/MOSFET replacement in legacy designs.

Use Scenario: Primary-side switch in offline AC-DC flyback converters delivering 10–50 W.

IC Role / Device Role / Timing Role: High-voltage NPN switch synchronized to PWM controller via optocoupler feedback loop.

Use Value: 0.1 µs t_f minimizes dead-time loss and improves regulation at 100–500 kHz switching frequencies.

High-Speed DC-DC Converters

Industrial Power Supplies

Use Scenario: Step-down converter in telecom rectifier modules converting -48 V input to 3.3/5/12 V outputs.

IC Role / Device Role / Timing Role: Low-side switch in synchronous buck or quasi-resonant topology with snubberless operation.

Use Value: 1.1 W P_C and 150 °C T_j allow compact heatsink-free design at 25 °C ambient with 75% duty cycle.

Use Scenario: Auxiliary power supply for PLC I/O modules requiring 12 V/100 mA isolated output.

IC Role / Device Role / Timing Role: Linear regulator pass transistor or switching element in discrete buck-derived architecture.

Use Value: Guaranteed SOA up to 3 A pulse current supports inrush limiting and short-circuit foldback protection.

Equivalent & Alternatives

The following parts are listed as comparable options for similar high-voltage NPN switching transistor applications.

Alternative Part	Technical Difference	Application Difference	Selection Advice
2SC5707	V_CEO = 250 V, V_CES = 500 V, h_FE = 80–160, t_f = 0.15 µs	Lower voltage ratings reduce margin in 400 V systems; slower fall time increases switching loss	Acceptable where 50 V headroom is sufficient and frequency ≤ 200 kHz
BU508AF	V_CEO = 1500 V, V_CES = 1500 V, h_FE = 5–25, t_f = 0.5 µs	Higher voltage but much lower h_FE and slower switching; requires larger base drive and heatsinking	Suitable only when extreme voltage isolation is required and speed is secondary

Compared with 2SC5707 and BU508AF, the TTC008(Q) delivers optimal balance of 600 V blocking, 100–200 h_FE, and 0.1 µs t_f, making it preferred for 100–500 kHz industrial SMPS where both voltage margin and switching efficiency matter.

Availability

TTC008(Q) is available at Aetrix Electronics and suitable for high-voltage switching, DC-DC conversion, and industrial power supply applications requiring stable component supply and long-term manufacturability.

Supply support for TTC008(Q) includes scheduled delivery planning, volume procurement assistance, BOM continuity management, traceable sourcing, and lifecycle availability coordination for OEM customers, industrial embedded developers, connected-device designers, and electronics production programs.

Manufacturer

Toshiba Electronic Devices & Storage Corporation designs and manufactures discrete semiconductors, power devices, and logic ICs with emphasis on reliability and industrial-grade performance.

The TTC008(Q) belongs to Toshiba's high-voltage bipolar transistor product line, engineered specifically for robust switching in offline power supplies and industrial DC-DC converters operating up to 400 V DC bus.

FAQ

What is the maximum continuous collector-emitter voltage rating for TTC008(Q)?

The TTC008(Q) has a maximum continuous collector-emitter voltage rating of V_CEO = 285 V under open-base conditions. This rating is confirmed in the Absolute Maximum Ratings table and applies at T_a = 25 °C with derating above that ambient temperature. Exceeding this voltage risks avalanche breakdown and permanent device failure.

Does TTC008(Q) support high-frequency switching applications?

Yes, the TTC008(Q) supports high-frequency switching with a typical fall time t_f of 0.1 µs and rise time t_r of 0.05 µs. These values enable reliable operation up to 500 kHz in hard-switched topologies. Its triple-diffused structure also enhances secondary breakdown immunity, critical for repetitive high-dV/dt stress in such applications.

What package type is used for TTC008(Q)?

The TTC008(Q) uses the New PW-Mold2 package, designated by Toshiba as 2-7J2S. It is a surface-mount, 3-pin molded plastic package weighing 0.36 g (typical). Pin 1 is Base, Pin 2 is Collector, and Pin 3 is Emitter - verified in the "Packaging and Internal Circuit" section of the official datasheet.

How does the DC current gain (h_FE) of TTC008(Q) vary with collector current?

The TTC008(Q) specifies h_FE = 100–200 at I_C = 0.3 A and V_CE = 5 V. At lower I_C = 1 mA, h_FE is ≥ 80. This gain profile ensures stable base drive design across operating ranges. The h_FE variation is documented in Figure 7.2 (h_FE vs. I_C) of the datasheet, showing monotonic decrease above 0.5 A.

Is TTC008(Q) RoHS compliant?

Yes, the TTC008(Q) is RoHS compliant. Per the marking note in the datasheet, underlined lot numbers indicate [[G]]/RoHS COMPATIBLE or [[G]]/RoHS [[Pb]] status. Toshiba confirms environmental compliance per Directive 2011/65/EU, and RoHS documentation is available through authorized Toshiba sales representatives.

TTC008(Q) Specifications

Product attributes: Attribute value

Manufacturer:: Toshiba Semiconductor and Storage

Series:: -

Package/Case:: TO-251-3 Short Leads, IPAK, TO-251AA

Packaging:: Bulk

Product Status:: Active

Transistor Type:: NPN

Current - Collector (Ic) (Max):: 1.5 A

Voltage - Collector Emitter Breakdown (Max):: 285 V

Vce Saturation (Max) @ Ib, Ic:: 1V @ 62.5mA, 500mA

Current - Collector Cutoff (Max):: 10µA (ICBO)

DC Current Gain (hFE) (Min) @ Ic, Vce:: 80 @ 1mA, 5V

Power - Max:: 1.1 W

Frequency - Transition:: -

Operating Temperature:: 150°C (TJ)

Grade:: -

Qualification:: -

Mounting Type:: Through Hole

Supplier Device Package:: PW-MOLD2
