Texas Instruments UCC20225AQNPLTQ1
- Part No.:
- UCC20225AQNPLTQ1
- Manufacturer:
- Texas Instruments
- Category:
- Isolators - Gate Drivers
- Package:
- 13-VFLGA
- Datasheet:
-
UCC20225AQNPLTQ1.pdf
- Description:
- DGTL ISO 2.5KV 2CH GT DVR 13VLGA
- Quantity:
- Payment:

- Shipping:

Inventory:13,636
Please send an inquiry. Send us your inquiry, and we will respond immediately.
Product details
Overview
UCC20225AQNPLTQ1 from Texas Instruments is an AEC-Q100 Grade 1 qualified isolated dual-channel gate driver in a 5-mm × 5-mm LGA-13 package, designed for automotive 48-V systems. It delivers 4-A peak source and 6-A peak sink output current, features resistor-programmable dead time, and provides 19-ns typical propagation delay with ≤5-ns delay matching - enabling robust half-bridge control in high-efficiency external audio amplifiers and DC-DC converters.
For engineers reviewing the UCC20225AQNPLTQ1 datasheet, UCC20225AQNPLTQ1 pinout, UCC20225AQNPLTQ1 application, or UCC20225AQNPLTQ1 equivalent, key selection criteria include its 5-V UVLO option, 100-V/ns CMTI, functional isolation between output channels (700-VDC working voltage), and compatibility with TTL/CMOS logic interfaces across 3–18-V VCCI.
Technical Context
The UCC20225AQNPLTQ1 integrates a single PWM input with dual complementary outputs (OUTA in-phase, OUTB anti-phase), where dead time is set via external resistor RDT on the DT pin (DT = 10 × RDT in ns). Its galvanic isolation barrier provides 3535-VPK transient withstand per VDE V 0884-11 and 2500-VRMS for 1 minute per UL 1577.
Each output channel operates independently with dedicated VDDA/VSSA and VDDB/VSSB supplies, supporting up to 25-V bias with internal UVLO (5-V rising threshold). The device rejects transients <5 ns and maintains timing integrity under fast common-mode edges due to >100-V/ns CMTI performance.
Key Specifications
| Parameter | Value and Actual Design Meaning |
|---|---|
| VCCI Range | 3 V to 18 V - enables direct interface with analog controllers (e.g., 3.3-V MCU) and digital logic (e.g., 5-V FPGA) without level-shifting. |
| VDDA/VDDB Max | 25 V - supports gate drive for SiC MOSFETs and high-side IGBTs in 48-V automotive power stages. |
| Output Current | 4-A peak source / 6-A peak sink - sufficient to charge/discharge 1-nF gate capacitance at 2.7 MHz with low switching loss. |
| Propagation Delay | 19 ns typical - ensures precise timing alignment in high-frequency synchronous rectification and Class-D amplifier designs. |
| CMTI | >100 V/ns - prevents false triggering during fast dv/dt events in motor drives and bidirectional DC-DC converters. |
| UVLO Threshold | 5.7–6.3 V (rising), 5.4–6.0 V (falling) on VDD - guarantees clean startup/shutdown of gate drive when 48-V bus dips below safe operating range. |
| Isolation Rating | 3535 VPK per VDE V 0884-11 - meets reinforced insulation requirements for functional safety in ASIL-B/C automotive subsystems. |
Pinout & Package

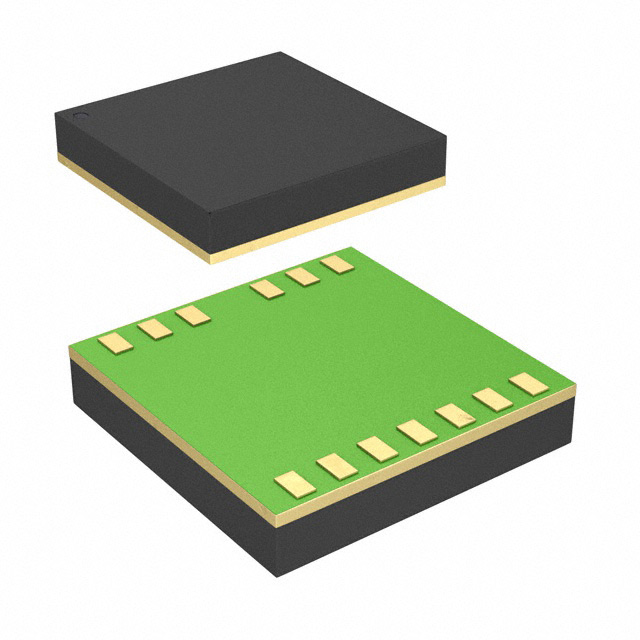

UCC20225AQNPLTQ1 uses a 5-mm × 5-mm LGA-13 package with exposed thermal pad (non-solderable), optimized for high-density automotive PCB layouts and thermal performance in confined enclosures.
| Pin/Terminal | Circuit Role | Design Meaning |
|---|---|---|
| GND (Pin 1) | Primary-side ground reference | Reference for all input-side signals (PWM, DIS, DT); must be low-inductance connection to system GND plane. |
| PWM (Pin 2) | Digital input signal | TTL/CMOS-compatible; internally pulled low if floating - eliminates need for external pull-down in microcontroller interfaces. |
| NC (Pin 3) | No internal connection | Must remain unconnected; no routing or copper pour allowed to avoid parasitic coupling. |
| VCCI (Pin 4) | Input-side supply | Power for logic interface; decoupled locally with 0.1-µF low-ESR ceramic capacitor to GND. |
| DISABLE (Pin 5) | Global shutdown control | Active-high; pulls both outputs low when asserted - used for fault response or sleep mode entry in audio amplifiers. |
| DT (Pin 6) | Dead-time programming | Resistor-to-GND sets dead time (e.g., 20-kΩ → 200 ns); 2.2-nF capacitor recommended for noise immunity. |
| VCCI (Pin 7) | Secondary input supply connection | Internally shorted to Pin 4; bypassing Pin 4 is preferred - reduces loop inductance for stable logic operation. |
| VSSB (Pin 8) | Output B ground reference | Isolated return path for driver B; must be routed separately from VSSA to maintain channel independence. |
| OUTB (Pin 9) | Complementary output | Drives high-side switch in half-bridge; phase-inverted vs. PWM with programmable dead time to prevent shoot-through. |
| VDDB (Pin 10) | Output B supply | Bias for driver B; decoupled to VSSB with 1-µF low-ESR capacitor - critical for maintaining sink strength at high frequency. |
| VSSA (Pin 11) | Output A ground reference | Isolated return for driver A; separation from VSSB enables functional isolation up to 700-VDC differential voltage. |
| OUTA (Pin 12) | In-phase output | Drives low-side switch; matches OUTB timing within 5 ns - essential for minimizing conduction loss in synchronous buck stages. |
| VDDA (Pin 13) | Output A supply | Bias for driver A; independent of VDDB - allows asymmetric rail configurations (e.g., 12 V for low-side, 15 V for high-side). |
Key Features
| Feature | Design Value |
|---|---|
| Single-input, dual-output architecture | Reduces controller GPIO count and simplifies PCB routing in space-constrained automotive ECUs. |
| Resistor-programmable dead time | Enables precise tuning (0–1500 ns) without firmware changes - critical for optimizing efficiency across load and temperature. |
| Functional isolation between outputs | Allows independent VDDA/VSSA and VDDB/VSSB supplies - supports split-rail gate drive and high-side floating operation. |
| 5-mm × 5-mm LGA-13 package | Provides 30% smaller footprint than SOIC-16 alternatives while improving thermal resistance (RθJA = 98 °C/W). |
| AEC-Q100 Grade 1 qualification | Validated for –40°C to +125°C ambient operation - suitable for under-hood applications including 48-V battery management. |
| 2.2-nF DT pin capacitor support | Suppresses EMI-induced glitches on dead-time programming node - improves reliability in noisy automotive environments. |
Applications
| Automotive External Audio Amplifier | 48-V Bidirectional DC-DC Converter |
|---|---|
|
Use Scenario: High-fidelity Class-D amplifier driving 4-Ω speakers in premium vehicle infotainment systems. IC Role / Device Role / Timing Role: Dual-channel gate driver controlling half-bridge MOSFETs with matched propagation delay and programmable dead time to minimize THD+N. Use Value: 4-A/6-A drive strength enables fast gate charging at 500-kHz switching, reducing conduction loss and thermal stress in compact amplifier modules. |
Use Scenario: 3.3-kW bidirectional converter linking 48-V mild-hybrid battery and 12-V legacy system. IC Role / Device Role / Timing Role: Isolated gate driver for synchronous rectification and active clamp circuits, leveraging functional isolation to manage floating high-side switches. Use Value: 700-VDC working voltage across VSSA–VSSB supports 48-V bus transients up to ±100 V without breakdown or timing skew. |
| Electric Power Steering (EPS) Motor Driver | On-Board Charger (OBC) Auxiliary Supply |
|
Use Scenario: Compact 3-phase inverter module for 12-V EPS assist motors requiring ASIL-B compliance. IC Role / Device Role / Timing Role: Gate driver for low-side switches in 3-phase bridge, using DISABLE pin for immediate fault shutdown during torque-limiting events. Use Value: 5-ns delay matching ensures balanced phase currents and minimizes torque ripple at 20-kHz PWM frequencies. |
Use Scenario: Auxiliary 12-V supply derived from OBC's 400-V DC-link using flyback topology with synchronous rectification. IC Role / Device Role / Timing Role: Isolated driver for secondary-side synchronous MOSFET, referenced to floating output ground with independent VSSA/VSSB. Use Value: 100-V/ns CMTI prevents false turn-on during 400-V bus switching transients, eliminating need for snubbers or extra filtering. |
Equivalent & Alternatives
The following parts are listed as comparable options for similar isolated gate driver applications.
| Alternative Part | Technical Difference | Application Difference | Selection Advice |
|---|---|---|---|
| UCC21520QDWQ1 | Dual-input (INA/INB), 4-A/6-A, SOIC-16 package, 8-mm creepage, 5-V UVLO option | Requires separate PWM and complement signals; larger footprint; higher RθJA (105 °C/W) | Preferred when discrete control of each channel is needed or board layout accommodates SOIC-16. |
| Si8273ABD-IS | 4-A/6-A, 5-mm × 5-mm QSOP-16, 3.3–15-V VDD, fixed 100-ns dead time, 5000-VRMS isolation | No resistor-programmable dead time; lower VDD max (15 V); lacks AEC-Q100 Grade 1 certification | Consider only for non-automotive industrial applications where programmable dead time is not required. |
Compared with UCC20225AQNPLTQ1, UCC21520QDWQ1 offers greater control flexibility but sacrifices board area and thermal performance, while Si8273ABD-IS provides higher isolation rating but lacks automotive qualification and adjustable dead time - making UCC20225AQNPLTQ1 optimal for space-constrained, safety-critical 48-V automotive power stages.
Availability
UCC20225AQNPLTQ1 is available at Aetrix Electronics and suitable for automotive external audio amplifiers, 48-V bidirectional DC-DC converters, and electric power steering motor drivers requiring stable component supply with full AEC-Q100 traceability and long-term production support.
Supply support for UCC20225AQNPLTQ1 includes scheduled delivery planning, volume procurement assistance, BOM continuity management, traceable sourcing, and lifecycle availability coordination for OEM customers, industrial embedded developers, connected-device designers, and electronics production programs.
Manufacturer
Texas Instruments is a global semiconductor leader specializing in analog, embedded processing, and power management technologies, with deep expertise in automotive-grade IC design and manufacturing.
The UCC20225AQNPLTQ1 belongs to TI's isolated gate driver product line, engineered specifically for high-reliability 48-V automotive electrification systems - emphasizing low propagation delay, functional isolation, and AEC-Q100 compliance from wafer to package.
FAQ
What is the UVLO threshold for UCC20225AQNPLTQ1 on the VDD pins?
The UCC20225AQNPLTQ1 has a 5-V UVLO option: VDD rising threshold is 5.7–6.3 V, falling threshold is 5.4–6.0 V, with 0.3-V hysteresis. This ensures reliable gate drive enablement only when the 48-V-derived bias rail is within safe operating range, preventing partial turn-on of power FETs. The UVLO behavior is fully characterized across –40°C to +125°C ambient.
How does the DT pin function on UCC20225AQNPLTQ1?
The DT pin on UCC20225AQNPLTQ1 sets dead time by connecting an external resistor RDT to GND: DT (ns) = 10 × RDT (kΩ). For example, a 20-kΩ resistor yields ~200 ns dead time. Tying DT to VCCI disables dead time (~0 ns). A 2.2-nF ceramic capacitor is recommended near DT to suppress noise - a design requirement explicitly stated in the datasheet for automotive EMI robustness.
Does UCC20225AQNPLTQ1 support functional isolation between its two output channels?
Yes, UCC20225AQNPLTQ1 provides functional isolation between OUTA/VDDA/VSSA and OUTB/VDDB/VSSB, allowing up to 700-VDC working voltage across VSSA–VSSB. This is distinct from the main input-to-output isolation barrier and enables independent biasing - critical for high-side gate drive in half-bridge topologies where output grounds float relative to each other.
What is the maximum switching frequency supported by UCC20225AQNPLTQ1?
UCC20225AQNPLTQ1 is characterized for operation up to 5 MHz, with verified timing performance (e.g., 19-ns propagation delay, ≤6-ns pulse-width distortion) at 2.7 MHz in typical 1-nF load conditions. Its 4-A/6-A drive strength and fast rise/fall times (6–16 ns) ensure minimal gate drive loss even at high frequencies used in Class-D audio and high-density DC-DC converters.
Is UCC20225AQNPLTQ1 pin-compatible with UCC20225QNPLTQ1?
No - UCC20225AQNPLTQ1 and UCC20225QNPLTQ1 share identical pinout and package (LGA-13), but differ in VDD UVLO thresholds (5 V vs. 8 V) and associated hysteresis. They are not drop-in replacements; substituting one for the other requires verifying that the bias rail behavior aligns with the selected UVLO profile to avoid unintended shutdown or unreliable startup.
UCC20225AQNPLTQ1 Specifications
- Product attributes
- Attribute value
- Manufacturer:
- Texas Instruments
- Series:
- -
- Package/Case:
- 13-VFLGA
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Last Time Buy
- Technology:
- Capacitive Coupling
- Number of Channels:
- 2
- Voltage - Isolation:
- 2500Vrms
- Common Mode Transient Immunity (Min):
- 100V/ns
- Propagation Delay tpLH / tpHL (Max):
- 30ns, 30ns
- Pulse Width Distortion (Max):
- 6ns
- Rise / Fall Time (Typ):
- 6ns, 7ns
- Current - Output High, Low:
- 4A, 6A
- Current - Peak Output:
- 4A, 6A
- Voltage - Forward (Vf) (Typ):
- -
- Current - DC Forward (If) (Max):
- -
- Voltage - Output Supply:
- 6.5V ~ 25V
- Grade:
- Automotive
- Qualification:
- AEC-Q100
- Operating Temperature:
- -40°C ~ 125°C
- Mounting Type:
- Surface Mount
- Supplier Device Package:
- 13-VLGA (5x5)
- Approval Agency:
- CQC, UL, VDE
