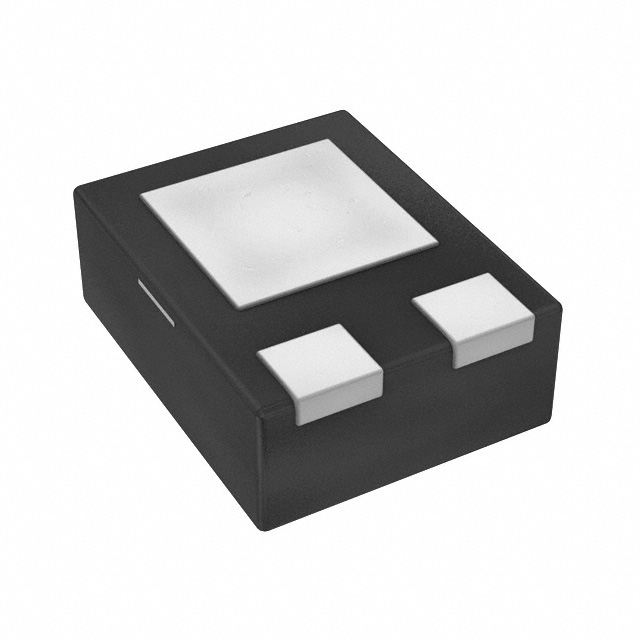

Diodes Incorporated ZXTN619MATA
- Part No.:
- ZXTN619MATA
- Manufacturer:
- Diodes Incorporated
- Category:
- Single Bipolar Transistors
- Package:
- 3-UDFN
- Datasheet:
-
ZXTN619MATA.pdf
- Description:
- TRANS NPN 50V 4A DFN2020B-3
- Quantity:
- Payment:
- Shipping:
Inventory:363,959
Please send an inquiry. Send us your inquiry, and we will respond immediately.
Product details
Overview
ZXTN619MATA from Diodes Incorporated is a 50V NPN low-saturation transistor in U-DFN2020-3 package, designed for high-current switching in power stages. It delivers 4A continuous collector current, achieves ≤100mV VCE(sat) at 1A, exhibits 68mΩ equivalent on-resistance, and maintains hFE ≥200 up to 6A - enabling efficient MOSFET gate driving and DC-DC converter primary-side switching.
For engineers reviewing the ZXTN619MATA datasheet, ZXTN619MATA pinout, ZXTN619MATA application, or ZXTN619MATA equivalent, key selection criteria include its 50V VCEO, 0.6mm profile, 83°C/W RθJA (on 10cm² 1oz Cu), JEDEC-qualified reliability, and automotive-grade Q-suffix variants for AEC-Q101-compliant designs.
Technical Context
This NPN bipolar junction transistor operates as a high-efficiency, low-VCE(sat) switch in saturated mode, with BVCEO = 50V and IC = 4A continuous rating. Its hFE is specified from 10mA to 6A, supporting stable gain across wide load ranges in motor control and charging circuits.
The U-DFN2020-3 (Type B) package integrates an exposed collector pad for thermal conduction, achieving RθJL = 16.8°C/W and 60% lower RθJA than SOT23. ESD ratings meet HBM 4kV, MM 400V, and CDM 1kV per JEDEC standards.
Key Specifications
| Parameter | Value and Actual Design Meaning |
|---|---|
| VCEO | 50V - supports 24V/36V industrial and automotive power rails with margin. |
| IC (continuous) | 4A - enables direct drive of medium-power MOSFET gates or small motors without external buffering. |
| VCE(sat) max | 100mV @ 1A - reduces conduction loss to <100mW, critical for thermally constrained thin applications. |
| RSAT | 68mΩ - quantifies effective on-resistance for loss modeling in switching node calculations. |
| hFE | 200–450 @ IC = 10mA–6A - ensures reliable base drive design across full operating range. |
| fT | 100–165MHz - supports fast switching in DC-DC converters up to ~500kHz with minimal delay. |
| RθJA | 83°C/W (on 10cm² 1oz Cu) - enables 1.5W dissipation at +25°C ambient without forced cooling. |
Pinout & Package
Package: U-DFN2020-3 (Type B), 2.0 × 2.0 × 0.6 mm, exposed collector pad on bottom surface, NiPdAu-plated terminals, moisture sensitivity level 1.
| Pin/Terminal | Circuit Role | Design Meaning |
|---|---|---|
| Pin 1 (Top Marking "SC") | Emitter | Reference terminal for base-emitter bias; connected to ground or low-side return path. |
| Pin 2 | Base | Current-controlled input; requires 200mA drive for 4A collector switching under saturation. |
| Pin 3 (Exposed Pad) | Collector | Primary power terminal and thermal interface; must be soldered to ≥10cm² copper for rated PD. |
Key Features
| Feature | Design Value |
|---|---|
| Low saturation voltage | VCE(sat) ≤100mV @ 1A - cuts conduction loss by >50% vs. standard SOT23 transistors at same current. |
| High current gain at full load | hFE ≥200 @ IC = 6A - allows simplified base drive circuitry without Darlington staging. |
| Thermal efficiency | RθJA = 83°C/W - enables 1.5W operation on minimal PCB copper, reducing heatsink dependency. |
| Space-constrained footprint | 4mm² area, 50% smaller than SOT23 - fits dense power management layouts in portable and automotive ECUs. |
| JEDEC-qualified reliability | Qualified to AEC-Q101 stress test conditions - supports production use in automotive power modules. |
Applications
| MOSFET Gate Driving | DC-DC Converter Switching |
|---|---|
|
Use Scenario: Driving the gate of a 30V/50A N-channel MOSFET in a synchronous buck converter. IC Role / Device Role / Timing Role: High-current NPN switch providing rapid turn-on pulse with low VCE(sat) to minimize Miller plateau time. Use Value: 100mV saturation drop ensures <100mW loss during gate charge, improving efficiency and thermal margin. |
Use Scenario: Low-side switch in 12V-to-5V non-synchronous buck regulator for infotainment subsystems. IC Role / Device Role / Timing Role: Primary power switch handling peak currents up to 4A at 250kHz switching frequency. Use Value: 165MHz fT and 750ns toff support clean transitions with minimal switching loss. |
| Charging Circuit Control | Motor Control Interface |
|
Use Scenario: Enabling/disabling battery charging path in USB-C PD power banks with 20V input. IC Role / Device Role / Timing Role: High-side or low-side enable switch controlling charging FET gate or current sense path. Use Value: 50V VCEO accommodates 20V input with 2.5× safety margin; 4A rating covers 10W+ charging loads. |
Use Scenario: Directional control and current limiting in 24V brushed DC motor drivers for HVAC actuators. IC Role / Device Role / Timing Role: Current-sense amplifier front-end switch or H-bridge half-bridge driver stage. Use Value: Stable hFE up to 6A ensures predictable base drive across motor stall and dynamic load conditions. |
Equivalent & Alternatives
The following parts are listed as comparable options for similar NPN low-saturation transistor applications.
| Alternative Part | Technical Difference | Application Difference | Selection Advice |
|---|---|---|---|
| ZXTN618MATA | VCEO = 40V, VCE(sat) = 120mV @ 1A, hFE = 150–350 @ 6A | Limited to ≤36V systems; higher saturation loss reduces efficiency in high-duty-cycle apps. | Select when 40V rating suffices and cost sensitivity outweighs thermal performance. |
| DMT6009LPS-13 | N-channel MOSFET (60V, 9.5mΩ, SO-8), gate threshold 1–2.5V, no base current required | Zero gate drive current, lower RDS(on), but larger footprint and higher gate charge vs. BJT simplicity. | Prefer for ultra-low-loss, high-frequency (>1MHz) switching where gate drive complexity is acceptable. |
Compared with ZXTN618MATA, ZXTN619MATA offers +10V breakdown margin and 20mV lower VCE(sat); versus DMT6009LPS-13, it provides smaller size and simpler drive but trades off conduction efficiency above 2A.
Availability
ZXTN619MATA is available at Aetrix Electronics and suitable for MOSFET gate driving, DC-DC converters, and motor controls requiring stable component supply, JEDEC-qualified reliability, and compact thermal management.
Supply support for ZXTN619MATA includes scheduled delivery planning, volume procurement assistance, BOM continuity management, traceable sourcing, and lifecycle availability coordination for OEM customers, industrial embedded developers, connected-device designers, and electronics production programs.
Manufacturer
Diodes Incorporated is a global manufacturer of discrete semiconductors and analog ICs, specializing in high-reliability power management, signal integrity, and protection solutions.
ZXTN619MATA belongs to Diodes' ZXT series of low-saturation BJTs, engineered specifically for space- and thermally constrained power switching in automotive, industrial, and portable electronics.
FAQ
What is the maximum safe operating temperature for ZXTN619MATA?
The ZXTN619MATA has a junction temperature limit of +150°C and storage range of −55°C to +150°C. With RθJA = 83°C/W on 10cm² 1oz Cu, it sustains 1.5W dissipation at +25°C ambient. Derating begins linearly above +25°C at 12mW/°C, reaching zero power at +150°C case temperature.
Is ZXTN619MATA suitable for automotive applications?
Yes - the ZXTN619MATA is JEDEC-qualified and compatible with AEC-Q101 stress testing. Diodes offers automotive-grade variants (e.g., ZXTN619MAQ) manufactured in IATF 16949-certified facilities, PPAP-capable, and qualified to AEC-Q101 Rev G for under-hood and body-control module use.
How should the exposed collector pad be soldered for thermal performance?
The exposed collector pad (Pin 3) must be fully soldered to ≥10cm² of 1oz copper on a single-sided FR-4 PCB for rated RθJA = 83°C/W. Use a 2×2 array of thermal vias (0.3mm diameter, 0.6mm pitch) connecting to internal or backside ground planes to improve heat spreading and reduce RθJA to ~51°C/W.
Does ZXTN619MATA require a base resistor, and how is it calculated?
Yes - a base resistor limits IB to prevent overdrive and ensure saturation. For 4A IC and hFE(min) = 200, minimum IB = 20mA. With VBE(sat) ≈ 1.07V and 3.3V logic drive, RB = (3.3V − 1.07V)/20mA = 112Ω. Use 100Ω ±5% for margin, verified via VCE(sat) measurement at full load.
ZXTN619MATA Specifications
