Diodes Incorporated LBS10-13
- Part No.:
- LBS10-13
- Manufacturer:
- Diodes Incorporated
- Category:
- Bridge Rectifiers
- Package:
- 4-SMD, Flat Leads
- Datasheet:
-
LBS10-13.pdf
- Description:
- BRIDGE RECT 1P 1KV 1A TDFN5564-4
- Quantity:
- Payment:

- Shipping:

Inventory:5,986
Please send an inquiry. Send us your inquiry, and we will respond immediately.
Product details
Overview
LBS10-13 from Diodes Incorporated is a surface-mount, glass-passivated bridge rectifier rated for 1000 V peak repetitive reverse voltage, 1.0 A average output current, and 1.1 V maximum forward voltage at 1 A and 25°C. It performs full-wave AC-to-DC rectification in compact power supplies for LED lighting, AC adapters, and battery chargers.
For engineers reviewing the LBS10-13 datasheet, LBS10-13 pinout, LBS10-13 application, or LBS10-13 equivalent, key selection criteria include its T-DFN5564-4 ultra-thin package (1.00 mm typical height), 5 µA max reverse leakage at 1000 V/25°C, thermal resistance of 52 °C/W (junction-to-ambient), and RoHS-compliant lead-free finish.
Technical Context
The LBS10-13 integrates four silicon diodes in a single-phase bridge configuration with glass passivation for enhanced reliability under transient stress. Its T-DFN5564-4 package uses flat leads and a molded green compound rated UL 94V-0, enabling automated SMT assembly without solder wicking concerns.
It supports capacitive-load applications with 20% current derating and withstands non-repetitive surge currents up to 30 A (8.3 ms half-sine). Junction temperature range spans −55°C to +150°C, and total capacitance per element is 7 pF at 4 VDC/1 MHz.
Key Specifications
| Parameter | Value and Actual Design Meaning |
|---|---|
| VRRM | 1000 V - blocks line transients in universal-input (85–265 VAC) SMPS designs |
| IO | 1.0 A - delivers continuous DC output for low-power LED drivers and wall adapters |
| VF Max | 1.1 V @ 1 A, 25°C - limits conduction loss to ≤1.1 W per rectifier leg at full load |
| IR Max | 5 µA @ 1000 V, 25°C - ensures minimal standby power loss in energy-efficient designs |
| RθJA | 52 °C/W - requires minimal PCB copper area for thermal management in space-constrained layouts |
| IFSM | 30 A @ 8.3 ms - survives cold-start inrush into bulk capacitors without failure |
| Package | T-DFN5564-4 - 5.5 × 6.4 mm footprint with 1.00 mm profile, optimized for thin-profile consumer electronics |
Pinout & Package

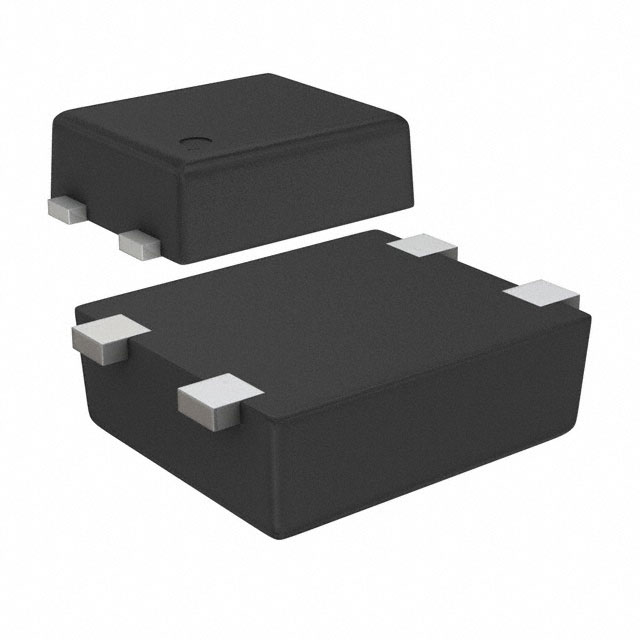

Package: T-DFN5564-4 - flat-lead, ultra-thin plastic package with exposed thermal pad (not electrically connected), UL 94V-0 rated molding compound, and pure tin-plated copper leadframe.
| Pin/Terminal | Circuit Role | Design Meaning |
|---|---|---|
| Pin 1 (AC1) | AC Input Terminal | One AC input node of internal bridge; connects to live/neutral side of transformer secondary |
| Pin 2 (AC2) | AC Input Terminal | Second AC input node; completes full-wave bridge input path with Pin 1 |
| Pin 3 (+) | Positive DC Output | Anode of output leg; delivers rectified positive rail to bulk capacitor or regulator input |
| Pin 4 (–) | Negative DC Output / Common Return | Cathode of output leg; serves as system ground reference and return path for DC load current |
Key Features
| Feature | Design Value |
|---|---|
| Glass passivated die construction | Prevents moisture-induced degradation and improves long-term reliability in humid environments |
| Ultra-thin 1.00 mm profile | Enables integration into slim LED drivers and portable charging devices where Z-height is constrained |
| Lead-free, halogen- and antimony-free "Green" compound | Meets global environmental compliance (RoHS 2, JEDEC J-STD-020 Level 1) without compromising flammability rating (UL 94V-0) |
| Low forward voltage drop | Reduces conduction losses by ≥15% vs. standard epoxy-passivated bridges at 1 A, improving efficiency in 5–12 W adapters |
| Flat lead geometry | Eliminates solder bridging risk during reflow and supports high-yield automated placement on fine-pitch PCBs |
Applications
| LED Lighting Power Supply | USB Wall Adapter |
|---|---|
Use Scenario: AC input rectification in isolated flyback converters powering GU10 or PAR30 LED lamps. IC Role / Device Role / Timing Role: Bridge rectifier converting 120/230 VAC to pulsating DC before transformer primary winding. Use Value: 1000 V VRRM withstands line surges; 1.00 mm height fits within 12 mm lamp housing depth constraints. | Use Scenario: Full-wave rectification stage in 5 V/1 A USB charger with integrated PWM controller. IC Role / Device Role / Timing Role: Primary-side AC/DC conversion delivering bulk DC to controller IC and optocoupler feedback circuit. Use Value: 5 µA max reverse leakage minimizes no-load power draw below 30 mW, meeting DOE Level VI requirements. |
| Battery Charger for Portable Tools | Office Equipment Power Module |
Use Scenario: Input rectification in 19 V/2 A Li-ion charger for cordless drill packs. IC Role / Device Role / Timing Role: Converts transformer secondary AC to unregulated DC bus feeding synchronous buck converter. Use Value: 30 A IFSM rating handles repeated inrush into large electrolytic banks during hot-plug events. | Use Scenario: AC/DC front-end in multifunction printer power supply with multiple isolated rails. IC Role / Device Role / Timing Role: Provides main DC bus for PFC stage and auxiliary bias supplies. Use Value: Glass passivation ensures stable performance over 10-year service life in continuously operating office environments. |
Equivalent & Alternatives
The following parts are listed as comparable options for similar bridge rectifier applications.
| Alternative Part | Technical Difference | Application Difference | Selection Advice |
|---|---|---|---|
| GBU4K (ON Semiconductor) | Through-hole GBU package; 1.0 A, 400 V VRRM; higher VF (1.1 V typ) | Not suitable for universal-input 230 VAC systems due to lower 400 V rating | Select only for cost-sensitive, low-voltage (<250 VAC RMS), non-SMT designs requiring legacy through-hole assembly |
| MB10F (Diotec) | SMD MBF package; 1.0 A, 1000 V VRRM; 1.05 V VF max; 1.2 mm height | Higher profile increases Z-height by 0.2 mm, limiting use in ultra-thin LED modules | Choose when board-level thermal relief is prioritized over height, as MB10F offers lower RθJA (45 °C/W) |
Compared with GBU4K and MB10F, the LBS10-13 uniquely combines 1000 V rating, 1.00 mm profile, and glass passivation-enabling reliable, space-optimized rectification in modern slim-profile AC/DC converters where both surge immunity and mechanical fit are critical.
Availability
LBS10-13 is available at Aetrix Electronics and suitable for LED lighting power supplies, USB wall adapters, and battery chargers requiring stable component supply across production lifecycles.
Supply support for LBS10-13 includes scheduled delivery planning, volume procurement assistance, BOM continuity management, traceable sourcing, and lifecycle availability coordination for OEM customers, industrial embedded developers, connected-device designers, and electronics production programs.
Manufacturer
Diodes Incorporated is a global manufacturer of discrete semiconductors and analog ICs, headquartered in Plano, Texas, with design and manufacturing operations across Asia and the US.
The LBS10-13 belongs to Diodes' surface-mount bridge rectifier product line, engineered specifically for high-reliability, space-constrained AC/DC conversion in consumer and industrial power supplies.
FAQ
What is the thermal resistance junction-to-ambient for LBS10-13?
The LBS10-13 has a specified RθJA of 52 °C/W when mounted on a standard FR-4 PCB without additional copper pour. This value assumes natural convection cooling and reflects the device's ability to dissipate heat in typical SMT layouts used in LED drivers and adapters.
Does LBS10-13 require heatsinking in 1 A continuous operation?
No external heatsink is required at 1 A and 25°C ambient if the PCB provides ≥1 cm² of 1-oz copper connected to pins 3 and 4. At 60°C ambient, derating to 0.75 A is recommended per the forward current derating curve in the datasheet.
Is the T-DFN5564-4 package compatible with standard reflow profiles?
Yes-the LBS10-13 meets JEDEC J-STD-020 moisture sensitivity level 1 and is qualified for standard lead-free reflow profiles (peak 260°C, 60 seconds max above 217°C), with no pre-bake required prior to assembly.
Can LBS10-13 be used in automotive body electronics?
While rated for −55°C to +150°C junction temperature, the LBS10-13 is not AEC-Q200 qualified and lacks automotive-specific qualification testing (e.g., vibration, extended temperature cycling). It is intended for commercial/industrial applications only.
LBS10-13 Specifications
- Product attributes
- Attribute value
- Manufacturer:
- Diodes Incorporated
- Series:
- -
- Package/Case:
- 4-SMD, Flat Leads
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Active
- Diode Type:
- Single Phase
- Technology:
- Standard
- Voltage - Peak Reverse (Max):
- 1 kV
- Current - Average Rectified (Io):
- 1 A
- Voltage - Forward (Vf) (Max) @ If:
- 1.1 V @ 1 A
- Current - Reverse Leakage @ Vr:
- 5 µA @ 1000 V
- Operating Temperature:
- -55°C ~ 150°C (TJ)
- Grade:
- -
- Qualification:
- -
- Mounting Type:
- Surface Mount
- Supplier Device Package:
- T-DFN5564-4
LBS10-13 FAQ
1.How can I place an order for LBS10-13 through Aetrix?
Please submit a Request for Quotation (RFQ) for LBS10-13 on Aetrix. Our sales agent will provide a competitive quotation and guide you through the order confirmation once you accept the terms.
2.Are the price and stock information for LBS10-13 reliable?
The price and inventory of LBS10-13 are updated periodically and may fluctuate due to market conditions. Stock and pricing data are typically refreshed every 24 hours. Quotation validity for LBS10-13 is usually 5 days.
3.What payment methods are accepted for LBS10-13?
We accept Wire Transfer, PayPal, Credit Card, Western Union, MoneyGram, and Escrow for LBS10-13 transactions.
Note: Certain payment methods may incur a processing fee.
4.How is shipping managed for LBS10-13?
LBS10-13 orders can be shipped via leading logistics carriers, including DHL, UPS, FedEx, TNT, or Registered Mail.
Once your LBS10-13 order is processed, you will receive an email with the shipment details and tracking number.
Note: Tracking information may take up to 24 hours to appear. Express delivery typically takes 3–5 business days.
5.How can I obtain technical support or documentation for LBS10-13?
For technical support, including LBS10-13 datasheets, pinout diagrams, or application guidance, please contact our engineering support team. They can provide detailed documentation and assistance for your LBS10-13 requirements.
6.How does Aetrix verify that LBS10-13 is sourced from the original manufacturer or authorized distributors?
All LBS10-13 products on Aetrix are procured from qualified distributors and authorized channels. Our dedicated quality assurance team conducts strict verification, including traceability checks and, if necessary, third-party testing. This ensures that LBS10-13 meets industry standards.
7.What is the process for return or replacement of LBS10-13?
All LBS10-13 units undergo pre-shipment inspection (PSI). If there is an issue with LBS10-13, returns or replacements are accepted under the following conditions:
1.Quantity discrepancies, incorrect items, or visible external defects (such as breakage or corrosion), acknowledged by Aetrix.
2.The issue is reported within 90 days of delivery.
3.The LBS10-13 part is unused and in its original packaging.
Return procedure for LBS10-13:
1.Submit a request within 90 days.
2.Obtain a Return Material Authorization (RMA) from Aetrix.
