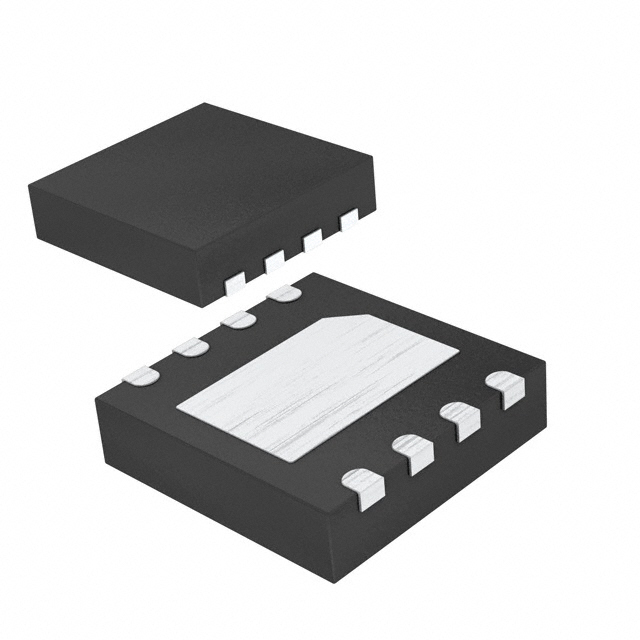

Analog Devices Inc./Maxim Integrated MAX14586ETA+T
- Part No.:
- MAX14586ETA+T
- Manufacturer:
- Analog Devices Inc./Maxim Integrated
- Category:
- Surge Suppression Ics
- Package:
- 8-WFDFN Exposed Pad
- Datasheet:
-
MAX14586ETA+T.pdf
- Description:
- IC ADJ OV/OC PROTECTOR TDFN
- Quantity:
- Payment:

- Shipping:

Inventory:1,467
Please send an inquiry. Send us your inquiry, and we will respond immediately.
Product details
Overview
MAX14586ETA+T from Maxim Integrated is a high-current overvoltage protector IC featuring an integrated 48mΩ (typ) n-channel MOSFET switch, adjustable OVLO threshold from 4V to 20V, and fixed 7V ±2.9% internal trip level. It delivers 3A continuous current protection for low-voltage systems up to +36V input, with thermal shutdown and soft-start, widely used in smartphone power rails.
For engineers reviewing the MAX14586ETA+T datasheet, MAX14586ETA+T pinout, MAX14586ETA+T application, or MAX14586ETA+T equivalent, key selection factors include its 8-pin TDFN package, 15ms startup debounce, 7V internal OVLO accuracy, and compatibility with Li-ion battery charging paths requiring robust fault isolation.
Technical Context
The MAX14586ETA+T implements a charge-pump–driven internal FET with precise voltage-sensing logic that enforces 15ms input debounce before enabling soft-start. Its OVLO comparator selects between internal 7V reference and external resistor-divider–set thresholds based on OVLO pin voltage relative to 0.35V select threshold.
Thermal shutdown activates at +150°C junction temperature with 20°C hysteresis, and the device maintains stable operation across -40°C to +85°C ambient while supporting up to 1000µF output capacitance without overcurrent latch-up during turn-on.
Key Specifications
| Parameter | Value and Actual Design Meaning |
|---|---|
| OVLO Threshold | 7V ±2.9% (internal fixed); enables reliable cutoff before PMIC damage in 5V rail systems |
| Continuous Current | 3A (thermal-limited); supports high-power USB charging and fast-charge battery inputs |
| On-Resistance | 48mΩ (typ at +25°C); minimizes voltage drop and power loss in 3A load paths |
| Debounce Time | 15ms (typ); prevents false triggering during adapter plug-in transients |
| Soft-Start Time | 15ms (typ); limits in-rush current into large output capacitors (up to 1000µF) |
| Operating Temp | -40°C to +85°C; qualified for mobile device internal environments with thermal cycling |
| Junction Temp Limit | +150°C with 20°C hysteresis; ensures automatic recovery after transient overload events |
Pinout & Package
MAX14586ETA+T uses an 8-pin TDFN-EP (2mm × 2mm) package with exposed pad for thermal dissipation. Pins 1–2 are paralleled IN inputs; pins 7–8 are paralleled OUT outputs; pin 6 is GND; pin 3 is OVLO control; pins 4–5 are internally connected (I.C.) and must be tied to GND or left floating.
| Pin/Terminal | Circuit Role | Design Meaning |
|---|---|---|
| 1, 2 IN | Voltage Input | Parallel input terminals accepting +2.2V to +36V; require 1µF ceramic bypass for 15kV HBM ESD protection |
| 3 OVLO | Overvoltage Threshold Select | Determines trip source: grounded → internal 7V; >0.35V → external resistor-divider setpoint |
| 4, 5 I.C. | Internally Connected | No external connection required; tie to GND or leave unconnected per layout best practice |
| 6 GND | Ground Reference | Main signal and power return; connects to exposed pad for thermal conduction |
| 7, 8 OUT | Voltage Output | Parallel output terminals delivering protected power to downstream PMIC or battery charger |
Key Features
| Feature | Design Value |
|---|---|
| Adjustable OVLO Range | 4V–20V via external resistor divider - enables reuse across multiple input voltage platforms (e.g., 5V/9V/12V adapters) |
| Integrated Soft-Start | 15ms controlled ramp - eliminates in-rush current spikes into large output caps without external circuitry |
| Thermal Shutdown Recovery | +150°C trip with 20°C hysteresis - provides autonomous fault recovery after brief overloads |
| Low RON MOSFET | 48mΩ typical - reduces conduction loss to <150mW at 3A, easing thermal design in compact layouts |
| ESD Robustness | ±15kV HBM on IN (with 1µF bypass) - meets IEC 61000-4-2 Level 4 system-level surge immunity requirements |
Applications
| Smartphone Charging Interface | Tablet PC Power Input Protection |
|---|---|
Use Scenario: USB-C PD adapter input to smartphone PMIC with Li-ion battery charging path. IC Role / Device Role / Timing Role: Primary overvoltage guard between adapter and PMIC; blocks >7V faults within 3.5µs (tOFF) to prevent PMIC latch-up. Use Value: Eliminates need for discrete TVS + MOSFET solution, reducing BOM count by 3 components and PCB area by >30%. | Use Scenario: 12V wall adapter powering tablet main SoC rail through buck converter. IC Role / Device Role / Timing Role: High-current front-end protector with 3A continuous rating and 1000µF soft-start capability. Use Value: Enables direct use of cost-effective 12V adapters without risk of overvoltage damage during hot-plug events. |
| Mobile Internet Device USB OTG Port | Portable Medical Monitor Power Input |
Use Scenario: USB OTG port supplying power to peripherals where host VBUS may exceed specification. IC Role / Device Role / Timing Role: Bidirectional fault isolator; blocks reverse overvoltage from misbehaving peripherals back into system rail. Use Value: Prevents system reset or brownout during peripheral hot-swap by limiting fault propagation to local port only. | Use Scenario: AC/DC adapter input to critical-care monitor with strict uptime and safety certification requirements. IC Role / Device Role / Timing Role: Redundant overvoltage barrier with thermal shutdown and hysteresis for fail-safe behavior under sustained overload. Use Value: Meets IEC 60601-1 creepage/clearance and fault-tolerance requirements without additional supervision circuitry. |
Equivalent & Alternatives
The following parts are listed as comparable options for similar overvoltage protection applications.
| Alternative Part | Technical Difference | Application Difference | Selection Advice |
|---|---|---|---|
| TPD3S014RTER | Lower 2.5A current rating; integrated ESD clamps but no adjustable OVLO; 5-pin SOT-23 | Targeted at USB data-line + power protection; lacks high-current switching capability | Select when ESD + OVLO co-integration on data lines is prioritized over 3A power-path protection |
| LT4363IMS-2#PBF | Higher 60V abs max; 4A rating; external MOSFET drive; requires gate resistor tuning | Used in industrial 24V/48V systems; not optimized for space-constrained mobile designs | Select when wide input range (>36V) and field-serviceable MOSFET replacement are required |
Compared with TPD3S014RTER and LT4363IMS-2#PBF, the MAX14586ETA+T uniquely balances 3A current handling, 7V precision OVLO, and 2mm×2mm footprint-making it optimal for consumer portable devices where board space, accuracy, and integration density are critical.
Availability
MAX14586ETA+T is available at Aetrix Electronics and suitable for smartphone charging interfaces, tablet PC power input protection, and portable medical monitor power inputs requiring stable component supply and RoHS-compliant packaging.
Supply support for MAX14586ETA+T includes scheduled delivery planning, volume procurement assistance, BOM continuity management, traceable sourcing, and lifecycle availability coordination for OEM customers, industrial embedded developers, connected-device designers, and electronics production programs.
Manufacturer
Maxim Integrated (now part of Analog Devices) designs precision analog, mixed-signal, and power management ICs for demanding performance and reliability in constrained environments.
The MAX14586ETA+T belongs to Maxim's overvoltage protection product line, engineered specifically for high-current, space-sensitive mobile power architectures requiring accurate, self-contained fault isolation without external FETs or controllers.
FAQ
What is the exact overvoltage trip threshold of MAX14586ETA+T?
The MAX14586ETA+T has a factory-trimmed internal overvoltage lockout (OVLO) threshold of 7V ±2.9%, measured at the IN pin. This value is guaranteed across -40°C to +85°C and applies when the OVLO pin is grounded. The MAX14586ETA+T does not default to the MAX14590's 15V threshold - the part number suffix '86' explicitly denotes the 7V variant.
Can MAX14586ETA+T support 1000µF output capacitance without tripping on in-rush current?
Yes. The MAX14586ETA+T incorporates a 15ms soft-start function that linearly ramps the output voltage, enabling safe charging of up to 1000µF output capacitance without triggering overcurrent protection. This behavior is verified in the datasheet's Typical Operating Characteristics (Figure MAX14586 toc08) and eliminates need for external in-rush limiters.
What is the recommended IN bypass capacitor for MAX14586ETA+T?
A 1µF ceramic capacitor placed as close as possible to the MAX14586ETA+T IN pins (pins 1 and 2) is required to achieve ±15kV Human Body Model (HBM) ESD protection. Without this capacitor, IN ESD rating drops significantly. The capacitor must connect directly between IN and GND, with minimal trace length and loop area.
Does MAX14586ETA+T require external components to operate at its internal 7V OVLO setting?
No. To use the internal 7V OVLO threshold, simply connect the OVLO pin (pin 3) directly to GND. No resistors, dividers, or additional passive components are needed. The MAX14586ETA+T automatically disables the external threshold detection circuitry when OVLO ≤ 0.25V, ensuring deterministic 7V trip behavior.
What thermal derating applies to MAX14586ETA+T at elevated ambient temperatures?
The MAX14586ETA+T has a junction-to-ambient thermal resistance (θJA) of 83.9°C/W. At ambient temperatures above +70°C, power dissipation must be derated at 11.9mW/°C. For example, at +85°C ambient, maximum allowable continuous power dissipation drops to 954mW − (15°C × 11.9mW/°C) = 775.5mW - corresponding to ~3.9A at 48mΩ RON.
MAX14586ETA+T Specifications
- Product attributes
- Attribute value
- Manufacturer:
- Analog Devices Inc./Maxim Integrated
- Package/Case:
- 8-WFDFN Exposed Pad
- Series:
- *
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Active
- Voltage - Clamping:
- -
- Technology:
- Internal Switch
- Number of Circuits:
- 1
- Applications:
- Portable Equipment
- Grade:
- -
- Qualification:
- -
- Mounting Type:
- Surface Mount
- Supplier Device Package:
- 8-TDFN-EP (2x2)
MAX14586ETA+T FAQ
1.How can I place an order for MAX14586ETA+T through Aetrix?
Please submit a Request for Quotation (RFQ) for MAX14586ETA+T on Aetrix. Our sales agent will provide a competitive quotation and guide you through the order confirmation once you accept the terms.
2.Are the price and stock information for MAX14586ETA+T reliable?
The price and inventory of MAX14586ETA+T are updated periodically and may fluctuate due to market conditions. Stock and pricing data are typically refreshed every 24 hours. Quotation validity for MAX14586ETA+T is usually 5 days.
3.What payment methods are accepted for MAX14586ETA+T?
We accept Wire Transfer, PayPal, Credit Card, Western Union, MoneyGram, and Escrow for MAX14586ETA+T transactions.
Note: Certain payment methods may incur a processing fee.
4.How is shipping managed for MAX14586ETA+T?
MAX14586ETA+T orders can be shipped via leading logistics carriers, including DHL, UPS, FedEx, TNT, or Registered Mail.
Once your MAX14586ETA+T order is processed, you will receive an email with the shipment details and tracking number.
Note: Tracking information may take up to 24 hours to appear. Express delivery typically takes 3–5 business days.
5.How can I obtain technical support or documentation for MAX14586ETA+T?
For technical support, including MAX14586ETA+T datasheets, pinout diagrams, or application guidance, please contact our engineering support team. They can provide detailed documentation and assistance for your MAX14586ETA+T requirements.
6.How does Aetrix verify that MAX14586ETA+T is sourced from the original manufacturer or authorized distributors?
All MAX14586ETA+T products on Aetrix are procured from qualified distributors and authorized channels. Our dedicated quality assurance team conducts strict verification, including traceability checks and, if necessary, third-party testing. This ensures that MAX14586ETA+T meets industry standards.
7.What is the process for return or replacement of MAX14586ETA+T?
All MAX14586ETA+T units undergo pre-shipment inspection (PSI). If there is an issue with MAX14586ETA+T, returns or replacements are accepted under the following conditions:
1.Quantity discrepancies, incorrect items, or visible external defects (such as breakage or corrosion), acknowledged by Aetrix.
2.The issue is reported within 90 days of delivery.
3.The MAX14586ETA+T part is unused and in its original packaging.
Return procedure for MAX14586ETA+T:
1.Submit a request within 90 days.
2.Obtain a Return Material Authorization (RMA) from Aetrix.
