Vishay General Semiconductor - Diodes Division P6SMB200A-E3/52
- Part No.:
- P6SMB200A-E3/52
- Manufacturer:
- Vishay General Semiconductor - Diodes Division
- Category:
- TVS Diodes
- Package:
- DO-214AA, SMB
- Datasheet:
-
P6SMB200A-E3/52.pdf
- Description:
- TVS DIODE 171VWM 274VC DO214AA
- Quantity:
- Payment:
- Shipping:
Inventory:2,298
Please send an inquiry. Send us your inquiry, and we will respond immediately.
Product details
Overview
P6SMB200A-E3/52 from Vishay General Semiconductor is a unidirectional surface-mount Transient Voltage Suppressor (TVS) diode in the SMB (DO-214AA) package, rated for 200 V standoff voltage (VWM), 210 V minimum breakdown voltage (VBR), and 274 V maximum clamping voltage (VC) at 2.2 A peak pulse current (IPPM). It delivers 600 W peak pulse power with a 10/1000 µs waveform and is designed for overvoltage protection of MOSFETs, ICs, and sensor signal lines in industrial and telecom systems.
For engineers reviewing the P6SMB200A-E3/52 datasheet, P6SMB200A-E3/52 pinout, P6SMB200A-E3/52 application, or P6SMB200A-E3/52 equivalent, this device serves as a RoHS-compliant, commercial-grade transient suppressor with verified clamping performance, low incremental surge resistance, and MSL Level 1 moisture sensitivity - critical for automated SMT assembly and high-reliability board-level ESD/surge protection.
Technical Context
The P6SMB200A-E3/52 operates as a unidirectional avalanche diode, conducting only when reverse voltage exceeds its 210 V minimum breakdown threshold (IT = 1 mA), with cathode polarity marked by a band. Its 274 V clamping voltage at 2.2 A ensures predictable voltage limiting during transients induced by inductive switching or lightning surges.
Thermally, it features a junction-to-ambient thermal resistance (RθJA) of 100 °C/W on standard 0.2" × 0.2" copper pads and supports continuous power dissipation up to 5.0 W at 50 °C ambient. It is rated for operation from −65 °C to +150 °C and meets JESD201 Class 2 whisker resistance.
Key Specifications
| Parameter | Value and Actual Design Meaning |
|---|---|
| VWM (Stand-off Voltage) | 171 V - Maximum continuous reverse operating voltage before significant leakage; defines safe working margin below breakdown. |
| VBR (Breakdown Voltage) | 190–210 V at IT = 1 mA - Confirmed avalanche conduction onset; ensures reliable triggering above system nominal voltage. |
| VC (Clamping Voltage) | 274 V at IPPM = 2.2 A - Peak voltage seen by protected circuit during 10/1000 µs surge; determines downstream component stress. |
| PPPM (Peak Pulse Power) | 600 W - Sustained transient energy handling capability under standardized 10/1000 µs waveform at 0.01% duty cycle. |
| IPPM (Peak Pulse Current) | 2.2 A - Maximum non-repetitive surge current the device safely clamps without degradation. |
| RθJA | 100 °C/W - Thermal resistance defining junction temperature rise per watt on recommended PCB pad layout (0.2" × 0.2"). |
| Package | SMB (DO-214AA) - Low-profile SMT package with matte tin-plated leads, compatible with J-STD-002 soldering standards. |
Pinout & Package

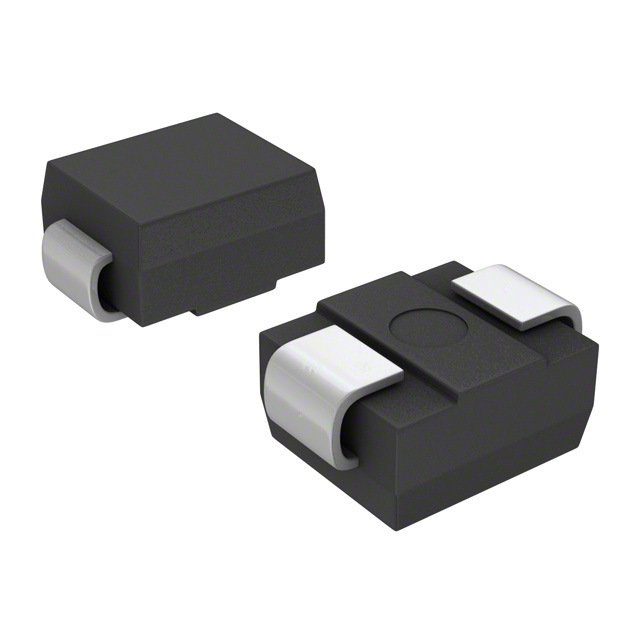

SMB (DO-214AA) surface-mount package with cathode indicated by a molded band; terminals are matte tin-plated for compatibility with lead-free reflow processes. Mounting requires 0.2" × 0.2" (5.0 mm × 5.0 mm) copper pads per terminal per Vishay specification.
| Pin/Terminal | Circuit Role | Design Meaning |
|---|---|---|
| Anode | Forward current entry / Reverse voltage reference | Connected to system ground or lower-potential node; defines polarity for unidirectional clamping. |
| Cathode | Avalanche conduction terminal | Marked with band; connected to line being protected; conducts reverse surge current to ground when VRM exceeded. |
Key Features
| Feature | Design Value |
|---|---|
| 600 W peak pulse power (10/1000 µs) | Enables robust protection against IEC 61000-4-5 Level 3/4 surges without derating in standard layouts. |
| 274 V clamping at 2.2 A | Provides defined overvoltage ceiling for 200 V nominal bus systems, safeguarding 300 V-rated downstream components. |
| MSL Level 1 (260 °C peak) | Supports single-pass lead-free reflow without baking, reducing manufacturing complexity and cost. |
| Glass passivated junction | Ensures stable leakage (<1 µA at 171 V) and long-term reliability under thermal cycling and humidity exposure. |
| Low incremental surge resistance | Minimizes VC overshoot during fast-rising transients, improving protection fidelity for sensitive analog interfaces. |
Applications
| Industrial Motor Drives | Telecom Power Interfaces |
|---|---|
|
Use Scenario: Protection of gate drivers and bus sensing circuits against inductive kickback from 200 V DC motor windings. IC Role / Device Role / Timing Role: Unidirectional TVS placed across DC bus or between gate and source to clamp voltage spikes before they reach MOSFETs or op-amps. Use Value: Limits transient excursions to ≤274 V, preventing gate oxide rupture and maintaining functional safety during rapid load disconnection. |
Use Scenario: Surge suppression on −48 V telecom power feed lines exposed to lightning-induced surges per IEC 61000-4-5. IC Role / Device Role / Timing Role: Primary-line TVS connected anode-to-ground, clamping common-mode transients on power input before DC/DC converters. Use Value: Withstands 2.2 A 10/1000 µs pulses while holding clamped voltage below 274 V, preserving upstream rectifier and controller integrity. |
| Automotive Body Control Modules | Industrial Sensor Signal Conditioning |
|
Use Scenario: Protection of LIN bus transceivers and microcontroller I/O pins against load dump and ISO 7637-2 pulse 5a transients. IC Role / Device Role / Timing Role: Secondary-level TVS on supply rails and communication lines, supplementing primary protection with precise 200 V standoff matching system voltage. Use Value: 171 V VWM provides 20% margin above 14 V nominal + 100% load dump, enabling selective clamping without false triggering. |
Use Scenario: Guarding 4–20 mA current loop inputs and analog sensor outputs (e.g., pressure, temperature) in factory automation PLCs. IC Role / Device Role / Timing Role: Low-capacitance unidirectional suppressor placed at connector interface to shunt ESD and fast transients before signal conditioning amplifiers. Use Value: Clamps sub-100 ns ESD events to <274 V with minimal signal distortion, preserving measurement accuracy and ADC linearity. |
Equivalent & Alternatives
The following parts are listed as comparable options for similar transient voltage suppression applications.
| Alternative Part | Technical Difference | Application Difference | Selection Advice |
|---|---|---|---|
| SMAJ200A-E3/52 | Same VWM/VBR/VC ratings but in SMA (DO-214AC) package; 10% smaller footprint, higher RθJA (140 °C/W). | Limited to lower-power or space-constrained designs where thermal margin allows reduced pad area. | Select when board real estate is critical and peak surge duty is infrequent; verify thermal performance with actual layout. |
| 1.5SMC200A | Same electrical specs but in larger SMC (DO-214AB) package; lower RθJA (60 °C/W), higher IFSM (200 A). | Better suited for high-repetition surge environments or systems requiring higher forward surge immunity. | Choose for industrial power supplies or automotive ECUs needing enhanced thermal robustness and surge endurance beyond SMB limits. |
Compared with P6SMB200A-E3/52, SMAJ200A-E3/52 trades thermal performance for compactness, while 1.5SMC200A offers superior heat dissipation and surge current capacity at the cost of board area - making P6SMB200A-E3/52 the balanced choice for mainstream SMT designs requiring proven manufacturability and mid-tier surge handling.
Availability
P6SMB200A-E3/52 is available at Aetrix Electronics and suitable for industrial motor drives, telecom power interfaces, automotive body control modules, and industrial sensor signal conditioning requiring stable component supply and RoHS-compliant SMT assembly.
Supply support for P6SMB200A-E3/52 includes scheduled delivery planning, volume procurement assistance, BOM continuity management, traceable sourcing, and lifecycle availability coordination for OEM customers, industrial embedded developers, connected-device designers, and electronics production programs.
Manufacturer
Vishay General Semiconductor is a global leader in discrete semiconductors, specializing in diodes, rectifiers, and protection devices with emphasis on reliability, precision, and high-volume manufacturability.
The P6SMB Series is engineered for board-level transient suppression in commercial and industrial applications, balancing high pulse power, tight parameter tolerances, and automated assembly readiness.
FAQ
What is the clamping voltage of the P6SMB200A-E3/52 under a 10/1000 µs surge?
The P6SMB200A-E3/52 has a maximum clamping voltage (VC) of 274 V at a peak pulse current (IPPM) of 2.2 A with a 10/1000 µs waveform. This value is measured per Figure 1 in the Vishay datasheet 88370 and defines the upper voltage limit imposed on protected circuitry during standardized surge events. The P6SMB200A-E3/52 maintains this clamping performance across its specified operating temperature range.
Is the P6SMB200A-E3/52 RoHS-compliant and halogen-free?
Yes, the P6SMB200A-E3/52 carries the "E3" suffix, indicating full RoHS compliance per EU Directive 2011/65/EU and exemption 7a. It is not halogen-free; for halogen-free compliance, the "M3" variant (e.g., P6SMB200A-M3/52) must be selected. Both variants meet JESD201 Class 2 whisker resistance and J-STD-002 solderability requirements.
What is the thermal resistance of the P6SMB200A-E3/52, and how does it affect layout?
The P6SMB200A-E3/52 has a typical junction-to-ambient thermal resistance (RθJA) of 100 °C/W when mounted on 0.2" × 0.2" (5.0 mm × 5.0 mm) copper pads per terminal. This value assumes the recommended pad layout from Vishay's datasheet 88370. Deviating from this layout increases junction temperature, potentially derating surge capability or accelerating parametric drift - so the P6SMB200A-E3/52 must be placed per the specified footprint for rated performance.
Does the P6SMB200A-E3/52 have AEC-Q101 qualification?
No, the P6SMB200A-E3/52 is a commercial-grade part. AEC-Q101 qualified versions exist in the P6SMB family but use different suffixes: "HE3" (e.g., P6SMB200AHE3_B/H) denotes RoHS-compliant AEC-Q101 qualification, while "HM3" adds halogen-free compliance. The P6SMB200A-E3/52 lacks automotive qualification and is intended for industrial, telecom, and consumer applications.
How does the P6SMB200A-E3/52 differ from bidirectional variants like P6SMB200CA?
The P6SMB200A-E3/52 is unidirectional, with polarity marked by a cathode band and intended for DC line protection where directionality is known. In contrast, P6SMB200CA is bidirectional, symmetrical in both directions, and used in AC-coupled or floating signal paths. Their VWM and VBR differ: P6SMB200A-E3/52 specifies 171 V VWM, while P6SMB200CA has 171 V VWM per polarity - meaning the P6SMB200A-E3/52 cannot substitute directly in AC applications without circuit redesign.
P6SMB200A-E3/52 Specifications
- Product attributes
- Attribute value
- Manufacturer:
- Vishay General Semiconductor - Diodes Division
- Package/Case:
- DO-214AA, SMB
- Series:
- P6SMB, TransZorb®
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Active
- Type:
- Zener
- Unidirectional Channels:
- 1
- Bidirectional Channels:
- -
- Voltage - Reverse Standoff (Typ):
- 171V
- Voltage - Breakdown (Min):
- 190V
- Voltage - Clamping (Max) @ Ipp:
- 274V
- Current - Peak Pulse (10/1000µs):
- 2.2A
- Power - Peak Pulse:
- 600W
- Power Line Protection:
- No
- Applications:
- General Purpose
- Capacitance @ Frequency:
- -
- Operating Temperature:
- -65°C ~ 150°C (TJ)
- Grade:
- -
- Qualification:
- -
- Mounting Type:
- Surface Mount
- Supplier Device Package:
- DO-214AA (SMB)
