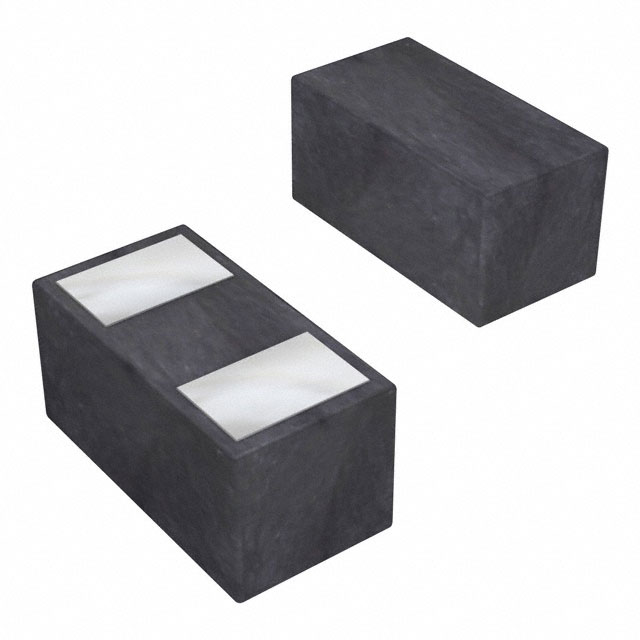

Semtech Corporation RCLAMP0561Z.TNT
- Part No.:
- RCLAMP0561Z.TNT
- Manufacturer:
- Semtech Corporation
- Category:
- TVS Diodes
- Package:
- 0201 (0603 Metric)
- Datasheet:
-
RCLAMP0561Z.TNT.pdf
- Description:
- TVS DIODE 5.5VWM 20V SGP0603P2X3
- Quantity:
- Payment:
- Shipping:
Inventory:7,196
Please send an inquiry. Send us your inquiry, and we will respond immediately.
Product details
Overview
RCLAMP0561Z.TNT from Semtech is a transient diverting suppressor (TDS) designed for high-energy EOS protection of single 5.6V I/O or power lines in USB, industrial, and IoT interfaces. It delivers ±30kV IEC 61000-4-2 ESD immunity, clamps at 9.8V (IPP = 24A), maintains <20mΩ dynamic resistance, and operates from –40°C to +125°C in a 1.6 × 1.6 mm DFN-6 package.
For engineers reviewing the RCLAMP0561Z.TNT datasheet, pinout, applications, or equivalent options, key selection criteria include clamping voltage stability across temperature, low dynamic resistance under surge, junction capacitance (175 pF @ 22 V), and compatibility with USB Type-C PD bus protection where precise voltage limiting is critical.
Technical Context
The RCLAMP0561Z.TNT uses a surge-rated FET as its primary protection element, activated by a precision trigger circuit that turns on the shunt path when transient voltage exceeds breakdown. Unlike conventional TVS diodes, its clamping voltage remains nearly constant (±0.5V) from IPP = 1A to 40A due to decreasing RDS(on) under surge stress.
It features a functional 3-pin input / 3-pin ground configuration in a monolithic DFN-6 package, with all IN pins (4–6) and GND pins (1–3) required for rated 40A (8/20µs) peak pulse current handling. Its 175 pF junction capacitance at 22V reverse bias supports robust signal integrity in DC-coupled 5.6V bus lines without excessive loading.
Key Specifications
| Parameter | Value and Actual Design Meaning |
|---|---|
| Working Voltage | 5.6 V - Maximum continuous DC operating voltage on protected line; sets upper limit for safe interface integration. |
| Clamping Voltage | 9.8 V @ IPP = 24A (1.2/50µs + 8/20µs combo wave) - Limits transient overvoltage to safe level for downstream 5.6V-rated ICs like USB PD controllers. |
| Peak Pulse Current | 40 A (tp = 8/20µs) - Withstands high-energy surges per IEC 61000-4-5; enables compliance with industrial lightning surge standards. |
| ESD Withstand | ±30 kV contact & air (IEC 61000-4-2) - Provides system-level ESD robustness without external shielding or layout reinforcement. |
| Junction Capacitance | 175 pF @ VR = 22 V, f = 1 MHz - Low enough to avoid signal distortion on moderate-speed DC-biased lines (e.g., load switch inputs, CC/SBU). |
| Dynamic Resistance | 20 mΩ (measured 1A–40A, tp = 8/20µs) - Ensures minimal IR drop during surge, enabling stable clamping independent of current magnitude. |
Pinout & Package
Package: DFN-6, 1.6 mm × 1.6 mm × 0.55 mm, RoHS-compliant, Pb-free, UL 94V-0 molding compound. Exposed thermal pad not required; energy dissipated in silicon FET.
| Pin/Terminal | Circuit Role | Design Meaning |
|---|---|---|
| Pin 1, 2, 3 | GND | Common ground return for surge current; all three must be connected to minimize inductance and achieve full 40A rating. |
| Pin 4, 5, 6 | IN | Protected line input (e.g., VBUS, CC, SBU); parallel connection ensures uniform current sharing and optimal clamping performance. |
Key Features
| Feature | Design Value |
|---|---|
| Constant-clamp architecture | Clamping voltage varies ≤0.5 V across full 1–40 A surge range - eliminates need for derating at high temperatures or currents. |
| FET-based shunt topology | Replaces PN-junction TVS with low-RDS(on) MOSFET - reduces thermal stress and improves reliability under repeated transients. |
| High EFT immunity | ±4 kV per IEC 61000-4-4 (5/50 ns, 100 kHz & 5 kHz bursts) - protects against fast repetitive noise in industrial control environments. |
| Low leakage | 600 nA max @ 5.6 V reverse - prevents battery drain in always-on IoT sensor nodes and portable equipment. |
Applications
| USB Type-C Power Delivery Bus Protection | Industrial Load Switch Input Protection |
|---|---|
|
Use Scenario: Protecting 5.6V VBUS lines in USB-C PD ports against ESD, lightning-induced surges, and connector hot-plug transients. IC Role / Device Role / Timing Role: Transient diverting suppressor placed directly at connector, clamping overvoltage before it reaches PD controller or load switch. Use Value: Maintains 9.8V clamping across –40°C to +125°C, preventing false trips or latch-up in wide-temperature industrial USB-C docks. |
Use Scenario: Safeguarding enable or input pins of industrial-grade load switches (e.g., HS2950P) exposed to field wiring surges. IC Role / Device Role / Timing Role: Front-end EOS protector that limits voltage seen by internal gate oxide of the load switch FET. Use Value: 40A surge rating and 20 mΩ dynamic resistance prevent damage to sensitive gate drivers during 1kV/42Ω IEC 61000-4-5 tests. |
| IoT Sensor Node Power Rail Protection | CC/SBU Line Protection in USB-C Connectors |
|
Use Scenario: Securing 5.6V supply rails in battery-powered remote sensors deployed in electrically noisy factory floors. IC Role / Device Role / Timing Role: Standalone EOS suppressor on main power input, replacing bulkier multi-stage TVS+RC solutions. Use Value: 175 pF capacitance avoids signal integrity issues on low-frequency analog sensor supplies while delivering ±30kV ESD robustness. |
Use Scenario: Protecting Configuration Channel (CC) and Sideband Use (SBU) pins in USB-C receptacles from ESD during cable insertion/removal. IC Role / Device Role / Timing Role: Low-capacitance transient suppressor co-located with connector, handling bidirectional ±5.6V signaling. Use Value: Stable 9.8V clamping ensures CC logic thresholds (typically 0.2–2.0V) remain undisturbed during 30kV contact discharge events. |
Equivalent & Alternatives
The following parts are listed as comparable options for similar transient suppression applications.
| Alternative Part | Technical Difference | Application Difference | Selection Advice |
|---|---|---|---|
| uClamp2411ZA.TCT | Higher working voltage (24 V), higher clamping (27 V @ 24A), lower capacitance (12 pF) | Better suited for 20V USB PD VBUS; unsuitable for 5.6V rails due to risk of premature conduction | Select RCLAMP0561Z.TNT for 5.6V systems requiring tight clamping; uClamp2411ZA.TCT only for ≥20V interfaces. |
| TDS2211P.C | 22 V working voltage, 28 V clamping @ 40A, same DFN-6 package but larger die and higher capacitance (175 pF @ 22 V) | Designed for 22V industrial buses; incompatible with 5.6V logic due to excessive leakage and misaligned breakdown | RCLAMP0561Z.TNT is optimized for 5.6V operation; TDS2211P.C serves higher-voltage applications and is not a drop-in replacement. |
Compared with uClamp2411ZA.TCT and TDS2211P.C, RCLAMP0561Z.TNT uniquely balances low-voltage operation (5.6 V), ultra-stable clamping (9.8 V), and industrial-grade surge handling (40A) in a compact DFN-6 - making it the only validated solution for 5.6V USB-C CC/SBU and IoT power rail protection.
Availability
RCLAMP0561Z.TNT is available at Aetrix Electronics and suitable for USB Type-C PD port design, industrial load switch protection, and battery-powered IoT sensor node development requiring stable component supply, consistent parametric performance, and long-term lifecycle support.
Supply support for RCLAMP0561Z.TNT includes scheduled delivery planning, volume procurement assistance, BOM continuity management, traceable sourcing, and lifecycle availability coordination for OEM customers, industrial embedded developers, connected-device designers, and electronics production programs.
Manufacturer
Semtech Corporation is a U.S.-based fabless semiconductor company specializing in high-performance analog and mixed-signal ICs for precision protection, sensing, and signal integrity.
RCLAMP0561Z.TNT belongs to Semtech's RClamp® family of transient diverting suppressors, engineered specifically for low-voltage, high-reliability interface protection in next-generation USB, industrial, and IoT systems.
FAQ
What is the maximum continuous operating voltage for RCLAMP0561Z.TNT?
The RCLAMP0561Z.TNT has a reverse stand-off voltage (VRWM) of 5.6 V, meaning it is rated for continuous DC operation up to this voltage on the protected line. Exceeding 5.6 V risks premature conduction and accelerated degradation. This specification is confirmed in Semtech's official datasheet under Electrical Characteristics.
Does RCLAMP0561Z.TNT require a thermal pad on the PCB?
No, RCLAMP0561Z.TNT does not require an exposed thermal pad. Its DFN-6 package dissipates surge energy within the silicon FET structure, and Semtech's datasheet explicitly states "no thermal pad is needed." Proper grounding via all three GND pins (1–3) and short, low-inductance traces is sufficient for thermal and electrical performance.
Can RCLAMP0561Z.TNT be used to protect USB SuperSpeed differential pairs?
No, RCLAMP0561Z.TNT is not suitable for USB SuperSpeed (SS) TX/RX lines. Its 175 pF junction capacitance would severely degrade signal integrity at multi-Gbps data rates. For SS lines, Semtech recommends low-capacitance devices like RClamp3371ZC (<0.25 pF); RCLAMP0561Z.TNT is intended for lower-speed, DC-coupled lines such as CC, SBU, or power rails.
How does RCLAMP0561Z.TNT differ from standard TVS diodes in clamping behavior?
RCLAMP0561Z.TNT uses a triggered FET shunt instead of a PN junction, resulting in near-constant clamping voltage (9.8 V ±0.5 V) across its full 1–40 A surge range and –40°C to +125°C temperature span. Standard TVS diodes exhibit linearly rising clamping (VC = VBR + IPP × RDYN), which degrades protection margin at high current or temperature - a limitation RCLAMP0561Z.TNT eliminates.
Is RCLAMP0561Z.TNT compatible with lead-free reflow soldering processes?
Yes, RCLAMP0561Z.TNT is fully compatible with standard lead-free reflow profiles. Its DFN-6 package uses lead-free terminal finish and meets JEDEC J-STD-020 moisture sensitivity level (MSL) requirements. Semtech specifies peak reflow temperature up to 260°C for 30 seconds, aligning with IPC/JEDEC Class 3 guidelines for automotive and industrial assembly.
RCLAMP0561Z.TNT Specifications
- Product attributes
- Attribute value
- Manufacturer:
- Semtech Corporation
- Package/Case:
- 0201 (0603 Metric)
- Series:
- RailClamp®
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Obsolete
- Type:
- Zener
- Unidirectional Channels:
- -
- Bidirectional Channels:
- 1
- Voltage - Reverse Standoff (Typ):
- 5.5V (Max)
- Voltage - Breakdown (Min):
- 6.5V
- Voltage - Clamping (Max) @ Ipp:
- 20V
- Current - Peak Pulse (10/1000µs):
- 2A (8/20µs)
- Power - Peak Pulse:
- 40W
- Power Line Protection:
- No
- Applications:
- HDMI
- Capacitance @ Frequency:
- 0.12pF @ 1MHz
- Operating Temperature:
- -40°C ~ 85°C (TJ)
- Grade:
- -
- Qualification:
- -
- Mounting Type:
- Surface Mount
- Supplier Device Package:
- SGP0603P2X3
RCLAMP0561Z.TNT FAQ
1.How can I place an order for RCLAMP0561Z.TNT through Aetrix?
Please submit a Request for Quotation (RFQ) for RCLAMP0561Z.TNT on Aetrix. Our sales agent will provide a competitive quotation and guide you through the order confirmation once you accept the terms.
2.Are the price and stock information for RCLAMP0561Z.TNT reliable?
The price and inventory of RCLAMP0561Z.TNT are updated periodically and may fluctuate due to market conditions. Stock and pricing data are typically refreshed every 24 hours. Quotation validity for RCLAMP0561Z.TNT is usually 5 days.
3.What payment methods are accepted for RCLAMP0561Z.TNT?
We accept Wire Transfer, PayPal, Credit Card, Western Union, MoneyGram, and Escrow for RCLAMP0561Z.TNT transactions.
Note: Certain payment methods may incur a processing fee.
4.How is shipping managed for RCLAMP0561Z.TNT?
RCLAMP0561Z.TNT orders can be shipped via leading logistics carriers, including DHL, UPS, FedEx, TNT, or Registered Mail.
Once your RCLAMP0561Z.TNT order is processed, you will receive an email with the shipment details and tracking number.
Note: Tracking information may take up to 24 hours to appear. Express delivery typically takes 3–5 business days.
5.How can I obtain technical support or documentation for RCLAMP0561Z.TNT?
For technical support, including RCLAMP0561Z.TNT datasheets, pinout diagrams, or application guidance, please contact our engineering support team. They can provide detailed documentation and assistance for your RCLAMP0561Z.TNT requirements.
6.How does Aetrix verify that RCLAMP0561Z.TNT is sourced from the original manufacturer or authorized distributors?
All RCLAMP0561Z.TNT products on Aetrix are procured from qualified distributors and authorized channels. Our dedicated quality assurance team conducts strict verification, including traceability checks and, if necessary, third-party testing. This ensures that RCLAMP0561Z.TNT meets industry standards.
7.What is the process for return or replacement of RCLAMP0561Z.TNT?
All RCLAMP0561Z.TNT units undergo pre-shipment inspection (PSI). If there is an issue with RCLAMP0561Z.TNT, returns or replacements are accepted under the following conditions:
1.Quantity discrepancies, incorrect items, or visible external defects (such as breakage or corrosion), acknowledged by Aetrix.
2.The issue is reported within 90 days of delivery.
3.The RCLAMP0561Z.TNT part is unused and in its original packaging.
Return procedure for RCLAMP0561Z.TNT:
1.Submit a request within 90 days.
2.Obtain a Return Material Authorization (RMA) from Aetrix.
RCLAMP0561Z.TNT Tags
-
