Semtech Corporation RCLAMP3328P.TZT
- Part No.:
- RCLAMP3328P.TZT
- Manufacturer:
- Semtech Corporation
- Category:
- TVS Diodes
- Package:
- 9-UDFN
- Datasheet:
-
RCLAMP3328P.TZT.pdf
- Description:
- TVS DIODE 3.3VWM 10.5V SGP3810N9
- Quantity:
- Payment:
- Shipping:
Inventory:15,950
Please send an inquiry. Send us your inquiry, and we will respond immediately.
Product details
Overview
RCLAMP3328P.TZT from Semtech is an 8-line low-capacitance ESD protection array designed for high-speed differential interfaces including USB 3.0, HDMI 1.4, and V-By-One. It delivers ±30kV air/±25kV contact IEC 61000-4-2 ESD protection, 0.65pF max I/O-to-ground capacitance, and 0.35Ω typical dynamic resistance in a 3.8 × 1.0 × 0.50 mm SGP3810N9 package.
For engineers reviewing the RCLAMP3328P.TZT datasheet, pinout, applications, or equivalent options, this device is selected for ultra-low signal distortion in >5 GHz data paths, minimal clamping voltage under TLP stress, and flow-through PCB layout compatibility with matched trace lengths for differential pairs.
Technical Context
The RCLAMP3328P.TZT uses silicon-avalanche EPD technology optimized for 3.3 V operation, enabling sub-3 V clamping at 5 A (8/20 µs) per IEC 61000-4-5 and low-leakage reverse standoff of 3.3 V. Its symmetrical bidirectional structure supports both positive and negative ESD transients without polarity constraints.
Designed specifically for high-speed serial links, it integrates eight independent protection channels-four differential pairs-with intra-pair pitch of 0.40 mm and pair-to-pair pitch of 0.50 mm. The flow-through architecture routes I/O pins linearly across the package to preserve impedance continuity and reduce stub length.
Key Specifications
| Parameter | Value and Actual Design Meaning |
|---|---|
| ESD Rating (IEC 61000-4-2) | ±30 kV air, ±25 kV contact - ensures robust handling and system-level immunity in consumer and industrial environments |
| Clamping Voltage (IP = 5 A) | 2.8 V (typ) - limits transient overvoltage to safe levels for 3.3 V interface receivers |
| Junction Capacitance (I/O–GND) | 0.65 pF max at 1 MHz - enables use up to 5+ GHz with negligible insertion loss or signal integrity impact |
| Dynamic Resistance | 0.35 Ω typ (4–16 A TLP) - minimizes voltage overshoot during fast ESD events |
| Operating Voltage | 3.3 V max - matches standard high-speed interface supply rails without derating |
| Package | SGP3810N9 (3.8 × 1.0 × 0.50 mm) - surface-mount, flow-through layout for differential pair routing |
Pinout & Package

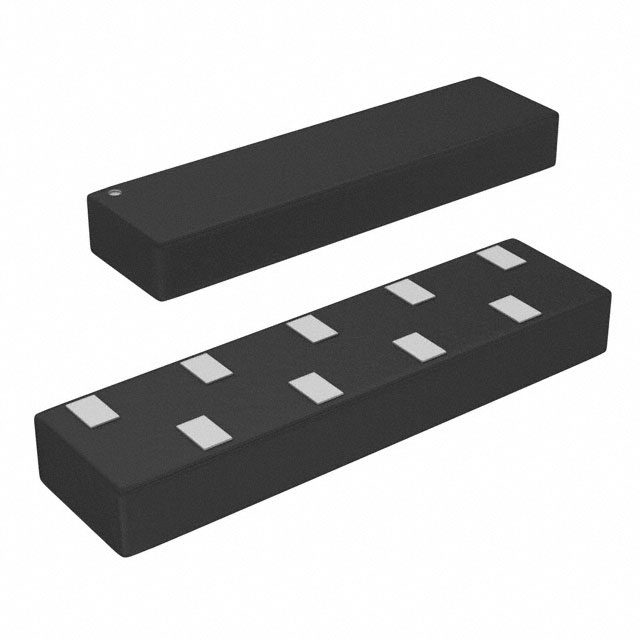

Package: SGP3810N9 - 9-pin, lead-free, halogen-free, RoHS-compliant miniature package with NiPdAu plating; dimensions 3.8 mm × 1.0 mm × 0.50 mm; intra-pair pitch 0.40 mm, pair-to-pair pitch 0.50 mm.
| Pin/Terminal | Circuit Role | Design Meaning |
|---|---|---|
| 1, 2, 4, 5, 7, 8 | I/O Channel (Differential Pair Terminals) | Eight independent ESD protection paths - pins 1–2, 4–5, 7–8 form three differential pairs; pin 3 is GND for first pair, pin 6 is GND for second, pin 9 is GND for third |
| 3, 6, 9 | Ground Return (Per-Pair) | Dedicated local ground terminals per differential pair - enables low-inductance return path and minimizes crosstalk between protected lanes |
Key Features
| Feature | Design Value |
|---|---|
| Flow-through pin arrangement | Linear I/O–GND–I/O layout per pair preserves differential impedance and eliminates stubs in high-speed routing |
| Ultra-low junction capacitance | 0.65 pF max per line - maintains signal fidelity in USB 3.0 SuperSpeed (5 Gbps) and HDMI 1.4 (3.4 Gbps) channels |
| Symmetrical bidirectional clamping | Identical 2.5–2.8 V clamping for ±8 kV ESD pulses - protects AC-coupled and DC-coupled interfaces without polarity biasing |
| Low dynamic resistance | 0.35 Ω typical - reduces peak clamping voltage rise under fast TLP current steps, critical for sensitive SerDes inputs |
| EPD silicon-avalanche technology | Enables stable 3.3 V operation with <1 µA leakage at VR = 3.3 V - avoids DC loading on high-impedance receiver inputs |
Applications
| HDMI 1.4 Interface Protection | USB 3.0 SuperSpeed Line Protection |
|---|---|
Use Scenario: Protecting TMDS clock and data lanes in HDMI 1.4 source/sink devices against ESD during cable hot-plug and handling. IC Role / Device Role / Timing Role: Parallel ESD clamp placed directly at connector, shunting transients before reaching HDMI PHY. Use Value: 0.65 pF capacitance prevents eye diagram degradation at 3.4 Gbps; flow-through layout allows matched-length routing of differential pairs. | Use Scenario: Safeguarding USB 3.0 SuperSpeed TX/RX differential pairs in host controllers and peripheral devices against ±8 kV contact discharge. IC Role / Device Role / Timing Role: Per-lane transient voltage suppressor with dedicated ground returns, placed adjacent to USB connector. Use Value: Sub-3 V clamping and 0.35 Ω dynamic resistance limit overshoot to <100 mV above common-mode level, preserving signal integrity. |
| V-By-One HS Link Protection | eDP (Embedded DisplayPort) Interface |
Use Scenario: ESD hardening of V-By-One HS video links (up to 3.75 Gbps per lane) in industrial displays and automotive infotainment head units. IC Role / Device Role / Timing Role: Eight-channel rail clamp integrated into high-density flex PCB near display connector. Use Value: 3.8 × 1.0 mm footprint accommodates tight spacing; 0.4 mm intra-pair pitch aligns with V-By-One layout rules. | Use Scenario: Protecting eDP main link lanes and AUX channel in laptop GPU-to-display interconnects subject to frequent mechanical stress. IC Role / Device Role / Timing Role: Low-capacitance ESD array mounted at display panel edge connector to suppress coupling from hinge and bezel. Use Value: 2.8 V clamping ensures compliance with eDP v1.4 receiver absolute maximum ratings (–0.5 V to VDD + 0.5 V). |
Equivalent & Alternatives
The following parts are listed as comparable options for similar ESD protection applications.
| Alternative Part | Technical Difference | Application Difference | Selection Advice |
|---|---|---|---|
| TPD8S300APWPR | 8-channel, 0.5 pF max capacitance, 3.6 V working voltage, 0.5 Ω dynamic resistance, 10-pin UQFN | Higher working voltage margin but larger 2.5 × 1.0 mm package; no flow-through pinout | Preferred where higher VRW (3.6 V) is required or where board space permits larger footprint |
| SP3222-04UTG | 4-channel, 0.35 pF max, 3.3 V, 0.5 Ω, 10-pin µDFN; requires two devices for 8-line coverage | Lower capacitance but dual-device solution increases BOM count and layout complexity | Selected when lowest possible capacitance (<0.4 pF) is mandatory for >6 GHz applications |
Compared with TPD8S300APWPR and SP3222-04UTG, the RCLAMP3328P.TZT offers optimal balance of ultra-low capacitance, flow-through routing, and single-package 8-line integration - making it the preferred choice for space-constrained HDMI, USB 3.0, and V-By-One designs requiring minimal signal impact.
Availability
RCLAMP3328P.TZT is available at Aetrix Electronics and suitable for HDMI 1.4, USB 3.0, V-By-One, and eDP interface designs requiring stable component supply, consistent ESD performance across production lots, and long-term lifecycle support.
Supply support for RCLAMP3328P.TZT includes scheduled delivery planning, volume procurement assistance, BOM continuity management, traceable sourcing, and lifecycle availability coordination for OEM customers, industrial embedded developers, connected-device designers, and electronics production programs.
Manufacturer
Semtech Corporation is a U.S.-based semiconductor company specializing in analog and mixed-signal ICs for precision sensing, protection, and signal integrity.
The RCLAMP® product line delivers low-capacitance, high-speed ESD protection solutions engineered specifically for next-generation serial data interfaces operating above 3 Gbps.
FAQ
What is the maximum operating voltage rating for RCLAMP3328P.TZT?
The RCLAMP3328P.TZT has a maximum working voltage (VRWM) of 3.3 V, verified per its electrical characteristics table. This rating ensures reliable operation across standard 3.3 V high-speed interface rails such as HDMI, USB 3.0, and V-By-One without leakage or premature conduction. The device remains fully functional within –40°C to +125°C ambient conditions while maintaining this voltage threshold.
Does RCLAMP3328P.TZT support bidirectional ESD protection?
Yes, RCLAMP3328P.TZT provides symmetrical bidirectional clamping, with identical clamping voltage performance for both positive and negative ESD transients. Measured TLP curves show 2.5 V clamping at +5 A and 2.8 V at –5 A, confirming balanced behavior essential for AC-coupled differential signaling like HDMI and USB 3.0 where polarity is undefined.
What is the significance of the SGP3810N9 package's flow-through design in RCLAMP3328P.TZT?
The flow-through design of the SGP3810N9 package in RCLAMP3328P.TZT positions I/O pins linearly across the device (e.g., Pin 1 → Pin 2 → Pin 3-GND), enabling straight PCB trace routing for differential pairs. This eliminates stubs and discontinuities, preserving characteristic impedance and minimizing reflections - a critical advantage over L-shaped or folded layouts in >3 Gbps applications.
How does RCLAMP3328P.TZT achieve 0.65 pF capacitance while delivering ±25 kV ESD protection?
RCLAMP3328P.TZT achieves 0.65 pF max I/O-to-ground capacitance through Semtech's proprietary low-voltage EPD silicon-avalanche process, which optimizes junction area and doping profiles. This process enables high ESD withstand without increasing parasitic capacitance - unlike conventional TVS diodes - allowing simultaneous compliance with IEC 61000-4-2 Level 4 and 5 GHz signal integrity requirements.
Can RCLAMP3328P.TZT be used in eDP v1.4 applications?
Yes, RCLAMP3328P.TZT is qualified for eDP v1.4 applications. Its 2.8 V clamping voltage at 5 A stays well within the eDP receiver's absolute maximum rating of VDD + 0.5 V (typically ≤ 3.8 V), and its 0.65 pF capacitance meets the ≤ 0.8 pF requirement for main link lanes. Layout guidelines in Semtech's application notes confirm successful integration on eDP flex cables and panel-edge connectors.
RCLAMP3328P.TZT Specifications
- Product attributes
- Attribute value
- Manufacturer:
- Semtech Corporation
- Package/Case:
- 9-UDFN
- Series:
- RailClamp®
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Active
- Type:
- Steering (Rail to Rail)
- Unidirectional Channels:
- 8
- Bidirectional Channels:
- -
- Voltage - Reverse Standoff (Typ):
- 3.3V (Max)
- Voltage - Breakdown (Min):
- 3.8V
- Voltage - Clamping (Max) @ Ipp:
- 10.5V
- Current - Peak Pulse (10/1000µs):
- 5A (8/20µs)
- Power - Peak Pulse:
- 75W
- Power Line Protection:
- Yes
- Applications:
- HDMI
- Capacitance @ Frequency:
- 0.4pF @ 1MHz
- Operating Temperature:
- -55°C ~ 125°C (TJ)
- Grade:
- -
- Qualification:
- -
- Mounting Type:
- Surface Mount
- Supplier Device Package:
- SGP3810N9
RCLAMP3328P.TZT FAQ
1.How can I place an order for RCLAMP3328P.TZT through Aetrix?
Please submit a Request for Quotation (RFQ) for RCLAMP3328P.TZT on Aetrix. Our sales agent will provide a competitive quotation and guide you through the order confirmation once you accept the terms.
2.Are the price and stock information for RCLAMP3328P.TZT reliable?
The price and inventory of RCLAMP3328P.TZT are updated periodically and may fluctuate due to market conditions. Stock and pricing data are typically refreshed every 24 hours. Quotation validity for RCLAMP3328P.TZT is usually 5 days.
3.What payment methods are accepted for RCLAMP3328P.TZT?
We accept Wire Transfer, PayPal, Credit Card, Western Union, MoneyGram, and Escrow for RCLAMP3328P.TZT transactions.
Note: Certain payment methods may incur a processing fee.
4.How is shipping managed for RCLAMP3328P.TZT?
RCLAMP3328P.TZT orders can be shipped via leading logistics carriers, including DHL, UPS, FedEx, TNT, or Registered Mail.
Once your RCLAMP3328P.TZT order is processed, you will receive an email with the shipment details and tracking number.
Note: Tracking information may take up to 24 hours to appear. Express delivery typically takes 3–5 business days.
5.How can I obtain technical support or documentation for RCLAMP3328P.TZT?
For technical support, including RCLAMP3328P.TZT datasheets, pinout diagrams, or application guidance, please contact our engineering support team. They can provide detailed documentation and assistance for your RCLAMP3328P.TZT requirements.
6.How does Aetrix verify that RCLAMP3328P.TZT is sourced from the original manufacturer or authorized distributors?
All RCLAMP3328P.TZT products on Aetrix are procured from qualified distributors and authorized channels. Our dedicated quality assurance team conducts strict verification, including traceability checks and, if necessary, third-party testing. This ensures that RCLAMP3328P.TZT meets industry standards.
7.What is the process for return or replacement of RCLAMP3328P.TZT?
All RCLAMP3328P.TZT units undergo pre-shipment inspection (PSI). If there is an issue with RCLAMP3328P.TZT, returns or replacements are accepted under the following conditions:
1.Quantity discrepancies, incorrect items, or visible external defects (such as breakage or corrosion), acknowledged by Aetrix.
2.The issue is reported within 90 days of delivery.
3.The RCLAMP3328P.TZT part is unused and in its original packaging.
Return procedure for RCLAMP3328P.TZT:
1.Submit a request within 90 days.
2.Obtain a Return Material Authorization (RMA) from Aetrix.
RCLAMP3328P.TZT Tags
-
ESD9B5.0ST5G
onsemi
-
DESD3V3E1BL-7B
Diodes Incorporated
-
ESD5Z3.3T1G
onsemi
-
D5V0H1B2LP-7B
Diodes Incorporated
-
D5V0P1B2LP-7B
Diodes Incorporated
-
DESD5V0U1BA-7
Diodes Incorporated
-
ESD5Z5.0T1G
onsemi
-
DESD5V0U1BB-7
Diodes Incorporated
-
D12V0L1B2LP-7B
Diodes Incorporated
-
PESD2V0Y1BSFYL
Nexperia USA Inc.
-
DF2S5M4CT,L3F
Toshiba Semiconductor and Storage
-
