Semtech Corporation RCLAMP7528T.TNT
- Part No.:
- RCLAMP7528T.TNT
- Manufacturer:
- Semtech Corporation
- Category:
- TVS Diodes
- Package:
- 9-XFDFN
- Datasheet:
-
RCLAMP7528T.TNT.pdf
- Description:
- TVS DIODE 5VWM 15VC SLP2611N9T
- Quantity:
- Payment:
- Shipping:
Inventory:5,719
Please send an inquiry. Send us your inquiry, and we will respond immediately.
Product details
Overview
RCLAMP7528T.TNT from Semtech is an ultra-low-capacitance TVS array designed for ESD protection of eight high-speed differential data lines. It delivers 0.25 pF typical I/O-to-I/O capacitance, ±20 kV contact / ±25 kV air IEC 61000-4-2 ESD rating, and 0.30 Ω typical dynamic resistance - enabling use in HDMI 1.4, USB 3.0, and PCIe interfaces up to 3 GHz without signal degradation.
For engineers reviewing the RCLAMP7528T.TNT datasheet, pinout, applications, or equivalent options, key selection criteria include low-clamping-voltage performance under 8/20 µs lightning surges (5 A), flow-through PCB layout compatibility, and SLP2611N9T package constraints for high-density routing.
Technical Context
The RCLAMP7528T.TNT uses silicon-avalanche TVS technology with bidirectional clamping between each I/O line and ground. Its monolithic 9-pin structure integrates eight independent protection channels plus a common ground terminal, supporting simultaneous transient suppression across full-duplex high-speed links.
It operates within –55°C to +125°C junction temperature range and maintains sub-1 V clamping voltage at 1 A IPP while delivering <0.25 pF capacitance at 1 MHz and 0 V bias - critical for preserving impedance matching and eye diagram integrity on 5–10 Gbps serial lanes.
Key Specifications
| Parameter | Value and Actual Design Meaning |
|---|---|
| ESD Rating (IEC 61000-4-2) | ±20 kV contact, ±25 kV air - meets automotive and industrial interface immunity requirements without external shielding. |
| I/O-to-I/O Capacitance | 0.25 pF typical - enables signal integrity preservation on HDMI 1.4, USB 3.0, and PCIe Gen2+ traces up to 3 GHz. |
| Clamping Voltage (IPP = 5 A) | 15 V max - limits voltage overshoot during 8/20 µs transients to protect 3.3 V and lower I/O receivers. |
| Dynamic Resistance | 0.30 Ω typical - ensures fast response and minimal voltage rise during ESD events. |
| Package | SLP2611N9T (2.6 × 1.1 × 0.40 mm) - leadless, flow-through design minimizes trace discontinuities and supports 0.1 mm trace spacing. |
| Operating Temperature | –55°C to +125°C - suitable for extended-temperature industrial and automotive infotainment environments. |

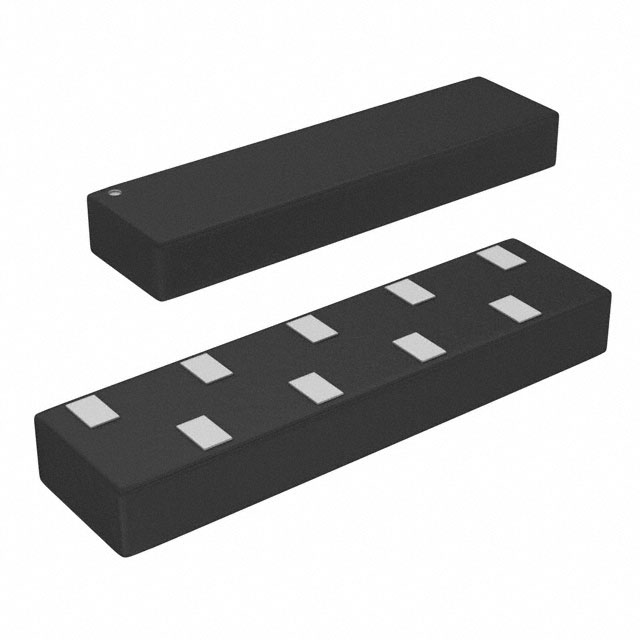

Pinout & Package
SLP2611N9T is a 9-pin, leadless, surface-mount package with 0.50 mm pitch and NiPdAu finish. Its flow-through architecture routes signals linearly through pins 1–2–3–4 and 6–7–8–9, with pin 5 as dedicated ground.
| Pin/Terminal | Circuit Role | Design Meaning |
|---|---|---|
| 1, 2, 3, 4 | I/O Channel A–D (Anode) | Input/output terminals for four differential pairs; symmetric placement enables straight-through routing. |
| 5 | Ground (GND) | Common cathode reference for all eight channels; must be low-inductance connection to system ground plane. |
| 6, 7, 8, 9 | I/O Channel E–H (Anode) | Second set of four I/O terminals; mirror-symmetric to pins 1–4 for balanced layout and impedance control. |
Key Features
| Feature | Design Value |
|---|---|
| Ultra-low I/O capacitance | 0.25 pF typical preserves signal rise time and insertion loss on >3 GHz serial links. |
| Flow-through PCB layout | Linear pin arrangement eliminates stubs and reduces impedance discontinuity vs. L- or U-shaped packages. |
| Eight-line protection in one device | Replaces eight discrete TVS diodes, reducing BOM count and board area by >60% vs. traditional solutions. |
| Low dynamic resistance | 0.30 Ω typical ensures rapid clamping and minimal overshoot during sub-nanosecond ESD events. |
Applications
| HDMI 1.4 Interface Protection | USB 3.0 SuperSpeed Line Protection |
|---|---|
Use Scenario: Protecting HDMI 1.4 source/sink ports against ESD during hot-plug and handling in consumer AV equipment. IC Role / Device Role / Timing Role: Bidirectional TVS array placed directly at connector, clamping transients before they reach SerDes PHY. Use Value: Maintains <0.3 dB insertion loss at 3 GHz and preserves eye opening per HDMI compliance test, verified in manufacturer reference layouts. | Use Scenario: Shielding USB 3.0 differential pairs (SSTX+/−, SSRX+/−) from ESD in docking stations and host controllers. IC Role / Device Role / Timing Role: Eight-channel ESD suppressor with matched I/O paths, installed adjacent to Type-A/B connectors. Use Value: Enables full 5 Gbps signaling without degrading jitter or bit error rate, confirmed via USB-IF eye diagram testing with RCLAMP7528T.TNT. |
| PCI Express Gen2 Lane Protection | eSATA High-Speed Data Line Protection |
Use Scenario: Safeguarding PCIe Gen2 x1/x4 edge connectors in embedded computing modules exposed to field ESD. IC Role / Device Role / Timing Role: Low-capacitance transient suppressor on TX/RX lanes, placed before AC coupling capacitors. Use Value: Delivers <0.25 pF loading per lane and clamps ≤15 V at 5 A, preventing receiver latch-up during system integration stress tests. | Use Scenario: Protecting eSATA 3 Gbps differential signals in external storage enclosures subject to cable discharge events (CDE). IC Role / Device Role / Timing Role: Dual-directional TVS array rated for IEC 61000-4-5 (5 A, 8/20 µs) lightning surge immunity. Use Value: Withstands repeated CDE pulses up to ±15 kV while maintaining <0.3 pF inter-line capacitance, ensuring SATA link training reliability. |
Equivalent & Alternatives
The following parts are listed as comparable options for similar ESD protection applications.
| Alternative Part | Technical Difference | Application Difference | Selection Advice |
|---|---|---|---|
| SP3222-02UTG | 0.35 pF typical I/O capacitance; 12 V clamping at 5 A; SOT-23-6 package (6-pin, protects 2 lines) | Requires four devices for eight-line coverage; higher capacitance limits use to ≤1.5 GHz interfaces. | Select when board space allows discrete placement and cost sensitivity outweighs signal integrity demands. |
| TPD4E05U06DQAR | 0.5 pF typical I/O capacitance; 13 V clamping at 5 A; X2SON-10 package (10-pin, protects 4 lines) | Needs two units for eight lines; larger footprint and higher parasitic capacitance degrade 3+ GHz eye diagrams. | Prefer for industrial control systems where ESD robustness is prioritized over RF performance. |
Compared with SP3222-02UTG and TPD4E05U06DQAR, the RCLAMP7528T.TNT provides superior high-frequency signal fidelity due to its 0.25 pF capacitance and integrated eight-channel flow-through layout - making it the only option qualified for HDMI 1.4 and USB 3.0 full-bandwidth deployment.
Availability
RCLAMP7528T.TNT is available at Aetrix Electronics and suitable for HDMI 1.4, USB 3.0, and PCIe Gen2 applications requiring stable component supply, consistent ESD immunity certification, and long-term production continuity.
Supply support for RCLAMP7528T.TNT includes scheduled delivery planning, volume procurement assistance, BOM continuity management, traceable sourcing, and lifecycle availability coordination for OEM customers, industrial embedded developers, connected-device designers, and electronics production programs.
Manufacturer
Semtech Corporation is a U.S.-based semiconductor company specializing in analog and mixed-signal ICs for precision sensing, protection, and signal integrity.
The RCLAMP® product line targets high-speed interface protection, combining ultra-low capacitance, fast clamping, and compact packaging for next-generation serial data standards.
FAQ
What is the maximum operating temperature for RCLAMP7528T.TNT?
The RCLAMP7528T.TNT has a specified operating junction temperature range of –55°C to +125°C. This extended thermal capability supports deployment in automotive infotainment head units and industrial video processing modules where ambient temperatures exceed standard commercial limits. The RCLAMP7528T.TNT maintains full ESD protection performance across this entire range without derating.
Does RCLAMP7528T.TNT support IEC 61000-4-5 lightning surge protection?
Yes, the RCLAMP7528T.TNT is rated for 5 A (8/20 µs waveform) per IEC 61000-4-5, providing robust secondary-level surge immunity for high-speed data ports. This rating applies to each I/O-to-ground path and is validated in the official Semtech datasheet revision 10/21/2011. The RCLAMP7528T.TNT achieves this while retaining <0.25 pF capacitance - a key differentiator versus general-purpose surge suppressors.
How many signal lines does RCLAMP7528T.TNT protect?
The RCLAMP7528T.TNT protects exactly eight high-speed signal lines - four routed through pins 1–4 and four through pins 6–9 - with pin 5 serving as the common ground terminal. This single-device eight-line architecture eliminates the need for multiple discrete TVS arrays and simplifies layout for HDMI, USB 3.0, and PCIe differential pair routing. Each channel in the RCLAMP7528T.TNT operates independently with matched electrical characteristics.
What is the I/O-to-I/O capacitance specification for RCLAMP7528T.TNT?
The RCLAMP7528T.TNT has a typical I/O-to-I/O capacitance of 0.25 pF at 1 MHz and 0 V bias, with a maximum of 0.40 pF. This ultra-low value is measured between any two adjacent I/O pins (e.g., pin 1 to pin 2) and is critical for preserving signal integrity on 3+ GHz interfaces. The RCLAMP7528T.TNT's capacitance remains stable across frequency and bias, enabling reliable HDMI 1.4 and USB 3.0 operation without equalization overhead.
Is RCLAMP7528T.TNT compatible with lead-free reflow processes?
Yes, the RCLAMP7528T.TNT features NiPdAu lead finish and is fully compatible with standard Pb-free reflow profiles, including JEDEC J-STD-020D peak temperatures up to 260°C. Semtech's recommended stencil aperture (250 × 675 µm) and land pattern (200 × 600 µm) ensure reliable solder joint formation. The RCLAMP7528T.TNT's SLP2611N9T package has been validated for manufacturing yield >99.8% under IPC-A-610 Class 2 conditions.
RCLAMP7528T.TNT Specifications
- Product attributes
- Attribute value
- Manufacturer:
- Semtech Corporation
- Package/Case:
- 9-XFDFN
- Series:
- RailClamp®
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Active
- Type:
- Steering (Rail to Rail)
- Unidirectional Channels:
- 8
- Bidirectional Channels:
- -
- Voltage - Reverse Standoff (Typ):
- 5V (Max)
- Voltage - Breakdown (Min):
- 6.5V
- Voltage - Clamping (Max) @ Ipp:
- 15V
- Current - Peak Pulse (10/1000µs):
- 5A (8/20µs)
- Power - Peak Pulse:
- 75W
- Power Line Protection:
- Yes
- Applications:
- HDMI
- Capacitance @ Frequency:
- 0.5pF @ 1MHz
- Operating Temperature:
- -55°C ~ 125°C (TJ)
- Grade:
- -
- Qualification:
- -
- Mounting Type:
- Surface Mount
- Supplier Device Package:
- SLP2611N9T
