Overview

ZXTDAM832TA from Diodes Incorporated (formerly Zetex) is a dual NPN low-saturation bipolar transistor in a 3mm × 2mm MLP package, rated for V_CEO = 15 V, I_C = 4.5 A continuous, and V_CE(sat) = 100 mV @ 1 A. It delivers ultra-low on-state losses and supports high-current switching in compact DC-DC converter FET drivers and motor control stages.

For engineers reviewing the ZXTDAM832TA datasheet, ZXTDAM832TA pinout, ZXTDAM832TA application, or ZXTDAM832TA equivalent, key selection criteria include dual-die thermal coupling behavior, IC/IB-dependent saturation voltage curves, h_FE characterization up to 12 A, and MLP832 land pattern compliance for 0.9 mm profile PCBs.

Technical Context

This dual NPN transistor integrates two independent silicon die in a single thermally optimized MLP832 package with shared exposed thermal pad. Each die supports independent base drive and exhibits matched V_CE(sat) and h_FE across temperature (–55°C to +150°C), enabling synchronous or interleaved switching topologies without cross-conduction risk.

Thermal resistance varies significantly with PCB copper area and weight: R_θJA ranges from 41.7°C/W (85 cm², 2 oz Cu) to 125°C/W (8 cm², 1 oz Cu), reflecting its dependence on symmetric copper partitioning per die - critical for accurate power derating in dual-active operation.

Key Specifications

Pinout & Package

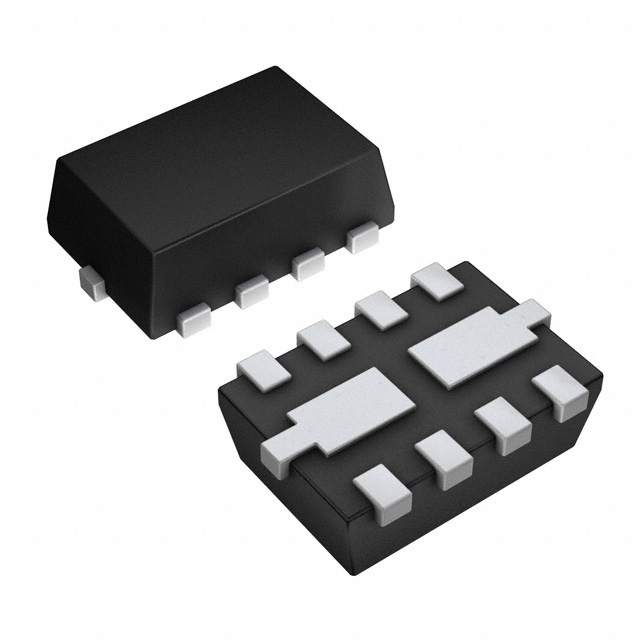

Package: MLP832 (3 mm × 2 mm × 0.9 mm nominal height), thermally enhanced micro-leaded package with exposed metal pad for bottom-side heat transfer. Pin 1–3 assigned to first NPN transistor; pins 4–6 assigned to second NPN transistor; pin 7 is common emitter connection for both transistors; pin 8 is thermal pad (internally connected to emitter potential).

Key Features

Applications

Equivalent & Alternatives

The following parts are listed as comparable options for similar dual NPN low-saturation switching transistor applications.

Compared with DMT3005LSDQ-7 and ZXTDM832TA, ZXTDAM832TA uniquely balances 15 V V_CEO, 100 mV saturation, and MLP832 thermal performance - making it optimal for mid-voltage DC-DC and motor control where both voltage margin and board-area efficiency matter.

Availability

ZXTDAM832TA is available at Aetrix Electronics and suitable for DC–DC converter FET drivers, USB-C charging circuits, and industrial power switches requiring stable component supply and consistent MLP832 package compatibility.

Supply support for ZXTDAM832TA includes scheduled delivery planning, volume procurement assistance, BOM continuity management, traceable sourcing, and lifecycle availability coordination for OEM customers, industrial embedded developers, connected-device designers, and electronics production programs.

Manufacturer

Diodes Incorporated acquired Zetex plc in 2008 and maintains its high-performance analog and discrete product lines, emphasizing precision, efficiency, and miniaturization for power management and signal conditioning.

ZXTDAM832TA belongs to the Zetex MPPS™ (Miniature Package Power Solutions) family, engineered specifically for space-constrained, high-efficiency power switching applications where thermal density and PCB real estate are critical constraints.

FAQ

What is the maximum allowable base current for reliable operation?

The absolute maximum base current is 1000 mA per transistor, but design practice limits IB to ≤100 mA for continuous operation to avoid bond-wire overheating and h_FE degradation. At I_C = 4.5 A, an IB of 50–100 mA ensures full saturation while maintaining thermal safety margin across –55°C to +150°C.

Can pins 3 and 6 be used independently, or must they share pin 7?

Pins 3 (Emitter 1) and 6 (Emitter 2) are internally bonded to pin 7 (Common Emitter) and cannot be separated; all three connect to the same metallization layer. Using them independently would require cutting the internal bond wire - not supported and voids reliability guarantees.

Is the thermal pad (pin 8) electrically isolated?

No - the thermal pad is electrically connected to the emitter nodes (pins 3, 6, and 7) and must be soldered to a PCB copper pour tied to the system emitter/ground reference. Isolating it causes thermal runaway and violates JEDEC MLP832 mounting requirements.

How does dual-die thermal interaction affect Safe Operating Area (SOA)?

When both dies operate simultaneously at equal power, R_θJA degrades from 83.3°C/W (single die) to 41.7°C/W (dual active), shifting the DC SOA boundary downward. The published SOA curve assumes single-die operation; dual-die use requires applying the 41.7°C/W derating factor to avoid exceeding T_j = 150°C.
