Alpha & Omega Semiconductor Inc. AOZ8102DI
- Part No.:
- AOZ8102DI
- Manufacturer:
- Alpha & Omega Semiconductor Inc.
- Category:
- TVS Diodes
- Package:
- 6-UFDFN Exposed Pad
- Datasheet:
-
AOZ8102DI.pdf
- Description:
- TVS DIODE 5VWM 18VC 6DFN
- Quantity:
- Payment:

- Shipping:

Inventory:5,690
Please send an inquiry. Send us your inquiry, and we will respond immediately.
Product details
Overview
AOZ8102DI from Alpha & Omega Semiconductor is an ultra-low capacitance TVS diode array designed to protect four high-speed data lines (e.g., USB 2.0 D+/D−, VBUS) against ESD and lightning transients. It features 1.0 pF I/O-to-GND capacitance, ±20 kV IEC 61000-4-2 contact/air discharge rating, 5.5 V working peak reverse voltage, and a DFN-6 1.6 mm × 1.6 mm RoHS-compliant package for space-constrained interfaces.
For engineers reviewing the AOZ8102DI datasheet, pinout, applications, or equivalent options, key selection criteria include clamping voltage at 1 A (11.0 V), low leakage (<1.0 µA at 5 V), channel capacitance matching (±0.03 pF), and compatibility with 3.3 V–5 V biasing in video, Ethernet, and display signal paths.
Technical Context
The AOZ8102DI integrates eight steering diodes and one bidirectional TVS in a single DFN-6 package, enabling simultaneous protection of four I/O lines with shared VP (pin 5) and GND (exposed pad). Its architecture routes transient energy to VP or ground via low-capacitance PN junctions, with clamping validated under 100 ns TLP pulses up to 12 A.
It operates across −40°C to +85°C ambient, supports both lead-free and SnPb reflow, and maintains stable electrical performance due to tight capacitance matching (ΔCj ≤ 0.03 pF) and low forward voltage (0.70–0.85 V at 15 mA), critical for preserving signal integrity on 480 Mbps USB 2.0 links.
Key Specifications
| Parameter | Value and Actual Design Meaning |
|---|---|
| Working Peak Reverse Voltage (VRWM) | 5.5 V - Ensures reliable operation on 5 V data/power lines without leakage-induced signal distortion. |
| Clamping Voltage (VCL) | 11.0 V @ 1 A - Limits transient overvoltage to safe levels for downstream USB 2.0 PHY ICs. |
| I/O-to-GND Capacitance (CJ) | 1.0–1.17 pF @ 0 V, 1 MHz - Preserves high-frequency signal fidelity on >480 Mbps interfaces. |
| ESD Rating (IEC 61000-4-2) | ±20 kV air/contact - Meets Level 4 immunity requirements for consumer and industrial end equipment. |
| Peak Pulse Current (IPP) | 3 A @ 8/20 µs - Withstands lightning-surge events per IEC 61000-4-5 in Ethernet and DVI ports. |
| Forward Voltage (VF) | 0.70–0.85 V @ 15 mA - Minimizes DC power loss and thermal stress during sustained conduction. |
| Operating Temperature Range | −40°C to +85°C - Supports deployment in notebooks, monitors, and industrial displays without derating. |
Pinout & Package

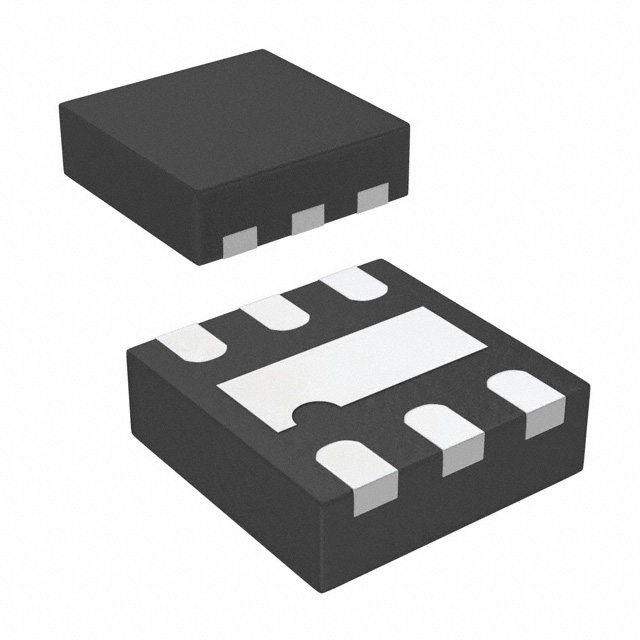

AOZ8102DI uses a 1.6 mm × 1.6 mm DFN-6 package with exposed thermal pad (pin 6 = GND) and pin 1 identification dot. The compact footprint enables placement directly at I/O connectors to minimize PCB trace inductance and suppress ESD coupling.
| Pin/Terminal | Circuit Role | Design Meaning |
|---|---|---|
| Pin 1 (CH1) | Protected I/O Channel 1 | Steers positive/negative transients to VP or GND; connects to USB D+ or DVI TMDS+. |
| Pin 2 (NC) | No Connect | Internally unconnected; must be left floating or tied to GND per layout guidelines. |
| Pin 3 (CH2) | Protected I/O Channel 2 | Second protected line; pairs with CH1 for differential signaling (e.g., USB D−). |
| Pin 4 (CH4) | Protected I/O Channel 4 | Supports fourth data line (e.g., DVI clock or Ethernet pair); shares clamping path with CH1–CH3. |
| Pin 5 (VP) | Positive Clamp Reference | Bias input for steering diodes; typically connected to 3.3 V or 5 V rail to set clamping threshold. |
| Pin 6 (GND) | Thermal & Signal Ground | Exposed pad; provides low-inductance return path and thermal dissipation for surge energy. |
Key Features
| Feature | Design Value |
|---|---|
| Four-channel I/O protection | Single device safeguards two differential pairs (e.g., USB 2.0 D+/D− and VBUS), reducing BOM count and board area. |
| Ultra-low 1.0 pF I/O–GND capacitance | Enables use on 480 Mbps USB 2.0 and 1.65 Gbps DVI links without measurable insertion loss or signal rise-time degradation. |
| ±20 kV ESD immunity (IEC 61000-4-2) | Eliminates need for secondary ESD stages in end-product compliance testing for CE/FCC certification. |
| Tight channel capacitance matching (≤0.03 pF) | Maintains differential signal skew <1 ps across protected lanes, critical for HDMI/DVI eye diagram integrity. |
| DFN-6 1.6 mm × 1.6 mm footprint | Reduces PCB real estate by >60% vs. SOIC-8 alternatives while improving thermal response via exposed GND pad. |
Applications
| USB 2.0 Interface Protection | DVI/HDMI Video Link Protection |
|---|---|
Use Scenario: Protecting upstream/downstream USB 2.0 ports on notebook motherboards and docking stations from user-handling ESD. IC Role / Device Role / Timing Role: Transient voltage suppressor array clamping D+, D−, and VBUS lines to VP or GND during ±8 kV contact discharge. Use Value: Prevents PHY latch-up and data corruption while maintaining <1.0 pF loading for full-speed 480 Mbps signaling. | Use Scenario: Shielding TMDS clock and data channels on flat-panel display controllers and graphics cards from ESD-induced pixel errors. IC Role / Device Role / Timing Role: Low-capacitance steering diode array routing transients away from 1.65 Gbps differential video signals. Use Value: Sustains DVI compliance margin with <0.5 dB insertion loss at 1.65 GHz and preserves eye opening per VESA standards. |
| Ethernet PHY Port Protection | Notebook I/O Connector Hardening |
Use Scenario: Safeguarding 10/100/1000BASE-T RJ45 magnetics interfaces against lightning-induced surges in enterprise docking stations. IC Role / Device Role / Timing Role: Bidirectional TVS suppressing 3 A (8/20 µs) surges per IEC 61000-4-5 while limiting clamping to 14.0 V at 5 A. Use Value: Enables single-stage protection without series impedance, avoiding signal jitter and maintaining IEEE 802.3 timing budgets. | Use Scenario: Consolidating ESD protection for multiple external I/Os (USB, audio, SIM card) on ultraportable notebook edge connectors. IC Role / Device Role / Timing Role: Multi-channel TVS array sharing VP bias and GND return to minimize component count and layout complexity. Use Value: Reduces total protection solution size by 40% vs. discrete diodes and meets IEC 61000-4-2 Level 4 across all ports with one footprint. |
Equivalent & Alternatives
The following parts are listed as comparable options for similar TVS diode array applications.
| Alternative Part | Technical Difference | Application Difference | Selection Advice |
|---|---|---|---|
| SMA6J5.0A | Single-channel, 5.0 V unidirectional TVS; 600 W peak power; 6.5 pF capacitance. | Requires four separate devices for four-line protection; unsuitable for high-speed data due to high capacitance. | Select only for low-frequency power rail protection where capacitance is not critical. |
| SP1003-04UTG | Quad-channel, 5.0 V bi-directional TVS; 0.3 pF typical I/O–GND capacitance; ±30 kV ESD rating. | Lower clamping voltage (9.5 V @ 1 A) but higher cost; requires tighter layout control for sub-0.3 pF performance. | Prefer when >±30 kV ESD margin or <0.5 pF loading is mandatory for 5 Gbps+ interfaces. |
Compared with SMA6J5.0A and SP1003-04UTG, the AOZ8102DI delivers optimal balance of 1.0 pF capacitance, ±20 kV ESD robustness, and quad-channel integration in a 1.6 mm × 1.6 mm DFN, making it ideal for cost-sensitive, space-constrained USB 2.0 and DVI designs.
Availability
AOZ8102DI is available at Aetrix Electronics and suitable for USB 2.0 interface protection, DVI video link hardening, and notebook I/O connector ESD mitigation requiring stable component supply and long-term lifecycle support.
Supply support for AOZ8102DI includes scheduled delivery planning, volume procurement assistance, BOM continuity management, traceable sourcing, and lifecycle availability coordination for OEM customers, industrial embedded developers, connected-device designers, and electronics production programs.
Manufacturer
Alpha & Omega Semiconductor (AOS) is a fabless power semiconductor company specializing in MOSFETs, TVS diodes, and power ICs for efficiency-critical applications.
The AOZ8102DI belongs to AOS's ultra-low-capacitance TVS array product line, engineered specifically for ESD and surge protection of high-speed digital interfaces including USB, HDMI, DVI, and Ethernet without compromising signal integrity.
FAQ
What is the maximum clamping voltage of the AOZ8102DI at 1 A peak pulse current?
The AOZ8102DI exhibits a maximum clamping voltage of 11.0 V for positive transients and −2.50 V for negative transients at 1 A peak pulse current (tp = 100 ns), measured between any I/O pin and ground. This ensures downstream USB 2.0 PHY ICs remain within absolute maximum ratings during ESD events. The AOZ8102DI's low clamping voltage directly contributes to system-level IEC 61000-4-2 Level 4 compliance.
Can the AOZ8102DI be used to protect 3.3 V logic interfaces?
Yes, the AOZ8102DI supports 3.3 V biasing on its VP pin (pin 5), enabling effective clamping for 3.3 V I/O systems such as mobile display interfaces and embedded controllers. Electrical characteristics-including 1.0 pF capacitance and 11.0 V clamping at 1 A-are specified with VP biased to 3.3 V. The AOZ8102DI's VRWM of 5.5 V ensures no conduction during normal 3.3 V operation.
How does the AOZ8102DI achieve ultra-low 1.0 pF capacitance while protecting four channels?
The AOZ8102DI achieves 1.0 pF I/O-to-GND capacitance through optimized silicon geometry and low-parasitic DFN-6 packaging with minimal die-to-pad interconnect length. Its internal steering diode structure uses shallow-junction design and precise doping profiles to reduce junction capacitance without sacrificing breakdown uniformity. The AOZ8102DI's capacitance is verified per JEDEC JESD22-A114 with 1 MHz sine wave at 0 V bias.
Is the AOZ8102DI compatible with lead-free reflow soldering processes?
Yes, the AOZ8102DI is fully compatible with lead-free reflow soldering, meeting JEDEC J-STD-020D moisture sensitivity level 1 and supporting peak temperatures up to 260°C. Its RoHS-compliant DFN-6 package and halogen-free molding compound ensure reliability under IPC-A-610 Class 2/3 assembly conditions. The AOZ8102DI's qualification includes 1000-cycle temperature cycling (−65°C to +150°C) and unbiased HAST.
What is the role of the NC pin (pin 2) in the AOZ8102DI pinout?
Pin 2 of the AOZ8102DI is a no-connect terminal-internally unconnected and electrically isolated from all active circuitry. It must be left floating or optionally tied to ground to improve mechanical stability during PCB assembly; neither configuration affects electrical performance. The AOZ8102DI's functionality remains identical regardless of pin 2's state, as confirmed in Alpha & Omega's Rev. 1.4 datasheet Figure 2 (Pin Configuration).
AOZ8102DI Specifications
- Product attributes
- Attribute value
- Manufacturer:
- Alpha & Omega Semiconductor Inc.
- Package/Case:
- 6-UFDFN Exposed Pad
- Series:
- -
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Not For New Designs
- Type:
- Steering (Rail to Rail)
- Unidirectional Channels:
- 4
- Bidirectional Channels:
- -
- Voltage - Reverse Standoff (Typ):
- 5V
- Voltage - Breakdown (Min):
- 6.6V
- Voltage - Clamping (Max) @ Ipp:
- 18V
- Current - Peak Pulse (10/1000µs):
- 5A (8/20µs)
- Power - Peak Pulse:
- -
- Power Line Protection:
- Yes
- Applications:
- Ethernet
- Capacitance @ Frequency:
- -
- Operating Temperature:
- -40°C ~ 85°C (TJ)
- Grade:
- -
- Qualification:
- -
- Mounting Type:
- Surface Mount
- Supplier Device Package:
- 6-DFN (1.6x1.6)
